Motic DM143 Digital Stereo Microscope

$ 1350.00

List Price: $1,375.00

Starting at: $1,350.00

SKU: DM143

Availability: In stock

  • Choice of two configurations
  • 3.0MP/Large stand (shown) or 2.0MP/Compact stand
  • 10x-40x zoom stereo range
  • WF10x eyepieces
  • Motic Images software
  • Calibration slide for accuracy
  • Halogen Illumination
  • PC/Mac Compatible
  • 5 year warranty

Price as configured: $0.00

Select package options

Click on to learn more about the option * signifies required items

DM-143-FBGG-C 3.0MP/Large Stand Digital Stereo Microscope   $1,350.00
  • $160.00
  • $160.00
  • $160.00
  • $160.00
  • $125.00

Included in Bundle

Microscope: DM-143-FBGG-C 3.0MP/Large Stand Digital Stereo Microscope

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

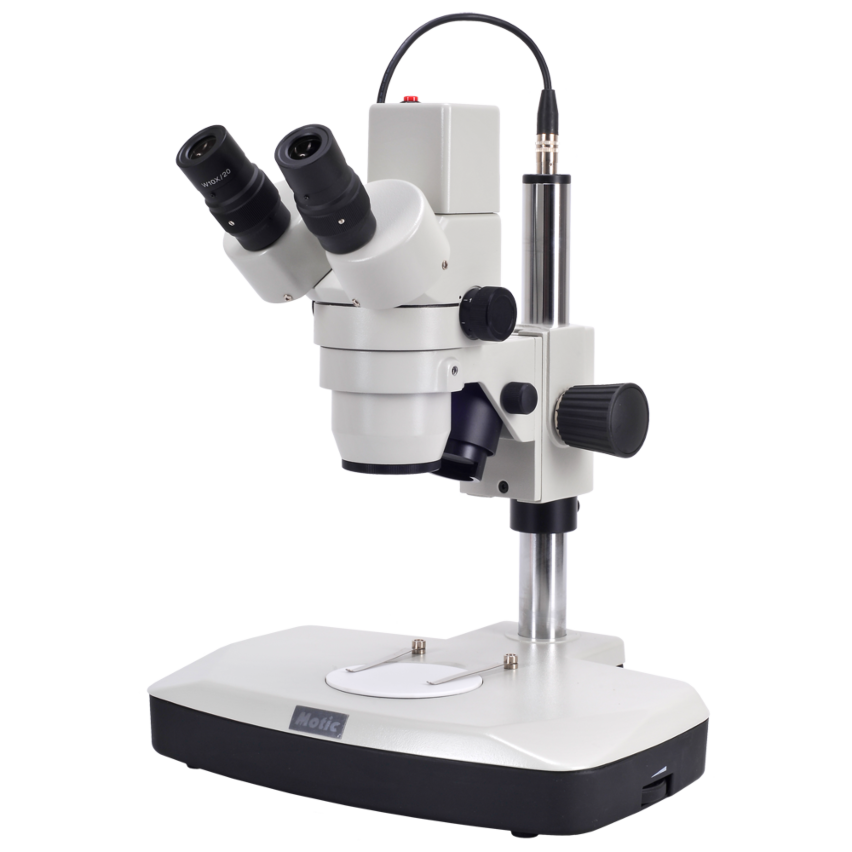

  • Motic DM143 Digital Stereo Microscope
  • Motic DM143 Digital Stereo Microscope Side
Description

Summary

The DM143 is offered in two configurations: N2GG - 2.0MP camera and a space-saving compact stand or, the significantly more popular FBGG - 3.0MP and large stand. Both microscopes include 10x-40x zoom magnification. In our opinion, the 3.1 megapixel version, which includes a larger than typical 1/2" sensor, offers a sensible combination of high quality resolution and optics combined with robust software and an affordable price. 5 year warranty.

Microscope

The microscope includes two WF10x/20mm eyepieces with diopter controls for individual eye focusing and a 1x-4x Greenough zoom system. Combined, the magnification range is 10x-40x. Top (incident) and bottom (transmitted) illumination is powered by 12V 20W halogen with dimming controls. 110v/220V universal voltage. There is a choice of two stands as follows:

FBGG: 3.0MP resolution with a large footprint stand, reversible and frosted stage plates and clips. This is by far our most popular option.
N2GG: 2.0MP resolution with a compact space-saving stand, reversible and frosted stage plates and clips.

Both stands feature an integrated digital camera with a built-in 1/2" CMOS sensor for significantly better image quality than the 1/3" typically found in competing microscope cameras. Software is the well-established Motic Images PLus 2.0ML for Windows and Motic Images Plus 2.0 for Macintosh.

Software

The Motic Images Plus 2.0 software is a powerful software suite that has impressed us. Users will find a familiar interface matched to either Windows or Macintosh OSX operating environments. The software allows for automatic object or cell counting, image and data capture, easy export of reports to spreadsheets , measurements, counting and even MP3 functionality so you can play music while you are working.

Add narration or other sound clips to any image using this software this digital microscope turns into a true multimedia apparatus! Features include Measurement, Image Comparison for forensic or other applications, Editing and Enhancements, Counting and Auto Segmentation that facilitates counting. In our opinion, these are are unequaled features that are not found in competing products at this price point.

Software Features

Measurement: Motic Measurements are easy to use and accurate owing to the quick, calibration process using Motic's certified calibration slide. Possible measurements include: Line, Circle, Rectangle, 3-Point Circle, 3-Point Arc, Polygon, Ellipse, Angle as well as Irregular shapes. All of the results are stored in a Measurement Table which can be exported to Excel with one click.
Image Comparison: A useful feature includes image comparison that enables users to compare differences in specimens over time or side-by-side. Different methods can be used to compare including: 'Subtract'; 'Difference'; Multiply'; Proportional.
Image Enhancements: With several filters, including a customized filter, Motic Images Plus 2.0 allows the user to edit, enhance or change a captured image. Text, Stamp and Paint tools turn any captured image into a finished project or evaluation for presentation. This feature should not be underestimated! Essentially, the software has an integrated word processor designed for combining captured images with comments - perfect for in-lab results or classroom use - and far simpler than a separate WORD document.
Multi-Media Imaging: Motic's own SFC file extension allows a narrated sound file to be placed directly onto the image. Send an image with narration on several points by email to anyone. The SFC file also allows measurements or any image enhancements to be removed or changed at a later date.
Counting: An introductory counting function is also included with the software, allowing users to calculate objects in the image.
Auto-Segmentation: This is a neat feature that highlights items for easier counting

SKU MODEL MOTIC #
DM-143-N2GG-B 2.0MP, small base 1100500200042
DM-143-FBGG-C 3.0MP, large base 1100500200191



Specifications

Specifications of Component Options

Select a component below to view related specifications.

  • DM-143-FBGG-C 3.0MP/Large Stand Digital Stereo Microscope
    General
    Brand Motic
    SKU DM-143-FBGG-C
    Feed - Title 3.0MP/Large Stand Digital Stereo Microscope - Motic DM-143-FBGG-C
    Feed - Description The DM143 is offered in two configurations: N2GG - 2.0MP camera and a space-saving compact stand or, the significantly more popular FBGG - 3.0MP and large stand. Both microscopes include 10x-40x zoom magnification. In our opinion, the 3.1 megapixel version, which includes a larger than typical 1/2" sensor, offers a sensible combination of high quality resolution and optics combined with robust software and an affordable price. 5 year warranty.MicroscopeThe microscope includes two WF10x/20mm eyepieces with diopter controls for individual eye focusing and a 1x-4x Greenough zoom system. Combined, the magnification range is 10x-40x. Top (incident) and bottom (transmitted) illumination is powered by 12V 20W halogen with dimming controls. 110v/220V universal voltage. There is a choice of two stands as follows: FBGG: 3.0MP resolution with a large footprint stand, reversible and frosted stage plates and clips. This is by far our most popular option. N2GG: 2.0MP resolution with a compact space-saving stand, reversible and frosted stage plates and clips. Both stands feature an integrated digital camera with a built-in 1/2" CMOS sensor for significantly better image quality than the 1/3" typically found in competing microscope cameras. Software is the well-established Motic Images PLus 2.0ML for Windows and Motic Images Plus 2.0 for Macintosh.SoftwareThe Motic Images Plus 2.0 software is a powerful software suite that has impressed us. Users will find a familiar interface matched to either Windows or Macintosh OSX operating environments. The software allows for automatic object or cell counting, image and data capture, easy export of reports to spreadsheets , measurements, counting and even MP3 functionality so you can play music while you are working. Add narration or other sound clips to any image using this software this digital microscope turns into a true multimedia apparatus! Features include Measurement, Image Comparison for forensic or other applications, Editing and Enhancements, Counting and Auto Segmentation that facilitates counting. In our opinion, these are are unequaled features that are not found in competing products at this price point.Software FeaturesMeasurement: Motic Measurements are easy to use and accurate owing to the quick, calibration process using Motic's certified calibration slide. Possible measurements include: Line, Circle, Rectangle, 3-Point Circle, 3-Point Arc, Polygon, Ellipse, Angle as well as Irregular shapes. All of the results are stored in a Measurement Table which can be exported to Excel with one click. Image Comparison: A useful feature includes image comparison that enables users to compare differences in specimens over time or side-by-side. Different methods can be used to compare including: 'Subtract'; 'Difference'; Multiply'; Proportional. Image Enhancements: With several filters, including a customized filter, Motic Images Plus 2.0 allows the user to edit, enhance or change a captured image. Text, Stamp and Paint tools turn any captured image into a finished project or evaluation for presentation. This feature should not be underestimated! Essentially, the software has an integrated word processor designed for combining captured images with comments - perfect for in-lab results or classroom use - and far simpler than a separate WORD document. Multi-Media Imaging: Motic's own SFC file extension allows a narrated sound file to be placed directly onto the image. Send an image with narration on several points by email to anyone. The SFC file also allows measurements or any image enhancements to be removed or changed at a later date. Counting: An introductory counting function is also included with the software, allowing users to calculate objects in the image. Auto-Segmentation: This is a neat feature that highlights items for easier counting SKUMODELMOTIC #DM-143-N2GG-B2.0MP, small base1100500200042 DM-143-FBGG-C3.0MP, large base1100500200191
    Feed - Custom Label 1 1000-2000
    Best Value Yes
    Body
    Head Type Binocular
    Optical Design Greenough Converged
    Magnification Type Zoom
    Ocular Angle 45°
    Ocular Tube Diameter 30 mm
    Diopter Adjustment Dual
    Interpupillary Adjustment Arc (Seidentopf)
    Head Rotation 360 Degrees
    Body Material Mixed Metal/Plastic
    Minimum Objective (X) 1.0X
    Maximum Objective (X) 4.0X
    Zoom Ratio 4:1
    Zoom Control Type Smooth Continuous
    Zoom Indicator Graduations Yes
    Configuration
    Includes Eyepieces? Yes
    Included Eyepieces (X) 10X
    Eyepiece Style SWF Super Widefield (FN 20mm)
    Min Standard Mag 10X
    Max Standard Mag 40X
    Available
    Available Eyepieces 10X, 15X, 20X, 30X
    Available Barlow Lenses 0.3X, 0.5X, 0.75X, 1.5X
    Max Working Distance (standard) 80 mm
    Stand
    Stand Class Pedestal
    Stand Type Pole
    Stand Features Large Base Plate
    Stage Plate Black/White Contrast Plate, Frosted Glass
    Illumination
    Illumination Type Halogen
    Illumination Style Transmitted, Incident
    Power Supply Universal Switching 100V-240V AC
    Incident Light Type Halogen
    Incident Light Specification 12V 10W
    Incident Light Control Variable
    Transmitted Light Type Halogen
    Transmitted Light Specification 12V 10W
    Transmitted Light Control Variable
    Accessories
    Included Extras Dust Cover
    FocusBlock
    Focus Controls Coarse
    Focus Mechanism Rack & Pinion
    Resolution 2 Megapixel, 1600x1200 pixels
    Camera Interface USB 3.0
    Sensor Type CMOS
    Sensor Size 1/2 Inch
    Color/Monochrome Color
    Sensor Color Depth 8bpp / 24bit RGB
    Scan Mode Progressive
    Exposure Control Area-of-Interest, Automatic, Manual, Spot, Vignetting Correction
    White Balance Area-of-Interest, Automatic, Manual, Spot
    Black Balance Manual
    Software Included Motic Images Plus 2.0ML
    Driver API Compatibility DirectX, TWAIN
    Power Source USB Powered
    File Formats BMP, JPEG, Own Proprietary, PNG, TIFF
    Included Accessories Software CD, Calibration Slide Micrometer
    Supported Operating Systems Windows 7, Windows Vista, Mac OSX 10.4+, Windows XP SP3
    System Requirements 2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, USB 2.0 High Speed Port
    Camera Warranty 1 Year

  • 0.5X Barlow Lens For Motic SFC11 - SMZ140/143 Stereo Microscopes

    0.63X Barlow Lens For Motic SFC11 - SMZ140/143 Stereo Microscopes

    0.75X Barlow Lens For Motic SFC11 - SMZ140/143 Stereo Microscopes

    1.5X Barlow Lens For Motic SFC11 - SMZ140/143 Stereo Microscopes
    General
    Brand MoticMoticMoticMotic
    SKU MBL-SMZ14-05XMBL-SMZ14-063XMBL-SMZ14-075XMBL-SMZ14-15X
    MAP Copy MAP - MoticMAP - MoticMAP - MoticMAP - Motic
    Feed - Title  0.63X Barlow Lens For Motic SFC11 - SMZ140/143 Stereo Microscopes
    Compatibility
    Compatible With OM99, OM99T, OMXTL, OMXTLTOM99, OM99T, OMXTL, OMXTLTOM99, OM99T, OMXTL, OMXTLTOM99, OM99T, OMXTL, OMXTLT
    Optical Accessory
    Barlow Lens Power 0.5X0.63X0.75X1.5X

  • 10X Eyepiece with Linear Reticle For Motic SMZ140/143
    General
    Brand Motic
    SKU MEPRL-SMZ14-10X
    MAP Copy MAP - Motic
    Compatibility
    Compatible With OM99, OM99T
    Eyepiece Magnification 20x
