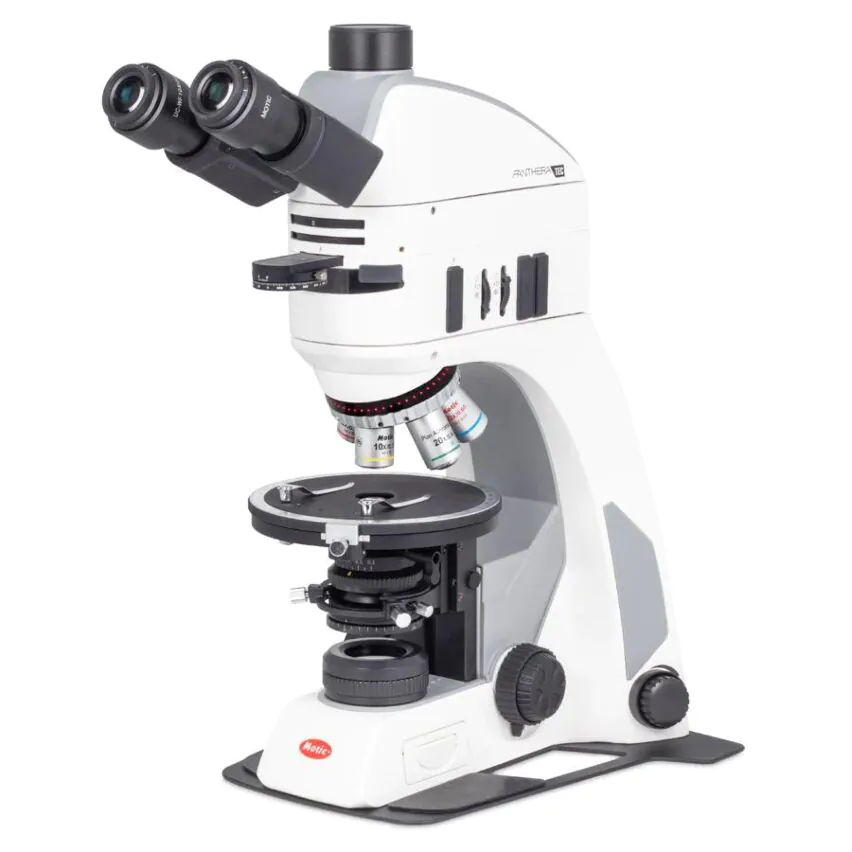

Motic Panthera TEC POL EPI Trinocular Microscope

SKU:

1100104600262

In stock

You pay: $7,609.00

Free Shipping,

30 Day Money Back Guarantee

Versatile Polarization Imaging: Engineered for diverse polarization applications, featuring a Full-Köhler setup with an interchangeable 30W Halogen/3W LED transmitted light source.
Advanced Workflow Automation: Includes the Motic LightTracer system with memory functions, a built-in Low-Energy mode, and an LED feedback indicator to streamline repetitive tasks.
Precision Optics: Equipped with a coded nosepiece and a full set of 5x, 10x, 20x, and 40x UC Plan Achromatic Strain-Free objectives for exceptional contrast and clarity.
Dual Illumination System: Features both Reflected and Transmitted illumination, with incident light provided by a specialized compact 3W LED illuminator.
High-Performance Viewing: Offers a 20mm Field of View through UC eyepieces, available in Binocular, Trinocular, or Digital configurations to suit any laboratory environment.

Customer Support

Talk to one of our experts now!

Email Call

Product Details

Motic Panthera TEC POL EPI: Advanced Polarization for Materials Science

The Panthera TEC POL EPI series is the premier solution for professionals in crystallography, geology, and industrial material sciences. Designed to bridge the gap between biological and industrial microscopy, this series handles both transparent samples (fibers, foils) and opaque materials with ease.

Whether you are analyzing the birefringence of polymers or the specific reflectivity of flat mineral surfaces, the Panthera TEC POL provides high-contrast, high-resolution imaging. Every model features an integrated focusable and centerable Bertrand lens, allowing for detailed conoscopic analysis of crystal structures and interference figures.

Core Series Highlights

Strain-Free UC Plan Achromat Optics: Specialized objectives designed to eliminate optical stress, providing accurate polarization data across a 22mm Field of View.
Motic LightTracer: A smart, coded nosepiece that remembers your light intensity settings for each objective—improving workflow efficiency and repeatability.
Dual Illumination Power: Standard 6V/30W Halogen Koehler illumination, interchangeable with high-efficiency LED for versatile color temperature control.
Versatile Observation: Available in Binocular, Trinocular, and Integrated Digital configurations to suit your documentation needs.

Technical Specifications Matrix

Feature	Panthera TEC POL EPI (Binocular/Trinocular)	Panthera TEC POL EPI (Digital)
Optical System	CCIS® (Colour Corrected Infinity Optical System)
Digital Integration	Trinocular (Fixed 50:50 split)	Built-in 5MP CMOS (Wi-Fi, Ethernet, HDMI)
Objectives	Strain-Free UC Plan Achromatic 4X, 10X, 40X, 60X
Nosepiece	Reversed Quintuple, Coded, with single centering holes
Stage	Circular 360º Rotating, Lockable with 0.1º vernier scale
Intermediate Body	Epi-illuminator LED, 360º Analyzer, Bertrand Lens, Polarizer
Condenser	Swing-out Abbe N.A. 0.90/0.13 (Strain-Free)

Superior Analysis for Professional Labs

The Panthera TEC POL series is engineered for durability and precision. The circular rotating stage (Ø160mm) allows for precise sample orientation, while the 2μm fine focus precision ensures you never miss a detail in complex mineral structures. With the inclusion of an interference color chart and the ability to add compensators into the dedicated intermediate tube slot, this microscope is ready for advanced quantitative polarized light microscopy right out of the box.

Package Includes:

Dust cover, power cord, Allen key, blue filter, halogen bulb, nosepiece adjustment key, interference color chart, and user manual.

Need help choosing between the Digital or Trinocular version?

Our technical specialists can help you determine the best configuration for your specific material analysis applications.

More Information

More Information
Brand	Motic
Recommended For	0
Trinocular Tube Focusable?	No
Parfocal	No
Focus Controls Graduated?	No
Stage Range Graduated?	No
Includes Eyepieces?	No
Includes Eyecups?	No
Included Objectives Parfocal Adjustable?	No
Reticles Available?	No
Case Included?	No
