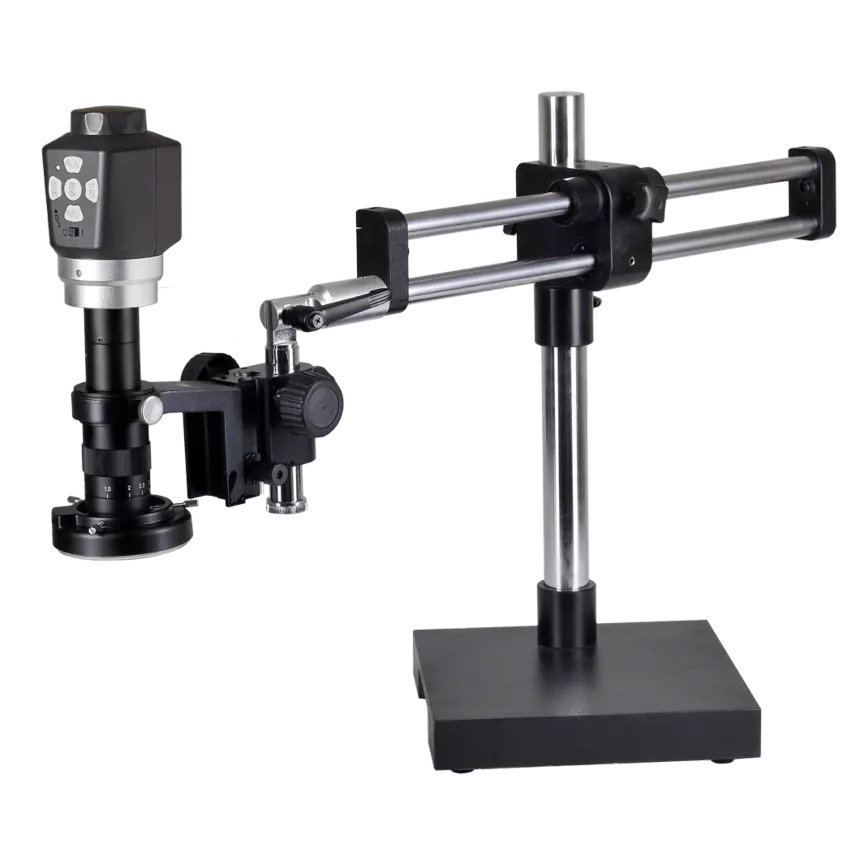

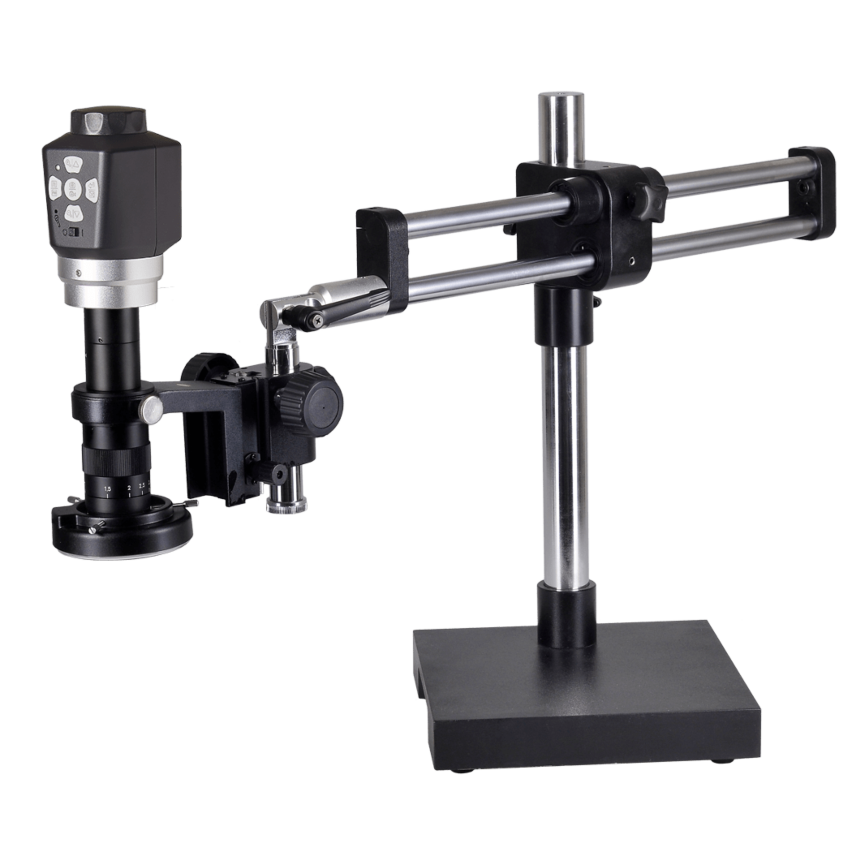

Omano OCS-HDMI-1 1080P 3.0 MP PC-only Video Inspection System

List Price: $1,409.00

Starting at: $851.00

SKU: HDMI-1-VIS

Availability: In stock

  • High definition 1080P HDMI or 3.0 MP USB output (Windows only)
  • Streaming 1080P HDMI output direct to monitor or TV
  • USB Image capture resolution of 3.0 MP
  • HDMI video capture resolution of 1280 x 720P @ 30 fps
  • Auto white balance for color accuracy
  • Optional Micro-SD card output (card sold separately)
Select package options

Click on to learn more about the option * signifies required items

OCS-HDMI-1 1080P 3.0 MP PC-Only 30 FPS Digital Microscope Camera   $299.00
OM10K Zoom Microscope Lens   $219.00
OMHB25 Hanging Bar   $25.00
  • $75.00
  • $75.00
  • $75.00

Included in Bundle

HDMI Camera: OCS-HDMI-1 1080P 3.0 MP PC-Only 30 FPS Digital Microscope Camera

Microscope Head: OM10K Zoom Microscope Lens

Hanging Bar: OMHB25 Hanging Bar

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

  • OCS-HDMI-1 Video Inspection System
  • OCS-HDMI-1 Video Inspection System 2
  • OCS-HDMI-1 Video Inspection System 3
  • OCS-HDMI-1 Video Inspection System 4
  • OCS-HDMI-1 Video Inspection System 4
Description

Summary

The new OCS-HDMI1 high-definition CMOS color microscope camera is a professionally-designed, imaging solution offering sharp, 3.0MP USB image capture or 1280 x 720P HDMI video @ 30Fps in a cost-effective package. The camera offers the option of direct streaming to an HDMI monitor without the complexity of computer software, making it an ideal imaging solution for fast-paced industrial environments and technical training classrooms.

Features

HDMI (High-Definition Multimedia Interface) technology brings a number of key benefits to digital microscopy, including richer color definition, better signal integrity, greater bandwidth capacity, encryption protocols and high-definition video. The OCS-HDMI1 offers this technology in an affordable and versatile package for the PCB auditor, industrial inspection line or clinical teaching laboratory.

Mounting & Controls

The OCS-HDMI1 is specifically designed to enhance the Omano line of stereo inspection systems, with a standard C-mount interface which will accept any C-mount adapter. Improved functionality includes on-camera controls with intuitive, menu-driven buttons for power, pan up and down, zoom in and out, image save or video record (to optional SD card), and Auto White Balance on/off. In addition, a large focus knob at the top of the camera offers fine image focus adjustment.

Processing & Output

The camera has fast white balance correction, excellent color reproduction and USB Image capture resolution of 3.0 MP, or HDMI video capture resolution of 1280 x 720P @ 30 fps. The OCS-HDMI1 quickly reacts to changing lighting conditions in any life science, clinical or material application, sending a sharp video output to an HDMI monitor. A Micro-SD card memory slot offers additional output options and storage capacity (SD card not included).

Microscope Features

The Omano OM10K zoom microscope provides 7x-45x zoom range with coarse/fine focus and click stops that enable the operator to dial in the exact same level of magnification for different specimens for easy comparison. Each microscope also includes a 0.5x Barlow lens which enables maximum working distance of 6.75".

Microscope Stands

Choose from our most popular single-arm, dual-arm and articulating-arm microscope stands, including the V10, an economical single-arm stand with a 25" reach and a 2.5" fine-extension bar to precisely position the microscope and camera. The V6 offers the same 25" reach along with dual-arm maneuverability. The V7 expands that maneuverability to three dimensions with a spring-powered articulating arm, and the premium V15 brings 28" of fingertip effort and control, thanks to a dual-arm, machined ball bearing design.

Camera Accessories

Accessories include AC power supply, remote control, HDMI cable.

Microscope Accessories

Included 80 LED ring light. Optional illumination upgrades include dual-pipe LED or 64 and 144 LED ring illumination systems.

Please note: Monitor not included.

Specifications

Specifications of Component Options

Select a component below to view related specifications.

  • OCS-HDMI-1 1080P 3.0 MP PC-Only 30 FPS Digital Microscope Camera
    SKU OCS-HDMI-1
    Warranty 1 Year
    Product Weight 2.0000
    Sensor
    Sensor Type CMOS
    Sensor Size 1/3 Inch
    Sensor Details Aptina AR0330 CMOS Sensor
    Color/Monochrome Color
    Pixel Pitch 2.2um x 2.2um
    Scan Mode Progressive
    Signal to Noise Ratio 39 dB
    Sensitivity 1.4v/lux-sec(550nm)
    Dynamic Range 69.5 dB
    A/D Conversion 12-bit Parallel, 8-bit R.G.B
    Shutter Electronic, Rolling Shutter
    Camera
    Camera Mount C-Mount
    Resolution 2.0 megapixels
    Camera Output Resolutions 1920X1080i60,1920X1080P30,1280x720P60,640x480P60
    FPS @ Max Res 30 Fps
    FPS @ Min Res 60 FPS
    Camera Interface SD Card, USB 2.0, HDMI
    White Balance Automatic, Manual
    Driver API Compatibility DirectX
    Power Source External Power Supply
    File Formats JPEG, MOV
    Exposure Control Automatic, Manual
    Exposure Time 0.21~33ms, Auto & Manual
    Operating Temperatures 0℃~ 40℃
    Operating Humidity 30~80%RH
    Storage Temperature -20℃~ 60℃
    Supported Operating Systems N/A, Windows 10, Windows 8, Windows 7
    System Requirements 2GB RAM Recommended, 2Ghz+ CPU Recommended
    Certifications CE
    Cable Length 2.5m (8ft)
    Software Support 6 Months
    Compatibility
    Imaging Compatibility (with adapters) C-Mount

  • OM10K Zoom Microscope Lens
    SKU OM10K
    Head
    Head Type Digital Only
    Magnification Type Zoom
    Ocular Angle Vertical
    Trinocular Standard C-mount
    Trinocular Tube Focusable? Yes
    Head Rotation 360 Degrees
    Minimum Objective (X) 0.7
    Maximum Objective (X) 4.5
    Zoom Ratio 6.4:1
    Zoom Control Type Detent Click-Stops
    Zoom Indicator Graduations Yes
    Parfocal Yes
    Includes Barlow? Yes
    Included Barlow (X) 0.5X
    Eyecups Style Soft Rubber
    Body
    Body Material All-Metal
    Compatibility
    Imaging Compatibility (with adapters) C-Mount
    Head Ring Mount Diameter 50 mm
    Max Working Distance (standard) 55mm
    WD with 0.5x Barlow 90mm
    WD with 2.0x Barlow 30 mm

  • V10 Boom Stand

    V6 Boom Stand

    V15 Boom Stand

    V15U U-Clamp Boom Stand

    V7 Articulating Boom Stand

    V7U U-Clamp Articulating Boom Stand
    SKU V10V6V15V15UV7V7U
    Warranty  Lifetime Limited WarrantyLifetime Limited Warranty
    Stand
    Stand Class BoomBoomBoomBoomBoomBoom
    Stand Type Single Arm BoomDual Arm BoomDual Arm BoomDual Arm BoomArticulated BoomArticulated Boom
    Stand Features  Ball-Bearing Glide, Counter-weighted, Large Base PlateBall-Bearing Glide, Counter-weighted, Heavy Duty, Large Base PlateBall-Bearing Glide, Counter-weighted, Tabletop U-ClampArticulatedArticulated
    Base Width 254 mm330 mm254 mm254 mm330 mm330 mm
    Base Depth 254 mm330 mm254 mm254 mm330 mm330 mm
    Post Height 464 mm464 mm464 mm464 mm464 mm464 mm
    Post Diameter 38 mm38 mm38 mm38 mm38 mm38 mm
    View Center to Post Distance 527 mm495 mm514 mm514 mm673 mm673 mm
    Physical Construction Metal TubeSolid MetalSolid MetalSolid MetalSolid MetalSolid Metal
    Coating Type (Stand) Durable PowdercoatDurable PowdercoatDurable PowdercoatDurable PowdercoatDurable PowdercoatDurable Powdercoat
    If HB Required
    Requires Separate Hanging Bar?  YesYesYesYesYes
    Hanging Bar Style ArticulableArticulableArticulableArticulableArticulableArticulable
    If FB Mounts Direct
    Focus Block Mount Diameter  5/8in Pin5/8in Pin

  • OMHB25 Hanging Bar
    SKU OMHB25
    If HB Required
    Hanging Bar Style Articulable
    If FB Mounts Direct
    Focus Block Mount Diameter 25 mm

  • 64 LED Ring Light, Variable Intensity by Section

    80 LED Ring Light, Variable Intensity

    144 LED Ring Light, Variable Intensity by Section

    3W LED Dual Gooseneck Spot Light

    120 LED Diffused Dome Ring Light - ESD SAFE
    SKU OMLED-64AOMLED-80AOMLED-144AOMLED-SPOTOMLED-6WDRL
    Warranty  1 year 1 year
    Product Weight  1lb 3.1 lbs
    Product Length  16 cm
    Product Width  10 cm
    Product Height  8 cm
    Power Supply  90V-265V
    Backorder ETA  Jan 10, 2017
    Product Display
    New  YesYes
    Illumination Type LEDLEDLEDLEDLED
    Light Specs
    Ring Light Type LEDLEDLEDLEDLED
    Ring Light Specification 90-265V Auto switching80 LED90-265V Auto switching 90-265V Auto switching
    Ring Light Power  8W
    Ring Light Control VariableVariableVariable Variable

  • 0.3X Barlow Lens For Omano OM10

    1.0X Barlow Lens For Omano OM10

    2.0X Barlow Lens For Omano OM10
    SKU OMBL-10-03X-25OMBL-10-10X-25OMBL-10-20X-25
    Warranty Omano Limited Lifetime WarrantyOmano Limited Lifetime WarrantyOmano Limited Lifetime Warranty
    Notes New Type, compact Barlow designNew Type, compact Barlow designNew Type, compact Barlow design
    Backorder ETA Apr 30, 2015 Dec 29, 2015
    Compatible With OM10OM10OM10
    Optical Accessory
    Barlow Lens Power 0.3X1.0X
