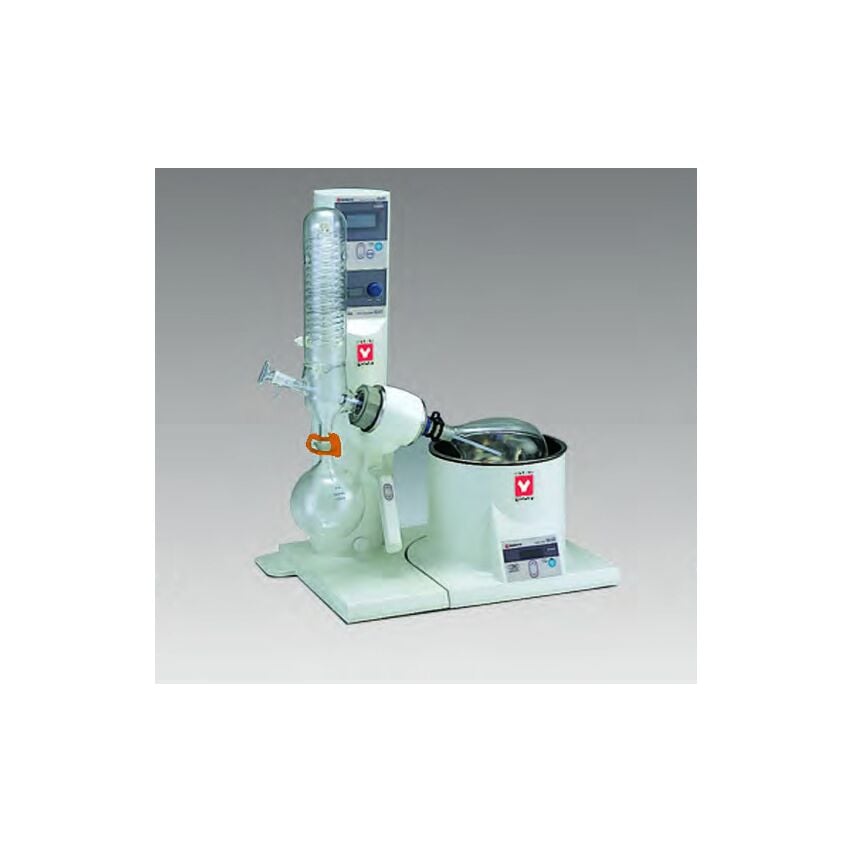

Premium Rotary Evaporator Yamato RE-601-BW2
| Brand | Yamato |
|---|---|
| Recommended For | 0 |
| Special URL (For Data Feed) | https://www.microscope.com/premium-rotary-evaporator-yamato-re-601-4l-digital-water-bath-200-240v.html?model=RE-601-BW2#1431=1525&1432=1527 |
| Related Qualification | Premium |
| Glassware Set | B - Vertical for Cooling Water |
| Bath Capacity (L) | ~4 |
| Included Bath Model # | BM510 |
| Lifting Feature | One-touch motorized lift system |
| Main Unit Rotation Speed (rpm) | 20~250 |
| Rotational Speed Setting | Rotation: Control knob Vacuum adjustment: Key pad |
| Lift Stroke | 130 |
| Operation modes | Free fixed temperature fixed temperature timer descending and descending timer |
| Measurable Range Of Vacuum | 0~1033hPa |
| Memory | 10 programs for each operation |
| Safety Measures (Drive Unit) | Circuit breaker rotor for overload protection manual adjustment of lift's lower limit lift-up switch during power outage |
| Main Unit Ambient Temperature Range (°C) | - |
| Main Unit Drive System | - |
| Safety Measures (Vacuum Regulator) | Self-diagnostic functions main unit / bath synchronized stop at malfunction error display |
| Setting Range of timer | 1-999 minutes in increments/decrements of 1 minute for preset operations 1-99 minutes for descending timer operations |
| Main Unit Motor System | DC brushless motor |
| Setting Range Of Hysteresis | 1~50hPa |
| Resolution of vapor temperature indicator | Selectable (either 1°C or 0.1°C) |
| Synchronized Control Feature | Selection of automatic bath stop or automatic insulation |
| Data Operation | - |
| External Dimension With Glasware A (mm) (WxDxH) | 828 × 400 × 727mm (857mm en raise) |
| External Dimension With Glasware B (mm) (WxDxH) | 643 × 400 × 727mm (857mm en raise) |
| Main Unit Weight (kg) | ~15.1kg |
| Main Unit Power Source | AC100~240V 1.5A |
| Included Glassware | Glassware B |
| Bath Temperature Control Range (°C) | RT +5~90 |
| Bath Temperature Setting Range (°C) | 0~100 |
| Temperature Adjustment Accuracy | ±1.5°C (at agitation) |
| Bath Temperature Display Method | Digital setting by ▲/▼ keys |
| Bath Controller | PID control with microprocessor |
| Setting Range of Vacuum | 0~981hPa |
| Bath Dimension (mm) | 340 x 349 x 231 mm |
| Bath Weight (kg) | ~5.5 |
| Bath Power Source | AC200~240V6.5~5.5A |
| Resolution Of Vacuum | 1hPa |
| Readout of cooling water temperature | Depending on indicator (option) |
| Resolution of cooling water temperature indicator | 1°C or 0.1°C |
| Glassware Orientation | Vertical |
