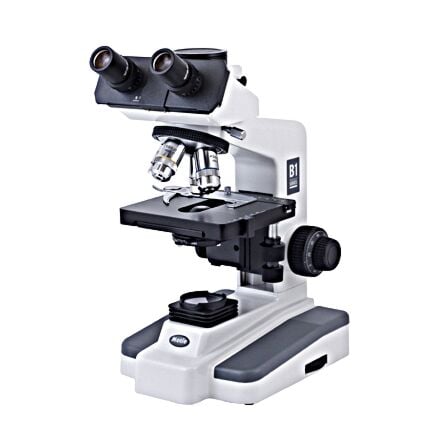

B1-253ASC Trinocular Super Contrast LED Compound Microscope
- 4 Super Contrast objectives
- Trinocular head
- 3 W LED illumination
- Professional features
- Mechanical Slide Holder for easy slide handling
- Recommended for High Schools & Clinics
- MPN 1100100501131
Summary
The Motic B1 Series is designed for high school and university students, with large, easy-to-operate focus knobs and stage controls, and widefield eyepieces which are more forgiving of a student's head and eye movement. It features a fully rotating, 45 degree-inclined trinocular viewing head with 10X widefield eyepieces, 53mm to 72mm of interpupillary adjustment and individual diopter adjustment for each ocular tube. Designed around a forward-facing quadruple nose piece, the B1 offers a choice of binocular or trinocular configuration with Super Contrast objective lenses.
Optics
The Super Contrast objectives (ASC 4x, 10x, 40xS, 100xS oil), are bonded with contrast-enhancing coatings to produce especially sharp images for Life Science applications. Magnification levels include 40x, 100x, 400x and 1,000x.
Stage & Focus
A large double-layered mechanical stage features a spring-loaded slide clamp with dropdown coaxial controls for convenient 'eyes down' operation. The stage range of movement is 70mm x 30mm. Focusing includes high quality rack and pinion mechanics for longer life and coaxial coarse/fine focus controls for easier focusing. The fine focus scale value is 0.002mm.
The right hand focus control features finger tip controls while the dimmer switch is conveniently located immediately under the left hand focus control. Both controls can be operated during 'eyes down' observation. Safety features include a rack stop to ensure that the stage does not impact with the objectives and thereby break the slides, and a slip clutch control to minimize the risk of damage due to over extension. The condenser is a professional focusable Abbe 1.25 NA with iris diaphragm and filter for optimal adjustments. Higher quality Kohler illumination is powered by 3W LED with variable intensity.
Accessories
Dust Cover, Owners Manual
| Brand | Motic |
|---|---|
| Warranty | 5-Year Limited Warranty |
| Recommended For | 0 |
| System Type | Brightfield |
| Optical Design | DIN 160mm |
| Number of Heads | Single Primary Head |
| Head Type | Trinocular |
| Head Rotation | 360 Degrees |
| Ocular Angle | 45° |
| Diopter Adjustment | Dual |
| Interpupillary Adjustment | Linear Sliding |
| Interpupillary Adjustment Range | 55-75 mm |
| Trinocular Type | Switchable Beam-Split |
| Trinocular Tube Focusable? | No |
| Parfocal | No |
| Ocular Tube Diameter | 30 mm |
| Nosepiece Orientation | Front-facing |
| Nosepiece Style | Quadruple (4) |
| Focus Controls | Coarse & Fine |
| Focus Mechanism | Rack & Pinion |
| Focus Control Location | Dual Ambidextrous |
| Focus Controls Graduated? | Yes |
| Stage Type | Mechanical XY |
| Stage Features | Fingertip Controls |
| Stage Range of Movement (XY) | 70mm x 30mm |
| Stage Range Graduated? | Yes |
| Includes Eyepieces? | Yes |
| Included Eyepiece Quantity | 2 |
| Included Eyepieces (X) | 10X |
| Eyepiece Style | SWF Super Widefield (FN 20mm) |
| Includes Eyecups? | No |
| Min Standard Mag | 40X |
| Max Standard Mag | 1000X |
| Included Objectives (Qty) | 4 |
| Objective Lens | Achromatic |
| Included Objective Types | Brightfield |
| Included Objectives Parfocal Adjustable? | No |
| Condenser Type | Abbe Brightfield |
| Condenser Features | Iris Diaphragm |
| Condenser N.A. | 1.25 mm |
| Illumination Type | LED |
| Illumination Style | Transmitted |
| Collector Type | Kohler |
| Collector Features | Field Diaphragm |
| Transmitted Light Type | LED |
| Transmitted Light Specification | 3W |
| Transmitted Light Control | Variable |
| Power Supply | 120V - 240V AC |
| Imaging Compatibility (with adapters) | 23mm |
| Reticles Available? | No |
| Included Extras | Dust Cover |
| Case Included? | No |
