Euromex VC.3039 HD-Pro HDMI Camera 1080p, 8 Megapixels
- Versatile 1080p Performance: Delivers high-definition real-time imaging with excellent color rendering and smooth frame rates up to 60 fps.
- Flexible Triple-Mode Operation: Use as a standalone unit with embedded software, connect to a PC for advanced analysis, or utilize both modes simultaneously.
- Standalone Efficiency: Connect directly to any HDMI monitor or TV to perform calibrated measurements and save media via an intuitive mouse-driven interface—no computer required.
- Advanced Software Suite: Includes ImageFocus Alpha for specialized tasks such as focus stacking, image stitching, and detailed annotations when connected to a computer.

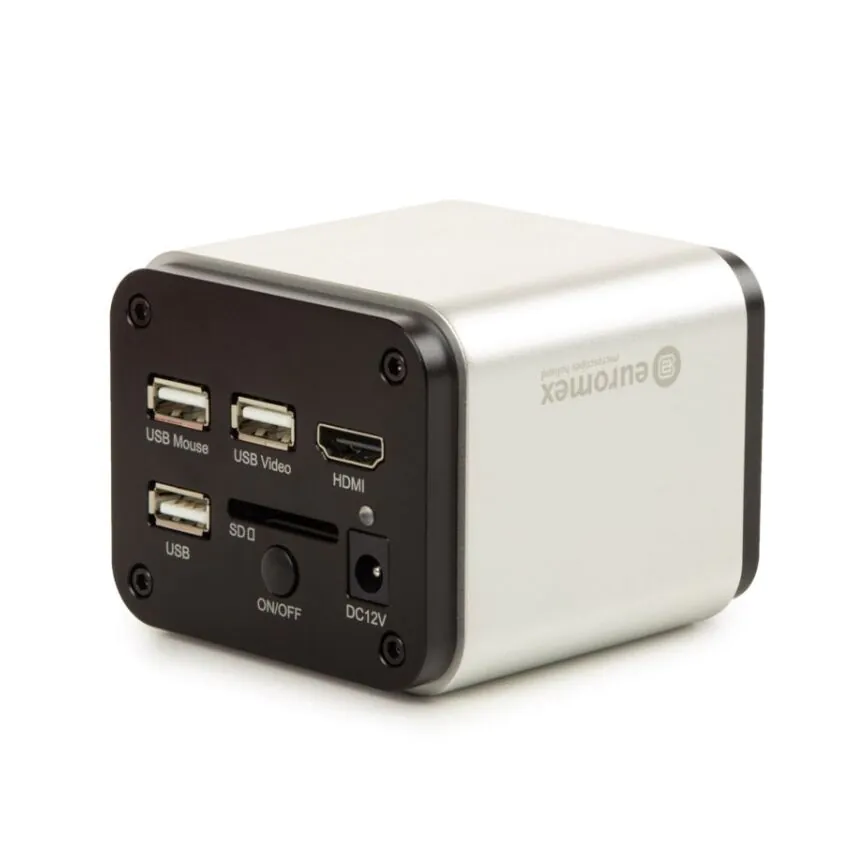

Euromex HD-Pro VC.3039 High-Definition Microscope Camera
Professional 8.0 MP Real-Time Imaging for Inspection, Education, and Research
Superior Real-Time Imaging Without Compromise
The HD-Pro Microscope Camera (VC.3039) by Euromex is a high-performance imaging solution designed for environments where real-time clarity is paramount. Driven by a high-speed Sony CMOS sensor, this camera delivers stunning 36-bit color rendering and fluid 60 fps movement, making it the perfect choice for live demonstrations, quality control, and industrial inspection.
Whether you need a standalone system for a workbench or a computer-integrated research tool, the HD-Pro offers dual-mode flexibility via HDMI and USB 2.0 interfaces.
Versatile Dual-Mode Operation
1. Standalone Mode (No PC Required)
Connect the HD-Pro directly to any HD monitor, TV, or projector via HDMI. This mode utilizes embedded mouse-driven software for a streamlined workflow:
- High Speed: Experience lag-free 60 fps live viewing.
- On-Screen Tools: Perform calibrated measurements, digital zoom, and image comparisons directly on the monitor.
- Easy Storage: Save high-resolution images and videos directly to the included 16GB SD card or a USB flash drive.
2. Computer Controlled Mode
Connect to your PC via USB 2.0 to unlock the full power of the ImageFocus Alpha software suite. Compatible with Windows 7, 8, 10 (32/64 bit) and Mac OS, this mode offers:
- Advanced image processing and stacking.
- Extended annotation and measurement functions.
- Full control over exposure, white balance, and color parameters.
Technical Specifications
| Feature | Specification |
|---|---|
| Sensor | Sony CMOS 1/2.8"" (8.0 Megapixel) |
| Resolution | 1920 x 1080 Pixels (Full HD) |
| Frame Rate | 60 fps (HDMI) / 30 fps (USB 2.0) |
| Color Depth | 36 Bit Rendering |
| Interface | HDMI, USB 2.0, SD Card Slot |
| Mounting | C-Mount (0.37x adapter included) |
Universal Microscope Compatibility
The HD-Pro is designed to fit almost any microscope. It connects via a standard C-Mount interface or can be inserted into an eyepiece tube. The package includes:
- 0.37x C-Mount Objective: Ideal for standard 23.2mm tubes.
- Conversion Adapters: Includes 30.0mm and 30.5mm adapters for stereo microscopes.
- Calibration Slide: 72 x 24mm slide (1mm/100 divisions) to ensure precise measurement accuracy.
In the Box
Your HD-Pro VC.3039 comes fully equipped for immediate setup:
- HD-Pro Camera & ImageFocus Alpha Software CD
- HDMI & USB 2.0 Cables
- 12Vdc/2A Power Supply
- 16GB SD Card & USB Mouse
- 0.37x C-Mount Objective & Stereo Microscope Adapters
- 72 x 24 mm Calibration Slide
Upgrade to Digital High-Definition Today
Transform your traditional microscope into a high-speed digital imaging workstation with Euromex precision.
Available as Camera Only (VC.3039) or with an integrated 13"" HD Monitor (VC.3039-HDS).
Includes a 2-Year Warranty for peace of mind.
| Brand | Euromex |
|---|---|
| Recommended For | 0 |
| Sensor Type | CMOS |
| Filter | RGB Bayer Pattern |
| Peltier Cooling | No |
