Omano Summit OCD-SK2-14 1.4MP CCD High Sensitivity Digital Microscope Camera

List Price: $649.00

$459.00

SKU: TMS-OCD-14

Availability: In stock

  • Sony patented Super HAD CCD chip technology
  • 1.4 MP with excellent sensitivity & color resolution
  • Large 1/2 inch sensor size for greater fidelity
  • Fast refresh rate for stills & Live Image video
  • Integrated C-mount to fit most microscopes
  • PC / MAC Compatible
  • FREE telephone support

Price as configured: $0.00

Select package options

Click on to learn more about the option * signifies required items

Summit OCD-SK2-14 - 1.4MP CCD High Sensitivity Digital Microscope Camera   $459.00
Fixed 23mm Camera Adapter 0.5X for SK2 Series Cameras   $0.00

Included in Bundle

Camera: Summit OCD-SK2-14 - 1.4MP CCD High Sensitivity Digital Microscope Camera

Included Camera Adapter: Fixed 23mm Camera Adapter 0.5X for SK2 Series Cameras

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

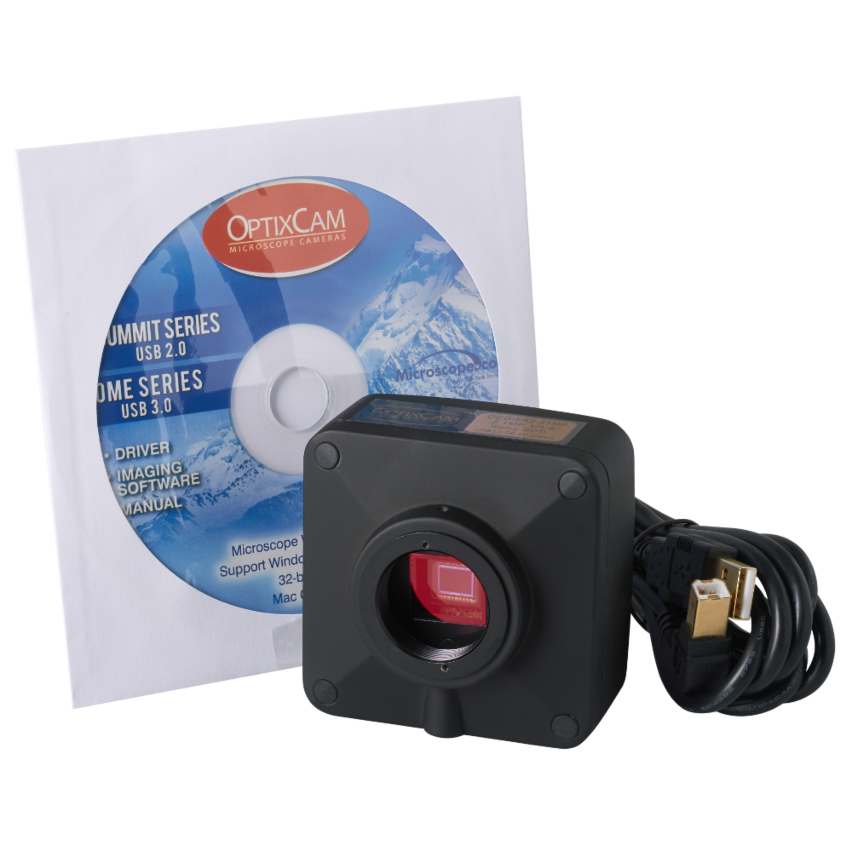

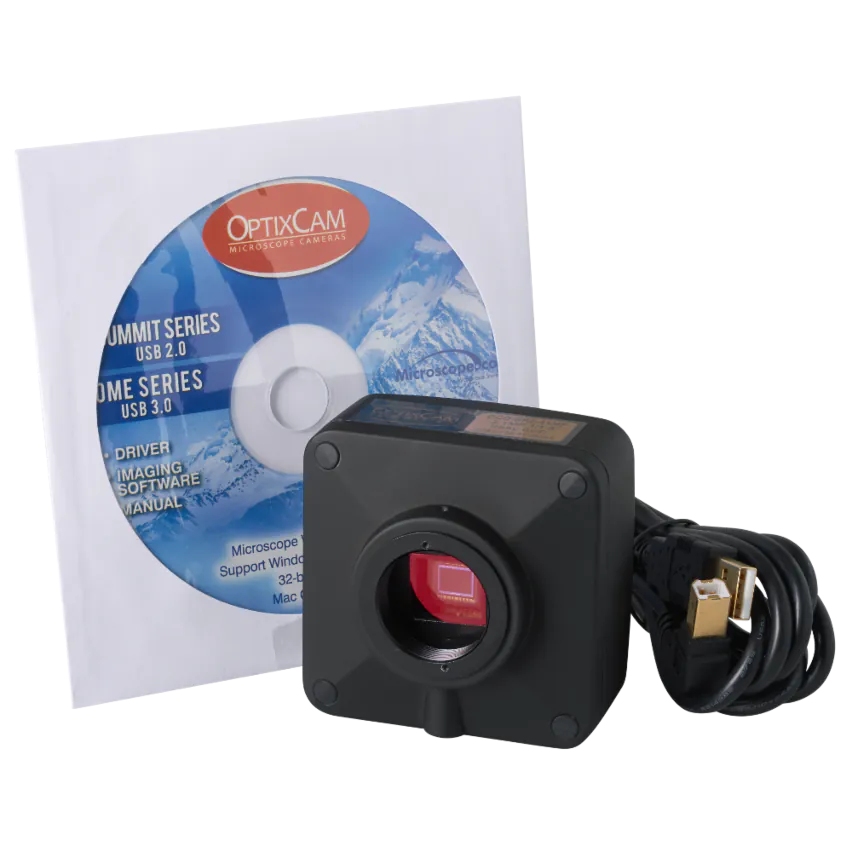

  • Summit OCD-SK2-1.4 1.4MP CCD High Sensitivity Digital Microscope Camera
  • Summit OCD-SK2-1.4 1.4MP CCD High Sensitivity Digital Microscope Camera side
  • Summit OCD-SK2-1.4 1.4MP CCD High Sensitivity Digital Microscope Camera mounted
  • Summit OCD-SK2-1.4 1.4MP CCD High Sensitivity Digital Microscope Camera side 1
  • Summit OCD-SK2-1.4 1.4MP CCD High Sensitivity Digital Microscope Camera side 2
Description

Brand New - Sony Super HAD CCD

OCD-SK2-1.4

The new OptixCam Summit OCD-SK2 series 1.4MP digital microscope camera introduces Sony's Super HAD (Hole-Accumulation Diode) CCD technology to the digital microscopy world. Built around Sony's premier reputation for versatile and dependable image capture devices, our new CCD camera offers exceptional noise suppression and high sensitivity to light. This makes the OCD-SK2 series ideally suited for life science applications challenged with low levels of ambient light, such as fluorescence testing, pathology and organism documentation.

Advantages of Sony CCD Technology

Advances in camera CCD chip technology have steadily reduced the size of microscope camera sensors while packing many more pixels onto the chip surface. This creates significant problems regarding noise, sensitivity and getting the right amount of light to each pixel.

Sony's Super HAD CCD technology offers an innovative solution which uses two micro lenses on top of each photo diode on the chip, enabling it to collect more photons from incoming light than a standard CCD sensor. In addition, by optimizing the shape of the "on-chip microlens" the amount of wasted light is also reduced. What this means for users is a clearer, crisper and more vibrant, natural-looking image in demanding low-light environments like fluorescence microscopy and biomedical research.

Summit OCD-SK2 Series Features

The Summit OCD-SK2 series cameras bring Sony's industry-leading CCD technology to a wide range of documentation demands of routine life science, industrial and research environments. Built around Sony's proven ICX205AK Super HAD CCD color sensor, they share a broad dynamic range, progressive scan and 12-bit parallel resolution for accurate color reproduction and optimal image quality. All OCD-SK2 series cameras are CE and FCC certified.

All Summit OCD-SK2 microscope cameras share a rugged aluminum alloy body fitted with different size Sony CCD sensors depending on the model. All cameras are standard C-mount and tripod mount-compatible, allowing for use on microscopes or machine vision lens systems. Advanced documentation and measuring software is included, and C-mount adapters, calibration slides and spacer collars are optionally available.

Software

The included PC / MAC compatible K2View software creates a complete imaging solution with intuitive camera controls, image capture and advanced options like annotation, geometric measuring and storage in JPG, BMP, TIFF, PNG, PCX AND TARGA format. The software also includes auto white balance, color enhancement, anti-flicker and other benefits. TWAIN and DirectX plug-ins are also included on the installation CD and are independent of the main driver, allowing discreet control of the camera for these applications.

Accessories

Accessories include K2View Software CD, USB 2.0 cable. Box size: 6" x 6" x 4". Shipping Wt. 1.6lb.
Specifications

Specifications of Component Options

Select a component below to view related specifications.

  • Summit OCD-SK2-14 - 1.4MP CCD High Sensitivity Digital Microscope Camera
    SKU OCD-SK2-14
    Warranty 1 Year
    Product Weight 2.0000
    Sensor
    Sensor Type CCD
    Sensor Size 1/2 Inch
    Sensor Details SONY ICX205AK CCD
    Color/Monochrome Color
    Pixel Pitch 4.65 µm x 4.65 µm
    Sensor Color Depth 8bpp / 24bit RGB
    Scan Mode Progressive
    Signal to Noise Ratio 34 db
    Sensitivity 1.0V/Lux-sec (550nm)
    Dynamic Range 65.2db
    A/D Conversion 12-bit Parallel, 8-bit R.G.B to PC
    Cooling System Natural
    Shutter Electronic, Rolling Shutter
    Camera
    Camera Mount C-Mount, Ocular Mount
    FPS @ Max Res 15fps
    Camera Interface USB 2.0
    White Balance Automatic, Manual
    Software Included OptixCam K2View
    Driver API Compatibility DirectX, TWAIN
    Power Source USB Powered
    File Formats BMP, JPEG, Own Proprietary, PNG, TGA, TIFF
    Exposure Control Automatic, Manual
    Exposure Time 2000ms-0.21s
    Operating Temperatures 10°C ~ 50°C
    Operating Humidity 30% ~ 80% RH
    Storage Temperature -20°C ~ 60°C
    Supported Operating Systems Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.7+
    System Requirements 2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port
    Certifications CE, UL
    Cable Length 1.8m (8ft)
    Camera Warranty 1 Year
    Software Support 6 Months
    Compatibility
    Imaging Compatibility (with adapters) 23mm , C-Mount

  • Fixed 23mm Camera Adapter 0.5X for SK2 Series Cameras
    SKU OCS-SK2-CA05X-23MMF
    Warranty Omano Limited Lifetime Warranty
