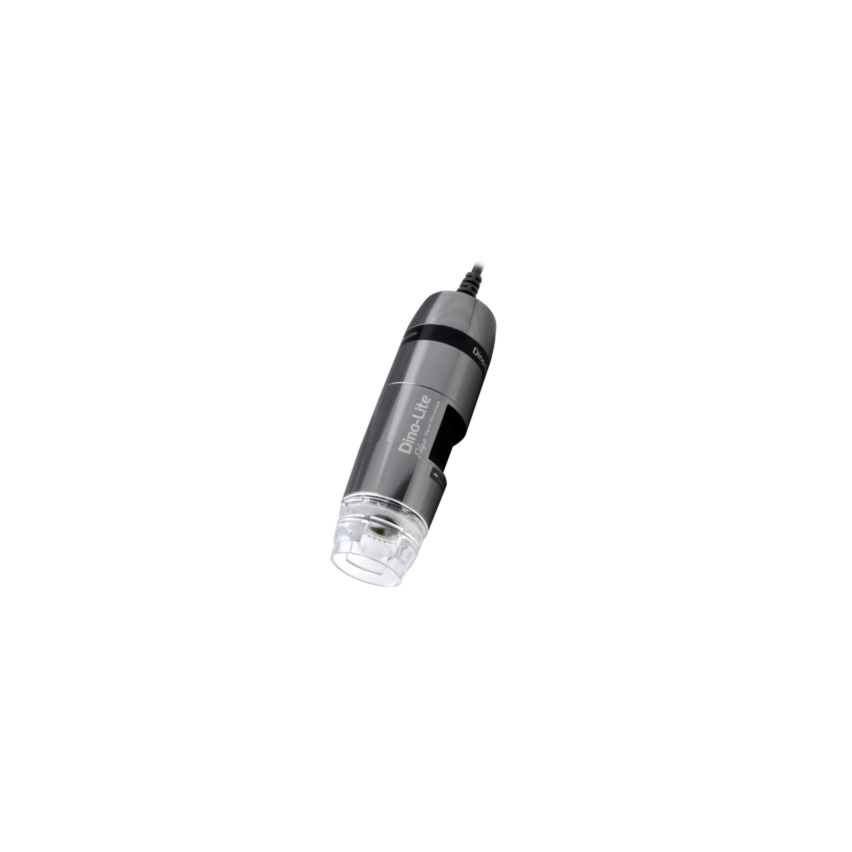

Dino-Lite Edge AM7515MT4A 415X~470X 5.0MP Metal Handheld Digital Microscope

$ 1129.00

Starting at: $1,129.00

SKU: TMS-AM7515MT4A

Availability: In stock

  • State-of-the-art imaging sensor
  • 415X-470X High-range magnification
  • Automatic Magnification Readouts
  • Built-in coaxial illumination
  • Aluminum alloy casing
  • 5.0 megapixel resolution
  • USB 2.0
  • MSRK-10A Stand highly recommended

Price as configured: $0.00

Select package options

Click on to learn more about the option * signifies required items

Edge AM7515MT4A 415X~470X 5.0MP Metal Handheld Digital Microscope   $1,129.00
  • $269.00
  • $39.00
  • $39.00
  • $289.00

Included in Bundle

Microscope: Edge AM7515MT4A 415X~470X 5.0MP Metal Handheld Digital Microscope

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

  • Edge AM7515MT4A 415X~470X 5.0MP Metal Handheld Digital Microscope
  • Edge AM7515MT4A 415X~470X 5.0MP Metal Handheld Digital Microscope 2
  • Edge AM7515MT4A 415X~470X 5.0MP Metal Handheld Digital Microscope 3
  • Edge AM7515MT4A 415X~470X 5.0MP Metal Handheld Digital Microscope 4
  • Edge AM7515MT4A 415X~470X 5.0MP Metal Handheld Digital Microscope 5
Description

Microscope Features

The brand new AM7515MT4A handheld digital microscope introduces a new generation digital sensor with state-of-the-art design and 415X-470X high magnification. This new model also showcases a brand new Dino-Lite feature - Coaxial Illumination. Through the use of Flexible LED Control (FLC) on Windows computers using the included DinoCapture software, this model is capable of switching between or mixing, brightfield and darkfield illumination revealing details that are very difficult to see under normal light, making it ideal for quality inspection environments.

With high magnification comes the requirement for a stable viewing stand, and the MSRK-10A allows for very precise positioning of the microscope, making the AM7515MT4A well-suited for industrial inspection duties, as well as medical diagnostic applications or rock and mineral identification. The stand can be bundled with the MS15X-S1 for even greater X-Y axis and rotational control.

Standard features include 5.0 MP vivid color resolution with Microtouch image capture for more convenient snap shots. Simply touch the end of the microscope to take a picture. The microscope also enables live video (30fps) and time-lapse video. Includes: digital microscope, software CD, deluxe storage bag, calibration slide.

Optional Stands

Dino-Lite offer a wide range of stands, which are recommended for all but the lowest magnification levels. For your convenience, we have selected some of the more popular stands for this microscope. Simply select one of the above which are offered as optional items.

Software (PC-Only)

For the AM7515MT4A, Dino-Lite includes software compatible with Windows or Mac-based computers. The DinoCapture 2.0 software is compatible for Windows XP through the latest version, & Mac OS 10.9 and later. We have found the software to be robust and reliable with some great features as follows: image capture, storage and email, live and time lapse video (up to 30fps), annotation, geotagging, full screen capability, auto and manual exposure control, picture within picture zoom (magnifier) and more. Measuring software is versatile and includes a calibration slide for accuracy. Measuring capabilities include linear and geometric as well as circular and point-to-line. Above all the color resolution is excellent due to fixed white-balance calibration which is set at the factory using a jeweler's color balance. Finally, images can be stored in a wide range of popular formats including JPG and BMP among others.

Coaxial Lighting Demo

Specifications

Specifications of Component Options

Select a component below to view related specifications.

  • Edge AM7515MT4A 415X~470X 5.0MP Metal Handheld Digital Microscope
    General
    Brand Dino-Lite
    SKU AM7515MT4A
    Product Weight 1.6
    Magnification Chart Dino-Lite AM4113ZT4
    Dino-Lite
    Dino-Lite Series X Metal, Edge
    Special Features High Magnification, Magnification Readout, Measuring, Metal Housing, MicroTouch Trigger, Mobile & Wireless
    Body Material All-Metal
    Magnification Range 400x-470x
    Magnification Type Distance Variable
    Illumination Type LED
    Illumination Style Incident
    Illumination Output White Light
    Focus Controls Coarse
    Focus Mechanism Rotary
    Resolution 5 Megapixel, 2592x1944 pixels
    Camera Interface USB 2.0
    Power Source USB Powered
    Head Type Digital Only
    Sensor Type CMOS
    FPS @ Max Res 15
    FPS @ Min Res 30
    Exposure Control Automatic, Manual
    White Balance Automatic, Manual
    Black Balance Automatic, Manual
    Driver API Compatibility DirectX
    File Formats BMP, JPEG, PNG
    Supported Operating Systems Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP SP3, Android 4.4
    System Requirements 2GB RAM Recommended, 2Ghz+ CPU Recommended, Intel Mac Required for OSX Support, USB 2.0 High Speed Port
    Cable Length 6 ft
    Camera Warranty 2 Years

  • WF-10 Mobile WiFi Adapter
    General
    Brand Dino-Lite
    SKU WF-10
    Feed - Title Dino-Lite WF-10 Mobile WiFi Adapter
    Feed - Description Microscope The Dino-Lite Edge AM4515ZT4 handheld digital microscope includes the new generation sensor with state-of-the-art design and 390X-475X magnification. It includes Automatic Magnification Readouts so that the magnification level is displayed in the Dino-Capture software. This allows users to repeatedly "dial in" to a desired magnification setting simply by moving the thumbwheel and monitoring the Magnification display in the software, making it ideal for quality inspection environments. High magnification requires a stand with MSRK-10A providing precise positioning. The optional MS15X-S1 rotating stage can add greater X-Y axis and rotational control.The AM4515ZT4 also incorporates 2nd-generation housing with smoother focus wheel movement, magnification scroll lock and reinforced USB connection that resists twists and pulls. The magnification lock is particularly useful for repetitive inspection at a given level of magnification.Microscope Features390x-475x Continuious Magnification1.3 MP vivid color resolutionMicrotouch image captureLive video (30fps) and time-lapse videoEight built-in LED lights with On/Off switchPC compatible measuring software2 year warrantyAccessories: Software CD, deluxe storage bag, calibration slide Software (PC-Only)For the AM4515ZT4, Dino-Lite includes software compatible only with Windows-based computers (XP/10). The software is robust and reliable with some great features as follows: image capture, storage and email, live and time lapse video (up to 30fps), annotation, geotagging, full screen capability, auto and manual exposure control, picture within picture zoom (magnifier) and more. Measuring software is versatile and includes a calibration slide for accuracy. Measuring capabilities include linear and geometric as well as circular and point-to-line. Above all the color resolution is excellent due to fixed white-balance calibration which is set at the factory using a jeweler's color balance. Finally, images can be stored in a wide range of popular formats including JPG and BMP among others.FREE DinoVision Software Free DinoVision software available for download: DinoVision enables easy image drag-and-drop, split, overlay and comparison, which has proven useful for Forensic Scientists and more sophisticated users where image manipulation is important. Dino-Lite AM4515ZT - Edge SeriesMobile Scope Android AppThe new Mobile Scope app for Android (Android 4.0 or higher, & Nexus 5, 7, 10) now allows this Dino-Lite microscope to connect directly to Android devices via convenient USB or micro-USB. Download the Mobile Scope app from the Google Play store and connect a compatible Dino-Lite device for fast live video streaming and image capture from anywhere. The $9.99 app includes a free trial evaluation period. Some devices may require a USB to micro-USB connector, available at most computer stores.Mobile Scope Demo Video
    Feed - Custom Label 1 100-500
Magnification Chart
AM7515MT4A
 MAG 410X 420X 440X 450X 460X

470X

 WD (mm)  6 mm 7.3 mm 8.8 mm 10 mm 11.3 mm 11.8 mm
 FOV (mm)  0.95 x 0.7  0.91 x 0.68  0.87 x 0.65  0.85 x 0.63  0.82 x 0.61  0.81 x 0.60
