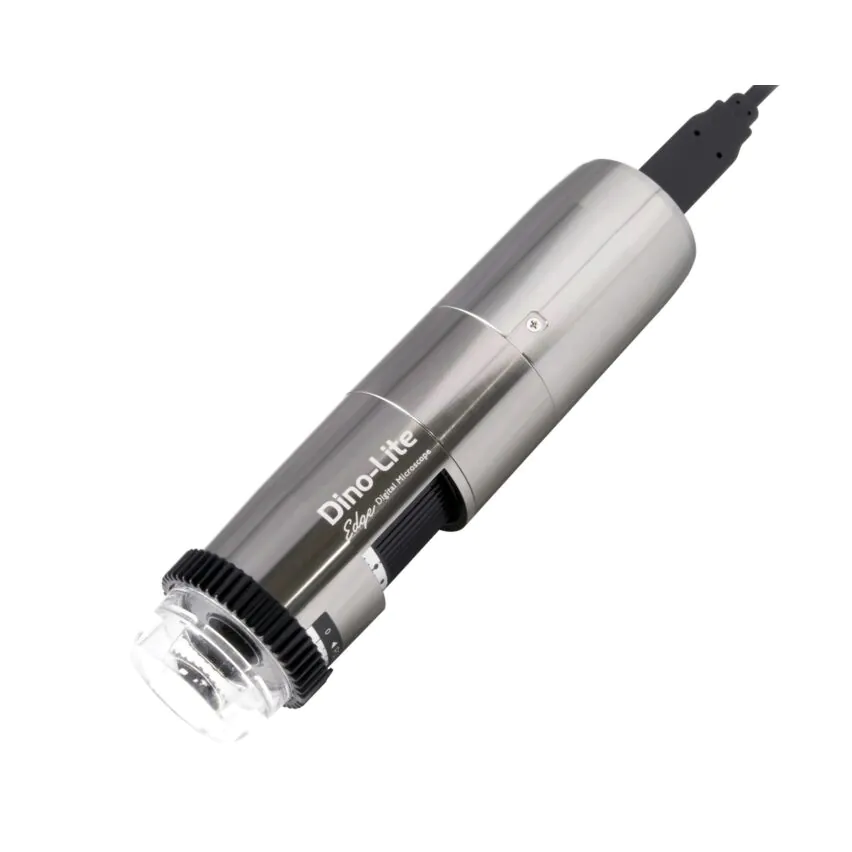

Edge PLUS AM8917MT8A 700X-900X 8MP with AXI, eFLC, AMR, EDOF, DPQ Handheld Digital Microscope

SKU:
AM8917MT8A
In stock
You pay: $1,969.00
Free Shipping,
30 Day Money Back Guarantee
  • New state-of-the-art 8.0 MP imaging sensor
  • 700x-900x full-range zoom magnification
  • 4K Ultra High Definition resolution
  • Enhanced Dynamic Range (EDR)
  • Extended Depth of Field (EDOF)
  • Automatic Magnification Readout (AMR)
  • PC-Compatible
  • Flexible LED Control (FLC)
  • NOTE: REQUIRES RK-10FS STAND, sold separately
Chat with me!

Customer Support

Talk to one of our experts now!
Call

Microscope Features

The brand new EDGE PLUS AM8917MT8A handheld digital microscope introduces a new generation 8.0 MP digital sensor with state-of-the-art design and 700X-900X continuous zoom magnification. The new 8MP sensor delivers 3860×2160, 16:9 ratio, 4K Ultra High Definition resolution. This new model also showcases Flexible LED Controlled illumination, Long Working Distance, Automatic Magnification Readout, a stronger USB attachment and a robust aluminum casing for industrial environments.

The AM8917MT8A incorporates the 2nd-generation housing with smoother focus wheel movement, magnification scroll lock and reinforced USB connection that resists twists and pulls. The magnification lock is particularly useful for repetitive inspections.

Standard features include 8.0 MP vivid color resolution with Microtouch image capture for more convenient snap shots. Simply touch the end of the microscope to take a picture. The microscope also enables live video (30fps) and time-lapse video. Coaxial built-in LED lights with On/Off, intensity, provide built-in illumination. The microscope is PC-compatible with included measuring software and a 2 year warranty.

More Information
Brand Dino-Lite
Product Weight 0.35
Product Length 4 in
Product Width 1.26 in
Recommended For 0
Dino-Lite Series Edge
Special Features Android USB Connect
Body Material All-Metal
Parfocal No
Magnification Range 20X-220X
Magnification Type Distance Variable
Minimum Working Distance Full Contact
Illumination Type LED
Illumination Style Incident
Illumination Output White Light
Focus Controls Coarse
Focus Mechanism Rotary
Case Included? No
Resolution 1.3 Megapixel, 1280x1024 pixels
Camera Interface WiFi
Power Source USB
Head Type Digital Only
Sensor Type CMOS
FPS @ Max Res 15 fps
FPS @ Min Res 30 fps
Exposure Control Automatic
White Balance Automatic
Software Included DinoCapture (Win)
Driver API Compatibility DirectX
File Formats BMP
Supported Operating Systems Windows 10
System Requirements 2GB RAM Recommended
Certifications CE
Cable Length 6 ft
Camera Warranty 2 Years
