Omano OM349P Research-Grade Polarizing Microscope

List Price: $6,390.00

Our Price: $3,495.00

SKU: OM349P

Availability: In stock

  • SAVE 22% - SPECIAL OFFER PRICING
  • Lab quality polarizing microscope
  • 4 Planachromatic objectives
  • Advanced Analyzer for cross-polarization
  • Trinocular format
  • Included Bertrand Lens
  • Lifetime Limited Warranty

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

  • Omano OM349P Research-Grade Polarizing Microscope
  • Omano OM349P Research-Grade Polarizing Microscope side
  • Omano OM349P Research-Grade Polarizing Microscope polarizer
  • Omano OM349P Research-Grade Polarizing Microscope eyepieces
  • Omano OM349P Research-Grade Polarizing Microscope with camera mount
Description

Summary

The OM349P Advanced, Research Polarizing Microscope is unquestionably research grade and is recommended for all polarizing and petrographic applications. We are, therefore, confident that we have a truly professional polarizing microscope that meets, and indeed surpasses the quality of some of the competing microscopes from Japan. The OM349P differentiates itself from the OM339P through superior optics and an advanced Analyzer, along with modern design and an extremely high level of build quality. We have yet to see a comparable price/performance equation. Lifetime Limited Warranty.

Optics

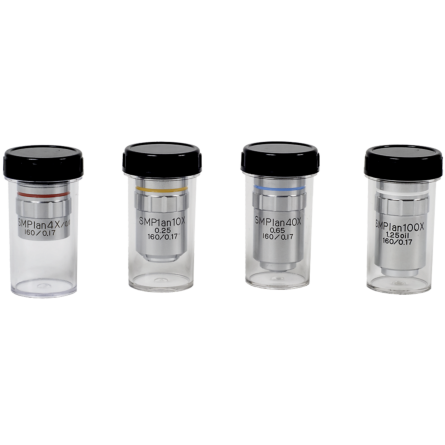

The microscope head is trinocular and includes a C/CS mount attachment for cameras. A full set of high quality strain-free Planachromatic objectives (PL4x, PL10x, PL40xS, PL100xS are included, mounted in a quadruple, click stop nosepiece.Paired with the standard WF 10X eyepieces, these provide magnifications at 40X, 100X, 400X, and 1000X.

Polarizing System

The high-quality primary Polarizer is rotatable 360° on the condenser and has the added convenience of click stops. The advanced Analyzer in the optic path provides specific cross-polarization through the full 90° quadrant. Also included are a set of high quality compensators for advanced polarized polarized observation, including gypsum full wavelength, Quartz wedge, and Mica ¼ wave types. A center-adjustable Bertrand lens is also included for conoscopic observation.

Stage & Focus

The circular mechanical stage is 150mm in diameter rotatable through 360° and is graduated in 1°: increments. It is centerable and can be locked down into position. Focus is ambidextrous via convenient coaxial coarse/fine focus controls.

Condenser & illumination

The condenser is Abbe 1.30 N.A . Universal AC voltage (85V-265V) powers 6V 30W transmitted illumination for crisp bright images.

Accessories

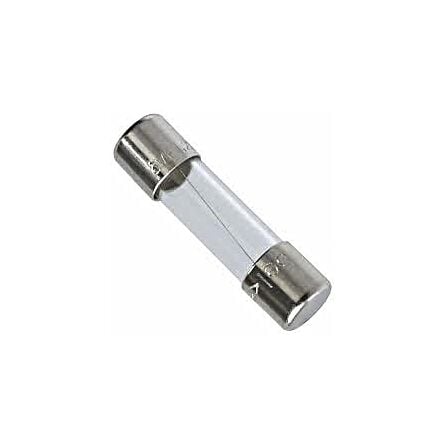

Dust Cover, manual, Spare Bulb, Fuse

Shipping Wt. and dimensions: 25 Lb. 14"x12"x27".

Specifications

OM349P Research-Grade Polarizing Microscope
General
SKU OM349P
Short Description
  • SAVE 22% - SPECIAL OFFER PRICING
  • Lab quality polarizing microscope
  • 4 Planachromatic objectives
  • Advanced Analyzer for cross-polarization
  • Trinocular format
  • Included Bertrand Lens
  • Lifetime Limited Warranty
Warranty Omano Limited Lifetime Warranty
System
System Type Brightfield, Polarizing
Optical Design DIN 160mm
Head
Head Type Trinocular
Head Rotation 360 Degrees
Ocular Angle 30°
Diopter Adjustment Dual
Interpupillary Adjustment Arc (Seidentopf)
Interpupillary Adjustment Range 55mm - 75mm
Trinocular Type Beam Split Continuous
Trinocular Standard C-mount
Parfocal Yes
Body
Nosepiece Orientation Front-facing
Nosepiece Style Quadruple (4)
Focus Controls Coarse & Fine
Focus Mechanism Rack & Pinion
Focus Control Location Dual Ambidextrous
Focus Controls Graduated? Yes
Focus Control Safety Stop Rack Stop
Stage Type Circular Rotatable
Stage Features 360deg Indexed, Fingertip Controls, Slide Clips
Stage Dimensions 150mm Diameter
Stage Range Graduated? Yes
Configuration
Includes Eyepieces? Yes
Included Eyepiece Quantity 2
Included Eyepieces (X) 10X
Eyepiece Style WF Widefield (FN 18mm)
Available Eyepieces 10X, 15X, 16X, 20X
Min Standard Mag 40X
Max Standard Mag 600X
Objectives
Included Objectives (Qty) 4
Objective Lens Plan
Included Objective Types Brightfield, Strain-free (Polarizing)
Included Objectives Parfocal Adjustable? Yes
Condenser
Condenser Type Abbe Brightfield
Condenser Features Iris Diaphragm, Rack & Pinion Focus
Illumination
Illumination Type Halogen
Illumination Style Transmitted
Collector Type Simple
Transmitted Light Type Halogen
Transmitted Light Specification 6V 20W
Transmitted Light Control Variable
Polarizing
Polarizer Description 360-degree rotatable with click-stops
Analyzer Description Cross-Polarization through full 90-degree quadrant
Polarizing Accessories Bertrand Lens (conoscopic observation), Gypsum λ (full wavelength) Compensator, Mica λ/4 (quarter wave) Compensator, Quartz Wedge Compensator
Reticles
Reticles Available? Yes
Reticle Diameter (10X Eyepiece) Graduated Cross-linear
