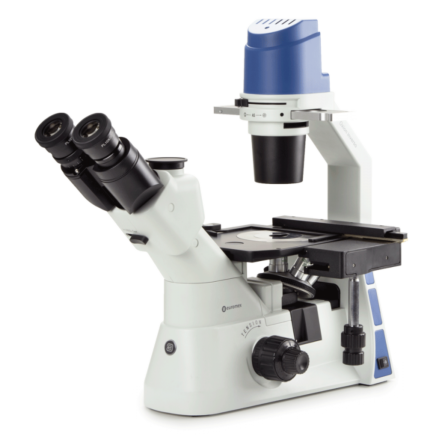

Oxion Inverso Series Technical Specifications
Optical System
| Eyepieces | Pair of DIN HWF plan 10x/22 mm eyepieces. |
|---|---|
| Viewing Head | Trinocular 45° inclined; Interpupillary distance 54-75 mm; 0-100% light path positions. |
| Nosepiece | Revolving quintuple nosepiece on ball-bearings. |
| Objectives |
Infinity color corrected LWD Plan IOS objectives (10x, 20x, 40x). Options: Phase Contrast, Fluarex for Fluorescence, and 60x available. |
Mechanical Components
| Stage |
250 x 230 mm stage with 120 x 78 mm X-Y mechanical control. Includes metallic insert for Ø 35 mm dishes and 76 x 26 mm slide holder. |
|---|---|
| Focusing | Coaxial 25 mm coarse and fine adjustments; 2 μm precision with friction adjustment. |
| Condenser | N.A. 0.30 with iris diaphragm; 72 mm working distance. |
Illumination & Filters
- Transmitted Light: 5W LED with adjustable intensity (internal 100-240V power supply).
- Fluorescence Models: 100W HBO mercury vapor light source or optional multi-wavelength LED sources.
- Standard Filter Sets:
- Blue (OX.9745): EX465-495, DM505, EM515-555 (FITC, EGFP, Cy2).
- Green (OX.9746): EX540-580, DM600, EM605-665 (Texas Red, mCherry, Cy3.5).
- UV (OX.9747): EX361-389, D415, EM435-485 (DAPI, Hoechst).
ICSI (Intracytoplasmic Sperm Injection) Set
A complete manual system designed for both training and professional clinical applications.
|
Heating Stage & Controller
- Glass Stage: 110 mm diameter, 0.5 mm thickness; fits circular opening of X-Y stage.
- Controller: 2-Channel touchscreen interface with data logging to USB.
- Accuracy: Temperature range from ambient to 60°C (± 0.3°C accuracy).
