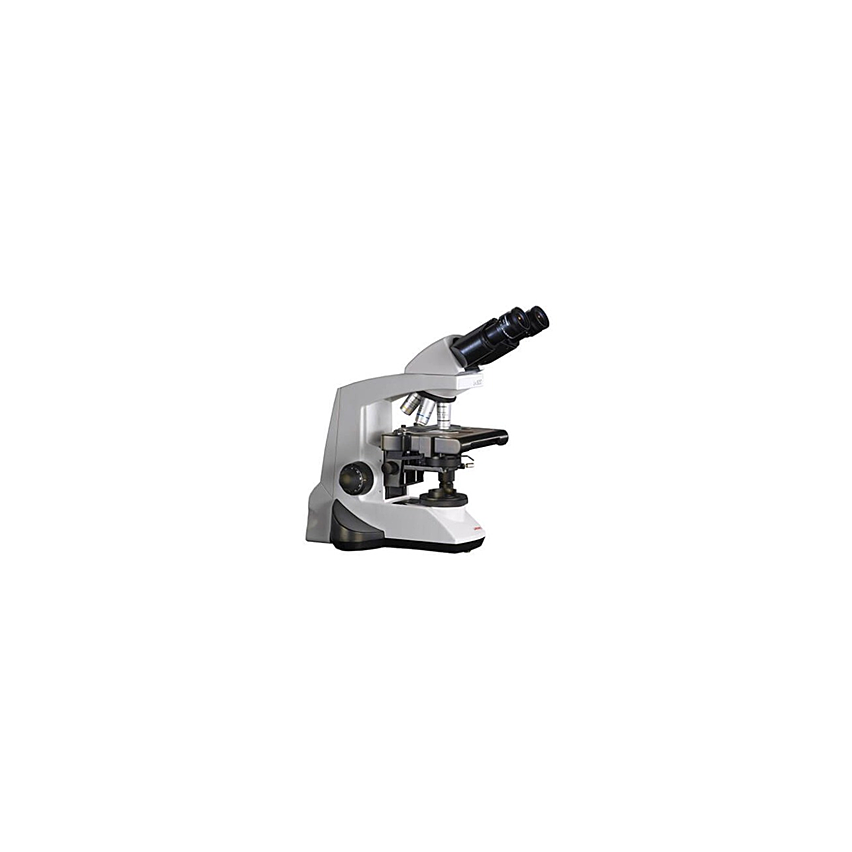

Labomed LX500 Upright Clinical Binocular Microscope 9144600
- Advanced Modular Design: Engineered with world-class technology, offering a highly versatile and fully extendable platform to meet evolving clinical needs.
- Superior Optics: Features high-performance optical innovations that deliver exceptional image clarity and precision for demanding laboratory environments.
- Ergonomic Symmetry: Designed with a focus on user comfort and graceful symmetry, reducing fatigue during extended periods of observation.
- Accessory Friendly: A flexible system architecture that allows for easy integration of a wide range of clinical accessories and upgrades.
Labomed Lx 500: High-Performance Modular Clinical Microscope
The Lx 500 Clinical Microscope is the culmination of world-class optical technologies and ergonomic design innovations. Engineered for versatility, this modular system is fully extendable and accessory-friendly, making it the ideal solution for demanding clinical laboratories and research environments that require both graceful symmetry and high-end performance.
Superior Infinity Corrected Optics
Equipped with RP2 Series Infinity Corrected DIN Plan Achromatic objectives, the Lx 500 delivers crisp, high-contrast images with superior field flatness. Every optical component is treated with an anti-fungal coating to ensure long-term durability in humid environments.
- Objectives: 4x, 10x, 40x (Spring), and 100x (Spring, Oil).
- Nosepiece: Reverse-angle quintuple nosepiece on ball bearings with a tactile rubber grip.
- Eyepieces: Focusable 10x/22mm widefield eyepieces with foldable eyeguards for spectacle wearers.
Advanced Mechanical & Ergonomic Design
The Lx 500 is built on a sturdy, single-mold anti-rust stand with an extended base for maximum stability during high-magnification observation. The Rackless Mechanical Stage eliminates protruding gear racks, providing a safer and more streamlined workspace.
| Technical Specifications | |
|---|---|
| Stage | Ceramic double-plate rackless stage (200 x 160mm) with X/Y travel (76mm x 50mm). |
| Focusing | Co-axial coarse and fine focusing on a precision gear system (0.3mm/rotation). |
| Condenser | Flip-top Abbe N.A. 1.25 with aspheric lens and iris diaphragm. |
| Illumination | True Köhler 6V-30W Halogen (Variable) with an internal voltage stabilizer. (LED Optional). |

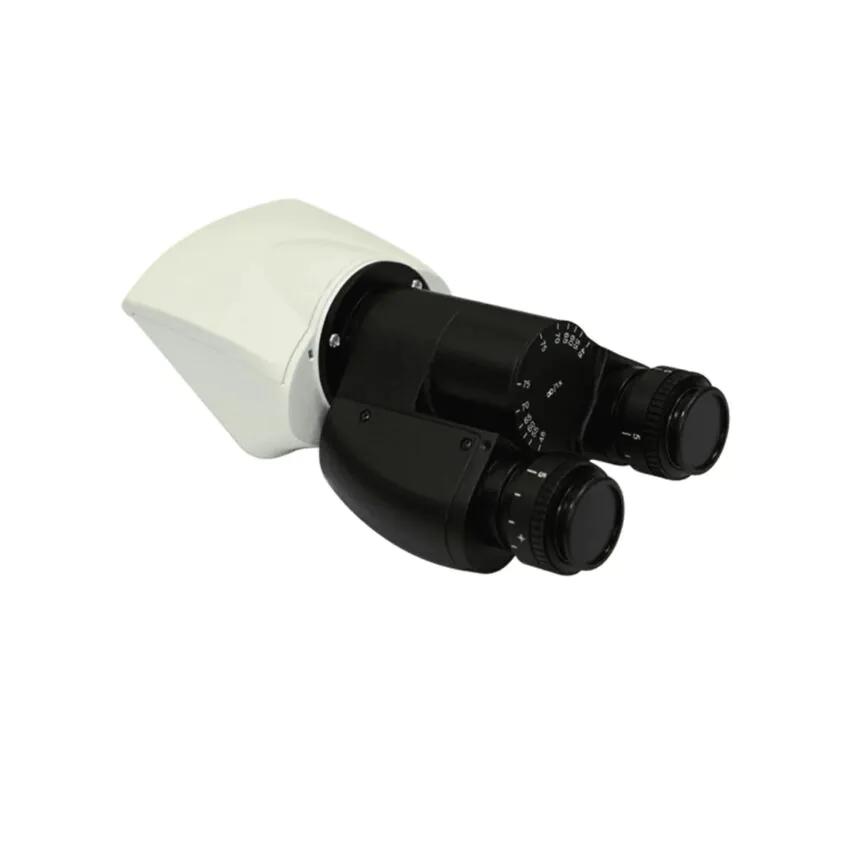

| Viewing Head | 360° rotatable Binocular or Trinocular (30°) or Ergonomic (0° - 25° inclinable). |
Reliability & Protection
Safety features include a built-in voltage stabilizer to protect electronics from power fluctuations (100V-240V) and a stage-stop mechanism to prevent accidental objective or slide damage.
What's in the Box?
- Lx 500 Microscope Stand
- Power Cable (6ft)
- Cargille Immersion Oil
- Nylon Dust Cover
- Cleaning Cloth
- Protective Styrofoam Casing
Ready to Customize Your Lx 500?
This system is fully modular. Contact us for Phase Contrast, Darkfield, or Digital Camera integration options.
| Brand | Labomed |
|---|---|
| Recommended For | 0 |
| Trinocular Tube Focusable? | No |
| Parfocal | No |
| Focus Controls Graduated? | No |
| Stage Range Graduated? | No |
| Includes Eyepieces? | No |
| Includes Eyecups? | No |
| Included Objectives Parfocal Adjustable? | No |
| Reticles Available? | No |
| Case Included? | No |
