Euromex SB.1903-P StereoBlue Trinocular Microscope | 7x-45x Zoom | LED Pillar Stand

SKU:

ESB.1903‑P

In stock

You pay: $795.00

Free Shipping,

30 Day Money Back Guarantee

Versatile Zoom Range: Features a 0.7x to 4.5x zoom objective providing 7x to 45x magnification, with a generous 100mm working distance for ample specimen manipulation.
Ergonomic Viewing: Equipped with a 360° rotatable trinocular head inclined at 45° and WF10x/20mm wide-field eyepieces with adjustable diopters for fatigue-free observation.
Dual LED Illumination: Integrated 3W reflected and transmitted LED lighting with independent intensity controls; both light sources can be used simultaneously for complex imaging needs.
Professional Pillar Stand: Large, ergonomically designed rack-and-pinion pillar tripod made of durable cast aluminum with a baked enamel finish and adjustable rotary tension control.
Expandable Optics: Compatible with optional WF 5x, 15x, or 20x eyepieces and auxiliary lenses (0.75x or 1.5x) to customize magnification and working distance for specific applications.

Customer Support

Talk to one of our experts now!

Email Call

Product Details

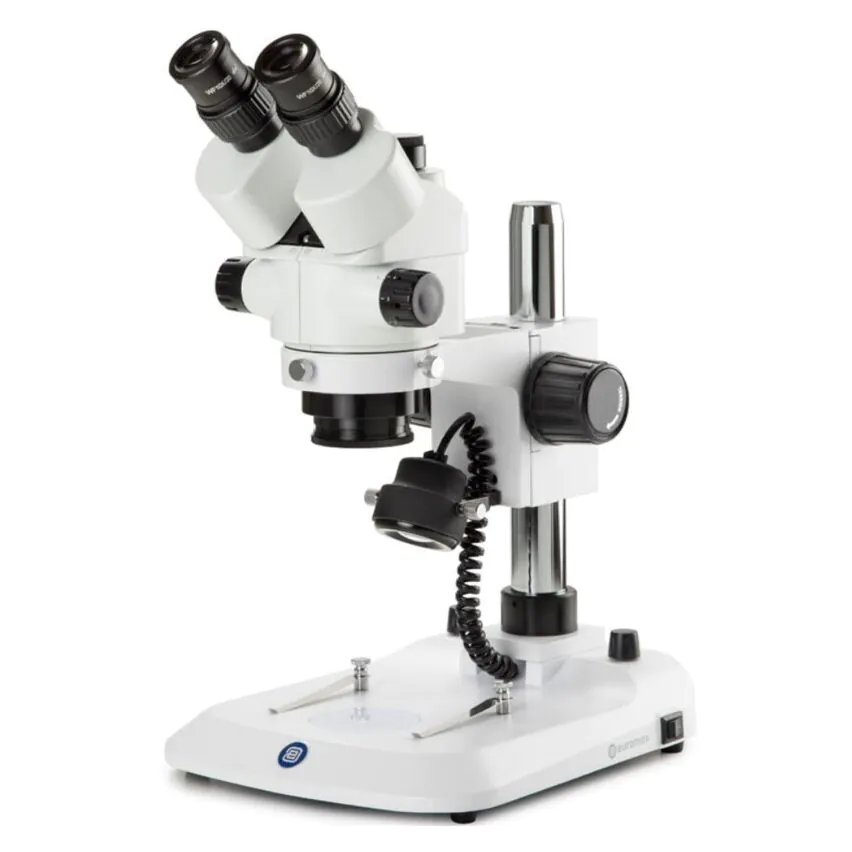

Euromex StereoBlue SB.1903-P: Professional Trinocular Zoom Power

The Euromex StereoBlue SB.1903-P is a high-performance Greenough-type stereo zoom microscope engineered for precision and durability. Specifically designed for researchers, mineralogists, and industrial technicians, this trinocular model offers seamless zoom capabilities from 7x to 45x, providing the clarity required for intricate analysis and high-resolution imaging.

Mounted on a stable, ergonomically designed pillar stand, the StereoBlue series is a favorite in veterinary medicine, electronics manufacturing, and materials science due to its superior optical throughput and robust cast-aluminum build.

Superior Optical Precision (Greenough System)

Continuous Zoom Range: 0.7x to 4.5x zoom objective allows for rapid magnification adjustments with a field of view ranging from 28.5mm to 4.5mm.
Trinocular Versatility: The 45° inclined trinocular head is 360° rotatable, allowing for easy integration of digital cameras for documentation and live streaming.
High Eyepoint Optics: Includes WF10x/20mm wide-field eyepieces with adjustable diopters and eye relief (55mm to 75mm) for a comfortable user experience.
Generous Working Distance: A standard 100mm working distance provides ample room for tool manipulation under the lens.

Technical Specifications

Imaging & Illumination
Optical System	Greenough Stereo Zoom
Magnification Range	7x to 45x (Zoom)
Illumination	Dual 3W LED (Incident and Transmitted) - Independently Adjustable
Field of View	28.5mm to 4.5mm
Mechanical & Stand
Stand Type	Ergonomic Pillar Stand with Rack and Pinion Adjustment
Focusing	Coarse adjustment with rotary resistance control
Base Plate	Supplied with Transparent and Black/White Stage Plates
Dimensions & General
Weight & Build	Cast Aluminium with Baked Enamel Finish
Height / Width	340mm (H) x 219mm (W)

Versatile Applications

The StereoBlue series is a modular workhorse suitable for a wide variety of professional environments:

Industry & Metallurgy: Quality control and micro-assembly.
Medicine & Veterinary: Parasite analysis and tissue inspection.
Mineralogy: Gemstone and geological specimen study.
Education: High-level university lab work.

Expand Your Reach: Customize your magnification and working distance with optional auxiliary lenses (0.75x or 1.5x) and wide-field eyepieces (WF 5x, 15x, or 20x).
