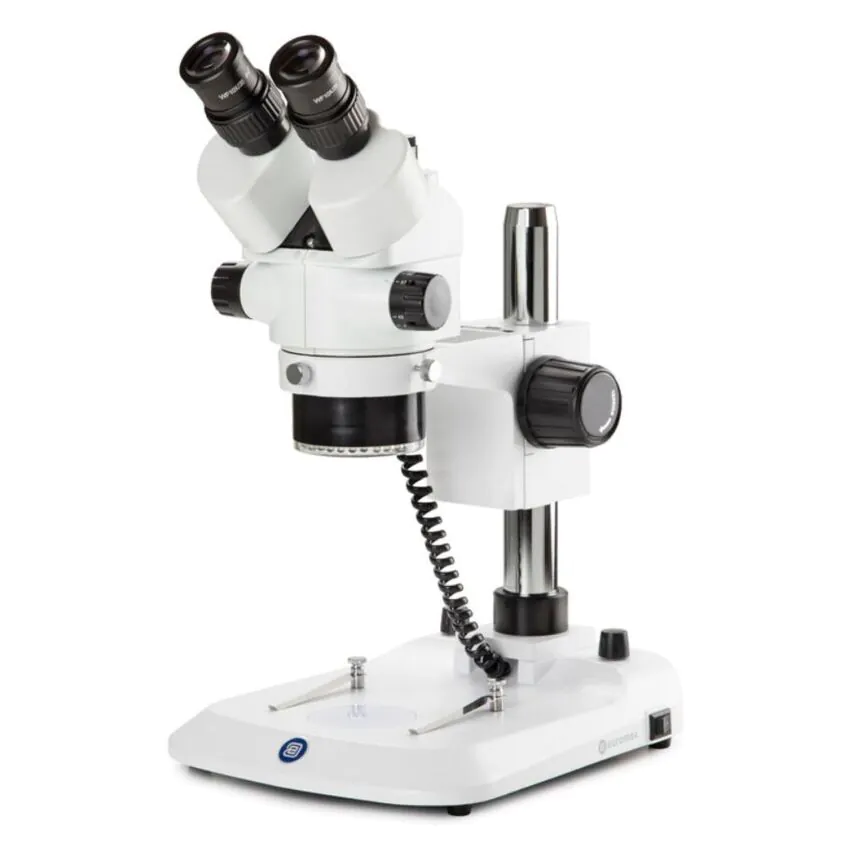

Euromex SB.3903-P Trinocular Stereo Zoom Microscope: 0.7x-4.5x Objective, Pillar Stand & Dual LED
- Versatile Zoom Range: Features a 0.7x to 4.5x zoom objective, providing a total magnification of 7x to 45x with a generous 100mm working distance for sample manipulation.
- Trinocular Optical Head: Professional 45° inclined, 360° rotatable trinocular tube with WF10x/20mm wide-field eyepieces and adjustable diopters for ergonomic viewing.
- Dual LED Illumination: High-intensity 3W reflected and transmitted LED lighting systems that are independently adjustable and can be used simultaneously for maximum contrast.
- Ergonomic Rack & Pinion Stand: Durable cast aluminum tripod stand with baked enamel finish, featuring large coarse adjustment knobs with rotary resistance control for precision focusing.
- Expandable System: Compatible with optional wide-field eyepieces (5x, 15x, or 20x) and auxiliary lenses (0.75x or 1.5x) to customize magnification and working distance to your specific application.
Euromex StereoBlue SB.3903-P: High-Precision Trinocular Zoom Microscope
The Euromex StereoBlue SB.3903-P is a professional-grade trinocular stereo microscope engineered for the demanding needs of industry, medicine, and higher education. Featuring a high-quality Greenough optical system, this microscope provides exceptional 3D imaging with a wide zoom range, making it a staple for mineralogy, materials technology, and veterinary medicine.
Equipped with dual 3-Watt LED illumination and an ergonomic rack-and-pinion stand, the SB.3903-P ensures comfortable use during extended inspection tasks while delivering the crisp, high-contrast views required for precision work.
Optical Performance & Versatility
- Continuous Zoom Magnification: Achieve 7x to 45x magnification with the standard 0.7x to 4.5x zoom objective, providing a field of view from 28.5mm down to 4.5mm.
- Greenough Optical Path: Optimized for high-resolution 3D stereoscopic images with a generous 100mm working distance.
- Trinocular Configuration: The dedicated photo port allows for seamless camera integration, perfect for digital documentation and live streaming in labs or classrooms.
- Expandable System: Compatible with optional WF 5x, 15x, and 20x eyepieces and auxiliary lenses (0.75x or 1.5x) to reach your specific magnification requirements.
Technical Specifications
| Optical System | |
|---|---|
| Build Type | Trinocular (360° Rotatable) |
| Eyepieces | WF 10x/20 mm Wide Field with Eyecups |
| Viewing Angle | 45° Inclined for Ergonomic Posture |
| Interpupillary Distance | Adjustable 55 mm to 75 mm |
| Illumination & Mechanics | |
| Light Source | 3-Watt Dual LED (Reflected & Transmitted) |
| Adjustment | Separately adjustable incident and transmitted light |
| Stand Type | Large Rack and Pinion with Baked Enamel Finish |
| Base Plate | Includes Transparent and Black/White Stage Plates |
Broad Applications for Professional Use
The StereoBlue series is a versatile workhorse across multiple disciplines. Its rugged cast aluminum construction and precision mechanics make it ideal for:
- Industry: Quality control in metallurgy and electronics assembly.
- Education: University-level biology, mineralogy, and materials research.
- Medicine: Veterinary pathology and clinical laboratory studies.
Ergonomic Advantage: The stand is specifically designed with a low-profile hand position to prevent fatigue during repetitive manual inspection tasks.
Ready to Document Your Findings?
Enhance your SB.3903-P with a high-definition CMOS camera to capture and measure your specimens.
Would you like to see our compatible C-mount camera adapters? Contact Us
