Omano

JW11 Boom Stand (Requires Hanging Bar Bracket)

In stock

SKU:

JW11

Authorized Dealer

Machine-quality stainless steel posts
Wide base plate for stability
Included hardware and focus block
Heavy-duty solid-metal castings for durability
Industrial enamel finish
Requires hanging bar bracket and hanging bar

You pay: $190.00

Free Shipping

30 Day Money Back Guarantee

Live Chat

Details

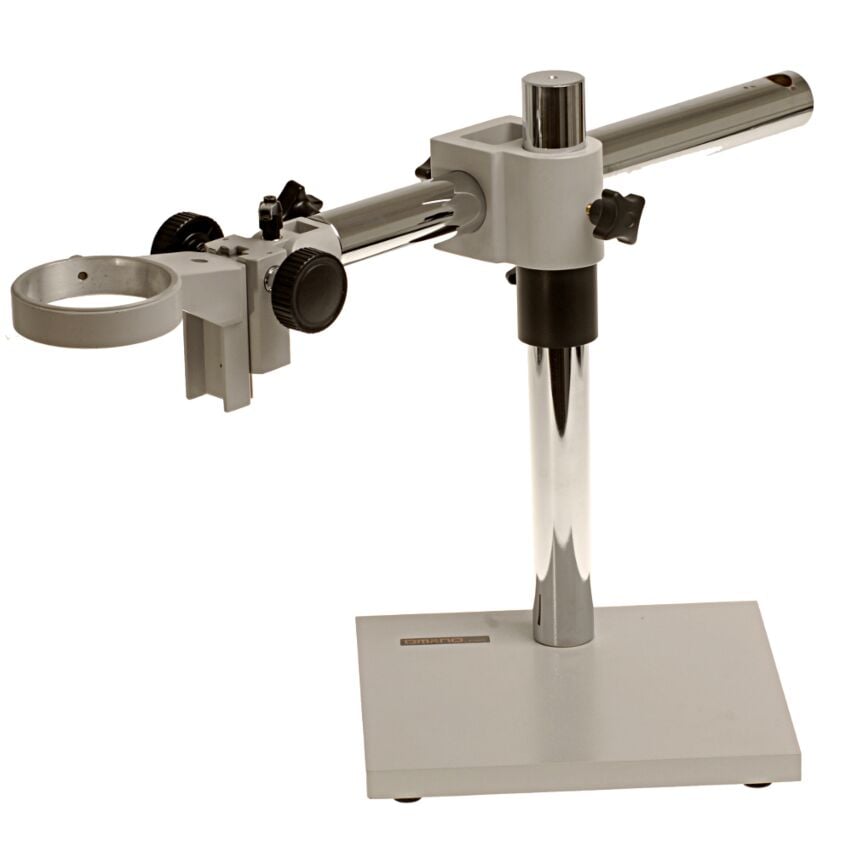

The Omano JW11 microscope base is a popular workhorse capable of covering 23 inches of horizontal reach and 10 inches of vertical movement through 360 degrees of sweep around the vertical post. The integrated focus block will pivot to just the right angle for optimum viewing, then lock securely in place.

It is a simple, solid and cost effective boom stand that is consistently popular with our electronics inspection customers who require an affordable stand that can withstand the rigors of multiple users on a factory inspection line or product testing lab. NOTE: Requires hanging bar bracket (OMHBB) and an appropriately-sized hanging bar, depending on the type of microscope head you intend to use. See below.

OM2300S - use 32mm hanging bar
OM99 - use 30mm hanging bar
Meijij EMZ - use 20mm hanging bar
VIDZ - use 25mm hanging bar

Stand assembly video:

More Information

More Information
Brand	Omano
Warranty	Omano Limited Lifetime Warranty
Recommended For	0
Stand Class	Boom
Stand Type	Single Arm Boom
Stand Features	Solid
Base Width	254 mm
Base Depth	254 mm
Post Height	355 mm
Post Diameter	38 mm
View Center to Post Distance	432 mm
Physical Construction	Solid Metal
Coating Type (Stand)	Durable Powdercoat
Requires Separate Hanging Bar?	No
Hanging Bar Style	Fixed
Focus Block Mount Diameter	5/8in Pin
Focus Controls	Coarse
Focus Mechanism	Rack & Pinion
Head Ring Mount Diameter	76 mm
