Euromex SB.3903 Trinocular Stereo Zoom Microscope | 7x-45x | LED Ring Light

SKU:

ESB.3903

In stock

You pay: $879.00

Free Shipping,

30 Day Money Back Guarantee

High-Performance Zoom Optics: Features a 0.7x to 4.5x zoom objective, providing a continuous magnification range from 7x to 45x with a generous 100mm working distance.
Professional Trinocular Head: Equipped with a 45° inclined, 360° rotatable trinocular tube and WF10x/20mm wide-field eyepieces for comfortable, long-term viewing and easy camera integration.
Dual 3W LED Illumination: Features independent, separately adjustable reflected and transmitted 3-Watt LED lighting that can be used simultaneously for optimal specimen clarity.
Ergonomic Rack & Pinion Stand: Built from durable cast aluminum with a baked enamel finish, the large tripod includes coarse adjustment with rotary resistance control for precise focusing.
Customizable Magnification: Highly adaptable system that can be expanded with optional WF5x, WF15x, or WF20x eyepieces and auxiliary lenses (0.75x or 1.5x) to suit specific laboratory needs.

Customer Support

Talk to one of our experts now!

Email Call

Product Details

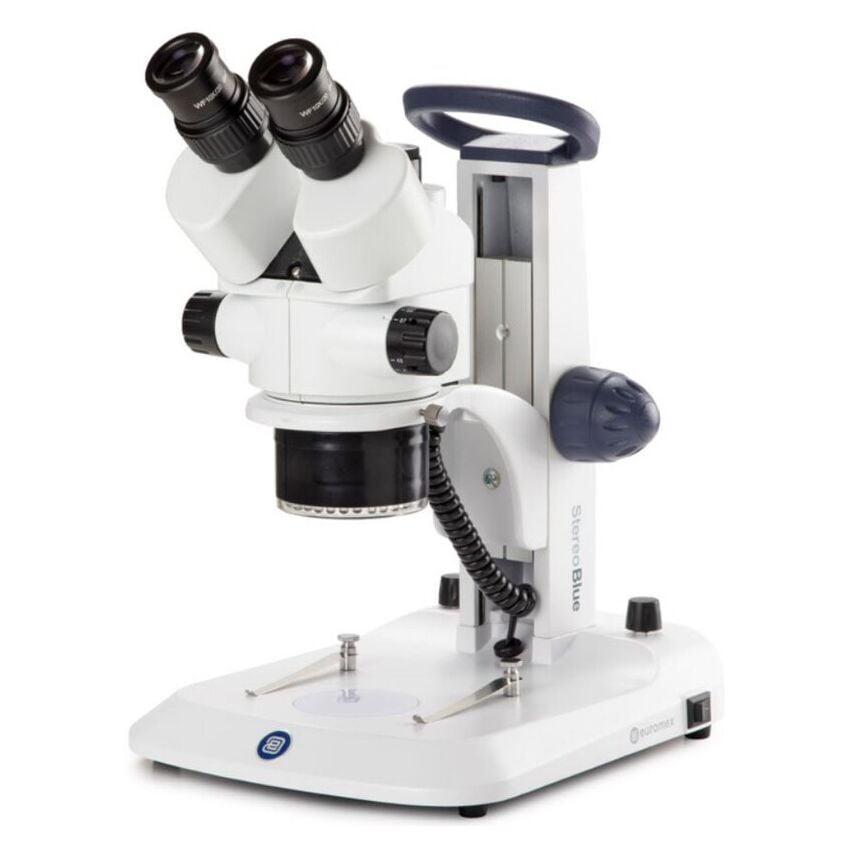

Euromex StereoBlue SB.3903: High-Performance Trinocular Zoom Microscope

The Euromex StereoBlue SB.3903 is a versatile, professional-grade stereo microscope designed for demanding applications in education, industry, and biological research. Featuring a high-quality Greenough optical system, this trinocular model offers a seamless zoom range from 0.7x to 4.5x, delivering crisp, high-contrast 3D images with exceptional depth of field.

Constructed with a rugged ergonomic stand and integrated dual-LED illumination, the SB.3903 is built for longevity and comfort during extended inspection tasks in mineralogy, metallurgy, and veterinary medicine.

Precision Optics & Versatile Zoom

Continuous Zoom Magnification: Achieve 7x to 45x magnification with the standard 10x eyepieces, providing a wide field of view from 28.5mm to 4.5mm.
Trinocular Imaging Port: The 45° inclined trinocular head allows for the permanent mounting of a digital camera while maintaining binocular observation.
100mm Working Distance: Ample space for tool manipulation, sample soldering, or dissection work.
Adjustable Comfort: Features 360° rotatable tubes, interpupillary adjustment (55-75mm), and dual diopter controls for a personalized viewing experience.

Technical Specifications

Optical System
Optical Design	Greenough Stereo System
Zoom Range	0.7x to 4.5x (Ratio 1:6.4)
Eyepieces	WF 10x/20mm Wide Field with Eyecups
Illumination & Mechanics
Lighting Type	Dual 3W LED (Incident and Transmitted), Separately Adjustable
Stand	Large Rack & Pinion Tripod (Cast Aluminum with Baked Enamel)
Base Features	Black/White and Transparent Stage Plates Included
Dimensions
Size / Weight	340mm (H) x 219mm (W) x 266mm (L)

Wide Range of Applications

The StereoBlue SB.3903 is a multi-disciplinary tool engineered for excellence in various fields:

Industry & Engineering: Perfect for SMD soldering, quality control, and materials technology.
Sciences: Highly effective for Mineralogy, Botany, and University-level education.
Medicine & Veterinary: Reliable for tissue inspection and small animal surgical preparation.

Expand Your Capabilities: Achieve higher magnifications (up to 180x) or longer working distances by adding optional WF 20x eyepieces or 0.75x/1.5x auxiliary lenses.
