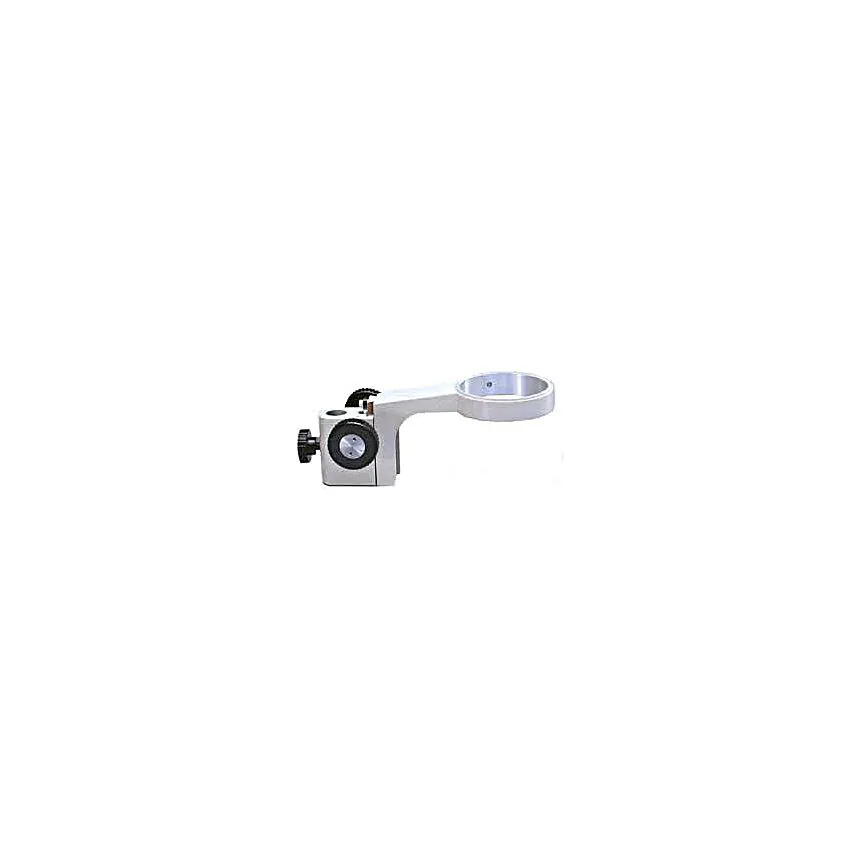

Meiji Techno FK Focus Block with extended arm

List Price: $300.00

Our Price: $255.00

SKU: FK

Availability: In stock

Meiji Focus Block with 84mm ring, extended arm, dual coarse focusing knobs, slip clutch and tension adjustment. Fits 20mm mounting pole.

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

  • Meiji FK Focus Block
Description

Meiji's FK Focus Block has an extended arm length which provides additional space between the ring and housing. This is ideal for those applications requiring extra clearance, such as an oblique viewing attachment on the microscope head. The focus block can be mounted either upright, or inverted on the pole, for added versatility.

Like other fine Meiji focus blocks, the FK includes machined rack and pinion gearing for smooth, controlled focusing movement through 55mm of travel. The dual focus knobs offer tension adjustment and a built-in slip clutch prevents damage to the mechanism or microscope head. Fits 20mm diameter mounting pole.

Specifications

FK Focus Block with extended arm
General
SKU FK
Short Description Meiji Focus Block with 84mm ring, extended arm, dual coarse focusing knobs, slip clutch and tension adjustment. Fits 20mm mounting pole.
Focus Block
Focus Controls Coarse
Focus Mechanism Rack & Pinion
View Center to Mount Distance 165 mm
Compatibility
Focus Block Mount Diameter 20 mm
Head Ring Mount Diameter 84 mm
