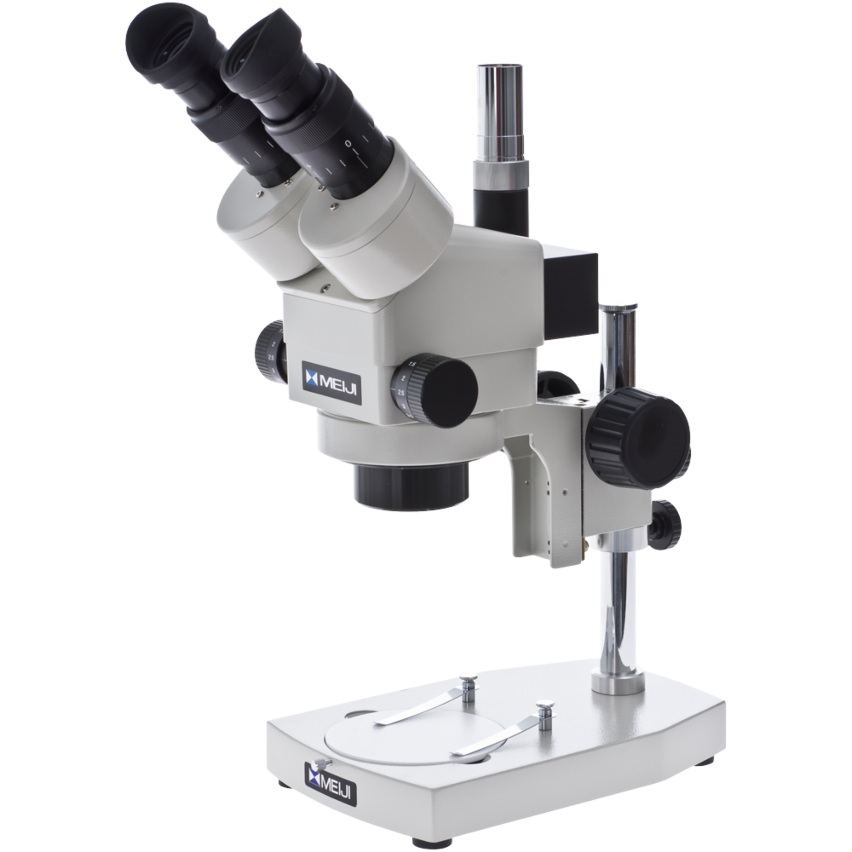

Meiji Techno EMZ-8TR-P 7X-45X Plain Stand Stereo Microscope System

List Price: $2,551.00

As low as: $2,119.00

SKU: EMZ8TR-P

Availability: In stock

  • 7X-45X zoom range
  • Most popular trinocular zoom stereo head
  • Choice of eyepieces
  • Plain pole stand
  • Trinocular - optional detents
  • Lifetime Limited Warranty
Select package options

Click on to learn more about the option * signifies required items

P Pole Stand   $380.00
MA600 Stereo Eyeshields (Pair)   $10.00

Included in Bundle

Stand: P Pole Stand

Eyeguards: MA600 Stereo Eyeshields (Pair)

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

  • Meiji EMZ-8TR-P Plain Stand Stereo Microscope
  • Meiji EMZ-8TR-P Plain Stand Stereo Microscope head
  • Meiji EMZ-8TR-P Plain Stand Stereo Microscope side
  • Meiji EMZ-8TR-P Plain Stand Stereo Microscope stage
  • Meiji EMZ-8TR-P Plain Stand Stereo Microscope focus block
Description

Summary

The Meiji EMZ-8TR-P is a combination of Meiji's best-selling trinocular zoom stereo microscope body and the affordable P stand. The microscope offers 7x-45x zoom magnification with 10x eyepieces although you have a choice of eyepieces. Limited Lifetime Warranty.

Microscope Head

The EMZ-8TR is Meiji's most popular trinocular zoom stereo microscope head. It is to trinocular what the EMZ-5 is to binocular. A good quality workhorse for industry ad education that can be relied on to last a lifetime with zero defects.

The parfocal zoom range is 7x-45x (10x eyepieces) with dual-sided zoom controls. The field of view is 32mm-5.1mm with 10x eyepieces and the standard working distance is marginally longer then the EMZ5 at 104mm. The head is inclined 45° and includes interpupillary adjustment of 54mm-75mm. There are dual +/-5 diopters for convenient individual eye focusing. The head rotates through 360° for flexible viewing positions.

Available in binocular or trinocular format and also with click stop detents for precise levels of magnification. The trinocular port directs light to the right eyetube and the trinocular tube simultaneously. Please note that a trinocular adapter is required to fit your camera.

Stand

The P stand is Meiji's most affordable pole stand for stereo microscopes. It includes the "F" focusing holder mounted on a plain base. Supplied with one 94.5mm diameter reversible black and white stage plate and two stage clips. (8.35" / 212 mm pillar)

Illumination

Since the plain stand has no illumination, optional ring lights are available when adding to cart.
Specifications

Specifications of Component Options

Select a component below to view related specifications.

  • P Pole Stand
    SKU P
    Stand
    Stand Class Pedestal
    Stand Type Pole
    Stage Plate Black/White Contrast Plate
    Post Diameter 20 mm
    If FB Mounts Direct
    Focus Block Mount Diameter 20 mm
    If FB Integrated
    Focus Controls Coarse
    Focus Mechanism Rack & Pinion
    Compatibility
    Head Ring Mount Diameter 84 mm

  • MA501 - 5X Super Widefield Paired Eyepieces

    MA718 - 7.5X Super Widefield Paired Eyepieces

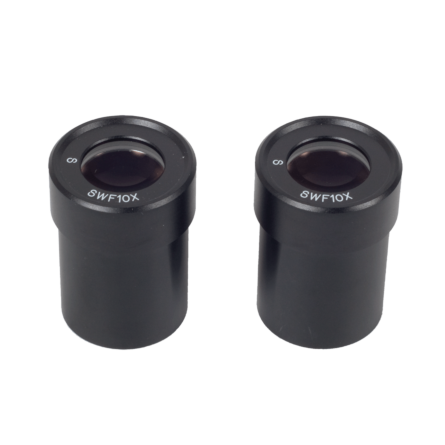

    MA502 - 10X Super Widefield Paired Eyepieces

    MA520 - 12.5x Super Widefield Paired Eyepieces

    MA503 - 15X Super Widefield Paired Eyepieces

    MA504 - 20X Super Widefield Paired Eyepieces

    MA521 - 30X Super Widefield Paired Eyepieces

    MA519 - 10x Focusing Eyepiece (single)

    MA522 - SWF High EP 10x Paired Eyepieces (Req'd for EMZ-5H / 8TRH)
    SKU MA501MA718MA502MA520MA503MA504MA521MA519MA522
    Warranty Meiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime Warranty
    Notes 30.5mm OD, Fits MEIJI EM SERIES ONLY30.5mm OD, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY30.5mm OD, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY
    Compatible With EM*EM*EM*EM*EM*EM*EM*EM*EM*
    Eyepiece Magnification 5x7.5x10x12.5x15x20x30x10x10x

  • MA600 Stereo Eyeshields (Pair)
    SKU MA600

  • 80 LED Ring Light, Variable Intensity

    64 LED Ring Light, Variable Intensity by Section

    144 LED Ring Light, Variable Intensity by Section
    SKU OMLED-80AOMLED-64AOMLED-144A
    Warranty 1 year
    Product Weight 1lb
    Illumination Type LEDLEDLED
    Light Specs
    Ring Light Type LEDLEDLED
    Ring Light Specification 80 LED90-265V Auto switching90-265V Auto switching
    Ring Light Power 8W
    Ring Light Control VariableVariableVariable
Magnification Chart

Eyepiece

Standard Configuration

Meiji EMZ 8

Auxiliary Barlow Lens

0.28X

0.35X

0.5X

1.5X

Working distance 104mm

Working distance 300mm

Working distance 250mm

Working distance 174mm

Working distance 57mm

Magnification

Field of view
mm

Magnification

Field of view
mm

Magnification

Field of view
mm

Magnification

Field of view
mm

Magnification FIeld of view
mm

 10X

7X-45X

32.8 ~ 5.1

1.9X-12.6X

112.3 ~ 17.4

2.5X-15.75X

93.7 ~ 14.5 3.5X-22.5X 65.6 ~ 10.2 10.5X-67.5X 21.9 ~ 3.4

 15X

10.5X-67.5X

22 ~ 3.4

2.9X-18.9X

78.1 ~ 12.2

3.7X-23.6X

62.8 ~ 9.7 5.25X-33.8X 44 ~ 6.8 15.8X-101.2X 14.6 ~ 2.2

 20X

14X-90X

16.4 ~ 2.5

3.9X-25.2X

55.6 ~ 8.5

4.9X-31.5X

46.8 ~ 7.4 7X-45X 32.8 ~ 5.1 21X-135X 10.9 ~ 1.7

 30X

 21X-135X 11 ~ 1.7 5.9X-37.8X 34.0 ~ 5.7 7.3X-47.2X 31.4 ~ 4.8 10.5X-67.5X 22 ~ 3.4 31.5X-202.5X 7.3 ~ 1.1
Product Manuals
  • Meiji EMZ Series Stereo Microscope Manual: Download PDF [888k]
