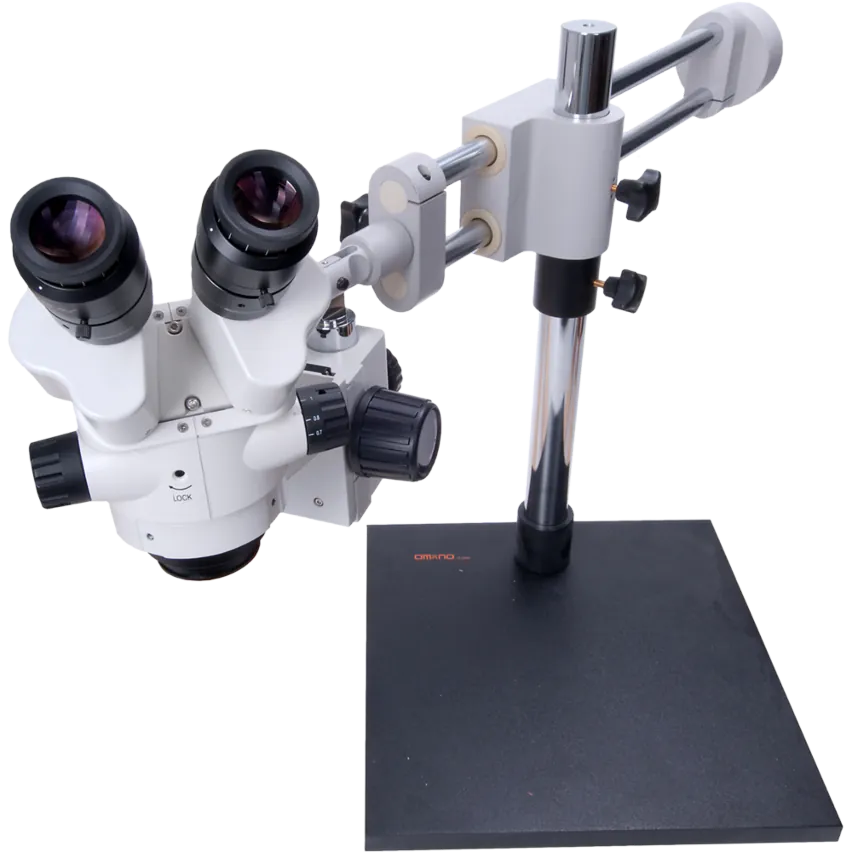

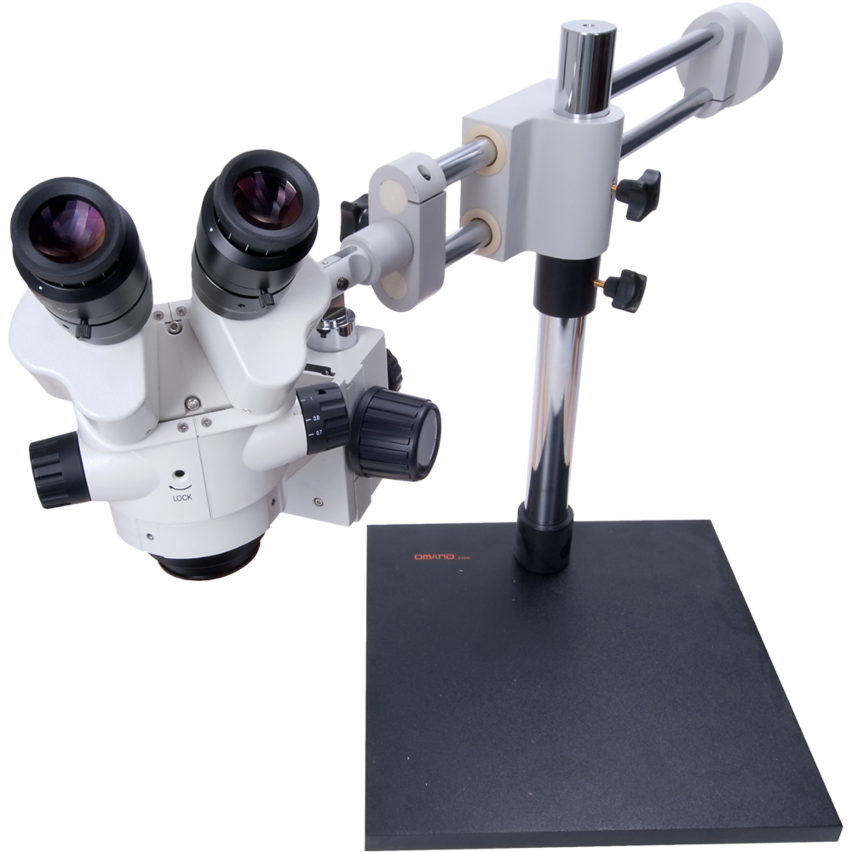

Omano OM2300S-V6 7X - 45X Zoom Stereo Boom Microscope

List Price: $1,208.00

Starting at: $722.00

SKU: OM2300S-V6

Availability: In stock

  • Upgraded 7x-45x zoom microscope head
  • Trinocular - Simultaneous camera/eyepiece use
  • Included WF10x eyepieces and eyeguards
  • Dual arm, heavyweight V6 boom stand
  • Included ring light
  • Sharp optics
  • Lifetime Limited Warranty

Price as configured: $0.00

Select package options

Click on to learn more about the option * signifies required items

V6 Boom Stand   $249.00
OMFB23S Focus Block, 76mm Ring   $60.00
OMHB32 Hanging Bar   $25.00
  • $75.00
  • $75.00
  • $75.00
  • $75.00
  • $75.00
  • $75.00
  • $75.00
  • $9.00
  • $119.00
  • $119.00
  • $88.00
  • $139.00
  • $209.00
  • $239.00
  • $499.00
  • $659.00
  • $229.00
  • $299.00

Included in Bundle

Stand: V6 Boom Stand

Focus Block: OMFB23S Focus Block, 76mm Ring

Hanging Bar: OMHB32 Hanging Bar

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

  • OM2300S-V6 Zoom Stereo Boom Microscope
  • OM2300S-V6 Zoom Stereo Boom Microscope 1
  • OM2300S-V6 Zoom Stereo Boom Microscope 2
  • OM2300S-V6 Zoom Stereo Boom Microscope 3
  • OM2300S-V6 Zoom Stereo Boom Microscope 4
  • Optional Camera System
Description

Summary

The OM2330S-V6 combines our most popular industrial microscope head (2300S) with the heavyweight, dual arm V6 boom stand that weighs in at over 60lbs.. Crisp optics meets stability. The 2300S is an upgraded 7x-45x microscope but with no increase in price and offers 7x-45x zoom magnification. The V6 is dual arm with a counter-weight for balance. As with most Omano boom stands, a hanging bar is included that enables more flexible viewing positions. Lifetime Limited Warranty.

Optics

The OM2300S zoom stereo microscope head has become our de facto, 'Go To' head for our industrial inspection customers. Upgraded in 2010, but with no increase in price, the 2300S provides a solid design with crisp, clean optics beyond our expectations at this price level. The 7X-45X zoom range (6.4:1) is parfocal with dual diopters integrated into the oculars. Interpupillay adjustment range is 55mm-75mm. Standard working distance is 4.5" which increases to 6.5" with the addition of 0.5x auxiliary barlow lens.

Three alternative barlows are available: 0.75x, 1.5x and 2.0x. WF10X eyepieces and eyeguards are included. It is available in binocular and trinocular format. The trinocular includes a 23.2mm smooth photo tube. NOTE: When the beam-splitter lever is engaged in the OM2300S-Trincular, 80% of the light from the left optical path is directed to the camera port. The image can still be viewed through both eyepieces while the camera is in use.. Lifetime Limited Warranty.

Focus & Illumination

Rack and pinion focus includes dual right and left hand controls for convenience. An 80 LED ring light for shadow-free illumination is included in the price and can be upgraded to stronger LED or other light when adding the microscope to you shopping cart.

Stand

Weighing in at over 60lbs, the V6 is extremely stable. It has almost 24" of clearance to the base and can view objects over 18" tall. Dual arm construction adds to its strength while a counterweight adds balance. A locking collar acts as a safety mechanism under the boom arm. As with most Omano boom stands, a hanging bar is included that enables angled viewing positions. The hanging bar bracket is spring-loaded so that the lever can be moved out of the way without having to release the pre-set position of the microscope head.

Accessories

Ring light, focus block, dust cover, manual, eyeguards



MAGNIFICATION CHART (values approximate)
BARLOW EYEPIECE (X) WD (mm)
10 15 20
0.5 3.5X 22.5X 5.2X 33.7X 7X 45X 200
0.75 5.2X 33.7X 7.9X 50.6X 10.5X 67.5X 133
1 7X 45X 10.5X 67.5X 14X 90X 100
1.5 10.5X 67.5X 15.7X 101.2X 21X 135X 66
2 14X 90X 21X 135X 28X 180X 50

MIN MAX MIN MAX MIN MAX



FIELD OF VIEW CHART (in mm – values approximate)
BARLOW EYEPIECE (X)
10 15 20
0.5 64 10 42 6.7 32 5
0.75 42 6.7 28 4 21 3
1 32 5 21 3.3 16 2.5
1.5 21 3.3 14 2 10 2
2 16 2.5 10 1.6 8 1.2

MIN MAX MIN MAX MIN MAX

Omano Stereo Boom Stand Comparison

Specifications

Specifications of Component Options

Select a component below to view related specifications.

  • V6 Boom Stand
    SKU V6
    Stand
    Stand Class Boom
    Stand Type Dual Arm Boom
    Stand Features Ball-Bearing Glide, Counter-weighted, Large Base Plate
    Base Width 330 mm
    Base Depth 330 mm
    Post Height 464 mm
    Post Diameter 38 mm
    View Center to Post Distance 495 mm
    Physical Construction Solid Metal
    Coating Type (Stand) Durable Powdercoat
    If HB Required
    Requires Separate Hanging Bar? Yes
    Hanging Bar Style Articulable

  • OMFB23S Focus Block, 76mm Ring
    SKU OMFB23S
    If FB Integrated
    Focus Controls Coarse
    Focus Mechanism Rack & Pinion
    If FB Mounts Direct
    Focus Block Mount Diameter 32 mm
    Compatibility
    Head Ring Mount Diameter 76 mm
    Mounted Illumination Compatibility Accepts Oblique Illuminator

  • OMHB32 Hanging Bar
    SKU OMHB32
    If HB Required
    Hanging Bar Style Articulable
    If FB Mounts Direct
    Focus Block Mount Diameter 32 mm

  • 80 LED Ring Light, Variable Intensity

    64 LED Ring Light, Variable Intensity by Section

    144 LED Ring Light, Variable Intensity by Section

    OMLED-DP8W LED Dual Gooseneck Light

    OMLED-DP6W LED Dual Gooseneck Pole Mount Light
    SKU OMLED-80AOMLED-64AOMLED-144AOMLED-DP8WOMLED-DP6W
    Warranty 1 year  1 year1 year
    Product Weight 1lb  3.1 lbs4.0 lbs
    Product Length  16 cm31.0 cm
    Product Width  10 cm29.0 cm
    Product Height  8 cm17.5 cm
    Power Supply  90V-265V
    Product Display
    New  Yes
    Illumination Type LEDLEDLEDLEDLED
    Light Specs
    Ring Light Type LEDLEDLED LED
    Ring Light Specification 80 LED90-265V Auto switching90-265V Auto switching 3W x 2
    Ring Light Power 8W   6W
    Ring Light Control VariableVariableVariable Variable

  • 0.5X Barlow Lens for Omano OM2300S, WD=200mm

    0.75X Barlow Lens for Omano OM2300S, WD=133mm

    1.0X Protective Barlow Lens for Omano OM2300S, WD=100mm

    1.5X Barlow Lens for Omano OM2300S, WD=60mm

    2.0X Barlow Lens for Omano OM2300S, WD=50mm
    SKU OMBL-2300S-05XOMBL-2300S-075XOMBL-2300S-10XOMBL-2300S-15XOMBL-2300S-20X
    Warranty Omano Limited Lifetime WarrantyOmano Limited Lifetime WarrantyOmano Limited Lifetime WarrantyOmano Limited Lifetime WarrantyOmano Limited Lifetime Warranty
    Notes Does not fit OM2300, OM2300-T, OM3300Does not fit OM2300, OM2300-T, OM3300Does not fit OM2300, OM2300-T, OM3300Does not fit OM2300, OM2300-T, OM3300Does not fit OM2300, OM2300-T, OM3300
    Backorder ETA Feb 23, 2017Dec 24, 2015
    Compatible With OM2300SOM2300SOM2300SOM2300SOM2300S
    Optical Accessory
    Barlow Lens Power 0.5X0.75X1.5X1.5X2.0X

  • 15X Eyepieces For Omano OM2300S (Pair)

    20X Eyepieces For Omano OM2300S (Pair)

    Eyecups, Omano Series C (Pair) 32mm
    SKU OMEP-2300S-15XOMEP-2300S-20XOMEC-C-32MM
    Warranty Omano Limited Lifetime WarrantyOmano Limited Lifetime Warranty
    Notes Priced per PairPriced per Pair
    Product Weight 4.0000
    Backorder ETA Oct 27, 2017 Jan 19, 2018
    Compatibility
    Compatible With OM2300S, OM2300STOM2300S, OM2300ST
    Eyepiece Magnification 15x20x

  • C-Mount Adapter 0.35X for Omano OM2300ST New (Dovetail Mount)

    C-Mount Adapter 0.5X for Omano OM2300ST New (Dovetail Mount)
    SKU OMCM-2300ST-03XOMCM-2300ST-05X
    Warranty Omano Limited Lifetime WarrantyOmano Limited Lifetime Warranty
    Notes Does not fit BinocularDoes not fit Binocular
    Backorder ETA Nov 30, 2015
    Compatible With OM99TOM99T

  • Summit SK2-1.3X 1.3MP PC / MAC Compatible Digital Microscope Camera

    Summit SK2-3.1X 3.1MP PC / MAC Compatible Digital Microscope Camera

    Summit SK2-5.2X 5.0MP PC / MAC Compatible Digital Microscope Camera

    Summit SK2-10X 10.0MP PC / MAC Compatible Digital Microscope Camera

    Summit SK2-14X 14.0MP PC / MAC Compatible Digital Microscope Camera

    OCS-HDMI-1080PU 2.0 MP PC / MAC 60 FPS Digital Microscope Camera

    AIR 5.0MP WiFi (PC / MAC) or USB (PC-Only) Digital Microscope Camera

    OCS-HDMI-1 1080P 3.0 MP PC-Only 30 FPS Digital Microscope Camera
    SKU OCS-SK2-1.3XOCS-SK2-3.1XOCS-SK2-5.2XOCS-SK2-10XOCS-SK2-14XOCS-HDMI-1080PUOCS-AIROCS-HDMI-1
    Warranty 1 Year1 Year1 Year1 Year1 Year1 Year 1 Year
    Product Weight 2.00002.00002.00002.00002.00002.00001.8lbs2.0000
    Product Length  10"
    Product Width  8.5"
    Product Height  5"
    Sensor
    Sensor Type CMOSCMOSCMOSCMOSCMOSCMOSCMOSCMOS
    Sensor Size 1/3 Inch1/2 Inch1/3 Inch1/3 Inch1/3 Inch1/2.5 Inch1/2.5 Inch1/3 Inch
    Sensor Details Aptina MT9M111 CMOSAptina MT9T001 CMOSAptina MT9P001 CMOSAPTINA MT9J003 CMOSAPTINA MT9F002 CMOSSONY IMX236 Aptina AR0330 CMOS Sensor
    Color/Monochrome ColorColorColorColorColorColorColorColor
    Filter  RGB Bayer Pattern
    Pixel Pitch 3.6 µm x 3.6 µm3.2 µm x 3.2 µm2.2 µm x 2.2 µm1.7 µm x 1.7 µm1.4 µm x 1.4 µm2.8um x 2.8um 2.2um x 2.2um
    Sensor Color Depth 8bpp / 24bit RGB8bpp / 24bit RGB8bpp / 24bit RGB8bpp / 24bit RGB8bpp / 24bit RGB
    Scan Mode ProgressiveProgressiveProgressiveProgressiveProgressiveProgressive Progressive
    Signal to Noise Ratio 44 db43 db40.5 db34 db35.5 db  39 dB
    Sensitivity 1.0V/Lux-sec (550nm)1.0V/Lux-sec (550nm)1.0V/Lux-sec (550nm)1.0V/Lux-sec (550nm)1.0V/Lux-sec (550nm)  1.4v/lux-sec(550nm)
    Dynamic Range 71 db61db66.5db65.2db63.5db  69.5 dB
    A/D Conversion 10-bit Parallel, 8-bit RGB to PC12-bit Parallel, 8-bit RGB to PC12-bit Parallel, 8-bit RGB to PC12-bit Parallel, 8-bit R.G.B to PC12-bit Parallel, 8-bit R.G.B to PC  12-bit Parallel, 8-bit R.G.B
    Cooling System  NaturalNaturalNatural
    Shutter Electronic, Rolling ShutterElectronic, Rolling ShutterElectronic, Rolling ShutterElectronic, Rolling ShutterElectronic, Rolling ShutterElectronic, Rolling ShutterMechanicalElectronic, Rolling Shutter
    Camera
    Camera Mount C-Mount, Ocular MountC-Mount, Ocular MountC-Mount, Ocular MountC-Mount, Ocular MountC-Mount, Ocular MountC-MountC-Mount, F-Mount, Ocular MountC-Mount
    Resolution 1.3 Megapixel, 1280x1024 pixels3 Megapixel, 2048x1536 pixels5 Megapixel, 2592 X 1944 pixels10 Megapixel, 3584 X 2748 pixels14 Megapixel, 4096 x 3288 pixels2.0 megapixels 2.0 megapixels
    Camera Output Resolutions 1280 X 1024; 640 X 512; 320 X 2562048 x 1536; 1024 x 768; 680 x 5102592 X 1944; 1280 X 960; 640 X 4803584 X 2748; 1792 x 1374; 896 X 6844096 x 3288; 2048 x 1644; 1024 x 822 640 x 480, 800 x 600, 1280 x 960, 2592 x 19441920X1080i60,1920X1080P30,1280x720P60,640x480P60
    FPS @ Max Res [email protected]; [email protected]; [email protected][email protected]; [email protected]; [email protected]5fps @ 2592 X 19441.9fps @3584 x 27481.7fps @4096 x 328860 @ 1920 x 108015/5 fps USB/WiFi30 Fps
    FPS @ Min Res 50fps @ 320 x 25643fps @ 680 x 51060fps @ 640 X 48027fps @896 x 68427fps @1024 x 822 40/30 fps USB/WiFi60 FPS
    Camera Interface USB 2.0USB 2.0USB 2.0USB 2.0USB 2.0USB 2.0, HDMIWiFi, USB 2.0SD Card, USB 2.0, HDMI
    White Balance Automatic, ManualAutomatic, ManualAutomatic, ManualAutomatic, ManualAutomatic, ManualAutomatic, ManualAutomaticAutomatic, Manual
    Black Balance  Automatic
    Software Included OptixCam K2ViewOptixCam K2ViewOptixCam K2ViewOptixCam K2ViewOptixCam K2View Measuring Software
    Driver API Compatibility DirectX, TWAINDirectX, TWAINDirectX, TWAINDirectX, TWAINDirectX, TWAINDirectX DirectX
    Power Source USB PoweredUSB PoweredUSB PoweredUSB PoweredUSB PoweredExternal Power Supply External Power Supply
    File Formats BMP, JPEG, Own Proprietary, PNG, TGA, TIFFBMP, JPEG, Own Proprietary, PNG, TGA, TIFFBMP, JPEG, Own Proprietary, PNG, TGA, TIFFBMP, JPEG, Own Proprietary, PNG, TGA, TIFFBMP, JPEG, Own Proprietary, PNG, TGA, TIFFBMPJPEG, MOVJPEG, MOV
    Exposure Control Automatic, ManualAutomatic, ManualAutomatic, ManualAutomatic, ManualAutomatic, ManualAutomaticAutomatic, ManualAutomatic, Manual
    Exposure Time 2000ms-0.14Ms2000ms-0.128s2000ms-0.21s2000ms-0.21s0.4~2000ms, ROI Auto & Manual0.1ms - 999s 0.21~33ms, Auto & Manual
    Operating Temperatures 10°C ~ 50°C10°C ~ 50°C10°C ~ 50°C10°C ~ 50°C10°C ~ 50°C20-60 Deg. C 0℃~ 40℃
    Operating Humidity 30% ~ 80% RH30% ~ 80% RH30% ~ 80% RH30% ~ 80% RH30% ~ 80% RH30-80% RH 30~80%RH
    Storage Temperature -20°C ~ 60°C-20°C ~ 60°C-20°C ~ 60°C-20°C ~ 60°C-20°C ~ 60°C  -20℃~ 60℃
    Other Details
    Included Accessories 0.5X 23mm DIN Adapter, Software CD0.5X 23mm DIN Adapter, Software CD0.5X 23mm DIN Adapter, Software CD0.5X 23mm DIN Adapter, Software CD0.5X 23mm DIN Adapter, Software CD Case, Software CD/App, Power Adapter, USB Cable
    Supported Operating Systems Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.7+Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.7+Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.7+Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.7+Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.7+Windows 10, Windows 8, Windows 7, Windows Vista, Mac OSX 10.4+Windows 8, Windows 7, Windows Vista, Windows XP SP3, Apple iOS, Android 3+N/A, Windows 10, Windows 8, Windows 7
    System Requirements 2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended
    Certifications CE, ULCE, ULCE, ULCE, ULCE, ULCE CE
    Cable Length 1.8m (8ft)1.8m (8ft)1.8m (8ft)1.8m (8ft)1.8m (8ft)2.5m (8ft) 2.5m (8ft)
    Camera Warranty 1 Year1 Year1 Year1 Year1 Year1 Year1 Year
    Software Support 6 Months6 Months6 Months6 Months6 Months6 Months 6 Months
    Compatibility
    Imaging Compatibility (with adapters) 23mm , C-Mount23mm , C-Mount23mm , C-Mount23mm , C-Mount23mm , C-MountC-MountC-MountC-Mount
Magnification Chart

Eyepiece

Standard configuration

Omano OM2300S

Auxiliary objectives

0.5X

0.75X

1.5X

2.0X

Working distance 100mm

Working distance 200mm

Working distance 133mm

Working distance 60mm

Working distance 50mm

Magnification

Field of view
mm

Magnification

Field of view
mm

Magnification

Field of view
mm

Magnification

Field of view
mm

Magnification FIeld of view
mm

10X / 20

7x

28.6

3.5x

57.1

5.25x

38.1

10.5x

19

 14x 14.3

45x

4.4

22.5x

8.9

33.75x

5.93

67.5x

3

90x  2.2

15X / 15

10.5x

21.4

5.35x

42.8

7.88x

28.57

15.75x

14.3

21x  10.7

67.5x

3.3

33.75x

6.7

50.63x

4.44

101.25x

2.2

135x  1.7

20X / 10

14x

14.3

7x

28.6

10.5x

19.06

21x

9.5

28x 7.1

90x

2.2

45x

4.4

67.5x

2.96

135x

1.5

180x

1.1
