Meiji Techno FS Focus Block

List Price: $380.00

Our Price: $323.00

$ 323.00

SKU: FS

Availability: In stock

Meiji Focus Block with 84mm ring, tilting mounting pin, integral illumination port, dual coarse focusing knobs, slip clutch and tension adjustment.

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

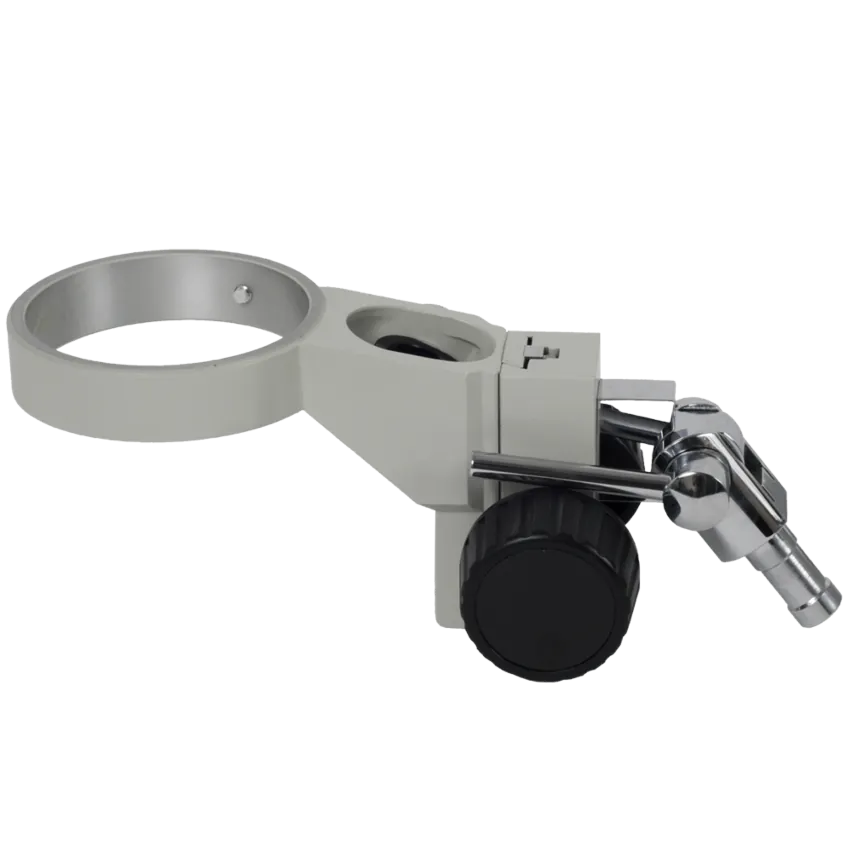

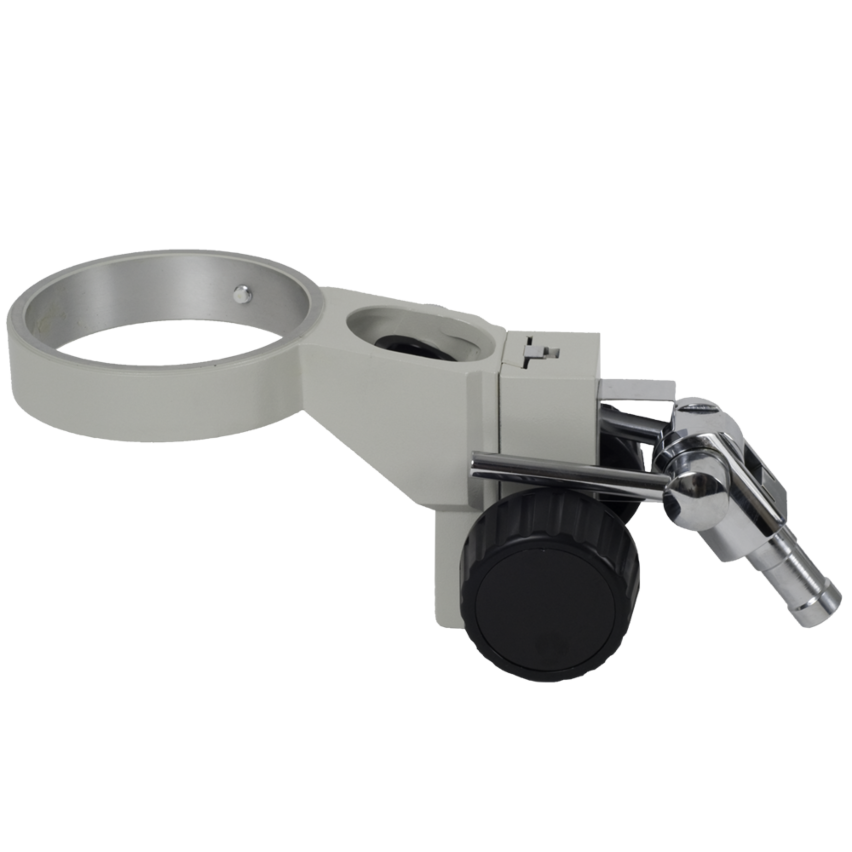

  • Meiji FS Focus Block main
  • Meiji FS Focus Block angled
  • Meiji FS Focus Block mounted
Description


Meiji's FS Focus Block allows viewing from multiple angles beyond vertical, through the use of a 15.8mm mounting pin and adjustment bracket. This is ideal for specialty applications such as gemology or engraving.

Like other F-series blocks, the FS includes a integral illumination port, machined rack and pinion gearing for smooth focusing movement and 55mm of travel.  The dual focus knobs offer tension adjustment and a built-in slip clutch prevents damage to the mechanism or microscope head. Fits 20mm diameter mounting pole.

MA552 Adapter is needed for attaching to Meiji S-4000 series boom stands.

0 0
Specifications

FS Focus Block
General
Brand Meiji Techno
SKU FS
Short Description Meiji Focus Block with 84mm ring, tilting mounting pin, integral illumination port, dual coarse focusing knobs, slip clutch and tension adjustment.
Feed - Title Meiji Techno FS Focus Block
Feed - Description The Meiji EMZ8TR-S4100 is a combination of Meiji's best-selling EMZ-8TR zoom stereo trinocular microscope head and the S-4100 boom stand. It is the most popular Meiji industrial inspection microscope system. Available in binocular or trinocular with choice of eyepieces. Limited Lifetime Warranty.Microscope Head TThe EMZ-8TR is Meiji's most popular trinocular zoom stereo microscope head. It is to trinocular what the EMZ-5 is to binocular. A good quality workhorse for industry ad education that can be relied on to last a lifetime with zero defects. The parfocal zoom range is 7x-45x (10x eyepieces) with dual-sided zoom controls. The field of view is 32mm-5.1mm with 10x eyepieces and the standard working distance is marginally longer then the EMZ5 at 104mm. The head is inclined 45
Feed - Custom Label 1 100-500
Focus Block
Focus Controls Coarse
Focus Mechanism Rack & Pinion
Compatibility
Focus Block Mount Diameter 5/8in Pin
Head Ring Mount Diameter 84 mm
