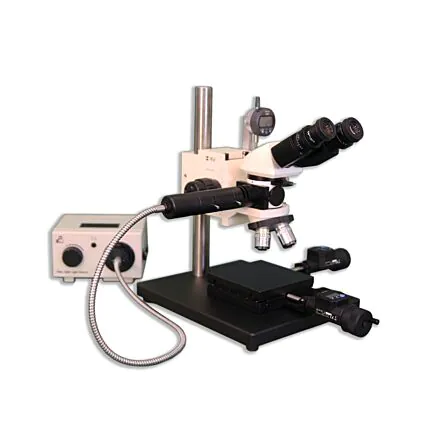

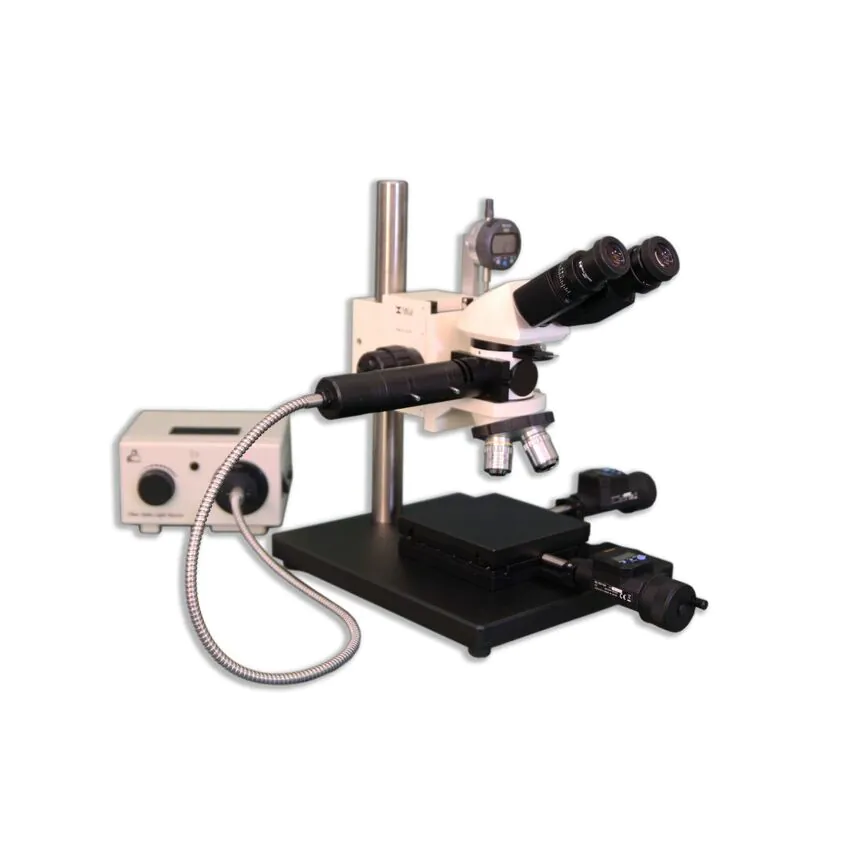

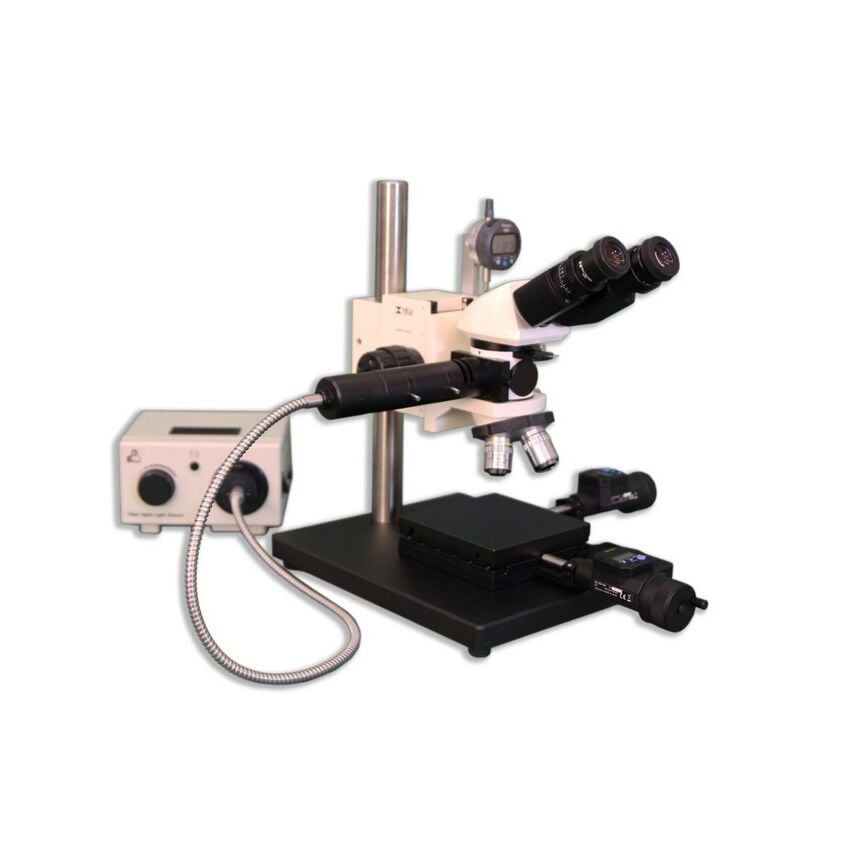

Meiji Techno MC-60 Binocular Reflected Light Brightfield/Darkfield Tool Makers/Measuring Microscope

SKU:

MC-60

In stock

You pay: $12,100.00

Free Shipping,

30 Day Money Back Guarantee

Versatile Observation Modes: Supports Brightfield, Darkfield, and simple Polarization, making it ideal for inspecting diverse metallurgical and industrial surfaces.
Precision Measurement: Equipped with Mitutoyo Digimatic Micrometer heads featuring serial output for seamless integration with SPC (Statistical Process Control) software.
Configurable Digital Readouts: Available in 2-axis and 3-axis electronic digital readout systems, switchable between inch and metric measurements.
Modular Imaging Compatibility: Fully compatible with digital CMOS, CCD, and 35mm photomicrography systems for high-resolution documentation and training.
Industrial-Grade Build: Features a heavy-duty stable stand and high-quality metallurgical optics available in binocular or trinocular heads with 110V or 220V power options.
Efficient Workflow: Designed for rapid visual inspection of small components without the need for a complicated or time-consuming system setup.

Note: Mitutoyo Digimatic Indicators (MTI164-164 for X/Y axis and MTI543-392 for Z axis) are shown for illustrative purposes and must be purchased separately.

Customer Support

Talk to one of our experts now!

Email Call

Product Details

MC-60 & MC-60T Series: Professional Metallurgical Measuring Microscopes

High-Precision Tool Makers Compound Systems with Infinity Corrected Optics (F=200mm)

Precision Metrology Meets Advanced Optical Inspection

The MC-60 and MC-60T Series are high-performance metallurgical measuring microscopes engineered for the most demanding industrial environments. These "Tool Maker" compound systems combine research-grade optical components with high-precision X-Y stages and heavy-duty stands, making them ideal for quality control, material development, and electronic component inspection.

Available in both 2-axis and 3-axis electronic digital readout configurations (inches/metric), these systems integrate seamlessly with Mitutoyo Digimatic Micrometer heads for streamlined SPC data output and precision measurement.

Multi-Mode Observation Capabilities

To ensure comprehensive material analysis, the MC-60 series supports three critical contrast methods:

Brightfield (BF)

The standard for metallurgical inspection. High-intensity incident light reveals surface details, colors, and textures by capturing light reflected directly from the sample.

Darkfield (DF)

By excluding unscattered light, Darkfield observation makes surface defects, scratches, and grain boundaries "glow" against a dark background. This is essential for identifying micro-flaws and characterizing new materials.

Simple Polarizing Light

Utilizing polarizing plates and prisms, this mode allows researchers to analyze birefringent materials and reduce glare on highly reflective metallic surfaces. The MC-60 series includes a built-in depolarizer in the viewing head for optimal clarity.

Premium System Features

Advanced Optics: Infinity Corrected Optical System (F=200mm) with a smooth-operating quintuple nosepiece.
Precision Objectives: Includes a full suite of Planachromat Epi objectives: M5X, M10X, M20X, and M50X.
Measurement Integration: X and Y ports designed for Mitutoyo Digimatic Indicators (50mm/2” range).
Z-Axis Ready: Dedicated mounting bracket for Z-axis measurement integration using Mitutoyo MTI543-392 indicators.
Industrial Lighting: Powerful 150W Vertical Koehler Illuminator (LED options available) for consistent, high-contrast imaging.
Ergonomic Build: Computer-Aided Design (CAD) ensures focus controls and viewing heads are positioned for long-term user comfort.

Technical Specifications

Component	Standard Specification
Viewing Head	Binocular or Trinocular (MC-60T) with Depolarizer
Eyepieces	Focusing 10X eyepiece with integrated cross-line reticle
Stage Type	Precision X-Y Stage with Digital Readout compatibility
Filter Suite	Blue Clear, Green Clear, Neutral Density (ND8), and Polarizing filters
Power Supply	Auto-sensing 110V or 220V configurations

Customize Your Measuring System

The MC-60 series is highly modular. Whether you require incident or transmitted light, or specific digital readout interfaces for SPC data collection, we can configure a system for your specific workflow.

Would you like a custom quote including Mitutoyo Digimatic Indicators or our high-definition digital camera packages?
