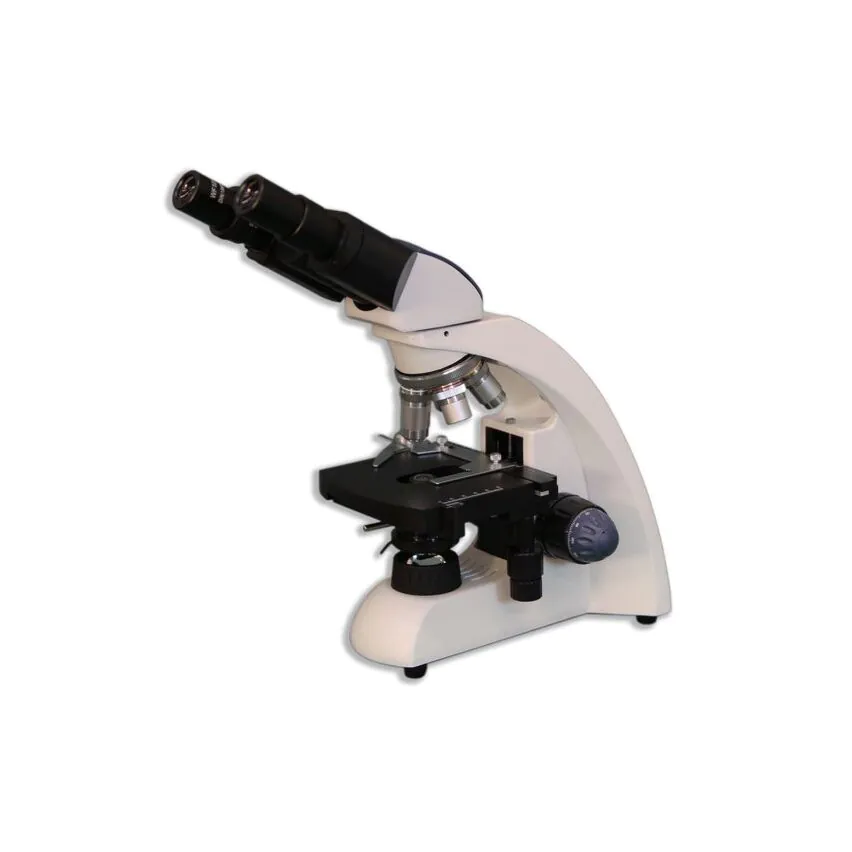

Meiji Techno MT-30 Series Binocular LED Compound Student Microscope
List Price: $660.00
Starting at: $595.00
SKU: MT30
Availability: In stock
- New Student Microscope
- Achromatic DIN Semi-Plan 4X, 10X, S40X, S100X Objectives
- Digital version available with 1.3MP CMOS camera
- LED variable intensity illumination
- Reverse-facing ball-bearing nosepiece
- ABBE 1.25 NA condenser with iris diaphragm
- Ergonomic design for ease of operation
- Recommended for the life sciences classroom
Price as configured: $0.00
You May Also Like:
-
OM9959 6.5x-45x Zoom Stereo Microscope
List Price: $1,318.00
Starting at: $729.00
-
OM2300S-V3 7X - 45X Zoom Stereo Microscope
List Price: $1,016.00
Starting at: $578.00
-
EMZ5-PBH Stereo Microscope System
List Price: $2,175.00
As low as: $1,890.00
- Description
-
New Student Microscope
Summary
The new Meiji MT-30 series educational microscope brings a fresh, clean design to the advanced academic and teaching classroom. These easy-to-use, competitively-priced microscopes feature Meiji Semi-Plan optical quality and cool, crisp rechargable LED illumination to help students maximize their learning experience. An optional 1.3MP digital camera and rugged ergonomics ensure years of dependable service in the biology laboratory or life sciences classroom.Optics
The MT-30 and MT-31 microscopes feature a binocular head with the ocular inclined at a comfortable 30°. The DIN 10X WF eyepiece includes a pointer for easy reference and correlation. The optical system includes four Semi-Plan Achromatic objectives (4X, 10X, S40X, S100X) set in a reverse-facing ball-bearing-mounted nosepiece for ease of operation. The digital version of the microscope (MT-31) is equipped with an integrated 1.3MP, 1/2 inch CMOS color camera outputting digital images via USB2 to a computer.Stage & Focus
The ceramic coated, right-handed flat top stage measures 130mm x 130mm with two stage clips and coaxial coarse-fine focus knobs with safety stop, friction adjustment and graduations to 2-micron precision.Software (MT-31 & Windows-only)
The ImageFocus 4 capture and analysis software features an intuitive user interface and all of the basic functions needed to control the camera. Capture and save images in JPEG, TIF AND BMP format and record and save video in AVI format. Image controls include automatic and manual exposure, automatic white balance, measurements and multiple layer definition. Manage and edit captured image details such as brightness, contrast, saturation and sharpness. The software is built for Windows XP, Vista, 7 & 8, 32 and 64 bit platforms.Condenser & Illumination
An Abbe 1.25 NA Condenser with height adjustment is included, along with rechargable LED variable-intensity illumination.Accessories
Manual, AC adapter, (3) NiMH AA batteries, dust cover. 2-Year Warranty. Shipping Wt. - 18 Lbs. Box size - 21 x 17 x 14. - Specifications
-
Specifications of Component Options
Select a component below to view related specifications.-
MT-30 Binocular Rechargeable LED Student Microscope
MT-31 Digital Binocular Rechargeable LED Student Microscope, 1.3MPGeneral Brand Meiji Techno Meiji Techno SKU MT-30 MT-31 Product Weight 12 System System Type Brightfield, Portable Brightfield, Digital Optical Design DIN 160mm Infinity Corrected Head Head Type Binocular Binocular Head Rotation 360 Degrees 360 Degrees Ocular Angle 30° 30° View Orientation Upright View Upright View Ocular Tube Diameter 23 mm Configuration Includes Eyepieces? Yes Yes Included Eyepiece Quantity 1 1 Included Eyepieces (X) 10X 10X Eyepiece Style WF Widefield (FN 18mm) WF Widefield (FN 18mm) Available Eyepieces 10X Includes Eyecups? Yes Yes Eyecups Style Soft Rubber Min Standard Mag 40X 40X Max Standard Mag 1000X 1000X Body Nosepiece Orientation Reversed Reversed Nosepiece Style Quadruple (4) Quadruple (4) Focus Controls Coarse & Fine, Coaxial Coarse & Fine, Coaxial Focus Mechanism Rack & Pinion Rack & Pinion Focus Control Location Dual Ambidextrous Dual Ambidextrous Focus Controls Graduated? Yes Focus Control Safety Stop Rack Stop Stage Type Fixed Fixed Stage Features Slide Clips Slide Clips Stage Dimensions 130mm x 130mm 123mm X 119mm Included Objectives (Qty) 4 4 Objective Lens Semi-Plan Semi-Plan Included Objective Types Brightfield Brightfield Objective 1 Description S. Plan 4X / 0.13 4X Semi-Plan Objective 1 N.A. 0.10 Objective 2 Description S. Plan 10X / 0.25 10X Semi-Plan Objective 2 N.A. 0.25 Objective 3 Description S. Plan 40X / 0.65 40X Semi-Plan (S) Objective 3 N.A. 0.65 Objective 4 Description S. Plan S100X Oil / 1.25 100X Semi-Plan (S) Objective 4 N.A. 1.25 Condenser Condenser Type Abbe Brightfield Abbe Brightfield Condenser Features Achromatic, Iris Diaphragm Achromatic, Iris Diaphragm Condenser N.A. 1.25 mm 1.25 mm Filters Included Blue Illumination Illumination Style Transmitted Transmitted Collector Type Simple Simple Collector Features Field Diaphragm Transmitted Light Type LED LED Transmitted Light Specification 1W Transmitted Light Control Variable Variable Power Supply Universal Switching 100V-240V AC Universal Switching 100V-240V AC Camera Output Resolutions 1.3MP Camera Interface USB 2.0 Sensor Type CMOS Sensor Size 1/2 Inch Color/Monochrome Color Sensor Color Depth 8bpp / 24bit RGB Scan Mode Progressive Exposure Control Area-of-Interest, Automatic, Manual, Spot White Balance Automatic, Manual, Spot Black Balance Manual Software Included ImageFocus Driver API Compatibility DirectX, TWAIN Power Source USB Powered File Formats BMP, JPEG, Own Proprietary, PNG, TIFF Included Accessories Software CD Supported Operating Systems Windows 7, Windows Vista, Windows XP SP3 System Requirements 2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, USB 2.0 High Speed Port Camera Warranty 1 Year Accessories Included Extras Dust Cover Dust Cover
-
- Product Manuals
-
- Omano Stereo Microscope Manual: download PDF [328kB]
