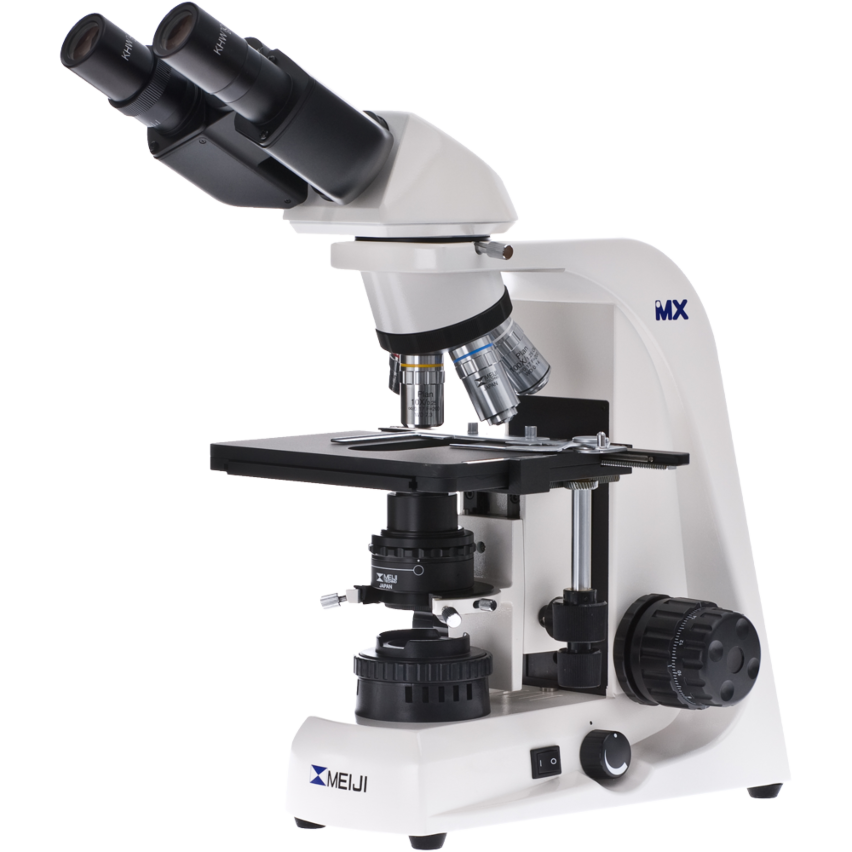

Meiji Techno MT5000 Live Blood Analysis Microscope

List Price: $4,597.00

Starting at: $4,015.00

SKU: MT5000-LBA

Availability: In stock

  • Binocular or optional trinocular head
  • SWH high eyepoint 10x eyepieces
  • 2.5x, 40x, 100x, Plan Semi Apo Phase Objective lenses
  • Zernike phase condenser
  • Centering telescope & green interference filter
  • 110V-230V auto-switching voltage.
  • Lifetime Limited Warranty
Select package options

Click on to learn more about the option * signifies required items

  • $535.50
  • $760.75
  • $395.00

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

  • Meiji MT5000 Live Blood Analysis Microscope
  • Meiji MT5000 Live Blood Analysis Microscope - Trinocular
  • Meiji MT5000 Live Blood Analysis Microscope Stage
  • Meiji MT5000 Live Blood Analysis Microscope Eyepieces
  • Meiji MT5000 Live Blood Analysis Microscope Condenser
  • Meiji MT5000 Live Blood Analysis Microscope Focus
Description

Live Blood Analysis System

This is an MT5000 binocular compound microscope especially configured for professional live blood analysis. As such, it includes 2.5x, 40x and 100x Plan Semi Apo phase objective lenses. The microscope also includes a Zernike phase condenser with centerable phase annuli for 10x, 20x, 40x, with darkkfield stop for 40x, a centering telescope and green interference filter.

In all other respects, it is identical to the MT5000 which includes either powerful LED or 6V 30W halogen illumination and SWH high eyepoint eyepieces with rubber eyeshields.

Note: A variety of optional C-Mount adapters are available for this model. Please call for further information.

Specifications

Specifications of Component Options

Select a component below to view related specifications.

  • MT5200H Binocular Live Blood Analysis Microscope

    MT5200L Binocular Live Blood Analysis Microscope

    MT5300H Trinocular Live Blood Analysis Microscope

    MT5300L Trinocular Live Blood Analysis Microscope
    SKU MT5200H-LBAMT5200L-LBAMT5300H-LBAMT5300L-LBA
    Warranty Lifetime limited warrantyLifetime limited warrantyLifetime limited warrantyLifetime limited warranty
    Product Weight 35 LBS35 LBS35 LBS35 LBS
    Product Length 21212121
    Product Width 16161616
    Product Height 14141414
    System
    System Type Brightfield, Phase ContrastBrightfield, Phase ContrastBrightfield, Phase ContrastBrightfield, Phase Contrast
    Head
    Head Type BinocularBinocularTrinocularTrinocular
    Body
    Nosepiece Orientation ReversedReversedReversedReversed
    Nosepiece Style Quintuple (5)Quintuple (5)Quintuple (5)Quintuple (5)
    Focus Controls Coarse & FineCoarse & FineCoarse & FineCoarse & Fine
    Focus Mechanism Rack & PinionRack & PinionRack & PinionRack & Pinion
    Focus Control Location Dual AmbidextrousDual AmbidextrousDual AmbidextrousDual Ambidextrous
    Focus Control Safety Stop Rack Stop, Slip ClutchRack Stop, Slip ClutchRack Stop, Slip ClutchRack Stop, Slip Clutch
    Stage Type Mechanical XYMechanical XYMechanical XYMechanical XY
    Stage Features Ceramic Coated, Fingertip Controls, Full Stage XY, Slide Holder (spring-loaded)Ceramic Coated, Fingertip Controls, Full Stage XY, Slide Holder (spring-loaded)Ceramic Coated, Fingertip Controls, Full Stage XY, Slide Holder (spring-loaded)Ceramic Coated, Fingertip Controls, Full Stage XY, Slide Holder (spring-loaded)
    Stage Dimensions 190mm x 140mm190mm x 140mm190mm x 140mm190mm x 140mm
    Stage Range of Movement (XY) 80mm x 52mm80mm x 52mm80mm x 52mm80mm x 52mm
    Stage Range Graduated? YesYesYesYes
    Configuration
    Includes Eyepieces? YesYesYesYes
    Included Eyepiece Quantity 2222
    Included Eyepieces (X) 10X10X10X10X
    Eyepiece Style SWF Super Widefield (FN 20mm)SWF Super Widefield (FN 20mm)SWF Super Widefield (FN 20mm)SWF Super Widefield (FN 20mm)
    Available Eyepieces 10X, 15X, 20X10X, 15X, 20X10X, 15X, 20X10X, 15X, 20X
    Includes Eyecups? YesYesYesYes
    Eyecups Style Soft RubberSoft RubberSoft RubberSoft Rubber
    Min Standard Mag 25x25x25x25x
    Max Standard Mag 1,000x1,000x1,000x1,000x
    Included Objectives (Qty) 4444
    Objective Lens Semi-APO PlanSemi-APO PlanSemi-APO PlanSemi-APO Plan
    Included Objective Types Brightfield, Phase ContrastBrightfield, Phase ContrastBrightfield, Phase ContrastBrightfield, Phase Contrast
    Objective 1 Description Plan Semi APO 2.5x, F.N 24Plan Semi APO 2.5x, F.N 24Plan Semi APO 2.5x, F.N 24Plan Semi APO 2.5x, F.N 24
    Objective 1 N.A. 0.070.070.070.07
    Objective 1 W.D. 5.7mm5.7mm5.7mm5.7mm
    Objective 2 Description Plan Semi APO 4x, F.N 24Plan Semi APO 4x, F.N 24Plan Semi APO 4x, F.N 24Plan Semi APO 4x, F.N 24
    Objective 2 N.A. 0.100.100.100.10
    Objective 2 W.D. 17.8mm17.8mm17.8mm17.8mm
    Objective 3 Description Plan Semi APO 10x, F.N. 24Plan Semi APO 10x, F.N. 24Plan Semi APO 10x, F.N. 24Plan Semi APO 10x, F.N. 24
    Objective 3 N.A. 0.250.250.250.25
    Objective 3 W.D. 10.7mm10.7mm10.7mm10.7mm
    Objective 4 Description Plan Semi APO Phase 40x S, F.N 24Plan Semi APO Phase 40x S, F.N 24Plan Semi APO Phase 40x S, F.N 24Plan Semi APO Phase 40x S, F.N 24
    Objective 4 N.A. 0.550.550.550.55
    Objective 4 W.D. 0.5mm0.5mm0.5mm0.5mm
    Objective 5 Description Plan Semi APO Phase 100x S oil, F.N 24Plan Semi APO Phase 100x S oil, F.N 24Plan Semi APO Phase 100x S oil, F.N 24Plan Semi APO Phase 100x S oil, F.N 24
    Objective 5 N.A. 1.251.251.251.25
    Objective 5 W.D. 0.23mm0.23mm0.23mm0.23mm
    Condenser
    Condenser Type Zernike PhaseZernike PhaseZernike PhaseZernike Phase
    Condenser Features Darkfield Stop, Iris DiaphragmDarkfield Stop, Iris DiaphragmDarkfield Stop, Iris DiaphragmDarkfield Stop, Iris Diaphragm
    Filters Included Green InterferenceGreen InterferenceGreen InterferenceGreen Interference
    Illumination
    Illumination Type HalogenHalogenHalogenLED
    Illumination Style TransmittedTransmittedTransmittedTransmitted
    Collector Type KohlerKohlerKohlerKohler
    Transmitted Light Type HalogenLEDHalogenLED
    Transmitted Light Specification 6V 30W 6V 30W
    Power Supply Variable 110V-230V Variable 110V-230V with 220V cordVariable 110V-230V with 220V cordVariable 110V-230V
    Compatibility
    Imaging Compatibility (with adapters) C-MountC-MountC-MountC-Mount
    Accessories
    Included Extras Dust CoverSpare FuseDust CoverDust Cover

  • MA836 Plan Semi APO DF Objective 50X

    MA838 Plan Semi APO DF Objective 100X

    MA914 Darkfield Condenser Dove Tail Mount with ball bearing
    SKU MA836MA838MA914
    Warranty Meiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime Warranty
    Compatibility
    Compatible With MT5*, MT6*MT5*, MT6*MT5*, MT6*
    Objectives
    Objective Lens PlanPlan
    Objective Lens Power 40x100x

  • MA809/10 AC Electric cord for Meiji MT Series (115V)

    MA809/20 AC Electric cord for Meiji MT Series (220V)
    SKU MA809/10MA809/20
    Notes Included in all 115V modelsIncluded in all 220V models
    Compatibility
    Compatible With MT4*, MT5*, MT6*MT4*, MT5*, MT6*
