Mitutoyo ABSOLUTE Digimatic Caliper Series 500 - with Exclusive ABSOLUTE Encode Technology

Mitutoyo ABSOLUTE Digimatic Caliper Series 500 - with Exclusive ABSOLUTE Encode Technology

Inch/Metric models include:

Mitutoyo 500-196-30	Mitutoyo 500-197-30	Mitutoyo 500-195-30	Mitutoyo 500-170-30
Mitutoyo 500-171-30	Mitutoyo 500-159-30	Mitutoyo 500-172-30	Mitutoyo 500-163-30
Mitutoyo 500-178-30	Mitutoyo 500-160-30	Mitutoyo 500-164-30	Mitutoyo 500-174-30
Mitutoyo 500-175-30	Mitutoyo 500-193-30	Mitutoyo 500-176-30	Mitutoyo 500-177-30
Mitutoyo 500-173-30	Mitutoyo 500-165-30	Mitutoyo 500-167-30	Mitutoyo 500-166-30
Mitutoyo 500-168-30	Mitutoyo 500-505-10	Mitutoyo 500-506-10	Mitutoyo 500-507-10

Metric models include:

Mitutoyo 500-150-30	Mitutoyo 500-151-30
Mitutoyo 500-158-30	Mitutoyo 500-152-30
Mitutoyo 500-154-30	Mitutoyo 500-155-30
Mitutoyo 500-156-30	Mitutoyo 500-157-30
Mitutoyo 500-153-30	Mitutoyo 500-500-10
Mitutoyo 500-501-10	Mitutoyo 500-502-10

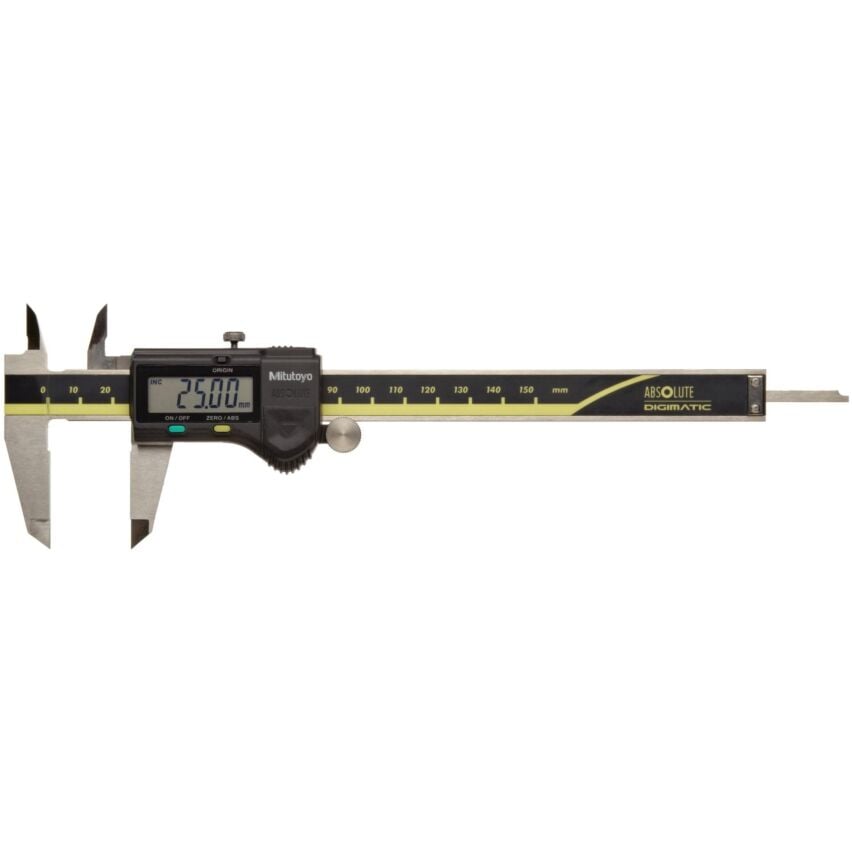

Mitutoyo's absolute Digimatic Caliper is the next generation of electronic calipers. It keeps track of its origin point once set. Whenever turned on, the large LCD displays the actual slider position ready to start measurement. No more repeated zero setting is necessary with the absolute encoder technology, as well as no more concern for over speed errors.

High-quality guide surface finish for smooth slider movement.

FEATURES

• Large and clear LCD readout.
• The ZERO/ABS key allows the display to be Zero-Set at any slider position along the scale for incremental comparison measurements. This switch will also allow return to the absolute (ABS) coordinate and display of the true position from the origin point (usually jaws-closed point).
• Data Hold Unit (959143) is optional.
• Carbide-tipped jaw type calipers are also available.
• With thumb roller. Except 500-500-10, 500-501-10,500-502-10.
• Supplied in fitted plastic case. Except 1000mm / 40” supplied in wooden case.

Absolute Scale

Built-in ABS (absolute) scale means that these calipers are ready to use immediately after power-on without origin resetting. It’s as easy as vernier caliper measurements.

TECHNICAL DATA

Accuracy: Refer to the list of specifications

Resolution: 0.01mm or .0005"/0.01mm

Repeatability: 0.01mm / .0005”

Display: LCD

Length standard: ABSOLUTE electrostatic capacitance type linear encoder

Max. response speed: Unlimited

Battery: SR44 (1 pc.), 938882

Battery life: Approx. 3.5 years under normal use

FUNCTION

Origin-set, Zero-setting, Automatic power on/off, Data output, inch/mm conversion (inch/mm models ONLY)

Alarm: Low voltage, Counting value composition error

DIMENSION AND MASS
