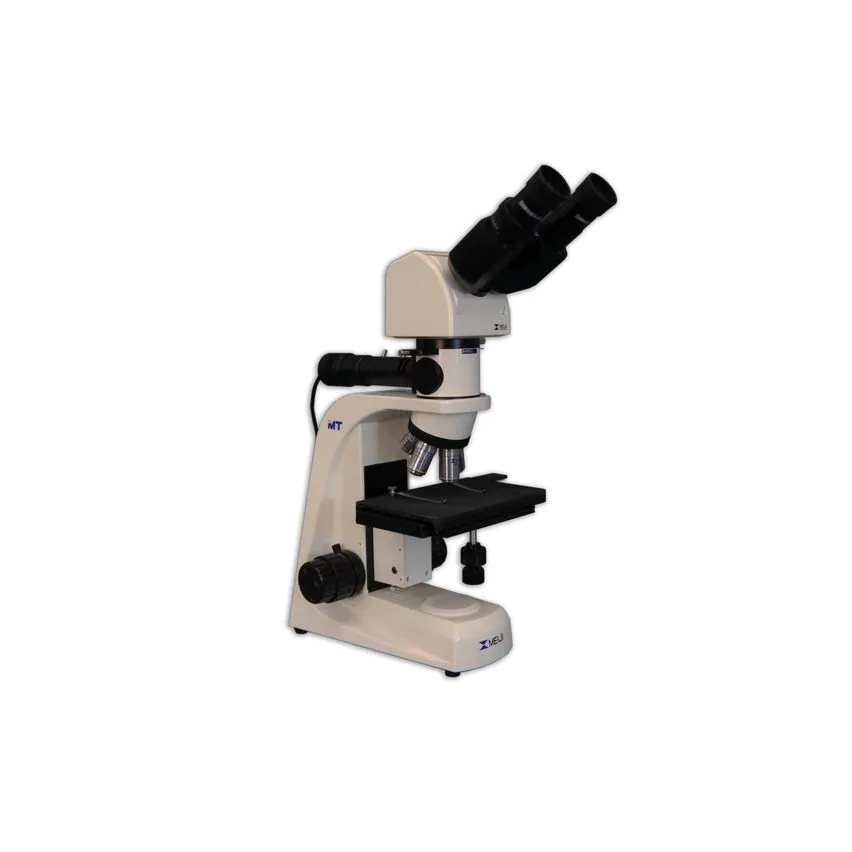

Meiji Techno MT7000EL Metallurgical Ergonomic Binocular Upright Brightfield Compound Microscope with Infinity Corrected Plan EPI 5X, 10X, 20X, 50X and Vertical Koehler LED Illuminator

SKU:

MT7000EL

In stock

You pay: $7,080.00

Free Shipping,

30 Day Money Back Guarantee

Advanced ICOS™ Optics: Features Meiji Techno’s Infinity Corrected Optical System with Plan Epi objectives for sharp, color-accurate imaging of grain structures and metallurgical defects.
Ergonomic & Durable Design: Equipped with a comfortable Siedentopf binocular head and a precision-machined, ceramic-coated mechanical stage for smooth, fatigue-free sample navigation.
Efficient LED Illumination: Integrated LED vertical illuminator provides consistent, cool, and energy-efficient light, preventing heat distortion during extended inspection sessions.
Industrial-Grade Build: Engineered with a heavy-duty, compact Japanese frame that offers superior stability for high-magnification work in demanding lab or factory environments.

Talk to one of our experts now!

Meiji Techno MT7000EL Included Components

MT7000EL: Ergonomic Binocular Compound Metallurgical Microscope with Vertical Koehler LED Incident (Reflected) light observation and Infinity Corrected Optical System
MA815: Binocular head-Siedentopf type, Interpupillary Diameter adjustment 53mm to 75mm, graduated diopter on left eyetube (30.0mm I.D.eyetube). Inclined at 30 degrees
MA817 (x 2): SWH10X Widefield high eyepoint eyepiece, Field No. 22, tube O.D. 30.0 mm
Plan Epi Objectives:
- MA870: 5X, N.A.0.10, W.D. 20.9 mm
- MA871: 10X, N.A. 0.25, W.D. 7.7 mm
- MA872: 20X, N.A. 0.40, W.D. 5.6 mm
- MA873: 50X, N.A. 0.75, W.D. 0.38 mm
MA927/L: Vertical Koehler LED illuminator with built-in auto-voltage sensing adapter (100V-240V)
Filters (20mm in metal mounts):
- MA475/05: Blue clear filter
- MA476: Green clear filter
- MA774: N.D.50 neutral density filter
- MA497: Polarizing filter
MA941: Ceramic coated flat-top stage (191mm X 126 mm) with right-hand drop-down coaxial controls
Maintenance & Spares: 5W LED Bulb (PKL/LED-I/BULB), 0.5Amp Fuse (MA929), Dust cover (MA701/05), and Rubber Eyeshields (MA906)
Power: Includes removable AC electric cords for both 115V and 220V (New and Old styles)
Manual: Meiji Techno America MT7000 Manual

MA816: Trinocular head – Siedentopf type (Inverted Image)
MA957: Ergonomic tilting binocular head – Adjustable 10 to 50 degrees (Erect image)
MA959: Trinocular head – Siedentopf type, erect image with sliding 0/100 beamsplitter
MA958: Photo/video attachment with sliding 80/20 beam-splitter (For use with MA957)

Eyepieces (30.0 mm O.D.): SWH 15X (MA818), SWH 20X (MA819), and SWH 10X-F Focusing eyepiece (MA859)
MA874: Brightfield Plan Epi Objective 100X, N.A. 0.90
LWD Plan Epi Objectives: 20X (MA920) and 50X (MA921)

Eyepiece Micrometers: Available in 25mm (MA523, MA506, MA509, MA510, MA542, MA738) and 19mm (MA279, MA280, MA281, MA283, MA539) diameters.
MA292: Metal stage micrometer, 1mm divided into 100 units.
Fuses: Spare 3A fuse for Halogen (PKL/LED-I/BULB) and 0.5A fuse for LED (MA929).

More Information
Brand	Meiji Techno
Recommended For	0
Trinocular Tube Focusable?	No
Parfocal	No
Focus Controls Graduated?	No
Stage Range Graduated?	No
Includes Eyepieces?	No
Includes Eyecups?	No
Included Objectives Parfocal Adjustable?	No
Reticles Available?	No
Case Included?	No
