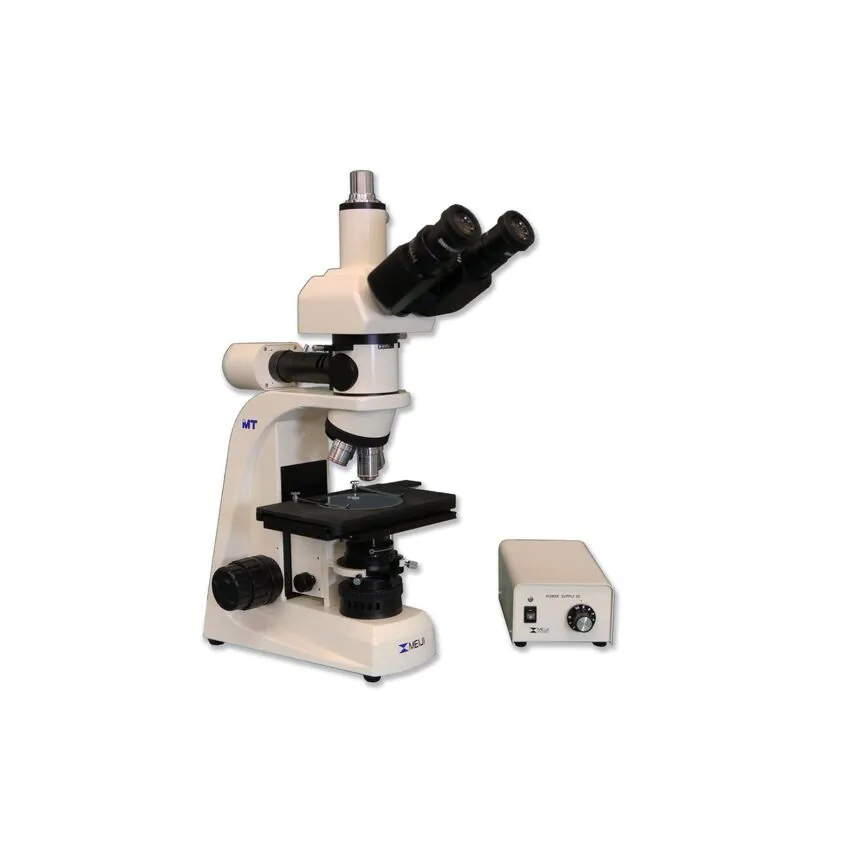

Meiji Techno MT8100L Metallurgical Trinocular Upright Brightfield Compound Microscope with Infinity Corrected Plan EPI 5X, 10X, 20X, 50X and Vertical Koehler LED Incident or Transmitted Light

SKU:

MT8100L

In stock

You pay: $8,230.00

Free Shipping,

30 Day Money Back Guarantee

Advanced ICOS™ Optics: Utilizes the Infinity Corrected Optical System to deliver high-resolution, high-contrast imaging for precise analysis of grain structures, coatings, and microstructural features.
Long-Working-Distance EPI-Plan Objectives: Equipped with a suite of 5X to 100X Plan Episcopic objectives that provide a flat, distortion-free field of view and superior sharpness for reflective materials.
High-Intensity LED Illumination: Features a powerful reflected LED light source that ensures stable, color-consistent brightness with minimal heat output and a long operational lifespan.
Ergonomic & Durable Design: Engineered with a chemical-resistant ceramic-coated mechanical stage and precision Japanese components, all backed by a limited lifetime warranty for long-term reliability.

Talk to one of our experts now!

Components & Accessories

Part #	Description
MT8100L	Trinocular Metallurgical Compound Microscope (Brightfield/Polarization). Features Infinity Corrected optical system (F-200mm), incident LED and transmitted 30W Halogen illumination, and quintuple nosepiece.
MA816	Trinocular Head – Siedentopf type, 30° inclined, Interpupillary adjustment 53mm–75mm.
MA817 (x2)	SWH10X Widefield high eyepoint eyepieces, FN 22.
Objectives	Plan Epi 5X (MA870), 10X (MA871), 20X (MA872), and 50X (MA873).
MA942	Ceramic coated flat-top stage, 191mm x 126mm with X-Y controls and glass stage plate.
Illumination	Vertical Koehler LED Illuminator (Incident) & 6V 30W Halogen (Transmitted).

Filters: Blue Clear (MA475/05), Green Clear (MA476), ND50 Neutral Density (MA774), and Polarizing filter (MA497).
Stage Plate: 94.5mm diameter clear glass stage plate.
Safety & Maintenance: Dust cover (MA701/05), Rubber eyeshields (MA906), and Instruction Manual.
Power: Autovoltage sensing power supply (100V-240V).

MA957: Ergonomic tilting binocular head (Adjustable 10° to 50°).
MA959: Trinocular head, erect image with sliding 0/100 beamsplitter.
MA958: Photo/video attachment with 80/20 beam-splitter (for use with MA957).

Eyepieces: SWH15X (MA818), SWH20X (MA819), and SWH10X-F Focusing (MA859).
Reticles (25mm): Cross-line (MA523), 10mm/100 units (MA506), Grain sizing for steel (MA738).
Stage Micrometer: MA292 Metal stage micrometer (1mm divided into 100 units).

More Information
Brand	Meiji Techno
Recommended For	0
Trinocular Tube Focusable?	No
Parfocal	No
Focus Controls Graduated?	No
Stage Range Graduated?	No
Includes Eyepieces?	No
Includes Eyecups?	No
Included Objectives Parfocal Adjustable?	No
Reticles Available?	No
Case Included?	No
