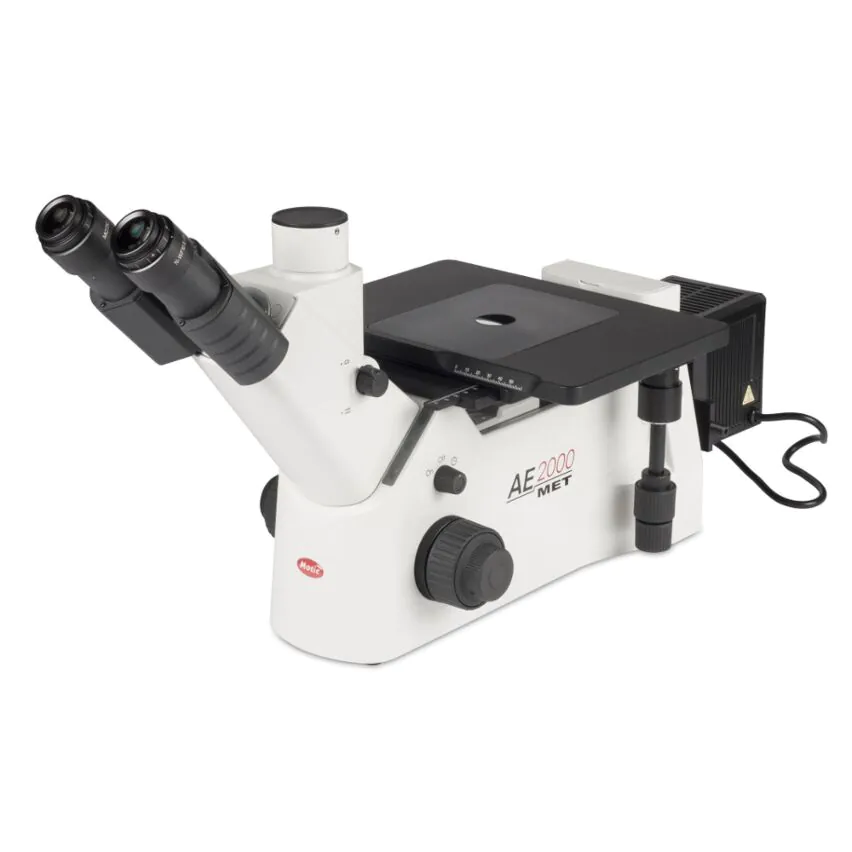

Motic AE2000MET Inverted Trinocular Metallurgical Microscope

List Price: $6,475.00

Starting at: $5,827.00

SKU: AE2000MET

Availability: In stock

  • Infinity Corrected Optical System
  • Side-facing quintuple nosepiece
  • 4 Plan Brightfield objectives
  • High Eyepoint N-WF 10x eyepieces
  • Halogen 12V/50W or 100W illumination
  • Full mechanical stage with insert
  • Lifetime Limited Warranty
Select package options

Click on to learn more about the option * signifies required items

  • $499.00
  • $809.00
  • $629.00
  • $995.00
  • $139.00
  • $195.00

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

  • AE2000MET Inverted Trinocular Metallurgical Microscope
  • AE2000MET Inverted Trinocular Metallurgical Microscope objectives
  • AE2000MET Inverted Trinocular Metallurgical Microscope controls
  • AE2000MET Inverted Trinocular Metallurgical Microscope eyepieces
  • AE2000MET Inverted Trinocular Metallurgical Microscope lamp  house
Description

Summary

The Motic AE2000MET is designed for the engineering test lab or materials research laboratory and delivers the sharp optical performance these applications require. The proven CCIS Infinity Optical System features 4 LM Plan Brightfield Objective lenses or the optional Brightfield/Darkfield (5X, 10X, 20X, 50X) long working distance objectives mounted in a side-facing quintuple nosepiece. Please call for configurations with fewer objective lenses.

Combined with with two N-WF10x eyepieces, the microscope offers 50X to 1,000X magnification. In addition, uniquely integrated features include auto-power-cutoff and an optional ergonomic viewing tube. Standard illumination includes a 12V50W or 12V100W Halogen system with external lamp house and a simple polarization set, for a versatile and highly capable observation platform.

Optics

The Siedentopf trinocular head is inclined at a comfortable 45° and offers interpupilliary adjustment from 48mm to 75mm. The butterfly movement also increases the viewing height by 40mm to accommodate a wide variety of users, and dual diopter adjustment minimizes eye strain and fatigue. The standard high eye-point FN 20 N-WF 10X eyepieces will accept optional reticles, and an 80:20 beam-split trinocular tube allows for image capture without interrupting the observation process. Standard Plan Brightfield and Darkfield metallurgical LWD objectives feature proprietary multi-layer coating for improved light transmission, yielding significantly brighter and sharper images. They are housed in a liquid-proof, side-facing, bearing-supported quintuple nosepiece.

Stage & Focus

The standard mechanical stage measures 280mm x 180mm with 50mm x 50mm of X-Y travel and includes a replaceable glass insert with 45mm opening, along with a metal insert with a contoured cutout to provide clearance for the objectives. Coaxial coarse/fine focus controls include adjustable tension control and are ergonomically-positioned for comfort and ease of use.

Condenser & Illumination

The N.A 0.30 condenser features an extra long working distance and is set in a dovetail mount. A centering telescope and intensity-controllable 12V50W Halogen bulb and external lamp house combine to produce bright, evenly-illuminated images. A 12V100W version is optionally available for specialized applications. For added safety the AE2000MET also features power-smart technology which uses an IR motion sensor to automatically enter "sleep mode" after 15 minutes of inactivity. Normal power is restored upon the users return.

The AE2000MET is setup for Dark Field (high-intensity) observation as standard configuration. Upon switching to Bright Field observation mode, the system automatically steps down the illumination intensity to ensure a comfortable Bright Field viewing experience.

Accessories

45mm Blue filter, Allen hex key, Manual, vinyl dust cover, universal power supply 100V-240V. Shipping Wt. 42 Lbs. Box size 27 x 23 x 16".

AE2000MET-50 MPN - 1100103800151

AE2000MET-100 MPN - 1100103800171

Specifications

Specifications of Component Options

Select a component below to view related specifications.

  • AE2000MET-50W Brightfield Inverted Trinocular Metallurgical Microscope, 50W

    AE2000MET-50W Brightfield Darkfield Inverted Trinocular Metallurgical Microscope, 50W
    SKU AE2000MET-50BAE2000MET-50BD
    Warranty Limited Lifetime WarrantyLimited Lifetime Warranty
    MAP Copy MAP - MoticMAP - Motic
    System
    System Type Brightfield, Inverted, Darkfield, MetallurgicalBrightfield, Inverted, Darkfield, Metallurgical
    Optical Design Infinity CorrectedInfinity Corrected
    Head
    Head Type TrinocularTrinocular
    Ocular Angle 45°45°
    Diopter Adjustment SingleSingle
    Interpupillary Adjustment Arc (Seidentopf)Arc (Seidentopf)
    Interpupillary Adjustment Range 48 – 75 mm48 – 75 mm
    Trinocular Type Beam Split ContinuousBeam Split Continuous
    Trinocular Standard Dovetail MountDovetail Mount
    View Orientation Inverted ViewInverted View
    Ocular Tube Diameter 30 mm30 mm
    Body
    Nosepiece Orientation Side-facingSide-facing
    Nosepiece Style Quintuple (5)Quintuple (5)
    Focus Controls Coarse & Fine, CoaxialCoarse & Fine, Coaxial
    Focus Mechanism Rack & PinionRack & Pinion
    Focus Control Location Dual AmbidextrousDual Ambidextrous
    Focus Controls Graduated? YesYes
    Stage Type FixedFixed
    Stage Features GlassGlass
    Stage Dimensions 280 x 180280 x 180
    Stage Range of Movement (XY) 50mm x 50mm50mm x 50mm
    Stage Range Graduated? YesYes
    Configuration
    Includes Eyepieces? YesYes
    Included Eyepiece Quantity 22
    Included Eyepieces (X) 10X10X
    Eyepiece Style SWF Super Widefield (FN 20mm)SWF Super Widefield (FN 20mm)
    Min Standard Mag 50X50X
    Max Standard Mag 500X500X
    Included Objectives (Qty) 22
    Objective Lens PlanPlan
    Included Objective Types Brightfield, Inverted, Phase ContrastBrightfield, Darkfield, Inverted, Phase Contrast
    Objective 1 Description LM Plan BD 5XLM Plan BD 5X
    Objective 1 N.A. 0.130.13
    Objective 1 W.D. 17.3mm17.3mm
    Objective 2 Description LM Plan BD 10XLM Plan BD 10X
    Objective 2 N.A. 0.250.25
    Objective 2 W.D. 16.3mm16.3mm
    Objective 3 Description LM Plan BD 20XLM Plan BD 20X
    Objective 3 N.A. 0.40.4
    Objective 3 W.D. 7.3mm7.3mm
    Objective 4 Description LM Plan BD 50XLM Plan BD 50X
    Objective 4 N.A. 0.550.55
    Objective 4 W.D. 7.2mm7.2mm
    Condenser
    Condenser Type Zernike PhaseZernike Phase
    Condenser Features Aspheric, Centerable, Iris Diaphragm, Long Working DistanceAspheric, Centerable, Iris Diaphragm, Long Working Distance
    Condenser N.A. 0.30 mm0.30 mm
    Filter Diameter 45 mm45 mm
    Filters Included Blue, Diffusion, Green InterferenceBlue, Diffusion, Green Interference
    Illumination
    Illumination Type HalogenHalogen
    Illumination Style Transmitted, Brightfield/DarkfieldTransmitted, Brightfield/Darkfield
    Collector Type KohlerKohler
    Collector Features Diffusion FilterDiffusion Filter
    Transmitted Light Type HalogenHalogen
    Transmitted Light Specification 12V 50W12V 50W
    Transmitted Light Control VariableVariable
    Power Supply 100V-240V AC Auto Voltage Sensing100V-240V AC Auto Voltage Sensing
    Available Imaging Mounts 0.5X C-Mount, 0.66X C-Mount, 1.0X C-Mount, F-Mount, Other SLR, T-Mount0.5X C-Mount, 0.66X C-Mount, 1.0X C-Mount, F-Mount, Other SLR, T-Mount
    Accessories
    Included Extras Dust CoverDust Cover

  • AE2000MET 100W Illumination Upgrade
    SKU AE2000MET-100W
    Warranty Limited Lifetime Warranty
    MAP Copy MAP - Motic
    System
    System Type Brightfield, Inverted, Darkfield, Metallurgical
    Optical Design Infinity Corrected
    Head
    Head Type Trinocular
    Ocular Angle 45°
    Diopter Adjustment Single
    Interpupillary Adjustment Arc (Seidentopf)
    Interpupillary Adjustment Range 48 – 75 mm
    Trinocular Type Beam Split Continuous
    Trinocular Standard Dovetail Mount
    View Orientation Inverted View
    Ocular Tube Diameter 30 mm
    Body
    Nosepiece Orientation Side-facing
    Nosepiece Style Quintuple (5)
    Focus Controls Coarse & Fine, Coaxial
    Focus Mechanism Rack & Pinion
    Focus Control Location Dual Ambidextrous
    Focus Controls Graduated? Yes
    Stage Type Fixed
    Stage Features Glass
    Stage Dimensions 280 x 180
    Stage Range of Movement (XY) 50mm x 50mm
    Stage Range Graduated? Yes
    Configuration
    Includes Eyepieces? Yes
    Included Eyepiece Quantity 2
    Included Eyepieces (X) 10X
    Eyepiece Style SWF Super Widefield (FN 20mm)
    Min Standard Mag 50X
    Max Standard Mag 500X
    Included Objectives (Qty) 2
    Objective Lens Plan
    Included Objective Types Brightfield, Inverted, Phase Contrast
    Objective 1 Description LM Plan BD 5X
    Objective 1 N.A. 0.13
    Objective 1 W.D. 17.3mm
    Objective 2 Description LM Plan BD 10X
    Objective 2 N.A. 0.25
    Objective 2 W.D. 16.3mm
    Objective 3 Description LM Plan BD 20X
    Objective 3 N.A. 0.4
    Objective 3 W.D. 7.3mm
    Objective 4 Description LM Plan BD 50X
    Objective 4 N.A. 0.55
    Objective 4 W.D. 7.2mm
    Condenser
    Condenser Type Zernike Phase
    Condenser Features Aspheric, Centerable, Iris Diaphragm, Long Working Distance
    Condenser N.A. 0.30 mm
    Filter Diameter 45 mm
    Filters Included Blue, Diffusion, Green Interference
    Illumination
    Illumination Type Halogen
    Illumination Style Transmitted, Brightfield/Darkfield
    Collector Type Kohler
    Collector Features Diffusion Filter
    Transmitted Light Type Halogen
    Transmitted Light Specification 12V 100W
    Transmitted Light Control Variable
    Power Supply 100V-240V AC Auto Voltage Sensing
    Available Imaging Mounts 0.5X C-Mount, 0.66X C-Mount, 1.0X C-Mount, F-Mount, Other SLR, T-Mount
    Accessories
    Included Extras Dust Cover

  • Moticam 5+ 5.0MP Color USB 3.0 Digital Microscope Camera

    Moticam 3+ 3.0MP Color USB 3.0 Digital Microscope Camera

    Moticam 1080 HDMI and USB2.0 Output Digital Microscope Camera
    SKU MC5+MC3+MC1080
    Product Weight 1.00001.00001.0000
    MAP Copy MAP - MoticMAP - MoticMAP - Motic
    Sensor
    Sensor Type CMOSCMOSCMOS
    Sensor Size 1/2.5 Inch1/2 Inch1/2.5 Inch
    Color/Monochrome ColorColorColor
    Pixel Pitch 2.2um x 2.2um3.2um x 3.2um2.8um x 2.8um
    Sensor Color Depth 8bpp / 24bit RGB8bpp / 24bit RGB8bpp / 24bit RGB
    Scan Mode ProgressiveProgressiveProgressive
    Signal to Noise Ratio 38.1db43db38.1db
    Sensitivity 1,4V/Lux-sec (550nm)1,0V/Lux-sec (550nm)1,4V/Lux-sec (550nm)
    Dynamic Range 70.1db61db70.1db
    Shutter Electronic, Rolling ShutterElectronic, Rolling ShutterElectronic, Rolling Shutter
    Camera
    Camera Mount C-Mount, Ocular MountC-Mount, Ocular MountC-Mount, Ocular Mount
    Resolution 5 Megapixel, 2592x1944 pixels3 Megapixel, 2048x1536 pixels
    Camera Output Resolutions  1920 X 1080
    FPS @ Max Res 14 fps12 fps @ 2048 x 153660fps (2.0MP) HDMI
    FPS @ Min Res 50 fps50 fps @ 512 x 38415fps (2.0MP) USB2.0
    Camera Interface USB 3.0USB 3.0USB 2.0, HDMI
    White Balance Area-of-Interest, Automatic, Manual, SpotArea-of-Interest, Automatic, Manual, SpotArea-of-Interest, Automatic, Manual, Spot
    Black Balance ManualManualManual
    Software Included Motic Images Plus 3.0MLMotic Images Plus 2.0MLMotic Images Plus 2.0ML
    Driver API Compatibility DirectX, TWAINDirectX, TWAINDirectX, TWAIN
    Power Source USB PoweredUSB PoweredUSB Powered
    File Formats BMP, JPEG, Own Proprietary, PNG, TIFFBMP, JPEG, Own Proprietary, PNG, TIFFBMP, JPEG, Own Proprietary, PNG, TIFF
    Exposure Control Area-of-Interest, Automatic, Manual, Spot, Vignetting CorrectionArea-of-Interest, Automatic, Manual, Spot, Vignetting CorrectionArea-of-Interest, Automatic, Manual, Spot, Vignetting Correction
    Exposure Time 0.15msec - 5 sec0.11 sec - 7 sec
    Operating Temperatures -30°C to +70°C-30°C to +70°C
    Other Details
    Included Accessories Focusable Macro Lens, 30, 44mm Microscope Eyepiece Couplers, Macrotube, CS Ring Adaptor, Software CD, USB 3.0 cable, Calibration Slide Micrometer.Focusable Macro Lens, 30, 44mm Microscope Eyepiece Couplers, Macrotube for Observation of Macro Specimens, U-Type Gooseneck/Tripod Adapter, Software CD, Calibration Slide MicrometerFocusable Macro Lens, C-ring, 30, 44mm Microscope Eyepiece Couplers, Macrotube for Observation of Macro Specimens, Gooseneck/Tripod Adapter, Software CD, Calibration Slide Micrometer, USB 2.0 cable, HDMI cable, RCA Composite video cable. NOTE: Accepts Standard size SD cards.
    Supported Operating Systems Windows 10, Windows 7, Windows Vista, Mac OSX 10.4+, Windows XP SP3Windows 7, Windows Vista, Mac OSX 10.4+, Windows XP SP3Windows 7, Windows Vista, Mac OSX 10.4+, Windows XP SP3
    System Requirements 2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, USB 2.0 High Speed Port
    Environmental Operating Temp: -10°C ~ 70°C, Relative Humidity: 40%~90%Operating Temp: -10°C ~ 70°C, Relative Humidity: 40%~90%Operating Temp: -10°C ~ 70°C, Relative Humidity: 40%~90%
    Compatibility
    Imaging Compatibility (with adapters) C-MountC-MountC-Mount

  • C-Mount Adapter 0.5X for Motic Microscopes

    C-Mount Adapter 0.35X for Motic Microscopes
    SKU MCA-05XMCA-035X
    Warranty Omano Limited Lifetime WarrantyOmano Limited Lifetime Warranty
    Notes Does not fit BinocularDoes not fit Binocular
    MAP Copy MAP - MoticMAP - Motic
