Meiji Techno MT9500 Series Gout Testing Microscope

List Price: $5,420.00

Starting at: $4,899.00

SKU: MT9500

Availability: In stock

  • Designed for polarized gout testing
  • Superior Infinity Corrected Optics
  • 3 Plan objective lenses
  • Integrated Analyzer and full wave plate
  • Koehler 30W halogen illumination
  • Binocular or trinocular format
  • Limited Lifetime Warranty

Price as configured: $0.00

Select package options

Click on to learn more about the option * signifies required items

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

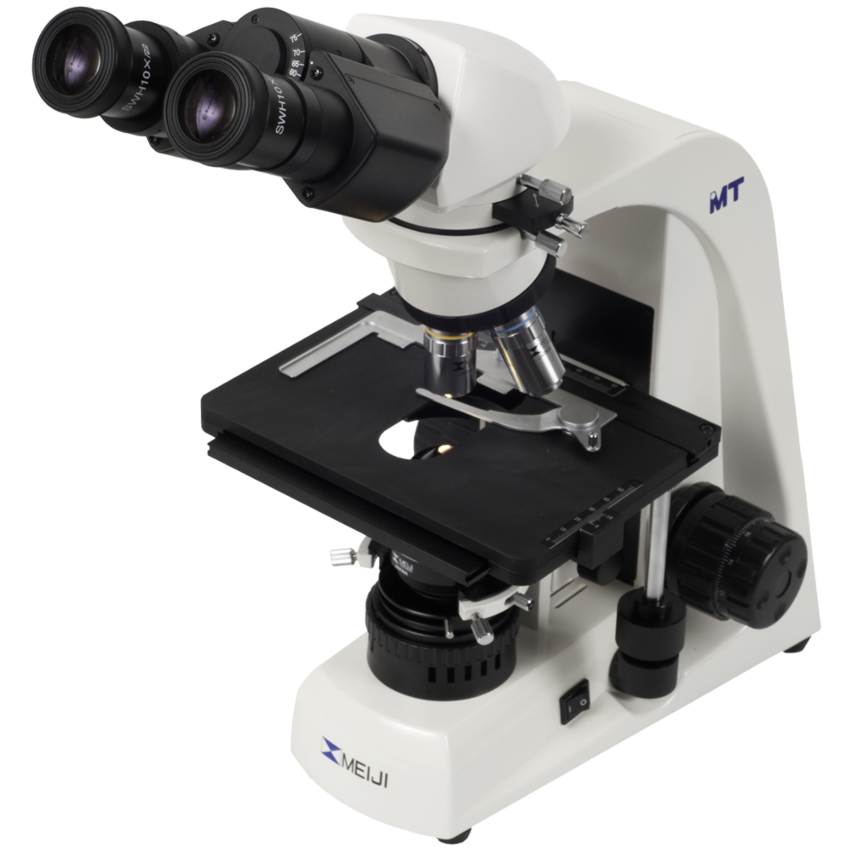

  • Meiji MT9500 Series Gout Testing Microscope
  • Meiji MT9500 Series Gout Testing Trinocular Microscope
  • Meiji MT9500 Series Gout Testing Microscope lowered
  • Meiji MT9500 Series Gout Testing Microscope raised
Description

Summary

The MT9500 series are designed specifically for gout testing including pseudo gout (CPPD). The key elements include polarization components such as the sliding analyzer and full wave plate polarizer. Available in binocular or trinocular and also in a premium ergonomic binocular head, the MT9500 include premium quality infinity corrected optics with three plan objectives, 4x, 10x 40xS and two SWH 10x eyepieces. Lifetime Limited Warranty.

Optics

Equipped with Seidentopf binocular or trinocular head inclined at 30º for comfortable viewing. The head has interpupillary adjustment of 53mm-75mm and a single diopter for individual eye adjustment. There are three DIN Infinity Corrected Strain Free Plan 4x, 10x and s40x objective lenses set in a smooth-operating, ball bearing mounted, quadruple nosepiece. Eyepieces include one KHW10xCP compensating eyepiece and one KHW10x with cross-line and guide pin.

The trinocular head has an 80/20 beam splitter for photomicrography (100% to eyetubes or 80% to phototube & 20% to the eyetube). Please note that you will need an adapter appropriate for your camera.

Polarizer

The intermediate tube includes a sliding analyzer and built-in full wave plate polarizer.

Stage & Focus

The flat top stage is ceramic coated to resist wear and measures a generous 190mm x 140mm. The range of movement is 80mm x 52mm X-Y with drop-down coaxial controls. Focusing is via dual-sided coaxial coarse/fine focus knobs.

Condenser & illumination

The condenser is a centerable strain free Abbe N.A. 1.25 with iris diaphragm in dovetail mount. Illumination is Koehler 30W halogen with universal voltage (110V-220V automatic sensor).

Accessories

Manual, dust cover
Specifications

Specifications of Component Options

Select a component below to view related specifications.

  • MT9520 Binocular Polarizing Microscope

    MT9540 Ergonomic Binocular Polarizing Microscope

    MT9530 Trinocular Polarizing Microscope
    SKU MT9520MT9540MT9530
    Product Weight 25.000025.000025.0000
    Product Length 390 mm390 mm390 mm
    Product Width 210 mm210 mm210 mm
    Product Height 410 mm410 mm410 mm
    System
    System Type Brightfield, PolarizingBrightfield, PolarizingBrightfield, Polarizing
    Optical Design Infinity CorrectedInfinity CorrectedInfinity Corrected
    Head
    Head Type BinocularBinocularBinocular
    Head Rotation 360 Degrees360 Degrees
    Ocular Angle 30°Variable Ergonomic30°
    Diopter Adjustment SingleSingleSingle
    Interpupillary Adjustment Arc (Seidentopf)Arc (Seidentopf)Arc (Seidentopf)
    Interpupillary Adjustment Range 53 – 75 mm53 – 75 mm53 – 75 mm
    View Orientation Inverted ViewInverted ViewInverted View
    Ocular Tube Diameter 30 mm30 mm30 mm
    Body
    Nosepiece Orientation ReversedReversedReversed
    Nosepiece Style Quintuple (5)Quintuple (5)Quintuple (5)
    Focus Controls Coarse & Fine, CoaxialCoarse & Fine, CoaxialCoarse & Fine, Coaxial
    Focus Mechanism Rack & PinionRack & PinionRack & Pinion
    Focus Control Location Dual AmbidextrousDual AmbidextrousDual Ambidextrous
    Focus Controls Graduated? YesYesYes
    Stage Type Mechanical XYMechanical XYMechanical XY
    Stage Features Ceramic Coated, Fingertip Controls, Full Stage XY, Slide Clips, Slide Holder (spring-loaded)Ceramic Coated, Fingertip Controls, Full Stage XY, Slide Clips, Slide Holder (spring-loaded)Ceramic Coated, Fingertip Controls, Full Stage XY, Slide Clips, Slide Holder (spring-loaded)
    Stage Dimensions 190mm X 140mm190mm X 140mm190mm X 140mm
    Stage Range of Movement (XY) 80mm x 52mm80mm x 52mm80mm x 52mm
    Stage Range Graduated? YesYesYes
    Configuration
    Includes Eyepieces? YesYesYes
    Included Eyepiece Quantity 222
    Included Eyepieces (X) 10X10X10X
    Eyepiece Style SWF Super Widefield (FN 20mm)SWF Super Widefield (FN 20mm)SWF Super Widefield (FN 20mm)
    Min Standard Mag 100X100X100X
    Max Standard Mag 400X400X400X
    Included Objectives (Qty) 333
    Objective Lens PlanPlanPlan
    Included Objective Types Brightfield, Strain-free (Polarizing)Brightfield, Strain-free (Polarizing)Brightfield, Strain-free (Polarizing)
    Condenser
    Condenser Type Abbe BrightfieldAbbe BrightfieldAbbe Brightfield
    Condenser Features Iris Diaphragm, Rack & Pinion Focus, Swing-out Filter HolderIris Diaphragm, Rack & Pinion Focus, Swing-out Filter HolderIris Diaphragm, Rack & Pinion Focus, Swing-out Filter Holder
    Condenser N.A. 1.25 mm1.25 mm1.25 mm
    Filter Diameter 44 mm44 mm44 mm
    Filters Included BlueBlueBlue
    Illumination
    Illumination Type HalogenHalogenHalogen
    Illumination Style TransmittedTransmittedTransmitted
    Collector Type KohlerKohlerKohler
    Collector Features Field Diaphragm, Filter HolderField Diaphragm, Filter HolderField Diaphragm, Filter Holder
    Transmitted Light Type HalogenHalogenHalogen
    Transmitted Light Specification 6V 30W6V 30W6V 30W
    Transmitted Light Control VariableVariableVariable
    Power Supply 110V-230V AC Auto Voltage Sensing110V-230V AC Auto Voltage Sensing110V-230V AC Auto Voltage Sensing
    Accessories
    Included Extras Dust CoverDust CoverDust Cover
