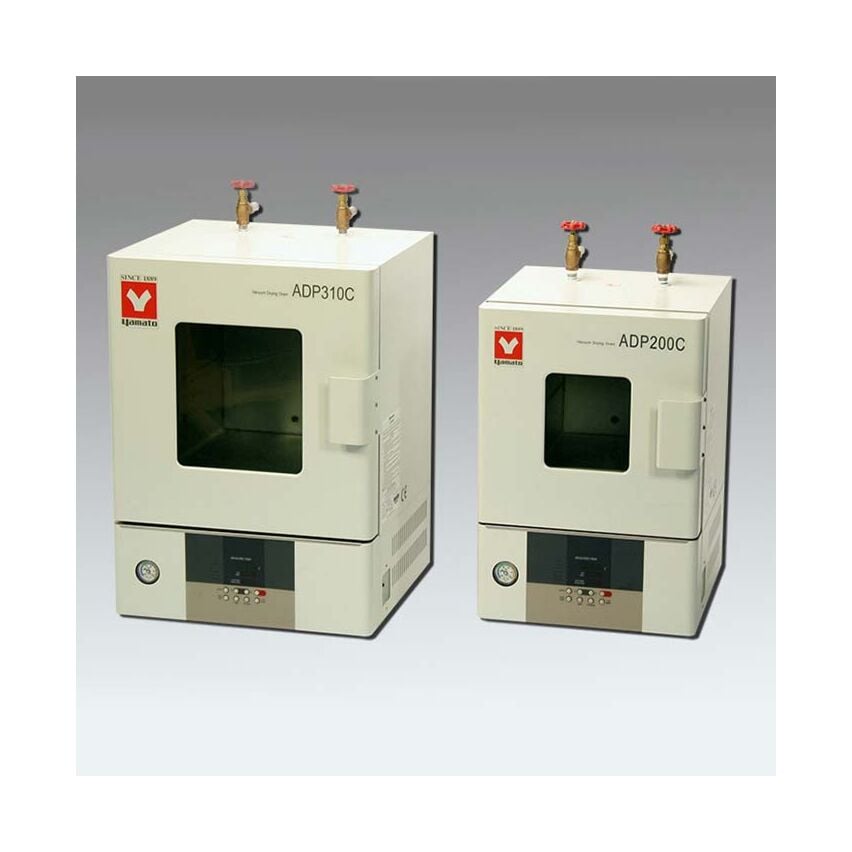

Basic Yamato ADP Vacuum Drying Oven
Standard small size benchtop vacuum drying ovens with enhanced safety features
-
Performance and Functions
- Easy input of parameters and settings
- Digital PID controller supports fixed temperature, quick auto-stop, auto stop, auto start and program operations
- Self-diagnostic and overheating prevention functions
- Silicon rubber door seal prevents air from leaking
- Independent over heating prevention device for each circuit
- Customizable with N₂ gas inlet and communication ports
- Calibration off-set function
- Easy maintenance
Safety Features
- Sensor trouble detection, SSR, short circuit detection, heater disconnecting detection, memory error, overheating and measurement temperature error
|
|
|
 |
Yamato ADP Lab Oven Brochure |
| |
Yamato ADP Lab Oven Poster |
| |
Yamato Lab Oven Accessories |
| |
Yamato Oven Overview |
| Brand | Being Instrument |
|---|---|
| Recommended For | 0 |
| Special URL (For Data Feed) | https://www.microscope.com/basic-yamato-adp-vacuum-drying-oven.html?model=ADP-310C#1428=1478&1429=1481&1430=1491 |
| Related Qualification | Basic |
| Internal Capacity (L) | 27 |
| Power Source | AC220V-5A |
| Operating Temp. Range | 40-240 °C |
| Power Consumption (W) | - |
| Accuracy ± (Temperature) | ±1.5°C (at 240°C) |
| Material | Stainless steel |
| System | Vacuum drying by decompressed chamber direct heating |
| Display Resolution | - |
| Max. Degree of Vacuum (Pa) | - |
| Shelves Material | Aluminum perforated metal) |
| Max. Load Per Shelf (kg) | 15 |
| Max Number of Shelves | - |
| Number of Shelves | 3 |
| Certification | - |
| Operating Pressure Range | 101~0.1kPa (760~1 Torr) |
| Max. Temp. Reaching Time (Minutes) | ~100 |
| Exterior Material | - |
| Door | - |
| Heat Insulating Material | Rock wool |
| Vacuum Gauge | Bourdon tube type, 0~0.1 MPa (Gauge pressure) |
| Net Weight (kg) | ~55 |
| Temperature Sensor | K-thermocouple |
