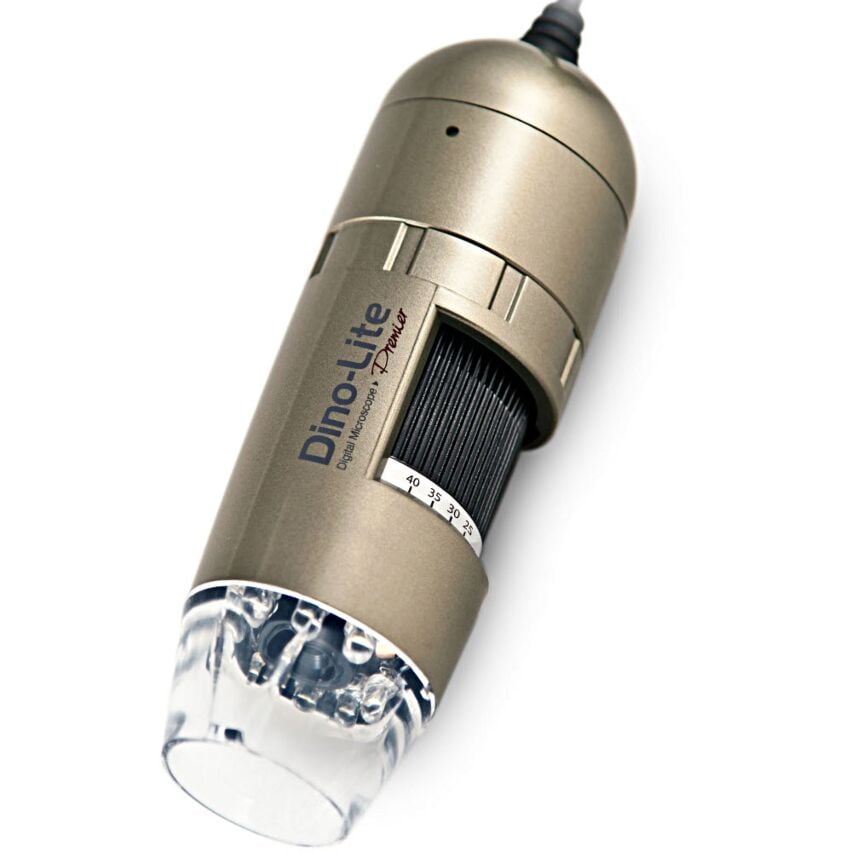

Dino-Lite Pro AM4111T 1.3MP Digital USB Microscope 10X-50X, 220X

Dino-Lite offers this economic stand option to accommodate its line of handheld digital microscopes. This flexible, versatile desktop stand provides an excellent hands-free solution to shaky images. It's ideal for users who seldom need to change focus or magnification.

The Articulating Desktop Stand, with a convenient adjustable point of view, comes in gloss black, making it a stylish choice for any environment. The MS22B is another versatile tool in the expanding line of Dino-Lite accessories to help you maximize your potential.

If working distance is what you seek with your digital microscope stand, Dino-Lite's Rigid Versatile Stand is the ideal choice. Not only does the MS35B tabletop stand allow for 8 inches of vertical working space from the specimen, but it also provides up to 360 degrees of horizontal axis rotational perspective.

It can be easily paired with the new Dino Lite MS15X XY+R Base with Removable Rotating Table which allows you to move a specimen on both the X and Y axis as well as rotate it 360 degrees in a steady, controlled manner.

The grip holster is fastened to a focus block by a ball-and-socket joint which pivots, providing 80 degrees of lateral viewing angles. The focus block offers rack and pinion action and 1.0" of vertical movement to fine-tune your image for optimum detail.

The stand is constructed of durable stainless steel and lightweight recycled aluminum, making it an ideal choice for lab work, pcb inspections and industrial assembly line quality check stations.

Dino-Lite Demonstration Video

The RK-6A table top platform stand combines a versatile horizontal boom arm and a precision-focusing vertical adjustment for sharp, clean images. The RK-6A also features a quick-release pin within the machined vernier focus block that offers vertical re-positioning at the the touch of a button. Push the button in and slide the arm up or down to the desired height, then release the button, focus the microscope thumb wheel and fine-tune for a sharp, clean image.

The extension boom arm can rotate 360 degrees within the focus block, permitting the Dinolite microscope to view vertically, horizontally, or any angle in between. The horizontal arm offers 60mm of lateral movement and the vertical post allows 290mm of height adjustment. An included 130mm extension bar offers yet additional reach for imaging large subjects like PC motherboards, paper samples and other items.

The stand is constructed of durable and lightweight machined aluminum with a stain-resistant finish, making it an ideal choice for lab work, pcb inspections and industrial assembly line quality check stations.

For added versatility, the RK-6A can be easily paired with the new Dino Lite MS15X XY+R Base with Removable Rotating Table which allows you to move a specimen on both the X and Y axis as well as rotate it 360 degrees in a steady, controlled manner.

Dino-Lite Demonstration Video

Summary

Ideal for field work, presentations or classroom trainings, the new Dino-Lite WF-10 WiFi adapter is an innovative and welcome addition to the world of wireless communication. It allows for Edge and Premier series Dino-Lite USB-enabled microscopes to stream images and video to an iOS (iPad/iPhone) or Android OS system on up to 10 smartphones, tablets or computers.

Operation

First, download and install the DinoConnect app from the App Store for iOS, or Google Play for Android version. Next, connect your Dino-lite microscope to the WF-10 and switch the power on. From your iPad or iPhone, go to wifi settings and select "Dino-Lite WiFi Streamer". Then start the DinoConnect App and the microscope will feed live images and video via the WF-10 for display on your iPad or iPhone.

The app offers intuitive menu options for resolution, image or video capture and exposure level, and the LED can be switched off and back on from within the app as well. Users now have a mobile WiFi inspection station wherever needed, from the factory floor to the boardroom or anywhere in between. NOTE: NOT COMPATIBLE WITH AM73115 & AM73915 series.

Accessories

Package includes WF-10 wireless adapter, User manual, AC Power supply (100V-240V), 1880mAh Li-Ion battery. Compatible with Apple iOS 6.x or later, Android 4.1.1 or later. Dimensions: 4.76 in (L) x 2.1 in (W) x 0.62 in (H).

Demonstration Video

Dino-Lite MSAA111A1 - for Dino-Lite AM series (except ZT or AM4013MT)

Diffused illumination plays an important role in digital microscopy. The Dino-Lite line of diffusers work to soften the Dino-Lite's bright LED illumination by having it pass through the semi-translucent cone before striking the object.

This has the effect of reducing shadow contrast while bringing out more surface detail. Diffused illumination also aids in greatly reducing eye fatigue during extended periods of observation.

We have a full lineup of diffusers available for your specific Dino-Lite microscope. Please reference the appropriate model number below.

MSAA111A1 - For Dino-Lite AM series (except ZT models or AM4013MT)
MSAA111A2 - For Dino-Lite ZT series
MSAA111A3 - For Dino-Lite ZTS series
MSAA111A4 - Spacing Adapter for AM413ZTS series
MSAA112B - For Dino-Lite AD Series (except "Z" or "L" models)

Proper installation of the diffuser: Place the diffuser into the clear plastic nozzle. Apply slight pressure until diffuser is secure. Please be cautious of misaligned Led lights.

Proper removal of the diffuser: While holding the microscope with one hand, grip the clear plastic nozzle of the microscope with the other hand and gently twist and remove the diffuser.
