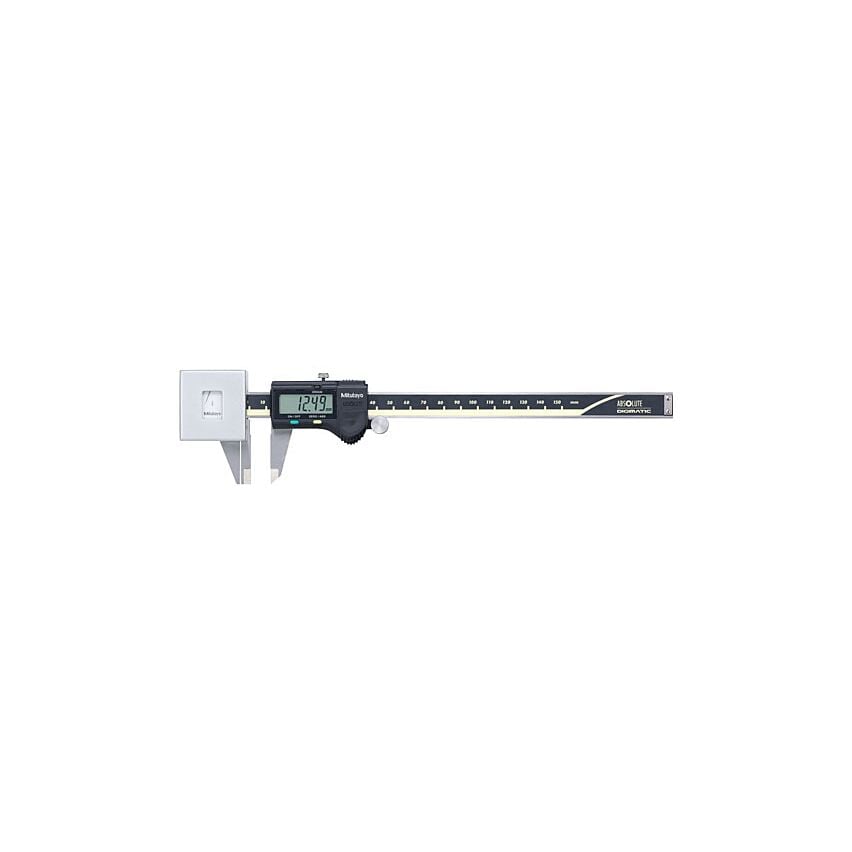

Mitutoyo 573-291-30, 573-191-30 ABSOLUTE Low Force Caliper Series 573
- Inch/Metric and Metric units available
- Best for measuring plastic and rubber parts
- SPC Data Output
- Functions: Origin-set, Zero-setting, Power On/Off, inch/mm conversions
Mitutoyo 573-291-30, 573-191-30 ABSOLUTE Low Force Caliper Series 573
Series 573
- The ABSOLUTE Digimatic snap caliper features a spring-loaded mechanism to allow quick and efficient GO/NO-GO inspection for mass production parts.
- With SPC data output.
- Supplied in fitted plastic case.
Built-in ABS (absolute) scale means that these calipers are ready to use immediately after power-on without origin resetting. It’s as easy as vernier caliper measurements.
TECHNICAL DATA OF DIGITAL MODEL
Accuracy: Refer to the list of specifications.
Resolution: 0.01mm or .0005"/0.01mm
Repeatability: .0005” / 0.01mm
Display*: LCD
Length standard*: ABSOLUTE electrostatic capacitance type linear encoder
Measuring force: 7N to 14N (700gf to 1400gf)
Jaw retraction: 2mm
Max. response speed*: Unlimited
Battery*: SR44 (1 pc.), 938882
Battery life*: Approx. 3.5 years under normal use
FUNCTION OF DIGITAL MODELOrigin-set, Zero-setting, Power On/Off, Data output, inch/mm conversion (on inch/metric models only)
Alarm: Low voltage, Counting value composition error
DIMENSION AND MASS
WATCH MITUTOYO ABSOLUTE LOW FORCE CALIPER DEMO
 |
Mitutoyo Caliper Catalog |
| Brand | Mitutoyo |
|---|---|
| Recommended For | 0 |
