Mitutoyo Point Caliper Series 573,536-ABSOLUTE Digimatic and Vernier Type

Mitutoyo Point Caliper Series 573,536-ABSOLUTE Digimatic and Vernier Type

Inch/Metric models include:

• Mitutoyo 573-721-20
• Mitutoyo 573-725-20

Metric models include:

• Mitutoyo 573-621-20
• Mitutoyo 573-625-20

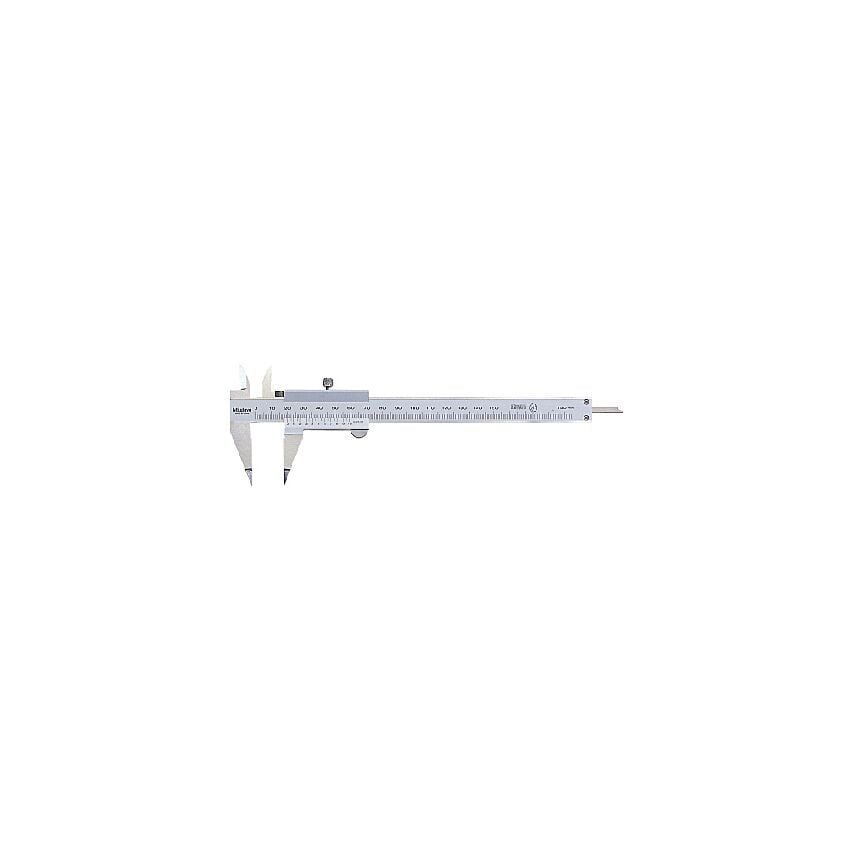

• Mitutoyo 536-121

FEATURES Narrow tip jaws fit into very small grooves and tracks, making many previously difficult outside measurements far easier to obtain. With depth bar. With SPC data output. (Series 573) Supplied in fitted plastic case. TÜV Rheinland Certified

IP67 Protection Level Level 6: Dust-tight/ No ingress of dust. Level 7: Protected against the effects of temporary immersion in water. Ingress of water in quantities causing harmful effects shall not be possible when the enclosure is temporarily immersed 1 meter in water under standardized conditions of pressure and time (30 min.).

TECHNICAL DATA OF DIGITAL MODEL

Accuracy: Refer to the list of specifications.

Resolution*: 0.01mm or .0005"/0.01mm

Graduation**: 0.05mm

Display*: LCD

Length standard*: ABSOLUTE electrostatic capacitance type linear encoder

Max. response speed*: Unlimited

Battery*: SR44 (1 pc.), 938882

Battery life*: Approx. 3.5 years under normal use

*Digital models **Analog models

FUNCTION OF DIGITAL MODEL

Origin-set, Zero-setting, Power On/Off, Data output, inch/mm conversion (on inch/metric models only)

Alarm: Low voltage, Counting value composition error

DIMENSION AND MASS
