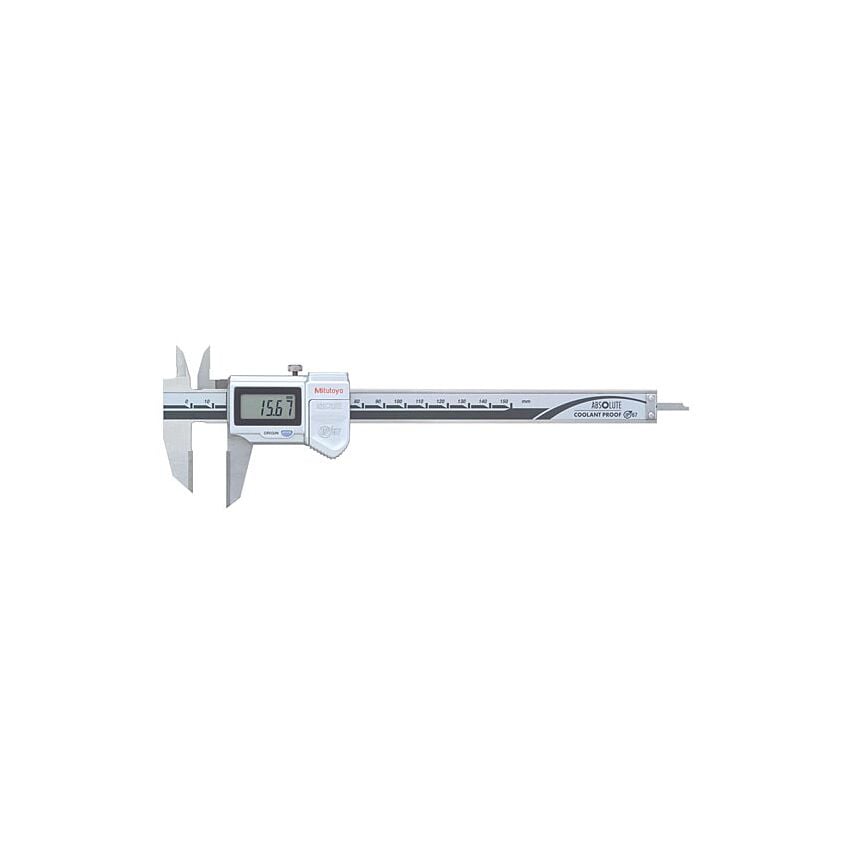

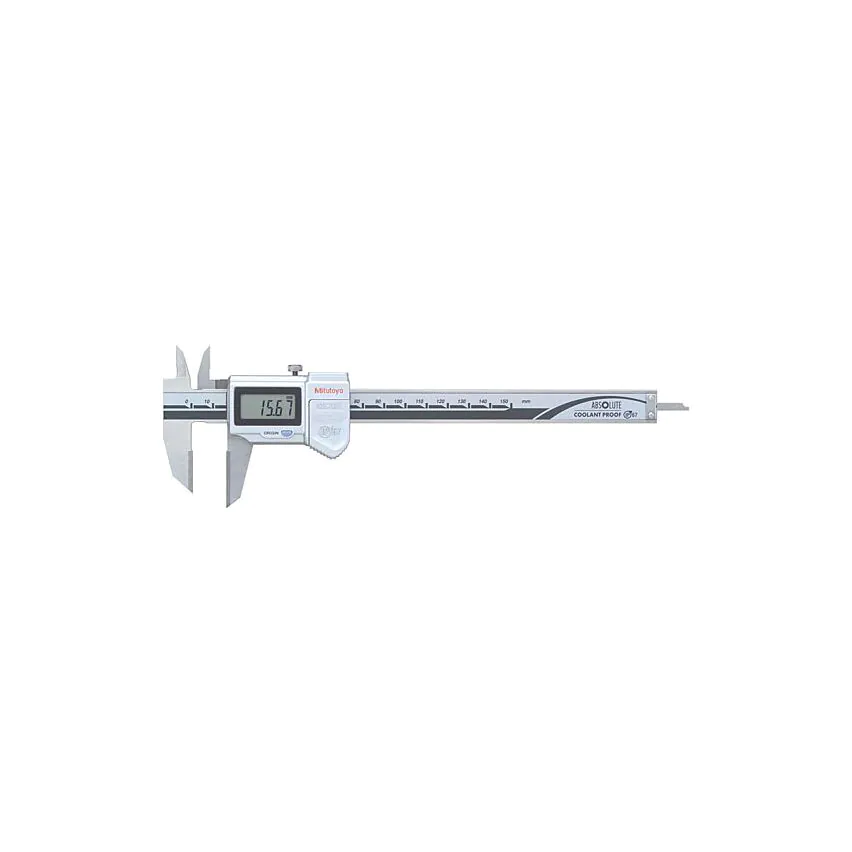

Mitutoyo Scribing Caliper Series 573,536-ABSOLUTE Digimatic and Vernier Type
- With IP67 Rating
- Equipped with depth bar
- Offers SPC data output
- Metric digital and metric vernier models available
Mitutoyo Scribing Caliper Series 573,536-ABSOLUTE Digimatic and Vernier Type
Series 573 & 536Metric digital models include:
- Mitutoyo 573-676
- Mitutoyo 573-677-20
- Mitutoyo 573-679
Metric vernier models include:
- Mitutoyo 536-221
- Mitutoyo 536-222
- Mitutoyo 536-223
FEATURES
- The carbide-tipped jaws facilitate fine scribing on workpiece.
- With depth bar.
- With SPC data output. (Series 573)
- Supplied in fitted plastic case.
- TÜV Rheinland Certified
|
IP67 Protection Level
Level 6: Dust-tight/ No ingress of dust. Level 7: Protected against the effects of temporary immersion in water. Ingress of water in quantities causing harmful effects shall not be possible when the enclosure is temporarily immersed 1 meter in water under standardized conditions of pressure and time (30 min.). |
Accuracy: Refer to the list of specifications.
Resolution*: 0.01mm
Display*: LCD
Length standard*: ABSOLUTE electrostatic capacitance type linear encoder
Max. response speed*: Unlimited
Battery*: SR44 (1 pc.), 938882
Battery life*: Approx. 3.5 years under normal use
*Digital models **Analog models
FUNCTION OF DIGITAL MODELOrigin-set, Zero-setting, Power On/Off, Data output, inch/mm conversion (on inch/metric models only)
Alarm: Low voltage, Counting value composition error
DIMENSION AND MASSWATCH DEMO ON HOW TO READ MITUTOYO VERNIER CALIPERS IN INCHES
WATCH VIDEO ON HOW TO USE MITUTOYO VERNIER CALIPERS
![]() |
Mitutoyo Caliper Catalog |
