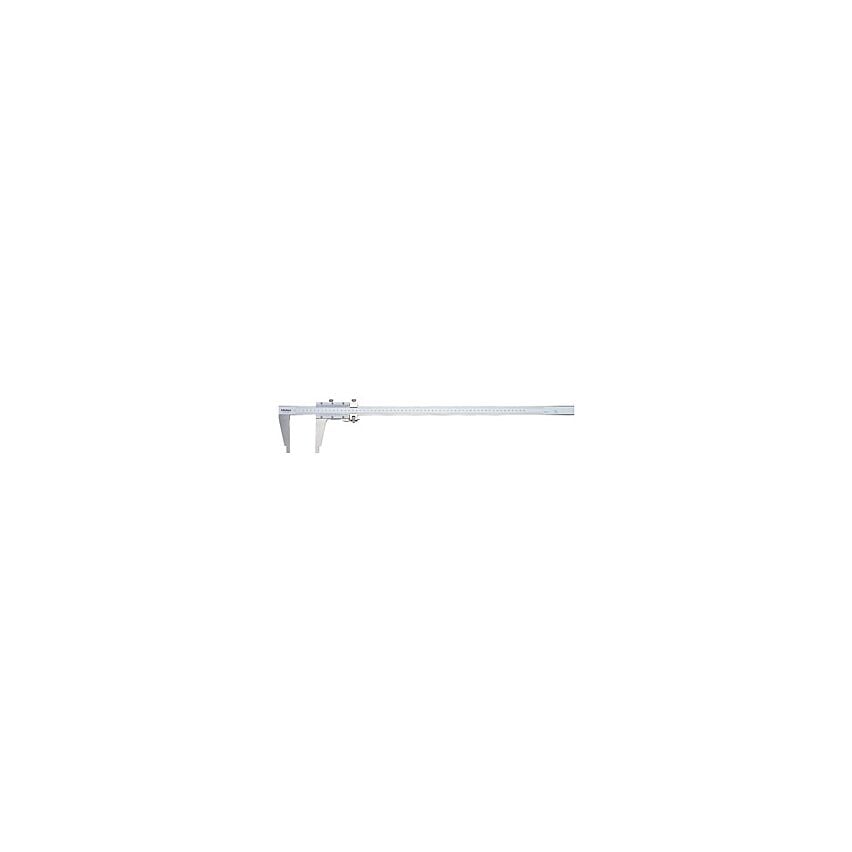

Mitutoyo Vernier Caliper Series 160-with Nib Style Jaws and Fine Adjustment

Mitutoyo Vernier Caliper Series 160 - with Nib Style Jaws and Fine Adjustment

Inch models include:

Mitutoyo 160-124	Mitutoyo 160-116
Mitutoyo 160-102	Mitutoyo 160-105
Mitutoyo 160-111	Mitutoyo 160-114

Inch/Metric models include:

Mitutoyo 160-125	Mitutoyo 160-119
Mitutoyo 160-103	Mitutoyo 160-106
Mitutoyo 160-112	Mitutoyo 160-115

Metric models include:

Mitutoyo 160-127	Mitutoyo 160-128
Mitutoyo 160-101	Mitutoyo 160-104
Mitutoyo 160-110	Mitutoyo 160-113

Metric/Inch models include:

Mitutoyo 160-150	Mitutoyo 160-151
Mitutoyo 160-153	Mitutoyo 160-155
Mitutoyo 160-157	Mitutoyo 160-159

FEATURES The jaws have round measuring faces for accurate ID measurement. With fine adjustment carriage to feed the slider finely. (without 160-130~134) Inside and outside measurements can be directly read from the upper and lower slider graduations, respectively. Supplied with vinyl holster in fitted carton. Except 300mm / 12”, 450mm/18” and 600mm/24” are fitted carton only. Over 600mm/24” supplied in wooden case.

TECHNICAL DATA OF DIGITAL MODEL

Accuracy: Refer to the list of specifications.

Resolution: 0.01mm or .0005"/0.01mm

Display: LCD

Scale type: ABSOLUTE electromagnetic linear encoder

Max. response speed: Unlimited

Battery: SR44 (1 pc.), 938882

Battery life: Approx. 5,000 hours in continuous use

Dust/Water protection level: IP66

Standard accessory: Jaw clamps (2 pcs.), 05GZA033

FUNCTION OF DIGITAL MODEL

Accuracy: Refer to the list of specifications

Graduation: Refer to the list of specifications

DIMENSION AND MASS

Mitutoyo Caliper Catalog
