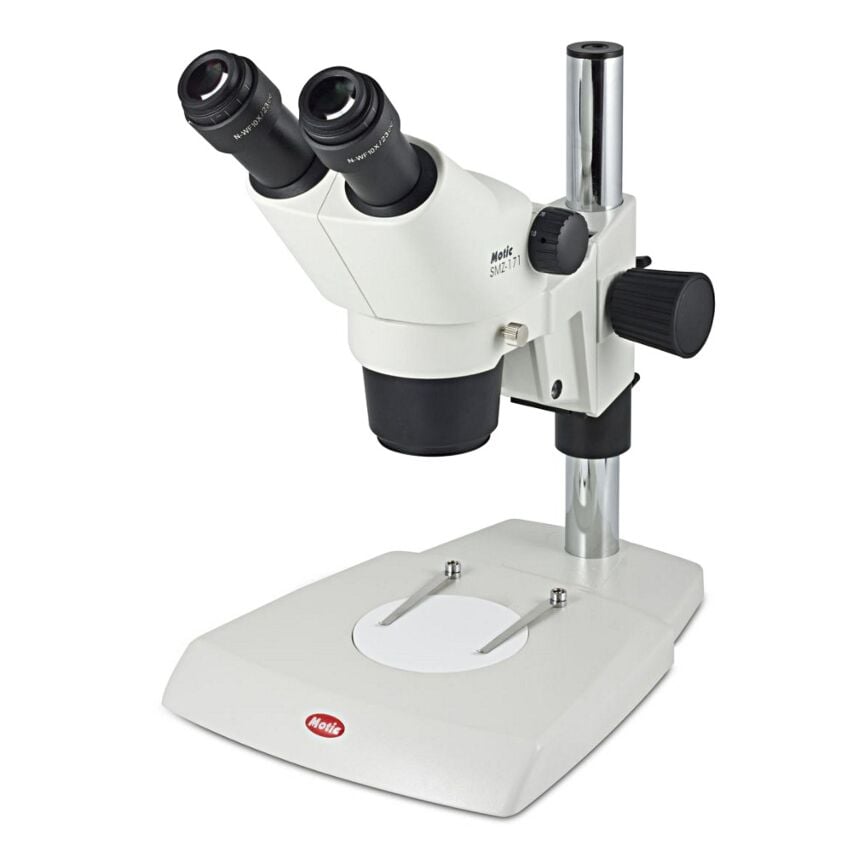

Motic SMZ-171 7.5X-50X Zoom Stereo Microscope

$ 1050.00

Starting at: $1,050.00

SKU: SMZ-171

Availability: In stock

  • Greenough 7.5X-50X zoom magnification system
  • New generation Lead-free optics
  • 6.7:1 zoom range with 110mm working distance
  • Parfocal throughout full range
  • Natural lighting or long-life LED illumination
  • ESD-Safe configuration available
  • Recommended for biomedical and industrial applications

Price as configured: $0.00

Select package options

Click on to learn more about the option * signifies required items

  • $125.00
  • $125.00
  • $125.00
  • $125.00
  • $125.00
  • $125.00
  • $690.00
  • $359.00
  • $409.00

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

  • Motic EMZ-171 Zoom Stereo Microscope
  • Motic EMZ-171 Zoom Stereo Microscope Trinocular
  • Motic EMZ-171 Zoom Stereo Microscope LED
  • Motic EMZ-171 Zoom Stereo Microscope LED Trinocular
  • Motic EMZ-171 Zoom Stereo Microscope ESD-SAFE
Description

Summary

The SMZ171 zoom stereo microscope is the newest edition to Motic's popular SMZ microscope family. Similar to the SMZ-168, the SMZ-171 also features new-generation optics, more efficient LED illumination and ESD-Safe compatibility. Destined for advanced biomedical and materials science applications, the SMZ171's optical performance will satisfy the most rigorous demands from professionals in biology, medical research, high tech manufacturing and more. The modern design and available ESD-safe compatibility make this platform ideally suited for quality control work in semiconductor cleanrooms and other sensitive electronics environments.

Optics

The Greenough optical system is built around new-generation lead-free optics offering sharp, three-dimensional upright images through a 45-degree inclined head which rotates through 360 degrees. Ergonomic 10X FN 23 widefield high eyepoint eyepieces are set in a Seidentopf movement with 54mm-76mm of interpupillary adjustment and +/- 5 degrees of dioptric range. Dual zoom control knobs operate a 6.7:1 zoom ratio for 7.5X to 50X total magnification in just one rotation. Five defined click-stop positions within the zoom range allow for exact reproduction of magnification, a necessary requirement for precise measurements. The standard working distance of 110mm (4.3") offers generous space for manipulating specimens under observation, and it can easily extend to 300mm with an optional 0.3X Auxiliary Barlow lens.

Focus & Illumination

Dual rack and pinion focus controls are conveniently positioned and feature tension adjustment for responsive and precise movement. For added flexibility, choose between natural illumination, or variable intensity, 3W LED incident and transmitted illumination. ESD-Safe focus and illumination is optionally available.

Stand

Choose between an economical plain stand or large working area stand with 3W LED transmitted illumination from an integrated 110V - 240V universal power supply. Both options feature a 32mm vertical post, 110mm working distance and a wide surface platform with chemical-resistant finish, black/white or frosted stage plates and 2 included spring clips. An ESD-Safe configuration is optionally available - please call for pricing.

SKU MODEL MOTIC #
SMZ-171-BP Plain Base Binocular 1100200600758
SMZ-171-TP Plain Base Trinocular 1100200600762
SMZ-171-BLED LED Large Base Binocular 1100200600753
SMZ-171-TLED LED Large Base Trinocular 1100200600767
Specifications

Specifications of Component Options

Select a component below to view related specifications.

  • Motic SMZ-171-BP 7.5X-50X Binocular Zoom Stereo Microscope

    Motic SMZ-171-TP 7.5X-50X Trinocular Zoom Stereo Microscope

    Motic SMZ-171-BLED 7.5X-50X LED Binocular Zoom Stereo Microscope

    Motic SMZ-171-TLED 7.5X-50X LED Trinocular Zoom Stereo Microscope
    General
    Brand MoticMoticMoticMotic
    SKU SMZ-171-BPSMZ-171-TPSMZ-171-BLEDSMZ-171-TLED
    MAP Copy MAP - MoticMAP - MoticMAP - MoticMAP - Motic
    Best Value Yes
    Head
    Head Type BinocularTrinocularBinocularTrinocular
    Optical Design Greenough ConvergedGreenough ConvergedGreenough ConvergedGreenough Converged
    Ocular Angle 45°45°45°45°
    Ocular Tube Diameter 23 mm23 mm23 mm23 mm
    Barlow Mount Diameter 47 mm47 mm47 mm47 mm
    Diopter Adjustment DualDualDualDual
    Magnification Type ZoomZoomZoomZoom
    Interpupillary Adjustment Arc (Seidentopf)Arc (Seidentopf)Arc (Seidentopf)Arc (Seidentopf)
    Interpupillary Adjustment Range 54mm - 76mm54mm - 76mm54mm - 76mm54mm - 76mm
    Head Rotation 360 Degrees360 Degrees360 Degrees360 Degrees
    Minimum Objective (X) .75X.75X.75X.75X
    Maximum Objective (X) 5X5X5X5X
    Zoom Ratio 6.7:16.7:16.7:16.7:1
    Zoom Control Type Detent Click-StopsDetent Click-StopsDetent Click-StopsDetent Click-Stops
    Zoom Indicator Graduations YesYesYesYes
    Parfocal YesYesYesYes
    Configuration
    Includes Eyepieces? YesYesYesYes
    Included Eyepieces (X) 10X10X10X10X
    Eyepiece Style SWF Super Widefield (FN 20mm)SWF Super Widefield (FN 20mm)SWF Super Widefield (FN 20mm)SWF Super Widefield (FN 20mm)
    Available Barlow Lenses 0.3X, 0.5X, 0.75X0.3X, 0.5X, 0.75X0.3X, 0.5X, 0.75X0.3X, 0.5X, 0.75X
    Min Standard Mag 7.5X7.5X7.5X7.5X
    Max Standard Mag 50X50X50X50X
    Includes Eyecups? YesYesYesYes
    Eyecups Style Soft RubberSoft RubberSoft RubberSoft Rubber
    Body
    Body Material All-MetalAll-MetalAll-MetalAll-Metal
    Coating Type Anti-Reagent PaintAnti-Reagent PaintAnti-Reagent PaintAnti-Reagent Paint
    FocusBlock
    Focus Controls CoarseCoarseCoarseCoarse
    Focus Mechanism Rack & PinionRack & PinionRack & PinionRack & Pinion
    Stand
    Stand Class PedestalPedestalPedestalPedestal
    Stand Type PolePolePolePole
    Stand Features SolidSolidSolidSolid
    Stage Plate Black/White Contrast PlateBlack/White Contrast PlateBlack/White Contrast Plate, Clear GlassBlack/White Contrast Plate, Clear Glass
    Base Width 8.85"8.85"8.85"8.85"
    Base Depth 11"11"11"11"
    Post Height 13.7"13.7"13.7"13.7"
    Post Diameter 32mm32mm32mm32mm
    Coating Type (Stand) Anti-Reagent PaintAnti-Reagent PaintAnti-Reagent PaintAnti-Reagent Paint
    Illumination
    Illumination Type NoneNoneLEDLED
    Illumination Style IncidentIncidentTransmitted, IncidentTransmitted, Incident
    Power Supply 120V AC120V AC120V-240V AC120V-240V AC
    Incident Light Type  LEDLED
    Incident Light Specification  3W 3W
    Incident Light Control  VariableVariable
    Transmitted Light Type  LEDLED
    Transmitted Light Specification  3W3W
    Transmitted Light Control  VariableVariable
    Max Working Distance (standard) 110mm110mm110mm110mm
    WD with 0.5x Barlow 192mm192mm192mm192mm
    WD with 0.3x Barlow 301mm301mm301mm301mm
    WD with 0.75x Barlow 129mm129mm129mm129mm
    Compatibility
    Imaging Compatibility (with adapters) 23mm 23mm 23mm 23mm
    Reticles
    Reticles Available? YesYesYesYes
    Accessories
    Included Extras Dust CoverDust CoverDust CoverDust Cover

  • 0.3X Barlow Lens For Motic SMZ171 Stereo Microscopes

    0.5X Barlow Lens For Motic SMZ171 Stereo Microscopes

    0.63X Barlow Lens For Motic SMZ 171 Stereo Microscope

    0.75X Barlow Lens For Motic SMZ 171 Stereo Microscopes

    1.5X Barlow Lens For Motic SMZ 171 Stereo Microscopes

    2.0X Barlow Lens For Motic SMZ 171 Stereo Microscopes
    General
    Brand MoticMoticMoticMoticMoticMotic
    SKU MBL-SMZ171-03XMBL-SMZ171-05XMBL-SMZ171-063XMBL-SMZ171-075XMBL-SMZ171-15XMBL-SMZ171-2X
    MAP Copy MAP - MoticMAP - MoticMAP - MoticMAP - MoticMAP - MoticMAP - Motic
    Compatibility
    Compatible With OM99, OM99T, OMXTL, OMXTLTOM99, OM99T, OMXTL, OMXTLTOM99, OM99T, OMXTL, OMXTLTOM99, OM99T, OMXTL, OMXTLTOM99, OM99T, OMXTL, OMXTLTOM99, OM99T, OMXTL, OMXTLT
    Optical Accessory
    Barlow Lens Power 0.3X0.5X0.63X0.75X1.5X2.0X

  • 20X Eyepieces For Motic SMZ 171 Stereo Microscope (Pair)
    General
    Brand Motic
    SKU MEP-SMZ171-20X
    MAP Copy MAP - Motic
    Feed - Title 20X Eyepieces For Motic SMZ 171 Stereo Microscope (Pair)
    On Sale Yes
    Compatibility
    Compatible With OM99, OM99T
    Eyepiece Magnification 20x

  • Moticam 2 2.0MP Color Digital Microscope Camera

    Moticam X WiFi - iPad/Android Compatible Microscope Camera
    General
    Brand MoticMotic
    SKU MC2MCX
    Product Weight 1.00001.0000
    MAP Copy MAP - MoticMAP - Motic
    Feed - Title  Motic am X WiFi - iPad/Android Compatible Microscope Camera
    Feed - Description  The Motic new BA310 Elite Phase Contrast is built for the performance demands of colleges, universities and medical school markets, setting a new price-performance standard for optical quality. It offers innovative features like second-generation EC Plan phase contrast optics, a new rackless stage movement and an advanced 6V30W Halogen or 3W LED illumination design. Built-in Koehler illumination, a 30-degree inclined Siedentopf trinocular head and 10X Widefield eyepieces round out an exceptional system. This new microscope series brings versatility and ergonomics to a wide range of education and professional applications.OpticsThe optical system is designed around a new generation of Color Corrected Infinity System Achromatic objectives (EC PLAN 4x), and Plan Phase Contrast objectives (EC PLAN Ph10X. Ph40X-S, Ph100x-S Oil). Housed in a reversed quintuple nosepiece, these new lenses are multilayer-coated for improved color fidelity and image enhancement, rewarding researcher efforts with clear visual and digital results.Stage & FocusA new rackless stage with ergonomic right-hand controls enables effortless positioning of the XY movement without gear rack interference. The large, 150mm x 150mm double-layered mechanical surface incorporates a new spring-loaded specimen holder for soft, yet secure grip on the slide, and ergonomic drop down coaxial controls for convenient 'eyes down' operation. The stage range of movement is 80mm x 30mm.Focusing includes high quality rack and pinion mechanics for longer life and coaxial coarse/fine focus controls for easier focusing. The fine focus scale value is 0.002mm. The dimmer switch is conveniently located next to the right hand control, allowing 'eyes down' operation. Safety features include a rack stop to ensure that the stage does not impact and damage the objectives or slides, and a slip clutch minimizes the risk of damage due to over-extension.IlluminationOur new Motic Elite series comes standard with a 6V/30W Halogen Koehler lamp which also offers a new 3W LED module. A phase centering telescope and 5-Position Phase slider for Ph1, Ph2, Ph3, DF, BF are included. A professional focus-able Abbe 1.25 NA condenser with iris diaphragm and filter slot for optimal adjustments, completes this very impressive system.AccessoriesOwners Manual, 5ml Immersion Oil, Hex Key, 45mm Blue Filter, Dust Cover. Motic Part # 1100100402645.
    Feed - Custom Label 1  100-500
    Sensor
    Sensor Type CMOSCMOS
    Sensor Size 1/3 Inch1/3 Inch
    Color/Monochrome ColorColor
    Pixel Pitch 3.2um x 3.2um2.8um x 2.8um
    Sensor Color Depth 8bpp / 24bit RGB8bpp / 24bit RGB
    Scan Mode ProgressiveProgressive
    Signal to Noise Ratio 43db42db
    Dynamic Range 61db68db
    Shutter Electronic, Rolling ShutterElectronic, Rolling Shutter
    Camera
    Camera Mount C-Mount, Ocular MountC-Mount, Ocular Mount
    Resolution 2 Megapixel, 1600x1200 pixels1.3 megapixel
    Camera Output Resolutions  WiFi (1280 X 1024)
    FPS @ Max Res 5 fps15
    FPS @ Min Res  15
    Camera Interface USB 2.0WiFi, USB 2.0
    White Balance Area-of-Interest, Automatic, Manual, SpotArea-of-Interest, Automatic, Manual, Spot
    Black Balance ManualManual
    Software Included Motic Images Plus 2.0MLMotic Images Plus 2.0ML
    Driver API Compatibility DirectX, TWAINDirectX, TWAIN
    Power Source USB PoweredUSB Powered
    File Formats BMP, JPEG, Own Proprietary, PNG, TIFFBMP, JPEG, Own Proprietary, PNG, TIFF
    Exposure Control Area-of-Interest, Automatic, Manual, Spot, Vignetting CorrectionArea-of-Interest, Automatic, Manual, Spot, Vignetting Correction
    Operating Temperatures -30°C to +70°C
    Other Details
    Included Accessories Focusable Macro Lens, 30, 44mm Microscope Eyepiece Couplers, Macrotube for Observation of Macro Specimens, U-Type Gooseneck/Tripod Adapter, Software CD, Calibration Slide MicrometerFocusable Macro Lens, 30mm, 44mm Microscope Eyepiece Couplers, Macrotube for Observation of Macro Specimens, Software CD, Calibration Slide Micrometer
    Supported Operating Systems Windows 7, Windows Vista, Mac OSX 10.4+, Windows XP SP3Windows 7, Windows Vista, Mac OSX 10.4+, Windows XP SP3
    System Requirements 2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, USB 2.0 High Speed Port
    Environmental Operating Temp: -10°C ~ 70°C, Relative Humidity: 40%~90%Operating Temp: -10°C ~ 70°C, Relative Humidity: 40%~90%
    Compatibility
    Imaging Compatibility (with adapters) C-MountC-Mount
