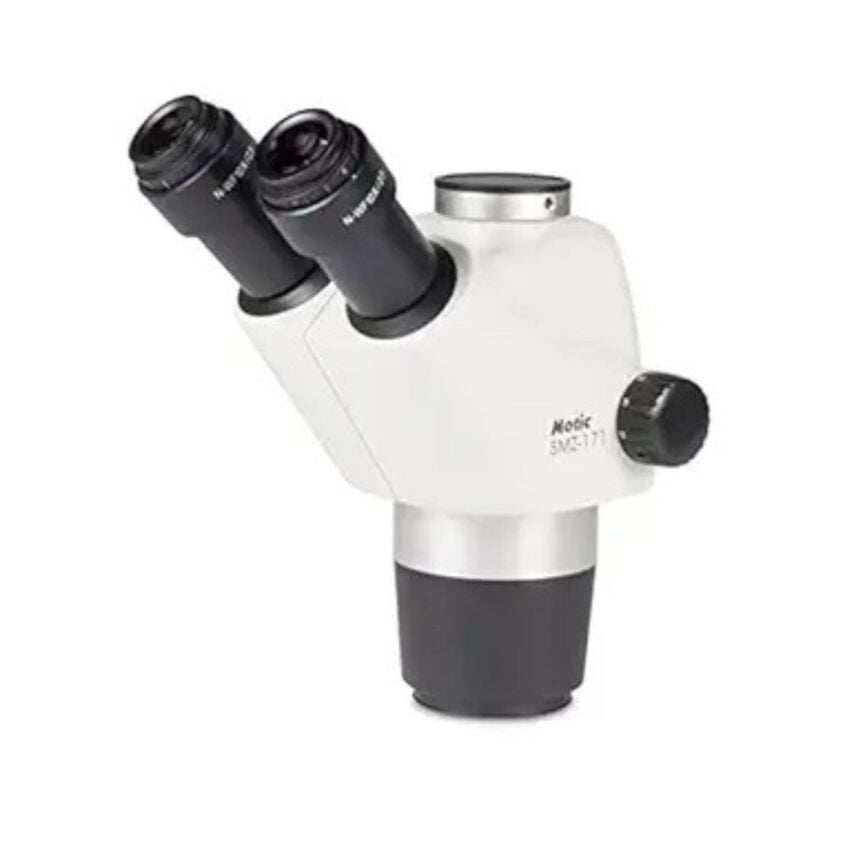

Motic SMZ-171-TH 7.5X-50X Trinocular Zoom Stereo Microscope Head 1100200600761
SKU:
SMZ-171-TH
Out of stock
You pay: $1,016.10 Regular Price: $1,129.00
Free Shipping,
30 Day Money Back Guarantee
- Greenough 7.5X-50X zoom magnification system
- New generation Lead-free optics
- 6.7:1 zoom range with 110mm working distance
- Parfocal throughout full range
- Click-stop zoom detents
- Recommended for biomedical & industrial applications
Summary
The SMZ171 zoom stereo microscope is the newest edition to Motic's popular SMZ microscope family. Similar to the SMZ-168, the SMZ-171 also features new-generation optics, more efficient LED illumination and ESD-Safe compatibility. Destined for advanced biomedical and materials science applications, the SMZ171's optical performance will satisfy the most rigorous demands from professionals in biology, medical research, high tech manufacturing and more. The modern design and available ESD-safe compatibility make this platform ideally suited for quality control work in semiconductor cleanrooms and other sensitive electronics environments.
| Brand | Motic |
|---|---|
| Recommended For | 0 |
| Head Type | Trinocular |
| Optical Design | Greenough Converged |
| Ocular Angle | 45° |
| Ocular Tube Diameter | 23 mm |
| Barlow Mount Diameter | 47 mm |
| Diopter Adjustment | Dual |
| Magnification Type | Zoom |
| Interpupillary Adjustment | Arc (Seidentopf) |
| Interpupillary Adjustment Range | 54mm - 76mm |
| Trinocular Tube Focusable? | No |
| Head Rotation | 360 Degrees |
| Minimum Objective (X) | .75X |
| Maximum Objective (X) | 5X |
| Zoom Ratio | 6.7:1 |
| Zoom Control Type | Detent Click-Stops |
| Zoom Indicator Graduations | Yes |
| Parfocal | Yes |
| Includes Eyepieces? | Yes |
| Included Eyepieces (X) | 10X |
| Eyepiece Style | SWF Super Widefield (FN 22mm) |
| Includes Barlow? | No |
| Available Barlow Lenses | 0.3X |
| Min Standard Mag | 7.5X |
| Max Standard Mag | 50X |
| Includes Eyecups? | Yes |
| Eyecups Style | Soft Rubber |
| Body Material | All-Metal |
| Coating Type | Anti-Reagent Paint |
| Focus Controls | Coarse |
| Focus Mechanism | Rack & Pinion |
| Stand Class | Pedestal |
| Stand Type | Pole |
| Stand Features | Solid |
| Stage Plate | Black/White Contrast Plate |
| Base Width | 8.85" |
| Base Depth | 11" |
| Post Height | 13.7" |
| Post Diameter | 32mm |
| Coating Type (Stand) | Anti-Reagent Paint |
| Illumination Type | None |
| Illumination Style | Incident |
| Power Supply | 120V AC |
| Max Working Distance (standard) | 110mm |
| WD with 0.5x Barlow | 192mm |
| WD with 0.3x Barlow | 301mm |
| WD with 0.75x Barlow | 129mm |
| Imaging Compatibility (with adapters) | 23mm |
| Reticles Available? | Yes |
| Included Extras | Dust Cover |
| Case Included? | No |
