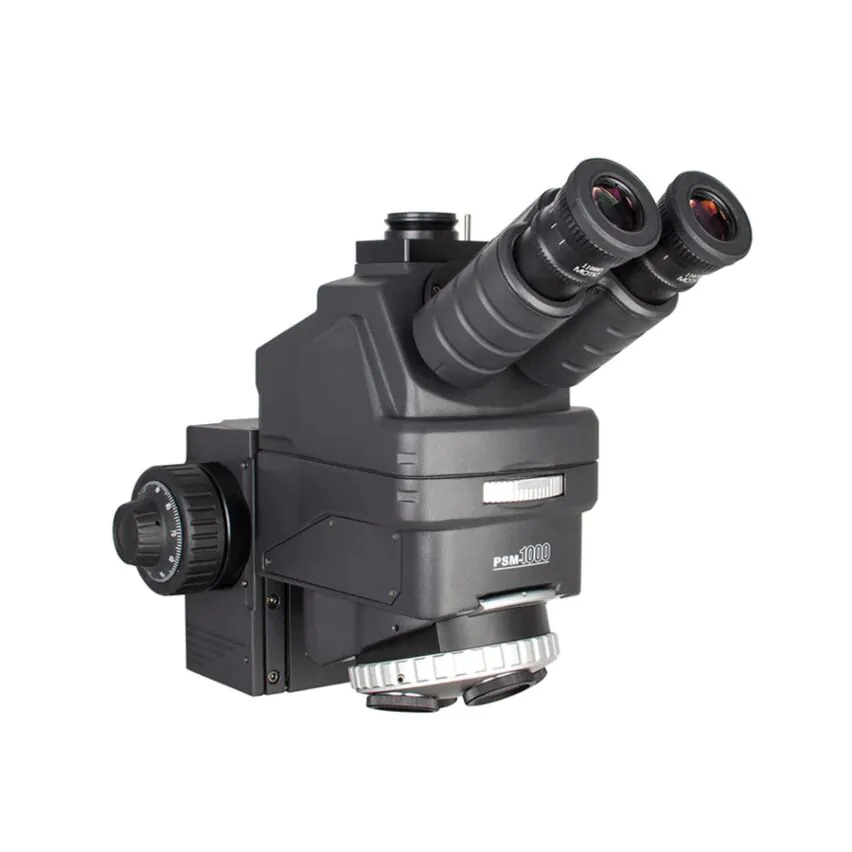

Motic PSM-1000 Trinocular Microscope, Standard System
- Industrial Grade Performance: Designed as an OEM-ready instrument, optimized for high-resolution imaging of flat, reflective specimens in metallurgy and semiconductor manufacturing.
- Superior Resolution: Equipped with ELWD (Extra-Long Working Distance) Plan Apochromatic objectives, providing exceptional color correction and stupendous resolving power for micro-inspection.
- Optimized Field of View: Features a large FOV24, allowing for a broader viewing area to increase efficiency during sample analysis.
- Precision Orientation: Delivers an erect, true-sided image to facilitate fast orientation and intuitive manipulation of delicate samples.
Motic PSM-1000: The Industry Standard for Precision Laser Integration
The Motic PSM-1000 is a high-performance, laser-ready modular microscope system specifically engineered for semiconductor repair, laser micro-machining, and advanced materials research. Designed with a specialized optical path, the PSM-1000 supports laser integration across a broad spectrum, including 355nm (UV), 532nm (Green), and 1064nm (IR).
Whether you are performing thin-film removal, circuit probing, or micro-drilling, the PSM-1000 provides the thermal stability and optical precision required for demanding industrial laser applications without sacrificing ergonomic comfort.
Engineered for Laser Precision & Stability
- Broad Spectrum Optical System: Specialized lens coatings cover the NUV, Visible, and NIR spectrums, allowing for seamless transition between observation and laser work.
- High-Load Focusing Block: Rated for loads up to 45 lbs, the ultra-stable focusing mechanism provides a 50mm stroke with a 1μm fine focus resolution.
- 3-Lens Change-Over Turret: Features an internal magnification changer with 1X UV/VIS, 1X IR/VIS, and a 2X setting for quick detail inspection.
- Centerable Quadruple Nosepiece: The forward-facing, dovetail-mounted nosepiece accepts M26 x 0.706 type objectives and allows for precise centration of each objective.
System Configuration Comparison
| Feature | PSM-1000 (Standard) | PSM-1000E (Ergonomic) |
|---|---|---|
| Observation Tube | Siedentopf Trinocular (30° Inclined) | Ergonomic Tilting Trinocular (3°-30°) |
| Light Split | 50:50 / 0:100 (Observation to Camera) | |
| Eyepieces | Widefield WF10X/24mm (High Eyepoint) | |
| Focusing Stroke | 50mm (1μm Minimum Increment on Standard Systems) | |
| Mounting Thread | M26 x 0.706 (Industrial Standard) | |
| Illumination Port | Port for Fiber-Optic Coaxial Illumination | |
Advanced Optical Classification
The PSM-1000 utilizes Extra Long Working Distance (ELWD) Plan Apochromatic objectives. These optics are critical for laser work as they provide ample space between the objective and the sample, protecting your equipment from debris and allowing for the integration of probe stations and specialized heating stages.
Safety First: Every PSM-1000 comes standard with a Laser Safety Kit, including a laser safety pin and necessary shims to ensure secure and compliant integration of your laser source.
Custom Laser Integration Support
Need specific objectives or a motorized stand configuration? Our technical team specializes in custom PSM-1000 builds for industrial OEMs.
| Brand | Motic |
|---|---|
| Recommended For | 0 |
| Trinocular Tube Focusable? | No |
| Parfocal | No |
| Focus Controls Graduated? | No |
| Stage Range Graduated? | No |
| Includes Eyepieces? | No |
| Includes Eyecups? | No |
| Included Objectives Parfocal Adjustable? | No |
| Reticles Available? | No |
| Case Included? | No |
