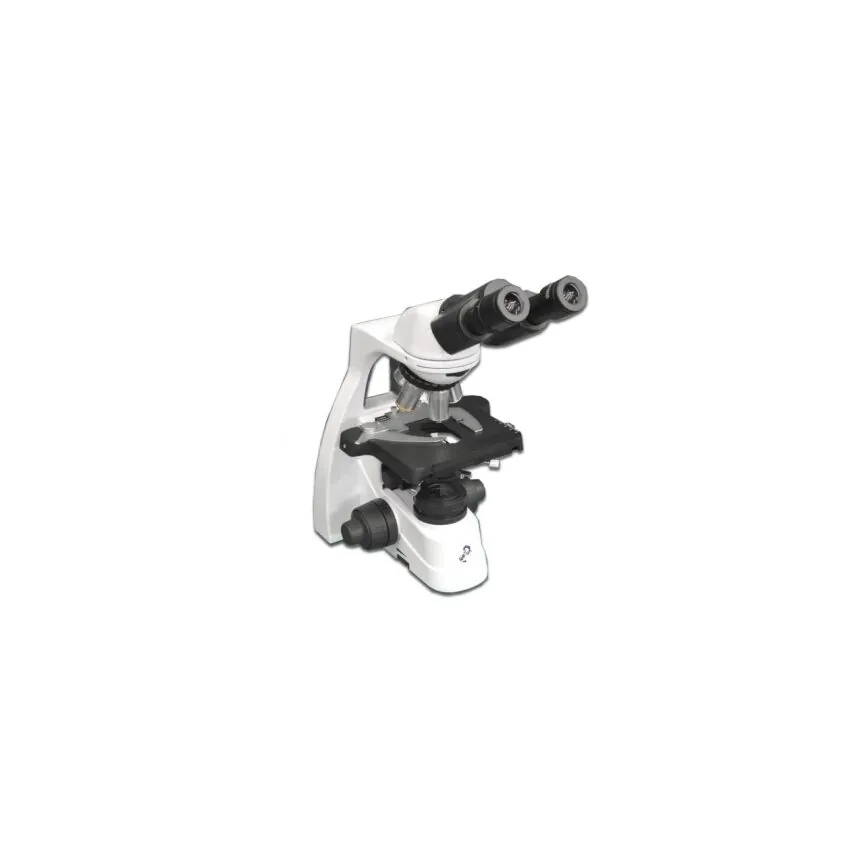

MT-420 Plan 40X-1000X Binocular University Laboratory Microscope
- Designed for Laboratory & University classrooms
- 4 Plan (4X, 10X, 40X, 100Xoil) objectives set in reversed nosepiece
- Infinity-corrected optical system
- SWF10x/20 Eyepieces & eyeguards
- Proprietary 3W LED illumination
- ABBE 1.25 NA condenser with slider insert
Summary
The new MT-420 Series Advanced Student microscope is designed for the smaller laboratory, medical school, veterinary clinic or physician’s office. With Japanese build quality, full Plan objectives in an infinity corrected optical system, the MT-420 is made for laboratory applications at a fraction of the price of competing microscope brands.
Optics
The standard configuration includes an infinity corrected optical system with four Plan objective lenses (4X, 10X, 40X, 100X) set in a quadruple reversed nosepiece. Two SWF10x/20 eyepieces are also included. All optical components are anti-fungal treated.
Stage & Focusing
The MT-420 features a 140mm x 132mm mechanical stage with 75mm x 50mm range of movement. Coaxial coarse and fine focusing includes 2 µm precision tuning, 200 graduations, friction adjustment, rack stop to prevent slide and objective damage and 22 mm travel range.
Condenser & Illumination
The condenser is a height adjustable Abbe N.A. 1.25 condenser with iris diaphragm and filter holder. 3W variable LED illumination is supplied by an auto-voltage-sensing unit (100V-240V) and employs proprietary new technology, rated for 25,000 hours of service life.
Accessories
Power cord, spare fuse, 5ml immersion oil, dust cover, manual
| Brand | Meiji Techno |
|---|---|
| Product Weight | 16lb |
| Recommended For | 0 |
| System Type | Brightfield |
| Optical Design | Infinity Corrected |
| Head Type | Binocular |
| Head Rotation | 360 Degrees |
| Ocular Angle | 30° |
| Diopter Adjustment | Single |
| Interpupillary Adjustment | Arc (Seidentopf) |
| Interpupillary Adjustment Range | 48mm - 75mm |
| Trinocular Type | Prism Switching |
| Trinocular Standard | C-mount |
| Trinocular Tube Focusable? | No |
| Parfocal | No |
| View Orientation | Upright View |
| Ocular Tube Diameter | 30 mm |
| Nosepiece Orientation | Reversed |
| Nosepiece Style | Quadruple (4) |
| Focus Controls | Coarse & Fine |
| Focus Mechanism | Rack & Pinion |
| Focus Control Location | Dual Ambidextrous |
| Focus Controls Graduated? | Yes |
| Focus Control Safety Stop | Rack Stop |
| Stage Type | Mechanical XY |
| Stage Features | Fingertip Controls |
| Stage Dimensions | 140mm x 150mm |
| Stage Range of Movement (XY) | 79mm x 52mm |
| Stage Range Graduated? | Yes |
| Includes Eyepieces? | Yes |
| Included Eyepiece Quantity | 2 |
| Included Eyepieces (X) | 10X |
| Eyepiece Style | SWF Super Widefield (FN 20mm) |
| Available Eyepieces | 10X |
| Includes Eyecups? | Yes |
| Eyecups Style | Soft Rubber |
| Min Standard Mag | 40x |
| Max Standard Mag | 1,000x |
| Included Objectives (Qty) | 4 |
| Objective Lens | Plan |
| Included Objective Types | Brightfield |
| Included Objectives Parfocal Adjustable? | Yes |
| Objective 1 Description | 4x |
| Objective 1 N.A. | 0.1 |
| Objective 2 Description | 10x |
| Objective 2 N.A. | 0.25 |
| Objective 3 Description | 40x S |
| Objective 3 N.A. | 0.65 |
| Objective 4 Description | 100x S oil |
| Objective 4 N.A. | 1.25 |
| Condenser Type | Abbe Brightfield |
| Condenser Features | Iris Diaphragm |
| Condenser N.A. | 1.25 mm |
| Illumination Type | LED |
| Illumination Style | Transmitted |
| Collector Type | Kohler |
| Transmitted Light Type | LED |
| Transmitted Light Specification | 3W |
| Transmitted Light Control | Variable |
| Power Supply | 100V- 240V |
| Fuse | 500mA 250V |
| Reticles Available? | No |
| Included Extras | Immersion Oil |
| Case Included? | No |
