Omano OM136C 40X-400X Student Compound Microscope Gift Package

$ 188.00

List Price: $377.00

Starting at: $188.00

SKU: OM136C-XSP

Availability: In stock

  • THE PERFECT GIFT
  • Best equation between quality and price
  • Choice of four Accessory packages
  • Halogen or LED illumination
  • Professional features
  • Lifetime Limited Warranty

Price as configured: $0.00

Select package options

Click on to learn more about the option * signifies required items

  • $45.00
  • $39.00
  • $59.00
  • $88.00
  • $139.00
  • $209.00
  • $239.00

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

  • Omano OM136-XSP Gift Package
  • Omano Accessory Pack 1
  • Omano Accessory Pack 2
  • Omano Accessory Pack 3
Description

THE PERFECT GIFT

Summary

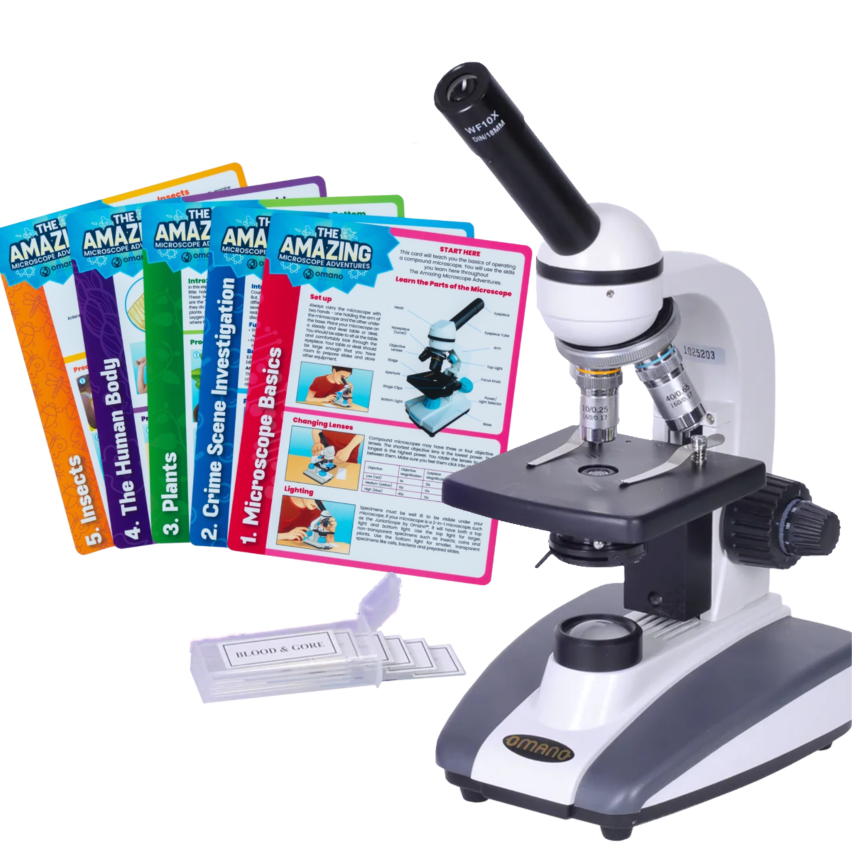

This year, treat your young scientist to the Omano OM136C monocular microscope with a choice of 4 useful Accessory gift packs. The Omano OM136C monocular compound microscope is one of our best-selling school microscopes and more than merits our Best Rated award. With better design and construction than the OM118 series, it is a microscope that will last a lifetime and accordingly, carries an Omano lifetime limited warranty.

Features include professional halogen or rechargeable LED illumination, three fully coated achromatic objective lenses, Abbe 1.25 N.A condenser with iris diaphragm and an optional mechanical slide holder which we recommend for more convenient slide handling. Recommended for Grades 5-12.

Optics

The Omano OM136C-L includes a monocular microscope head that is inclined at an ergonomic 45 degrees. The head rotates through 360 degrees for flexible viewing. A single wide field WF 10x eyepiece combines with three parcentered, coated, 160mm achromatic objective lenses (4x, 10x, 40x Spring), to provide magnification levels of 40x, 100x and 400x.

The objectives are set in a quadruple nosepiece so that an optional 100x oil immersion objective can be added for maximum magnification of 1,000x. Includes Dust Cover, Manual.

Stage & Focus

The OM136CL includes a generous sized, plain stage (125mm x 110mm) with two metal slide clips. An optional mechanical slide holder is available at a 44% discount when purchased at the same time as the microscope. We recommend this slide holder as it makes slide handling significantly easier for both younger children and teenagers alike.

Focusing includes high quality rack and pinion mechanics for longer life and coaxial focus controls for easier focusing. We recommend coaxial coarse/fine focus controls since they enable 'eyes down' focusing. In other words, the viewer does not constantly need to look up in order to find the other focus control. This benefit is important in enhancing a student's experience and therefore in encouraging a more sustained interest in the microscope.

Safety features include a rack stop to ensure that the stage does not impact with the objectives and thereby break the slides and a slip clutch control to mitigate the risk of damaging the focus controls through over extension.



Condenser & Illumination

The condenser is a professional Abbe 1.25 N.A with included iris diaphragm and filter holder for optimal adjustments. Illumination is 6V 20W transmitted halogen or rechargeable LED, both with variable light intensity. The LED version requires one 30 minute charge to last all day long and is a popular microscope for use in the field.

Shipping Wt. and dimensions: 12 Lb. 20"x13"x10".

Accessory Packs

In addition to the standard accessories, you can choose from 4 accessory packs below. Each pack includes a range of useful accessories that you will need in order to enjoy your microscope.

Omano OM136C

Pack 1: Book + 5 Prepared Slides

Book: Usborne's, The World of the Microscope
The book is, in our opinion, a wonderful and colorful introduction to microscopy. Practical, clearly worded and with dozens of illustrations, it provides numerous experiments and activities that range from simple to more complex. While many assume the book is aimed at children, we have found it to be an useful primer for both young and old alike. We highly recommend it.

5 Prepared Slides:
Inspired by a permanent exhibition at The Natural History Museum in London, the Beastly Bits range includes three different sets of five slides:  Beastly Bits (Animal), Blood & Gore (Human tissue) or Neat Eats (Vegetable). All are professional-grade, prepared slides designed to stimulate the imagination of children - and adults alike! Beastly Bits set will be included unless sold out, when either Blood & Gore or Neat Eats will be substituted.


Pack 2: Book + Slide and Stain Kit

Book: Usborne's, The World of the Microscope

Slide and Stain Kit:
Perfect for individual, laboratory, home school or classroom use. Eosin Y is especially helpful in bone and marrow testing, while Methylene Blue is an excellent test for DNA. Kit includes the following items:

 - Eosin Y stain, 1%, 15 ml
 - Methylene Blue Stain, 1%, 15 ml
 - 1 oz Lens Cleaning Fluid
 - 50 Premium Blank Slides
 - 100 Slide Covers - 22mm x 22mm
 - 3 Well Slides
 - Dropper or Pipette
 - Lens Cleaning paper
 - 3 cc Immersion Oil A
 - BS Plastic slide storage case
 - Instructions booklet.
5 Prepared Slides:


Pack 3: Book + Slide Kit + 15 Prepared Slides

Book: Usborne's, The World of the Microscope

Slide Kit
This Compound Microscope Starter Slide Kit is our most popular accessory and contains the following essential items:

 - 50 Blank Slides
 - 100 Cover slips
 - 3 Well Slides
 - Immersion Oil
 - Dropper and Lens Cloth

15 Prepared Slides:
This microscope slide kit contains a mix of 15 prepared slides in a durable plastic case. The selection of specimens are stained and carefully mounted on glass slides with cover slips. Each slide is labeled and conveniently arranged in the plastic case.





Microbiology Kit with Book

This student microbiology experimentation and study kit has everything you need to grow your own bacteria cultures. Experiment with bacteria in the air, on your hands and more with help from the included, "World of the Microscope" book, a wonderful student guide to microscopy. Your microbiology kit also includes 5 professionally prepared slides inspired by a permanent exhibition at The Natural History Museum in London to fire the imagination of children - and adults alike.

Microbiology Kit includes the following items:

  • 5 Prepared Slides
  • 50 Premium Blank Slides
  • 100 Slide Covers - 22mm x 22mm
  • 1 Dropper or Pipette
  • 6 Swabs
  • 3 Well Slides
  • 3 Petri dishes
  • 5 gm Nutrient Agar
  • Gloves
Specifications

Specifications of Component Options

Select a component below to view related specifications.

  • OM136-H Halogen Compound Microscope

    OM136-L LED Compound Student Microscope
    General
    Brand OmanoOmano
    SKU OM136-COM136-L
    Warranty Omano Limited Lifetime WarrantyOmano Limited Lifetime Warranty
    System
    System Type BrightfieldBrightfield, Portable
    Optical Design DIN 160mmDIN 160mm
    Head
    Head Type MonocularMonocular
    Ocular Angle 45°45°
    Ocular Tube Diameter 23 mm23 mm
    Body
    Nosepiece Orientation ReversedReversed
    Nosepiece Style Quadruple (4)Quadruple (4)
    Focus Controls Coarse & Fine, CoaxialCoarse & Fine, Coaxial
    Focus Mechanism Rack & PinionRack & Pinion
    Focus Control Location Dual AmbidextrousDual Ambidextrous
    Stage Type FixedFixed
    Stage Features Mechanical Stage Attachment Available, Slide ClipsMechanical Stage Attachment Available, Slide Clips
    Configuration
    Includes Eyepieces? YesYes
    Included Eyepiece Quantity 11
    Included Eyepieces (X) 10X10X
    Eyepiece Style WF Widefield (FN 18mm)WF Widefield (FN 18mm)
    Min Standard Mag 40X40X
    Max Standard Mag 400X400X
    Included Objectives (Qty) 33
    Objective Lens AchromaticAchromatic
    Included Objective Types BrightfieldBrightfield
    Objective 1 N.A. 0.10NA0.10NA
    Objective 2 N.A. 0.25NA0.25NA
    Objective 3 N.A. 0.65NA0.65NA
    Condenser
    Condenser Type Simple LensSimple Lens
    Condenser Features Iris Diaphragm, Swing-out Filter HolderIris Diaphragm, Swing-out Filter Holder
    Condenser N.A. 1.25 mm1.25 mm
    Illumination
    Illumination Type HalogenLED
    Illumination Style TransmittedTransmitted
    Collector Type SimpleSimple
    Transmitted Light Type HalogenLED
    Transmitted Light Specification 6V 20W
    Transmitted Light Control VariableVariable
    Power Supply 85V -265VAC Auto-SwitchingRechargeable Batteries (AA) or 120V AC - Plug-in Adapter Included
    Compatibility
    Imaging Compatibility (with adapters) 23mm 23mm
    Accessories
    Included Extras Dust Cover, Spare Bulb, Spare FuseDust Cover

  • Pack 1: Book & 5 Prepared Slides

    Pack 2: Book, Starter Slide & Stain Kit & 5 Prepared Slides

    Pack 3: Book, Starter Slide Kit & 15 Prepared Mixed Slides

    Microbiology Kit with Starter Slide Kit & Book
    General
    Brand OmanoOmanoOmanoOmano
    SKU PACK-1PACK-2PACK-3MOMSK-MICRO
    Notes  $13.50 cost
    Product Weight 1.00001.00001.00001.0000
    Feed - Title  Omano Microbiology Kit with Starter Slide Kit & Book
    Feed - Description  THE PERFECT GIFT This year, treat the young scientist in your family to the Omano OM118-B4SL LED microscope with a choice of 4 useful Accessory gift packs. Part of the affordable OM118 series, the OM118-B4S is a binocular compound microscope that includes four objective lenses and a full floating stage for convenient slide handling on the microscope stage. Four levels of magnification, 40x, 100x, 400x and 1,000x are derived from two WF10x eyepieces and 4x, 10x, 40xS and 100xS oil immersion, objectives. Like the monocular sister microscopes (OM118-M3 and M4), this binocular version was introduced in 2010 as a more affordable alternative to our ever popular Omano OM36 series. It has similar optics to the OM36C, and features a rugged, all-metal design and construction.The microscope includes a 5-year Omano limited warranty.OpticsThe Omano OM118-B4SL includes a binocular microscope head that is inclined at an ergonomic 45 degrees. The head rotates through 360 degrees for flexible viewing positions. There are two Wide Field WF10x eyepieces that combine with four parcentered, parfocal achromatic objectives lenses, (4x, 40x spring, 100x spring oil immersion) for magnification levels of 40x, 100x, 400x and 1,000x. The objectives are set in a quadruple nosepiece. The oculars both have diopters that enable individual eye focusing while the head can be adjusted through 55-75mm to adapt for different interpupillary distances.Stage & FocusThe primary difference between this microscope and the Omano OM118-B4 is in the stage. This microscope includes an integrated, double-layered mechanical stage as opposed to a detachable mechanical slide holder on the OM118-B4. In the final analysis, an integrated mechanical stage is the only answer for any serious student or professional microscopist. While a mechanical slide holder is an improvement on a plain stage, a mechanical stage includes full graduated X/Y movement (18mm x 70mm) with coaxial coarse/fine focus controls. Such coaxial controls enable a student to move the slide without looking up from the eyepiece; for regular users this benefit is an indispensable convenience. Focusing includes high quality rack and pinion mechanics for longer life and coaxial focus controls for easier focusing. We recommend coaxial coarse/fine focus controls since they enable 'eyes down' focusing. In other words, the viewer does not constantly need to look up in order to find the other focus control. This benefit is important in enhancing a student's experience and therefore in encouraging a more sustained interest in the microscope. Safety features include a rack stop to ensure that the stage does not impact with the objectives and thereby break the slides and a slip clutch control to mitigate the risk of damaging the focus controls through over extension.Condenser & IlluminationThe condenser is Abbe 1.25 N. A with iris diaphragm for optimal adjustments. Transmitted LED illumination includes variable intensity and is rated for 110V/120V. Wt. and dimensions: 12 Lb. 20"x13"x10".AccessoriesEyecups, Dust Cover, Manual, Spare Bulb, Spare Fuse, Immersion oil.Free Gift - 20X Jewelers Loupe Rocks, bugs, sea shells and antique coins are no longer safe, with this 20X Loupe in the hands of a young explorer. Also handy for hobby work and discovering the intricacy of a small flower or butterfly wing, picking out a sliver, admiring miniature art, viewing photography or helping Mom or Dad read the "fine print" of a document. Accessory PacksIn addition to the regularly included accessories, you can choose from 4 accessory packs below. Each pack includes a range of useful accessories that you will need in order to enjoy your microscope. Pack 1: Book + 5 Prepared Slides Book: Usborne's, The World of the MicroscopeThe book is, in our opinion, a wonderful and colorful introduction to microscopy. Practical, clearly worded and with dozens of illustrations, it provides numerous experiments and activities that range from simple to more complex. While many assume the book is aimed at children, we have found it to be an useful primer for both young and old alike. We highly recommend it. 5 Prepared Slides:Inspired by a permanent exhibition at The Natural History Museum in London, the Beastly Bits range includes three different sets of five slides:
    Feed - Custom Label 1  <100

  • Achromatic Objective, 100xs Oil Immersion

    Mechanical Slide Holder
    General
    Brand OmanoOmano
    SKU OMOBJ-ACH-100XOMXY-136
    Warranty Omano Limited Lifetime Warranty
    Notes  Fits OM136C Series, OMTM85 Series. NOTE: Attachment may obstruct free rotation of objective lens turret. Function is not impaired, but please take care that you do not damage the lenses.
    Feed - Title  Omano Mechanical Slide Holder
    Feed - Description  The new KoPa AIR offers both WiFi and USB live image output with up to 5.0 megapixel USB resolution, and live (40 FPS) streaming WiFi at 1280 x 960 resolution. The camera has a full suite of auto and manual controls in the USB software as well as the free, downloadable KoPa Vision App. The camera works well in USB mode, and really excels in its WiFi capability.Controls & OperationOn-camera control consists of a switch on the back (Off/USB/WiFi) which places the unit into USB or WiFi mode. After downloading the App, it is a process of connecting your mobile device to the Kopa network in the WiFi settings on your device. The antenna is internally-located for security and to optimize the WiFi signal performance in industrial environments.USB output operates via a user-friendly, Windows-only software suite that includes measuring software among a host of other features. WiFi output operates via a free, downloadable App. The refresh rate ranges from 15fps at 2592 x 1944 (maximum resolution) to 40fps at 1280 x 960.The camera features a standard C-mount interface to fit any microscope with a C-mount adapter. In addition, the camera has a tripod mount on the base, allowing for use as a stand-alone imaging device (with a C-mount standard macro or zoom lens fitted). As a major upgrade over the C500W, the KoPa AIR camera also features a 5000mAh lithium Ion battery, capable of operating 8 hours on a full charge.Kopa Cam SoftwareThe software offers a comprehensive range of features including measuring software, drawing tools and annotation. Adjustable parameters include white balance, exposure, saturation, brightness, contrast, sharpness and backlight compensation among others. The App has simple touch screen buttons with both still and video capability as in USB mode. Image format include: jpg, png, bmp and pdf. NOTE: This software is not MAC compatible.OM118-M3 MicroscopeThe Omano OM118-M3 monocular compound microscope is one of our best-selling school microscopes and delivers consistent performance in the biology lab. As one of our most popular school microscopes, it is ideal for this offering and will last a lifetime of classroom use. Recommended for Grades 5-12.OpticsThe ocular is angled at an ergonomic 45 degrees and rotates through 360 degrees for flexible viewing. A single WF10x eyepiece combines with three achromatic objectives lenses (4x, 10x, 40x spring) for magnification levels of 40x, 100x & 400x. Stage & FocusThe microscope includes a plain stage with two stage clips. Focusing includes rack and pinion design for durability and coaxial coarse and fine focus controls. We recommend coaxial coarse/fine focus controls since they enable 'eyes down' focusing, making the microscope easy to operate for students.CondenserThe condenser is 0.65 N. A with iris diaphragm for optimal adjustments. Transmitted 20W illumination includes variable intensity.Microscope AccessoriesDust cover, manual, spare bulb, spare fuse, immersion oil. Wt. and dimensions: 10 Lb. 22"x14"x12".Camera AccessoriesWiFi camera, 23mm 0.5X C-mount adapter, Charging adapter, USB cable, software CD, padded storage case. Camera dimensions: 60mm diameter, 70mm height, 0.41 Lbs. Case dimensions: 9" wide, 8" deep, 6" tall.
    Feed - Custom Label 1  <100
    Compatibility
    Compatible With  OM136C*, OMTM85*
    Objectives
    Objective Lens Achromatic
    Objective Lens Power 100x

  • Summit KK2-1.3 1.3MP Windows-Only Color Digital Camera

    Summit SK2-1.3X 1.3MP PC / MAC Compatible Digital Microscope Camera

    Summit SK2-3.1X 3.1MP PC / MAC Compatible Digital Microscope Camera

    Summit SK2-5.2X 5.0MP PC / MAC Compatible Digital Microscope Camera

    Summit SK2-10X 10.0MP PC / MAC Compatible Digital Microscope Camera
    General
    Brand OptixCamOptixCamOptixCamOptixCamOptixCam
    SKU OCS-KK2-1.3OCS-SK2-1.3XOCS-SK2-3.1XOCS-SK2-5.2XOCS-SK2-10X
    Warranty 1 Year1 Year1 Year1 Year1 Year
    Product Weight 2.00002.00002.00002.00002.0000
    Product Display
    New Yes
    Sensor
    Sensor Type CMOSCMOSCMOSCMOSCMOS
    Sensor Size 1/3 Inch1/3 Inch1/2 Inch1/3 Inch1/3 Inch
    Sensor Details  Aptina MT9M111 CMOSAptina MT9T001 CMOSAptina MT9P001 CMOSAPTINA MT9J003 CMOS
    Color/Monochrome ColorColorColorColorColor
    Pixel Pitch 3.6 µm x 3.6 µm3.6 µm x 3.6 µm3.2 µm x 3.2 µm2.2 µm x 2.2 µm1.7 µm x 1.7 µm
    Sensor Color Depth 8bpp / 24bit RGB8bpp / 24bit RGB8bpp / 24bit RGB8bpp / 24bit RGB8bpp / 24bit RGB
    Scan Mode ProgressiveProgressiveProgressiveProgressiveProgressive
    Signal to Noise Ratio  44 db43 db40.5 db34 db
    Sensitivity  1.0V/Lux-sec (550nm)1.0V/Lux-sec (550nm)1.0V/Lux-sec (550nm)1.0V/Lux-sec (550nm)
    Dynamic Range  71 db61db66.5db65.2db
    A/D Conversion  10-bit Parallel, 8-bit RGB to PC12-bit Parallel, 8-bit RGB to PC12-bit Parallel, 8-bit RGB to PC12-bit Parallel, 8-bit R.G.B to PC
    Cooling System  NaturalNatural
    Shutter Electronic, Rolling ShutterElectronic, Rolling ShutterElectronic, Rolling ShutterElectronic, Rolling ShutterElectronic, Rolling Shutter
    Camera
    Camera Mount Ocular MountC-Mount, Ocular MountC-Mount, Ocular MountC-Mount, Ocular MountC-Mount, Ocular Mount
    Resolution 1.3 Megapixel, 1280x1024 pixels1.3 Megapixel, 1280x1024 pixels3 Megapixel, 2048x1536 pixels5 Megapixel, 2592 X 1944 pixels10 Megapixel, 3584 X 2748 pixels
    Camera Output Resolutions 1280 X 1024; 640 X 512; 320 X 2561280 X 1024; 640 X 512; 320 X 2562048 x 1536; 1024 x 768; 680 x 5102592 X 1944; 1280 X 960; 640 X 4803584 X 2748; 1792 x 1374; 896 X 684
    FPS @ Max Res 7.5fps @ 1280 x 102415@1280x1024; 26@640x512; 48@320x25611.5@2048x1536; 32@1024x768; 45@680x5105fps @ 2592 X 19441.9fps @3584 x 2748
    FPS @ Min Res 12.5fps @ 800 x 60050fps @ 320 x 25643fps @ 680 x 51060fps @ 640 X 48027fps @896 x 684
    Camera Interface USB 2.0USB 2.0USB 2.0USB 2.0USB 2.0
    White Balance Automatic, ManualAutomatic, ManualAutomatic, ManualAutomatic, ManualAutomatic, Manual
    Software Included OptixCam K2ViewOptixCam K2ViewOptixCam K2ViewOptixCam K2ViewOptixCam K2View
    Driver API Compatibility DirectX, TWAINDirectX, TWAINDirectX, TWAINDirectX, TWAINDirectX, TWAIN
    Power Source USB PoweredUSB PoweredUSB PoweredUSB PoweredUSB Powered
    File Formats JPEGBMP, JPEG, Own Proprietary, PNG, TGA, TIFFBMP, JPEG, Own Proprietary, PNG, TGA, TIFFBMP, JPEG, Own Proprietary, PNG, TGA, TIFFBMP, JPEG, Own Proprietary, PNG, TGA, TIFF
    Exposure Control Automatic, ManualAutomatic, ManualAutomatic, ManualAutomatic, ManualAutomatic, Manual
    Exposure Time 2000ms-0.14Ms2000ms-0.14Ms2000ms-0.128s2000ms-0.21s2000ms-0.21s
    Operating Temperatures 10°C ~ 50°C10°C ~ 50°C10°C ~ 50°C10°C ~ 50°C10°C ~ 50°C
    Operating Humidity 30% ~ 80% RH30% ~ 80% RH30% ~ 80% RH30% ~ 80% RH30% ~ 80% RH
    Storage Temperature -20°C ~ 60°C-20°C ~ 60°C-20°C ~ 60°C-20°C ~ 60°C-20°C ~ 60°C
    Other Details
    Included Accessories 0.5X 23mm Ocular adapter, Software CD0.5X 23mm DIN Adapter, Software CD0.5X 23mm DIN Adapter, Software CD0.5X 23mm DIN Adapter, Software CD0.5X 23mm DIN Adapter, Software CD
    Supported Operating Systems Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.7+, Linux (kernel 2.6.26+)Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.7+Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.7+Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.7+Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.7+
    System Requirements 2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port
    Certifications CE, ULCE, ULCE, ULCE, ULCE, UL
    Cable Length 1.8m (8ft)1.8m (8ft)1.8m (8ft)1.8m (8ft)1.8m (8ft)
    Camera Warranty 1 Year1 Year1 Year1 Year1 Year
    Software Support 6 Months6 Months6 Months6 Months6 Months
    Compatibility
    Imaging Compatibility (with adapters) 23mm 23mm , C-Mount23mm , C-Mount23mm , C-Mount23mm , C-Mount
