Omano 1080PU-VIDZ-BOOM 6X-50X Video Inspection System

List Price: $2,353.00

Starting at: $1,520.00

SKU: 1080PU-VIDZ-BOOM

Availability: In stock

  • High definition 1080P HDMI and USB2.0 output
  • Streaming HDMI output direct to monitor or TV at 60 fps
  • HDMI and USB2.0 capture resolution of 2.0MP
  • Lab quality 6x-50x zoom video inspection lens
  • Standard coarse focus or optional coarse/fine focus (shown)
  • 86mm standard working distance
  • 156mm working distance with 0.5X Barlow Lens
  • Choice of 7 industrial boom stands
  • Monitor Not Included

Price as configured: $0.00

Select package options

Click on to learn more about the option * signifies required items

OCS-HDMI-1080PU 2.0 MP PC / MAC 60 FPS Digital Microscope Camera   $659.00
VIDZ 650 Monocular 6x-50x Zoom Microscope Body   $399.00
VIDZ 650 0.5X Barlow Lens, WD = 160mm   $69.00
  • $59.00
OMHB25 Hanging Bar   $25.00
  • $25.00
  • $79.00
  • $129.00
  • $88.00
  • $129.00
  • $175.00
  • $99.00
  • $95.00
  • $260.00
  • $109.00
  • $95.00

Included in Bundle

HDMI / USB2.0 Camera: OCS-HDMI-1080PU 2.0 MP PC / MAC 60 FPS Digital Microscope Camera

Microscope: VIDZ 650 Monocular 6x-50x Zoom Microscope Body

Included 0.5X Barlow Lens: VIDZ 650 0.5X Barlow Lens, WD = 160mm

Hanging Bar: OMHB25 Hanging Bar

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

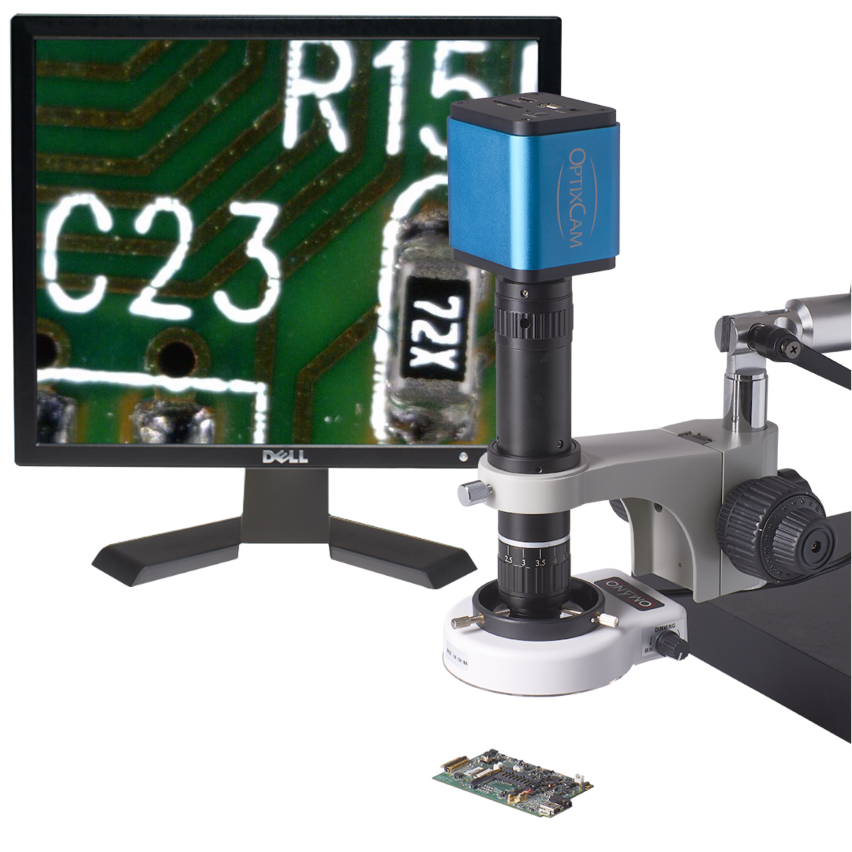

  • 1080PU-VIDZ-BOOM 6X-50X Video Inspection System
  • 1080PU-VIDZ-BOOM 6X-50X Video Inspection System with WiFI Camera side
  • 1080PU-VIDZ-BOOM 6X-50X Video Inspection System with WiFI Camera back
  • 1080PU-VIDZ-BOOM 6X-50X Video Inspection System Controls
Description

Summary

This industrial microscope inspection system combines the vivid, high-speed response of the new 1080PU series HDMI & USB2.0 digital microscope camera with our brand new Omano VIDZ-650 6X-50X zoom inspection lens and your choice of seven different Omano boom stands.

The new Optixcam OCS-HDMI-1080PU brings simultaneous HDMI and USB2.0 output to professionals who require high-definition CMOS color microscopy documentation. Like its HDMI-output cousin (NH1080P), the 1080PU is an industrial-designed, stand-alone imaging solution offering 2.0MP still capture to an SD card or USB2.0 output, and 1080p video preview resolution with superb color reproduction and real-time frame rates of 60 fps via HDMI, or 30 fps via USB2.0 or SD card output.

Features

HDMI (High-Definition Multimedia Interface) technology brings a number of key benefits to digital microscopy, including richer color definition, better signal integrity, greater bandwidth capacity, encryption protocols and high-definition video. The OCS-HDMI-1080PU offers this technology in an affordable and versatile package for the biology classroom, industrial inspection line or clinical teaching laboratory. The camera offers direct streaming to an HDMI monitor without the complexity of computer software, making it an ideal imaging solution for fast-paced industrial environments and assembly line inspection stations.

Mounting & Controls

The OCS-HDMI-1080PU is specifically designed to enhance the Omano line of stereo inspection systems, with a robust metal housing, C/CS Mount and two useful tripod screw attachment points. Improved functionality includes on-screen controls with intuitive, menu-driven buttons for RGB adjustment, White Balance, red and green cross-hair cursor symbology and Auto Exposure. Note: The SK2-CA037X camera adapter will be needed when mounting the NH1080 camera to any microscope with a smooth bore 23mm optical tube.

Processing & Output

The camera has fast white balance correction for excellent color reproduction and a 2.0MP maximum output resolution of 1920 x 1080 in BMP format. With 60 FPS live HDMI response rate, the OCS-HDMI-1080PU quickly reacts to changing lighting conditions in any life science, clinical or material application, sending a sharp video output to an HDMI monitor.

For researchers needing in-depth image analysis, the camera also offers traditional USB2.0 output to a pc or mac operating environment for a host of processing options including 2-dimensional measurement, image stitching, extended depth of focus, segmentation, stacking and color composition. A tethered cable enables remote capture of still images to an SD card, sold separately.

Microscope Zoom Lens

The VIDZ-650 marks a significant step up in quality with truly excellent definition, resolution and flexibility. It is well-suited to industrial inspection applications where higher resolution and clarity are required, but without the expense of a Navitar lens. The lens is entirely configurable with optional objective and Barlow lenses, illumination, cameras, adapters and stands. Each configuration is built round the high quality 6x-50x zoom magnification with 1x objective lens and 1x focusable C/CS Mount. Simply choose your options and then add to cart or call us to discuss further customizations such as apochromatic objective lenses or metallurgical configurations.

Stands and Focus Blocks

Choose from five rugged, dependable boom stands, all of which include a 25mm hanging bar. They include the economical single-arm JW11 workhorse; the single-arm V10 with fine horizontal adjustment; the dual-arm V6 with a 25" reach; the articulating arm V7 for 3-D positioning, and the premium dual-arm V15 with roller bearings for effortless, fingertip positioning. We also offer a focus block with two different movements, a standard coarse focusing movement, and a coarse / fine focusing movement. PLEASE NOTE that when ordering the JW11 stand option, you will also need the hanging bar bracket adapter.

Illumination

We offer our standard array of LED ring lights, a compact 4.5W LED ring light (shown), or two coaxial options: 3W LED spotlight or 150W fiber optic guide and illuminator.

To order the 3W coaxial LED Spotlight, select the following...

  • - Coaxial light adapter for VIDZ 650
  • - 3W Coaxial LED Spotlight for VIDZ 650

To order the 150W Fiber Optic System, select the following...

  • - Coaxial light adapter for VIDZ 650
  • - Single Fiber Optic Light Guide for VIDZ 650
  • - OMFOB NEW 150W Fiber Optic Light Source

Camera Accessories

Accessories include USB mouse, HDMI cable, USB2.0 cable, AC power supply, Software CD with manual and SDK. Camera dimensions: 3 x 2.75 X 3.6". Shipping dimensions: 10 X 6 X 3", 2 LBs.

Microscope Accessories

Accessories include VIDZ zoom lens, 80LED Ring illuminator, focus block, V3 stand. Shipping details: 20 x 13 x 10", 12 Lb.
Specifications

  • OCS-HDMI-1080PU 2.0 MP PC / MAC 60 FPS Digital Microscope Camera
    SKU OCS-HDMI-1080PU
    Warranty 1 Year
    Product Weight 2.0000
    Sensor
    Sensor Type CMOS
    Sensor Size 1/2.5 Inch
    Sensor Details SONY IMX236
    Color/Monochrome Color
    Pixel Pitch 2.8um x 2.8um
    Scan Mode Progressive
    Shutter Electronic, Rolling Shutter
    Camera
    Camera Mount C-Mount
    Resolution 2.0 megapixels
    FPS @ Max Res 60 @ 1920 x 1080
    Camera Interface USB 2.0, HDMI
    White Balance Automatic, Manual
    Driver API Compatibility DirectX
    Power Source External Power Supply
    File Formats BMP
    Exposure Control Automatic
    Exposure Time 0.1ms - 999s
    Operating Temperatures 20-60 Deg. C
    Operating Humidity 30-80% RH
    Supported Operating Systems Windows 10, Windows 8, Windows 7, Windows Vista, Mac OSX 10.4+
    System Requirements 2GB RAM Recommended, 2Ghz+ CPU Recommended, USB 2.0 High Speed Port
    Certifications CE
    Cable Length 2.5m (8ft)
    Camera Warranty 1 Year
    Software Support 6 Months
    Compatibility
    Imaging Compatibility (with adapters) C-Mount

  • VIDZ 650 Monocular 6x-50x Zoom Microscope Body
    SKU OM-VIDZ-650
    Magnification Chart VIDZ 650 Magnification Chart
    Staff Pick Yes
    Head
    Head Type Monocular
    Magnification Type Zoom
    Minimum Objective (X) 6x
    Maximum Objective (X) 50x
    Zoom Ratio 1:8.3
    Zoom Control Type Smooth Continuous
    Zoom Indicator Graduations Yes
    Parfocal Yes
    Included Barlow (X) 0.5X
    Min Standard Mag 6x
    Max Standard Mag 50x
    Available Barlow Lenses 0.3X, 0.5X, 1.0X, 1.5X, 2.0X
    Body
    Body Material All-Metal
    Compatibility
    Imaging Compatibility (with adapters) C-Mount
    Available Imaging Mounts 0.3X C-Mount, 0.4X C-Mount, 0.5X C-Mount, 0.7X C-Mount, 1.0X C-Mount
    Max Working Distance (standard) 86mm
    WD with 0.5x Barlow 160mm
    WD with 1.5x Barlow 50mm
    WD with 2.0x Barlow 39mm

  • VIDZ 650 0.5X Barlow Lens, WD = 160mm
    SKU OM-VIDZ-650-BL05
    Compatible With VIDZ 650
    Optical Accessory
    Barlow Lens Power 0.5X

  • VIDZ 650 0.3X Barlow Lens, WD = 270mm
    SKU OM-VIDZ-650-BL03
    Backorder ETA Dec 30, 2015
    Compatible With VIDZ 650
    Optical Accessory
    Barlow Lens Power 0.5X

  • JW11 Boom Stand (Requires Hanging Bar Bracket)

    V10 Boom Stand

    V6 Boom Stand

    V7 Articulating Boom Stand

    V7U U-Clamp Articulating Boom Stand

    V15 Boom Stand

    V15U U-Clamp Boom Stand
    SKU JW11V10V6V7V7UV15V15U
    Warranty Omano Limited Lifetime Warranty  Lifetime Limited WarrantyLifetime Limited Warranty
    Backorder ETA  Jan 17, 2018
    Stand
    Stand Class BoomBoomBoomBoomBoomBoomBoom
    Stand Type Single Arm BoomSingle Arm BoomDual Arm BoomArticulated BoomArticulated BoomDual Arm BoomDual Arm Boom
    Stand Features Solid Ball-Bearing Glide, Counter-weighted, Large Base PlateArticulatedArticulatedBall-Bearing Glide, Counter-weighted, Heavy Duty, Large Base PlateBall-Bearing Glide, Counter-weighted, Tabletop U-Clamp
    Base Width 254 mm254 mm330 mm330 mm330 mm254 mm254 mm
    Base Depth 254 mm254 mm330 mm330 mm330 mm254 mm254 mm
    Post Height 355 mm464 mm464 mm464 mm464 mm464 mm464 mm
    Post Diameter 38 mm38 mm38 mm38 mm38 mm38 mm38 mm
    View Center to Post Distance 432 mm527 mm495 mm673 mm673 mm514 mm514 mm
    Physical Construction Solid MetalMetal TubeSolid MetalSolid MetalSolid MetalSolid MetalSolid Metal
    Coating Type (Stand) Durable PowdercoatDurable PowdercoatDurable PowdercoatDurable PowdercoatDurable PowdercoatDurable PowdercoatDurable Powdercoat
    If HB Required
    Requires Separate Hanging Bar?  YesYesYesYesYes
    Hanging Bar Style FixedArticulableArticulableArticulableArticulableArticulableArticulable
    If FB Mounts Direct
    Focus Block Mount Diameter 5/8in Pin  5/8in Pin5/8in Pin
    If FB Integrated
    Focus Controls Coarse
    Focus Mechanism Rack & Pinion
    Compatibility
    Head Ring Mount Diameter 76 mm

  • VIDZ 650 Standard Focus Block

    VIDZ 650 Coarse/Fine Focus Block
    SKU OM-VIDZ-650-FB11OM-VIDZ-650-FB10
    Backorder ETA  Sep 7, 2017
    Compatible With VIDZ 650 zoom bodyVIDZ 650 zoom body

  • OMHB25 Hanging Bar
    SKU OMHB25
    If HB Required
    Hanging Bar Style Articulable
    If FB Mounts Direct
    Focus Block Mount Diameter 25 mm

  • OMHBB Hanging Bar Bracket
    SKU OMHBB

  • 80 LED Ring Light, Variable Intensity

    4.5W LED Ring Light for VIDZ 650

    64 LED Ring Light, Variable Intensity by Section

    144 LED Ring Light, Variable Intensity by Section

    Coaxial Light Adapter For VIDZ 650

    3W Coaxial LED Spotlight For VIDZ 650

    Single Fiber Optic Light Guide for VIDZ 650

    OMFOB NEW 150W Fiber Optic Light Source - 150
    SKU OMLED-80AOM-VIDZ-650-LED96OMLED-64AOMLED-144AOM-VIDZ-650-CKOM-VIDZ-650-LED3SPOTOM-VIDZ-650-FOSPOMFOB-150
    Warranty 1 year      1 Year
    Product Weight 1lb
    Compatible With  VIDZ 650  VIDZ 650VIDZ 650
    Light Specs
    Illumination Type LEDLEDLEDLEDFiberopticLED Fiberoptic
    Ring Light Type LED LEDLED   Fiberoptic
    Ring Light Specification 80 LED 90-265V Auto switching90-265V Auto switching
    Ring Light Power 8W
    Ring Light Control Variable VariableVariable   Variable
    Bulb Accessory
    Bulb Voltage  21V
    Bulb Wattage  150W

  • VIDZ-650 0.5x C-Mount Adapter

    VIDZ-650 0.3x C-Mount Adapter
    SKU OM-VIDZ-650-CM05OM-VIDZ-650-CM03
    Product Display
    New YesYes
    Compatible With VIDZ 650 Zoom LensVIDZ 650 Zoom Lens
    Light Specs
    Illumination Type NoneNone
Magnification Chart

C-Mount

Adapter

Standard Configuration

VIDZ-650

Auxiliary Barlow Lens

0.3X

0.5X

1.5X

2.0X

Working distance 86mm

Working distance 270mm

Working distance 156mm

Working distance 50mm

Working distance 39mm

Magnification

Field of view
mm

Magnification

Field of view
mm

Magnification

Field of view
mm

Magnification

Field of view
mm

Magnification FIeld of view
mm

1.0X

6X - 50X

7 ~ 0.8

1.8X - 15X

23 ~ 2.8

3X - 25X

14 ~ 1.7

9X - 75X

5 ~ .6

12X - 100X  4 ~ .4

0.3X

1.8X - 15X

24 ~ 3

0.5X - 4.5X

84 ~ 9.3

0.9X - 7.5X

47 ~ 5.6

2.7X - 22.5X

15 ~ 1.8

 3.6X - 30X  11 ~ 1.8

0.4X

2.4X - 20X

17 ~ 1.9 0.7X - 6X 60 ~ 7 1.2X - 10X 35 ~ 4.2 3.6X - 30X 11 ~ 1.4 4.8X - 40X 8.8 ~ 1.1

0.5X

3X - 25X

14 ~ 1.7

0.9X - 7.5X

47 ~ 5.6

1.5X - 12.5X

 28 ~ 3  4.5X - 37.5X

9 ~1.1

6X - 50X 7 - .8

0.75X

 4.5X - 37.5X 9 ~ 1.1  1.4X - 13.3X 29 ~ 3.6 2.2X - 18.7X  19 ~ 2.2  6.7X - 56.2X 6.1 ~ .7  9X - 75X 5 ~ .5
