Omano 24W LED Fiber Optic Ring Light Illuminator

List Price: $678.00

Starting at: $524.00

SKU: OMFOB-RL24W-LED

Availability: Backorder

  • High intensity 24W light
  • Shadow-free, Long-life LED
  • 39-inch flexible light guide with 65mm diameter ring
  • Max. Temp: 5600K
  • Lumen output: 1600
  • ESD-Safe and UV-Free
  • Variable intensity control
  • Bulb Life: 10,000 Hours minimum
Select package options

Click on to learn more about the option * signifies required items

24W LED Fiber Optic Light Source   $295.00
24W LED Fiber Optic Light Ring (65mm)   $229.00
  • $24.00

Included in Bundle

Illuminator: 24W LED Fiber Optic Light Source

Fiber Optic Ring Light: 24W LED Fiber Optic Light Ring (65mm)

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

  • OMFOB-RL24-LED 24W LED Fiber Optic Ring Light Illuminator
Description

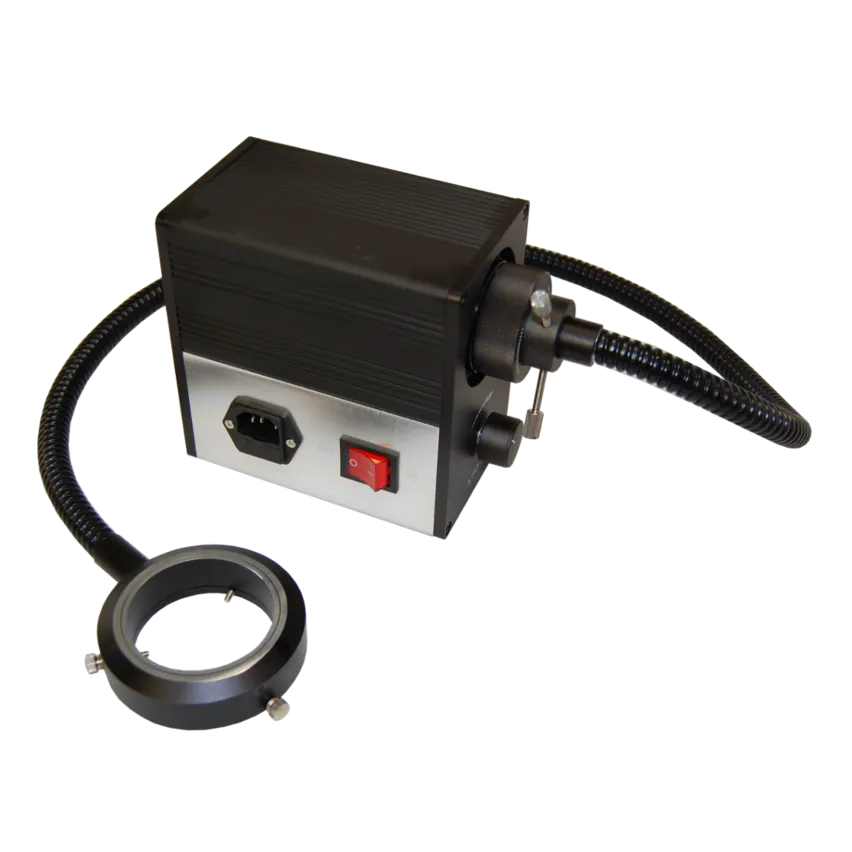

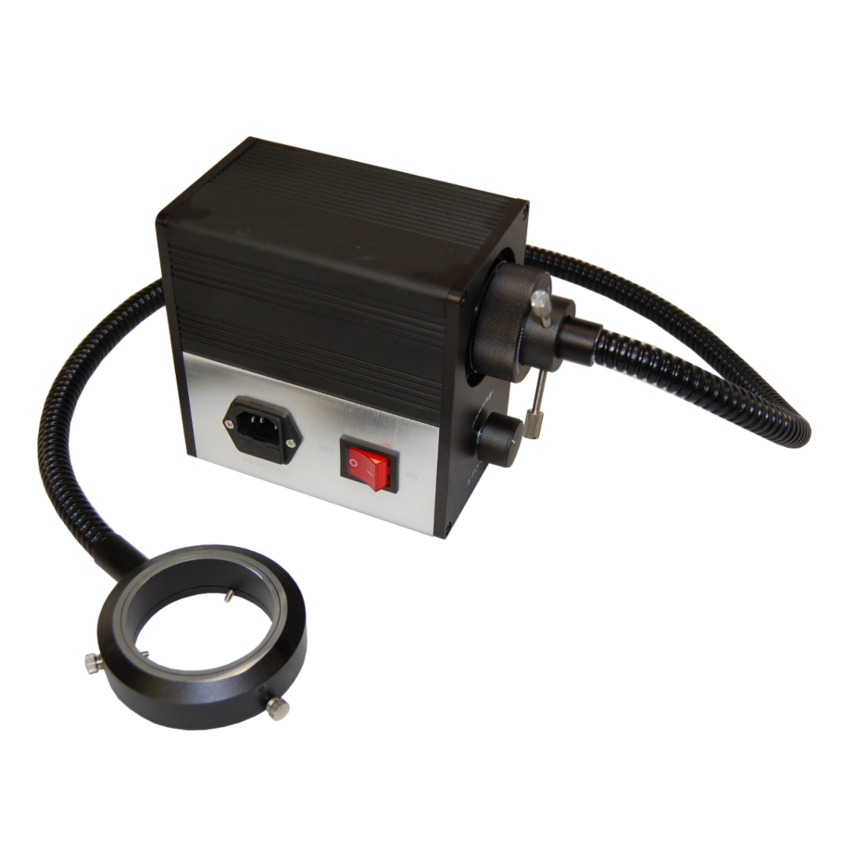

Brand new for 2014, our new Omano 24W LED fiber-optic ring light system is ideal for applications requiring cool, lab-quality high intensity light, including veterinary surgery, electronic part inspection, forensics and engraving among others.

The ESD-Safe and UV-free LED light source accepts input voltage from 96V-265V and allows a continuous range of subdued or concentrated lighting, controlled by a rotary dimmer dial on the front panel. The 5/8" light guide receptacle allows secure fitment of the 39-incih flexible ring light guide and the 65mm ring diameter will fit a wide variety of modern stereo microscope bodies. Illumination intensity is variable from zero to full brightness and optional filters can be mounted in the receptacle for greater flexibility. A low-noise-signature forced-air cooling fan helps to ensure a trouble-free, 10,000 hour service life for the 24W LED bulb. The lamp color temperature is 5600K at 1600 lumen output, providing cool, shadow-free illumination for PCB inspection, materials failure analysis, manufacturing quality assurance and many others.

  • Powerful 24V LED
  • Brightness: 5.3 KFC
  • Power Supply: 96V/265V
  • Variable Controlled Lighting: 50% to 100%
  • Lamp Color Temperature: 6000-7000K
  • Life: 10,000 Hrs
  • 1-meter cable with 65mm ring diameter
  • Weight: 10.4 LB
  • Lamphouse Dimensions: 7.5" x 5.5" x 3.5"
Shipping Weight: 13 lbs.
Specifications

Specifications of Component Options

Select a component below to view related specifications.

  • 24W LED Fiber Optic Light Source
    SKU OMFOB-24-LED
    Warranty 1 Year
    Backorder ETA Sep 29, 2017
    Light Specs
    Illumination Type LED, Fiberoptic
    Ring Light Type Fiberoptic
    Ring Light Power 24W LED
    Ring Light Control Variable
    Bulb Accessory
    Bulb Voltage 24V
    Bulb Wattage 24W

  • 24W LED Fiber Optic Light Ring (65mm)
    SKU OMFORL-24-LED
    Compatible With OMFOB
    Light Specs
    Illumination Type Halogen
    Ring Light Type Fiberoptic
    Ring Light Power 24W LED
    Ring Light Control Variable

  • 24W LED Color Filter Kit
    SKU OMFOFK-24W-LED
    Compatible With OMFOB
    Light Specs
    Illumination Type Halogen
    Ring Light Type Fiberoptic
    Ring Light Power 24W LED
    Ring Light Control Variable
