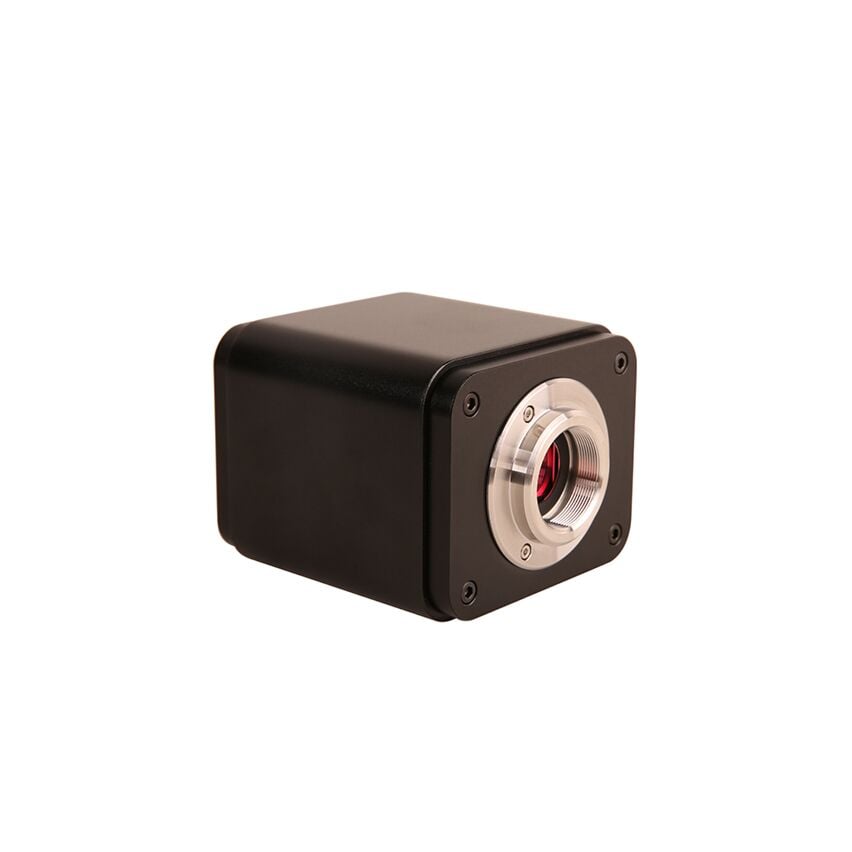

OptixCam OCS-HDMI-1080PU 2.0MP PC / MAC 60 FPS Digital Microscope Camera

List Price: $799.00

Starting at: $659.00

SKU: TMS-HDMI-1080PU

Availability: In stock

  • High definition 1080P HDMI or USB2.0 output (PC or MAC)
  • Streaming HDMI output direct to monitor or TV at 60 fps
  • HDMI capture resolution of 2.0MP
  • Auto white balance for color accuracy
  • Included memory card slot
  • Multiple cross-hair pointers available
  • PC / MAC compatible
  • HDMI cable and USB remote included
Select package options

Click on to learn more about the option * signifies required items

OCS-HDMI-1080PU 2.0 MP PC / MAC 60 FPS Digital Microscope Camera   $659.00
  • $39.00
  • $59.00

Included in Bundle

HDMI Camera: OCS-HDMI-1080PU 2.0 MP PC / MAC 60 FPS Digital Microscope Camera

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

  • OCS-HDMI-1080PU 2.0MP HDMI/USB2.0 Digital Microscope Camera
  • OCS-HDMI-1080PU 2.0MP HDMI/USB2.0 Digital Microscope Camera panel
  • OCS-HDMI-1080PU 2.0MP HDMI/USB2.0 Digital Microscope Camera Front
  • OCS-HDMI-1080PU 2.0MP HDMI/USB2.0 Digital Microscope Camera side 1
  • OCS-HDMI-1080PU 2.0MP HDMI/USB2.0 Digital Microscope Camera panel
  • OCS-HDMI-1080PU 2.0MP HDMI/USB2.0 Digital Microscope Camera side 3
Description

Summary

The new Optixcam OCS-HDMI-1080PU brings HDMI and USB2.0 output to professionals who require high-definition CMOS color microscopy documentation. Like its HDMI-output cousin (NH1080P), the 1080PU is an industrial-designed, stand-alone imaging solution offering 2.0MP still capture to an SD card, and 1080p video preview resolution with superb color reproduction and real-time frame rates of 60 fps via HDMI, or 30 fps via USB2.0 or SD card output.

Features

HDMI (High-Definition Multimedia Interface) technology brings a number of key benefits to digital microscopy, including richer color definition, better signal integrity, greater bandwidth capacity, encryption protocols and high-definition video. Along with traditional USB output, the OCS-HDMI-1080PU offers direct streaming to an HDMI monitor without the complexity of computer software. This makes it an ideal imaging solution for fast-paced industrial environments and assembly line inspection stations.

Mounting & Controls

The OCS-HDMI-1080PU is specifically designed to enhance the Omano line of stereo inspection systems, with a robust metal housing, C/CS Mount and two useful tripod screw attachment points. Improved functionality includes on-screen controls with intuitive, menu-driven buttons for RGB adjustment, White Balance, red or green cross-hair selection and Auto Exposure. Note: An SK2 series camera adapter (like the SK2-CA037X) will be needed when mounting the NH1080 camera to any microscope with a smooth bore 23mm optical tube.

Processing & Output

The camera has fast white balance correction for excellent color reproduction and a 2.0MP maximum output resolution of 1920 x 1080 in BMP format. With 60 FPS live HDMI response rate, the OCS-HDMI-1080PU quickly reacts to changing lighting conditions in any life science, clinical or material application, sending a sharp video output to an HDMI monitor.

For researchers needing in-depth image analysis, the camera also offers traditional USB2.0 output to a PC or MAC operating environment for a host of processing options including 2-dimensional measurement, image stitching, extended depth of focus, segmentation, stacking and color composition. A tethered mouse enables remote capture of still images to an SD card, sold separately.

Accessories

Accessories include USB mouse, HDMI cable, USB2.0 cable, AC power supply, Software CD with manual and SDK. Camera dimensions: 3 x 2.75 X 3.6". Shipping dimensions: 10 X 6 X 3", 2 LBs.
Specifications

Specifications of Component Options

Select a component below to view related specifications.

  • OCS-HDMI-1080PU 2.0 MP PC / MAC 60 FPS Digital Microscope Camera
    SKU OCS-HDMI-1080PU
    Warranty 1 Year
    Product Weight 2.0000
    Sensor
    Sensor Type CMOS
    Sensor Size 1/2.5 Inch
    Sensor Details SONY IMX236
    Color/Monochrome Color
    Pixel Pitch 2.8um x 2.8um
    Scan Mode Progressive
    Shutter Electronic, Rolling Shutter
    Camera
    Camera Mount C-Mount
    Resolution 2.0 megapixels
    FPS @ Max Res 60 @ 1920 x 1080
    Camera Interface USB 2.0, HDMI
    White Balance Automatic, Manual
    Driver API Compatibility DirectX
    Power Source External Power Supply
    File Formats BMP
    Exposure Control Automatic
    Exposure Time 0.1ms - 999s
    Operating Temperatures 20-60 Deg. C
    Operating Humidity 30-80% RH
    Supported Operating Systems Windows 10, Windows 8, Windows 7, Windows Vista, Mac OSX 10.4+
    System Requirements 2GB RAM Recommended, 2Ghz+ CPU Recommended, USB 2.0 High Speed Port
    Certifications CE
    Cable Length 2.5m (8ft)
    Camera Warranty 1 Year
    Software Support 6 Months
    Compatibility
    Imaging Compatibility (with adapters) C-Mount

  • Fixed 23mm Camera Adapter 0.37X for SK2 Series Cameras

    Adjustable 23mm Camera Adapter 0.37X for SK2 Series Cameras
    SKU OCS-SK2-CA037X-23MMFOCS-SK2-CA037X-23MMA
    Warranty Omano Limited Lifetime WarrantyOmano Limited Lifetime Warranty
    Backorder ETA  Nov 30, 2016
