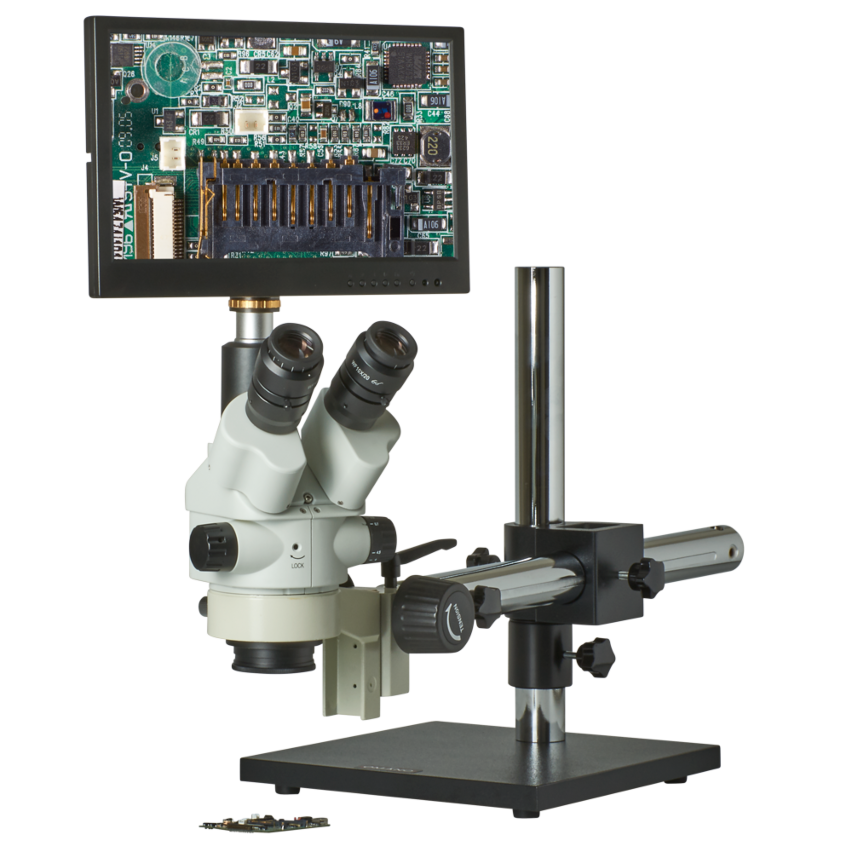

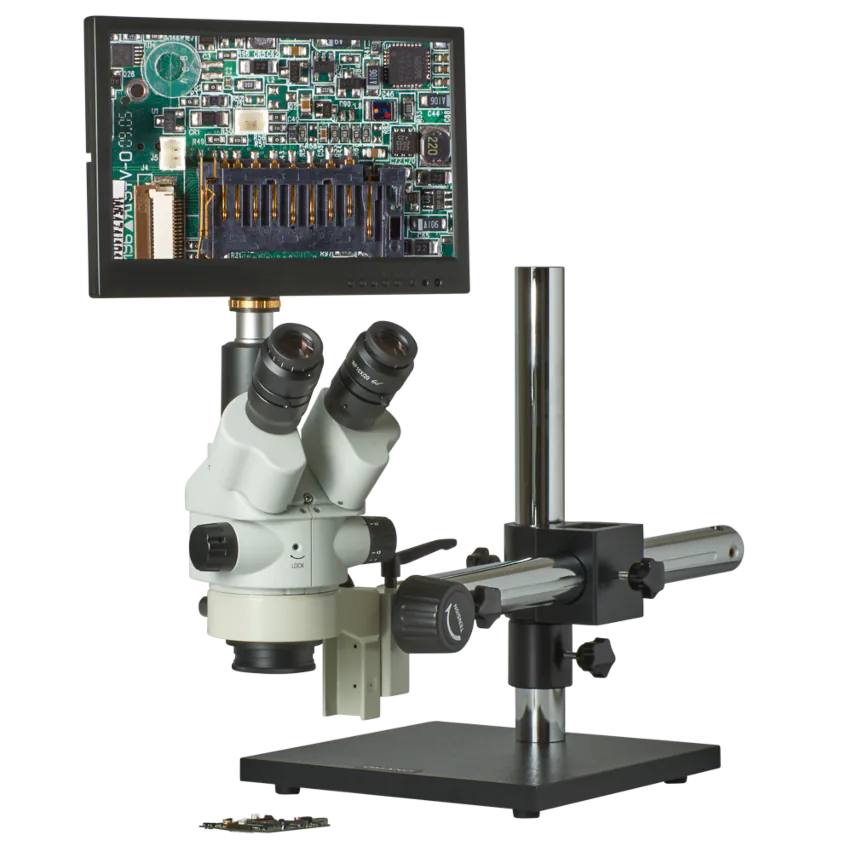

Omano CX3-2300S-JW11 7.5X-45X Zoom Stereo Microscope Inspection System

List Price: $2,417.00

Starting at: $1,495.00

SKU: CX3-2300S-JW11

Availability: In stock

  • UPGRADED Larger 11.6" TFT-LCD color display
  • Monitor Resolution 2.0MP (1920 X 1080)
  • LVDS & SD card output
  • Fast Frame Rate of 60 FPS @ 1280 x 800 resolution
  • Sharp CMOS sensor with 2.0MP image capture
  • Remote with control functions
  • Upgraded 7x-45x stereo microscope head
  • Split prisms for simultaneous camera/eyepiece use
  • Included WF10x eyepieces
  • Workhorse JW11 single arm boom stand

Price as configured: $0.00

Select package options

Click on to learn more about the option * signifies required items

OM2300S-T Trinocular Head (Recommended for Cameras)   $359.00
JW11 Stereo Boom Stand with 76mm Focus Block   $219.00
CX-3 1080p LVDS Microscope Camera with 11.6" Display   $799.00
Fixed 23mm Camera Adapter 0.37X for SK2 Series Cameras   $39.00
  • $75.00
  • $75.00
  • $75.00
  • $75.00
  • $75.00
  • $55.00
  • $55.00
  • $55.00
  • $75.00
  • $75.00
  • $75.00
  • $9.00
  • $499.00

Included in Bundle

Head: OM2300S-T Trinocular Head (Recommended for Cameras)

Stand: JW11 Stereo Boom Stand with 76mm Focus Block

LVDS Display Camera: CX-3 1080p LVDS Microscope Camera with 11.6" Display

C-Mount Adapter: Fixed 23mm Camera Adapter 0.37X for SK2 Series Cameras

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

  • CX-3-2300S-JW11 Zoom Stereo Boom Microscope
  • CX-3-2300S-JW11 Zoom Stereo Boom Microscope 1
  • CX-3-2300S-JW11 Zoom Stereo Boom Microscope
  • CX-3-2300S-JW11 Zoom Stereo Boom Microscope 4
  • CX-3-2300S-JW11 Zoom Stereo Boom Microscope 5
  • Omano OM2300S-JW11 Zoom Stereo Boom Microscope 4
Description

Summary

This offering combines our workhorse OM2300S stereo microscope with the versatile CX3 LVDS camera. The new Optixcam CX-3 is another innovative tool for the digital microscopy world, with an expansive, 11.6-inch display to turn any standard trinocular microscope into a digital teaching platform or inspection station. Users will benefit from the latest advancements in Thin-Film-Technology (TFT) which presents vivid color images in 1.0MP display or 2.0MP capture resolution while offering exceptional off-angle viewing capability. This makes it an ideal tool for inspection duties, group instruction or teaching roles in the biology or clinical laboratory classroom.

An upgrade to the old CX-3 microscope camera, the new CX-3-116 sports a larger 11.6" monitor with improved connections and use interface. It is better quality than the old HDMI 1080 in every respect with double the functional resolution, an expansive, 11.6"-inch display and an improved on screen menu system, all at the same price. The TFT-LCD display offers vivid resolution and exceptional off-angle viewing capability and with a standard C-mount, the new camera attaches to any standard trinocular microscope fitted with a C-mount adapter.

Features

The CX3 display finally brings a useful sized monitor to the world of industrial inspection, laboratories and schools. At 11.6", the display is a pleasure to use with good on screen controls and a remote control. A standard SD card slot allows you to conveniently transfer image files via SD card for later analysis and file-sharing on your PC. A particularly useful feature is a cross-hair generator that enables up to eight on-screen, cross-hairs in five different color options. Other features include auto white balance, RGB adjustment, auto and manual white balance and auto exposure.

LVDS technology offers a number of key benefits to digital microscopy, including richer color definition, better signal integrity, greater bandwidth capacity, encryption protocols and high-definition video. The CX-3 showcases this technology in an affordable and versatile package for the biology classroom, industrial inspection line or clinical teaching laboratory.

Camera Accessories

AC Power adapter, Remote Control Keypad, Remote Image Capture Controller.

Dimensions: Display - 11.0" x 7.0" x 0.5"; Camera - 2.0" x 2.0"; Wt. 3.0lbs.

Microscope

The OM2300ST zoom stereo trinocular microscope head has become our de facto, 'Go To' head for our industrial inspection customers. It has a solid design with crisp, clean optics beyond our expectations at this price level. The 7X-45X zoom range (6.4:1) is parfocal with dual diopters integrated into the oculars. Interpupillay adjustment range is 55mm-75mm. Standard working distance is 4.5" which increases to 6.5" with the addition of 0.5x auxiliary Barlow lens. Three alternative Barlows are available: 0.75x, 1.5x and 2.0x. WF10X eyepieces and eyeguards are included. NOTE: When the beam-splitter lever is engaged in the OM2300S-Trincular, 80% of the light from the left optical path is directed to the camera port. The image can still be viewed through both eyepieces while the camera is in use.

Focus & Illumination

Focus controls are both left and right hand side for convenience. An 80 LED ring light is included and may be upgraded to other lights when adding to cart.

Stand

The Omano JW11 boom stand has been a workhorse and well-proven Omano stand for over ten years. Strong and affordable, it is a single arm stand with an included 84mm focus block. The horizontal arm extension is 20" including the microscope head. The pole is 17" tall with an effective useable height of 12". The stand weighs 32lbs.

Microscope Accessories

Ring light, focus block, dust cover, manual, eyeguards
Specifications

Specifications of Component Options

Select a component below to view related specifications.

  • JW11 Stereo Boom Stand with 76mm Focus Block
    SKU JW11-76
    Stand
    Stand Class Boom
    Stand Type Single Arm Boom
    Base Width 254 mm
    Base Depth 254 mm
    Post Height 380 mm
    Post Diameter 38 mm
    View Center to Post Distance 527 mm
    Physical Construction Metal Tube
    Coating Type (Stand) Durable Powdercoat
    Hanging Bar Style Articulable
    If FB Integrated
    Focus Controls Coarse
    Focus Mechanism Rack & Pinion
    Compatibility
    Head Ring Mount Diameter 76 mm

  • CX-3 1080p LVDS Microscope Camera with 11.6" Display
    SKU OCS-CX3-HDMI-116
    Warranty 1 Year
    Product Weight 2.7
    Product Length 10
    Product Width 7
    Product Height 4
    Product Display
    New Yes
    Sensor
    Sensor Type CMOS
    Sensor Size 1/3 Inch
    Sensor Details CMOS
    Color/Monochrome Color
    Scan Mode Progressive
    Shutter Electronic, Rolling Shutter
    Camera
    Camera Mount C-Mount
    FPS @ Max Res 60fps @ 1280 X 800
    Camera Interface LCD Display, SD Card, HDMI
    White Balance Automatic, Manual
    Driver API Compatibility DirectX
    Power Source External Power Supply
    File Formats BMP, JPEG, PNG, TIFF
    Exposure Control Automatic, Manual
    Supported Operating Systems N/A
    System Requirements N/A
    Certifications CE
    Software Support 6 Months
    Compatibility
    Imaging Compatibility (with adapters) 23mm , C-Mount

  • Fixed 23mm Camera Adapter 0.37X for SK2 Series Cameras
    SKU OCS-SK2-CA037X-23MMF
    Warranty Omano Limited Lifetime Warranty

  • 80 LED Ring Light, Variable Intensity

    OMLED-DP8W LED Dual Gooseneck Light

    64 LED Ring Light, Variable Intensity by Section

    144 LED Ring Light, Variable Intensity by Section

    3W LED Dual Gooseneck Spot Light

    OMLED-DP6W LED Dual Gooseneck Pole Mount Light
    SKU OMLED-80AOMLED-DP8WOMLED-64AOMLED-144AOMLED-SPOTOMLED-DP6W
    Warranty 1 year1 year  1 year1 year
    Product Weight 1lb3.1 lbs  3.1 lbs4.0 lbs
    Product Length  16 cm  16 cm31.0 cm
    Product Width  10 cm  10 cm29.0 cm
    Product Height  8 cm  8 cm17.5 cm
    Power Supply  90V-265V  90V-265V
    Product Display
    New  Yes  Yes
    Illumination Type LEDLEDLEDLEDLEDLED
    Light Specs
    Ring Light Type LED LEDLEDLEDLED
    Ring Light Specification 80 LED 90-265V Auto switching90-265V Auto switching 3W x 2
    Ring Light Power 8W    6W
    Ring Light Control Variable VariableVariable Variable

  • 0.5X Barlow Lens for Omano OM2300S, WD=200mm

    0.75X Barlow Lens for Omano OM2300S, WD=133mm

    1.0X Protective Barlow Lens for Omano OM2300S, WD=100mm

    1.5X Barlow Lens for Omano OM2300S, WD=60mm

    2.0X Barlow Lens for Omano OM2300S, WD=50mm
    SKU OMBL-2300S-05XOMBL-2300S-075XOMBL-2300S-10XOMBL-2300S-15XOMBL-2300S-20X
    Warranty Omano Limited Lifetime WarrantyOmano Limited Lifetime WarrantyOmano Limited Lifetime WarrantyOmano Limited Lifetime WarrantyOmano Limited Lifetime Warranty
    Notes Does not fit OM2300, OM2300-T, OM3300Does not fit OM2300, OM2300-T, OM3300Does not fit OM2300, OM2300-T, OM3300Does not fit OM2300, OM2300-T, OM3300Does not fit OM2300, OM2300-T, OM3300
    Backorder ETA Feb 23, 2017Dec 24, 2015
    Compatible With OM2300SOM2300SOM2300SOM2300SOM2300S
    Optical Accessory
    Barlow Lens Power 0.5X0.75X1.5X1.5X2.0X

  • Reticle, 25mm Linear

    Reticle, 25mm Grid

    Reticle, 25mm Cross Linear
    SKU OMR-25LOMR-25GOMR-25CL
    Notes For OM99, OMXTL, OM2300SFor OM99, OMXTL, OM2300SFor OM99, OMXTL, OM2300S

  • 10X Eyepieces For Omano OM2300S (Pair)

    15X Eyepieces For Omano OM2300S (Pair)

    20X Eyepieces For Omano OM2300S (Pair)

    Eyecups, Omano Series C (Pair) 32mm
    SKU OMEP-2300S-10XOMEP-2300S-15XOMEP-2300S-20XOMEC-C-32MM
    Warranty Omano Limited Lifetime WarrantyOmano Limited Lifetime WarrantyOmano Limited Lifetime Warranty
    Notes Priced per PairPriced per PairPriced per Pair
    Product Weight  4.0000
    Backorder ETA  Oct 27, 2017 Jan 19, 2018
    Compatibility
    Compatible With OM2300S, OM2300STOM2300S, OM2300STOM2300S, OM2300ST
    Eyepiece Magnification 10x15x20x

  • 1690 Pelican Composite Microscope Case - Transport
    SKU PC1690
    Compatibility
    Compatible With OM88, OM88T
Magnification Chart

Eyepiece

Standard configuration

Omano OM2300S

Auxiliary objectives

0.5X

0.75X

1.5X

2.0X

Working distance 100mm

Working distance 200mm

Working distance 133mm

Working distance 60mm

Working distance 50mm

Magnification

Field of view
mm

Magnification

Field of view
mm

Magnification

Field of view
mm

Magnification

Field of view
mm

Magnification FIeld of view
mm

10X / 20

7x

28.6

3.5x

57.1

5.25x

38.1

10.5x

19

 14x 14.3

45x

4.4

22.5x

8.9

33.75x

5.93

67.5x

3

90x  2.2

15X / 15

10.5x

21.4

5.35x

42.8

7.88x

28.57

15.75x

14.3

21x  10.7

67.5x

3.3

33.75x

6.7

50.63x

4.44

101.25x

2.2

135x  1.7

20X / 10

14x

14.3

7x

28.6

10.5x

19.06

21x

9.5

28x 7.1

90x

2.2

45x

4.4

67.5x

2.96

135x

1.5

180x

1.1
