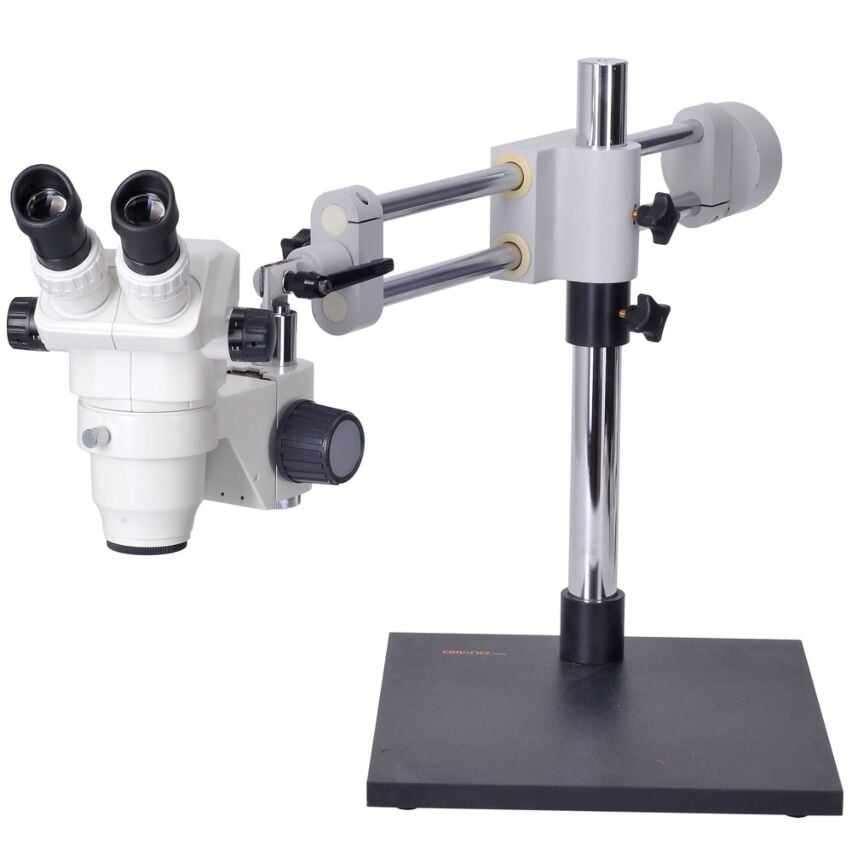

Omano OM99-V6 Zoom Stereo Boom Microscope

List Price: $1,665.00

Starting at: $902.00

SKU: OM99-V6

Availability: In stock

  • Premium 6.5x-45x stereo microscope head
  • Super WF10x eyepieces
  • Heavyweight dual-arm V6 boom stand
  • Included ring light
  • Sharp optics
  • Lifetime Limited Warranty
Select package options

Click on to learn more about the option * signifies required items

V6 Boom Stand   $249.00
OMHB30 Hanging Bar   $25.00
  • $85.00
  • $85.00
  • $85.00
  • $85.00
  • $85.00
  • $55.00
  • $55.00
  • $55.00
  • $88.00
  • $139.00
  • $209.00
  • $239.00
  • $499.00
  • $799.00
  • $659.00
  • $109.00

Included in Bundle

Stand: V6 Boom Stand

Hanging Bar: OMHB30 Hanging Bar

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

  • Omano OM99-V6 Zoom Stereo Boom Microscope
  • Omano OM99 Stereo Head
  • Omano V6 Microscope Boom Stand
  • Omano OM99T Trinocular Stereo Head
  • Optional Camera System
Description

Summary

The OM99-V6 pairs our best Omano OM99 microscope head with the heavyweight V6 dual arm, boom stand for the ultimate in optics and stability. The zoom magnification range is 6.5x-45x with Super WF10x eyepieces and eyecups. A light ring is also included. Lifetime Limited Warranty.

Optics

The Omano OM99 is the top of the range of Omano zoom stereo microscope that compares favorably with its Olympus cousin. Featuring 6.5x-45x parfocal magnification, it is built round six prisms and, in our opinion, is the best quality stereo microscope out of China. The two Super Wide Field SWF10X eyepieces make for a terrific viewing experience with rubber eyecups included.

Dual diopters are integrated into the eye tubes for individual eye adjustment. and interpupillary adjustment range is 55mm-75mm. Working distance is 3 1/4" and more than doubles to over 6" with the addition of a 0.5x auxiliary barlow lens. Optional barlow lenses include 0.3x, 0.4x, 0.5x, 0.75x, 1.0x and 2.0x. Available in binocular or trinocular format which includes a 23mm smooth camera tube. Both versions are optionally available with click-stop detents for precise zoom observations. NOTE: When the photo-prism lever is engaged in the OM99-Trincular, 100% of the light from the left optical path is directed to the camera port. The image can still be viewed through the right eyepiece.

Focus & illumination

Rack and pinion focus includes dual right and left hand controls for convenience. An 80 LED ring light for shadow free illumination is included in the price and can be upgraded to stronger LED light when adding the microscope to your shopping cart.

Stand

Weighing in at over 60lbs, the V6 is extremely stable. It has almost 24" of clearance to the base and can view objects over 18" tall. Dual arm construction adds to its strength while a counterweight adds balance. A locking collar acts as a safety mechanism under the boom arm. As with most Omano boom stands, a hanging bar is included that enables angled viewing positions. The hanging bar bracket is spring-loaded so that the lever can be moved out of the way without having to release the pre-set position of the microscope head.

Accessories

Ring light, focus block, dust cover, manual, eyeguards

Specifications

Specifications of Component Options

Select a component below to view related specifications.

  • V6 Boom Stand
    SKU V6
    Stand
    Stand Class Boom
    Stand Type Dual Arm Boom
    Stand Features Ball-Bearing Glide, Counter-weighted, Large Base Plate
    Base Width 330 mm
    Base Depth 330 mm
    Post Height 464 mm
    Post Diameter 38 mm
    View Center to Post Distance 495 mm
    Physical Construction Solid Metal
    Coating Type (Stand) Durable Powdercoat
    If HB Required
    Requires Separate Hanging Bar? Yes
    Hanging Bar Style Articulable

  • OMHB30 Hanging Bar
    SKU OMHB30
    If HB Required
    Hanging Bar Style Articulable
    If FB Mounts Direct
    Focus Block Mount Diameter 30 mm

  • 80 LED Ring Light, Variable Intensity

    64 LED Ring Light, Variable Intensity by Section

    144 LED Ring Light, Variable Intensity by Section

    OMLED-DP8W LED Dual Gooseneck Light

    OMLED-DP6W LED Dual Gooseneck Pole Mount Light
    SKU OMLED-80AOMLED-64AOMLED-144AOMLED-DP8WOMLED-DP6W
    Warranty 1 year  1 year1 year
    Product Weight 1lb  3.1 lbs4.0 lbs
    Product Length  16 cm31.0 cm
    Product Width  10 cm29.0 cm
    Product Height  8 cm17.5 cm
    Power Supply  90V-265V
    Backorder ETA  Sep 22, 2017
    Product Display
    New  Yes
    Illumination Type LEDLEDLEDLEDLED
    Light Specs
    Ring Light Type LEDLEDLED LED
    Ring Light Specification 80 LED90-265V Auto switching90-265V Auto switching 3W x 2
    Ring Light Power 8W   6W
    Ring Light Control VariableVariableVariable Variable

  • 0.4X Barlow Lens For Omano OM99/XTL, WD=298mm

    0.5X Barlow Lens For Omano OM99/XTL, WD=163mm

    0.75X Barlow Lens For Omano OM99/XTL, WD=117mm

    1.0X Protective Barlow For Omano OM99/XTL

    2.0X Barlow Lens For Omano OM99/XTL, WD=40mm
    SKU OMBL-99-04XOMBL-99-05XOMBL-99-075XOMBL-99-10XOMBL-99-20X
    Warranty Omano Limited Lifetime WarrantyOmano Limited Lifetime WarrantyOmano Limited Lifetime WarrantyOmano Limited Lifetime WarrantyOmano Limited Lifetime Warranty
    Compatibility
    Compatible With OM99, OM99T, OMXTL, OMXTLTOM99, OM99T, OMXTL, OMXTLTOM99, OM99T, OMXTL, OMXTLTOM99, OM99T, OMXTL, OMXTLTOM99, OM99T, OMXTL, OMXTLT
    Optical Accessory
    Barlow Lens Power 0.4X0.5X0.75X1.0X2.0X

  • Reticle, 25mm Linear

    Reticle, 25mm Grid

    Reticle, 25mm Cross Linear
    SKU OMR-25LOMR-25GOMR-25CL
    Notes For OM99, OMXTL, OM2300SFor OM99, OMXTL, OM2300SFor OM99, OMXTL, OM2300S

  • Summit SK2-1.3X 1.3MP PC / MAC Compatible Digital Microscope Camera

    Summit SK2-3.1X 3.1MP PC / MAC Compatible Digital Microscope Camera

    Summit SK2-5.2X 5.0MP PC / MAC Compatible Digital Microscope Camera

    Summit SK2-10X 10.0MP PC / MAC Compatible Digital Microscope Camera

    Summit SK2-14X 14.0MP PC / MAC Compatible Digital Microscope Camera

    CX-3 1080p LVDS Microscope Camera with 11.6" Display

    OCS-HDMI-1080PU 2.0 MP PC / MAC 60 FPS Digital Microscope Camera
    SKU OCS-SK2-1.3XOCS-SK2-3.1XOCS-SK2-5.2XOCS-SK2-10XOCS-SK2-14XOCS-CX3-HDMI-116OCS-HDMI-1080PU
    Warranty 1 Year1 Year1 Year1 Year1 Year1 Year1 Year
    Product Weight 2.00002.00002.00002.00002.00002.72.0000
    Product Length  10
    Product Width  7
    Product Height  4
    Backorder ETA  Sep 29, 2017
    Product Display
    New  Yes
    Sensor
    Sensor Type CMOSCMOSCMOSCMOSCMOSCMOSCMOS
    Sensor Size 1/3 Inch1/2 Inch1/3 Inch1/3 Inch1/3 Inch1/3 Inch1/2.5 Inch
    Sensor Details Aptina MT9M111 CMOSAptina MT9T001 CMOSAptina MT9P001 CMOSAPTINA MT9J003 CMOSAPTINA MT9F002 CMOSCMOSSONY IMX236
    Color/Monochrome ColorColorColorColorColorColorColor
    Pixel Pitch 3.6 µm x 3.6 µm3.2 µm x 3.2 µm2.2 µm x 2.2 µm1.7 µm x 1.7 µm1.4 µm x 1.4 µm 2.8um x 2.8um
    Sensor Color Depth 8bpp / 24bit RGB8bpp / 24bit RGB8bpp / 24bit RGB8bpp / 24bit RGB8bpp / 24bit RGB
    Scan Mode ProgressiveProgressiveProgressiveProgressiveProgressiveProgressiveProgressive
    Signal to Noise Ratio 44 db43 db40.5 db34 db35.5 db
    Sensitivity 1.0V/Lux-sec (550nm)1.0V/Lux-sec (550nm)1.0V/Lux-sec (550nm)1.0V/Lux-sec (550nm)1.0V/Lux-sec (550nm)
    Dynamic Range 71 db61db66.5db65.2db63.5db
    A/D Conversion 10-bit Parallel, 8-bit RGB to PC12-bit Parallel, 8-bit RGB to PC12-bit Parallel, 8-bit RGB to PC12-bit Parallel, 8-bit R.G.B to PC12-bit Parallel, 8-bit R.G.B to PC
    Cooling System  NaturalNaturalNatural
    Shutter Electronic, Rolling ShutterElectronic, Rolling ShutterElectronic, Rolling ShutterElectronic, Rolling ShutterElectronic, Rolling ShutterElectronic, Rolling ShutterElectronic, Rolling Shutter
    Camera
    Camera Mount C-Mount, Ocular MountC-Mount, Ocular MountC-Mount, Ocular MountC-Mount, Ocular MountC-Mount, Ocular MountC-MountC-Mount
    Resolution 1.3 Megapixel, 1280x1024 pixels3 Megapixel, 2048x1536 pixels5 Megapixel, 2592 X 1944 pixels10 Megapixel, 3584 X 2748 pixels14 Megapixel, 4096 x 3288 pixels 2.0 megapixels
    Camera Output Resolutions 1280 X 1024; 640 X 512; 320 X 2562048 x 1536; 1024 x 768; 680 x 5102592 X 1944; 1280 X 960; 640 X 4803584 X 2748; 1792 x 1374; 896 X 6844096 x 3288; 2048 x 1644; 1024 x 822
    FPS @ Max Res [email protected]; [email protected]; [email protected][email protected]; [email protected]; [email protected]5fps @ 2592 X 19441.9fps @3584 x 27481.7fps @4096 x 328860fps @ 1280 X 80060 @ 1920 x 1080
    FPS @ Min Res 50fps @ 320 x 25643fps @ 680 x 51060fps @ 640 X 48027fps @896 x 68427fps @1024 x 822
    Camera Interface USB 2.0USB 2.0USB 2.0USB 2.0USB 2.0LCD Display, SD Card, HDMIUSB 2.0, HDMI
    White Balance Automatic, ManualAutomatic, ManualAutomatic, ManualAutomatic, ManualAutomatic, ManualAutomatic, ManualAutomatic, Manual
    Software Included OptixCam K2ViewOptixCam K2ViewOptixCam K2ViewOptixCam K2ViewOptixCam K2View
    Driver API Compatibility DirectX, TWAINDirectX, TWAINDirectX, TWAINDirectX, TWAINDirectX, TWAINDirectXDirectX
    Power Source USB PoweredUSB PoweredUSB PoweredUSB PoweredUSB PoweredExternal Power SupplyExternal Power Supply
    File Formats BMP, JPEG, Own Proprietary, PNG, TGA, TIFFBMP, JPEG, Own Proprietary, PNG, TGA, TIFFBMP, JPEG, Own Proprietary, PNG, TGA, TIFFBMP, JPEG, Own Proprietary, PNG, TGA, TIFFBMP, JPEG, Own Proprietary, PNG, TGA, TIFFBMP, JPEG, PNG, TIFFBMP
    Exposure Control Automatic, ManualAutomatic, ManualAutomatic, ManualAutomatic, ManualAutomatic, ManualAutomatic, ManualAutomatic
    Exposure Time 2000ms-0.14Ms2000ms-0.128s2000ms-0.21s2000ms-0.21s0.4~2000ms, ROI Auto & Manual 0.1ms - 999s
    Operating Temperatures 10°C ~ 50°C10°C ~ 50°C10°C ~ 50°C10°C ~ 50°C10°C ~ 50°C 20-60 Deg. C
    Operating Humidity 30% ~ 80% RH30% ~ 80% RH30% ~ 80% RH30% ~ 80% RH30% ~ 80% RH 30-80% RH
    Storage Temperature -20°C ~ 60°C-20°C ~ 60°C-20°C ~ 60°C-20°C ~ 60°C-20°C ~ 60°C
    Other Details
    Included Accessories 0.5X 23mm DIN Adapter, Software CD0.5X 23mm DIN Adapter, Software CD0.5X 23mm DIN Adapter, Software CD0.5X 23mm DIN Adapter, Software CD0.5X 23mm DIN Adapter, Software CD
    Supported Operating Systems Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.7+Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.7+Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.7+Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.7+Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.7+N/AWindows 10, Windows 8, Windows 7, Windows Vista, Mac OSX 10.4+
    System Requirements 2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed PortN/A2GB RAM Recommended, 2Ghz+ CPU Recommended, USB 2.0 High Speed Port
    Certifications CE, ULCE, ULCE, ULCE, ULCE, ULCECE
    Cable Length 1.8m (8ft)1.8m (8ft)1.8m (8ft)1.8m (8ft)1.8m (8ft) 2.5m (8ft)
    Camera Warranty 1 Year1 Year1 Year1 Year1 Year 1 Year
    Software Support 6 Months6 Months6 Months6 Months6 Months6 Months6 Months
    Compatibility
    Imaging Compatibility (with adapters) 23mm , C-Mount23mm , C-Mount23mm , C-Mount23mm , C-Mount23mm , C-Mount23mm , C-MountC-Mount

  • C-Mount Adapter 0.5X for Omano OM99-T
    SKU OMCM-99-05X
    Warranty Omano Limited Lifetime Warranty
    Notes Does not fit Binocular
    Compatible With OM99T
Magnification Chart

Eyepiece

Standard Configuration

Omano OM99

Auxiliary Barlow Lens

0.4X

0.5X

0.75X

2.0X

Working distance 100mm

Working distance 298mm

Working distance 163mm

Working distance 117mm

Working distance 40mm

Magnification

Field of view
mm

Magnification

Field of view
mm

Magnification

Field of view
mm

Magnification

Field of view
mm

Magnification FIeld of view
mm

10X

6.5x-45x

33.8 - 4.9

2.6-18.0x

67.7-9.8

3.3x-22.5x

67.7-9.8

4.9x-33.8x

45.1-6.5

13x-90x 16.9-2.5

15X

9.8x-67.5x

24.6-3.5

3.9-27.0x

49.2-7.0

4.9x-33.8x

49.2-7.0

7.3x-50.6x

32.8-4.7

19.5x-135x  12.3-1.8

20X

13x-90x

20.0-2.9

5.2-36.0x

40.5-5.8

6.5x-45x

40.5-5.8

9.75x-67.5x

26.6-3.8

26x-180x 10.0-1.4

 25x

 16.3x-112.5x 18.5-2.6  6.5-45.0x 37.0-5.2  8.1x-56.3x

37.0-5.2 12.2x-84.4x 24.6-3.5

32.5x-225x  9.2-1.3
