Summary

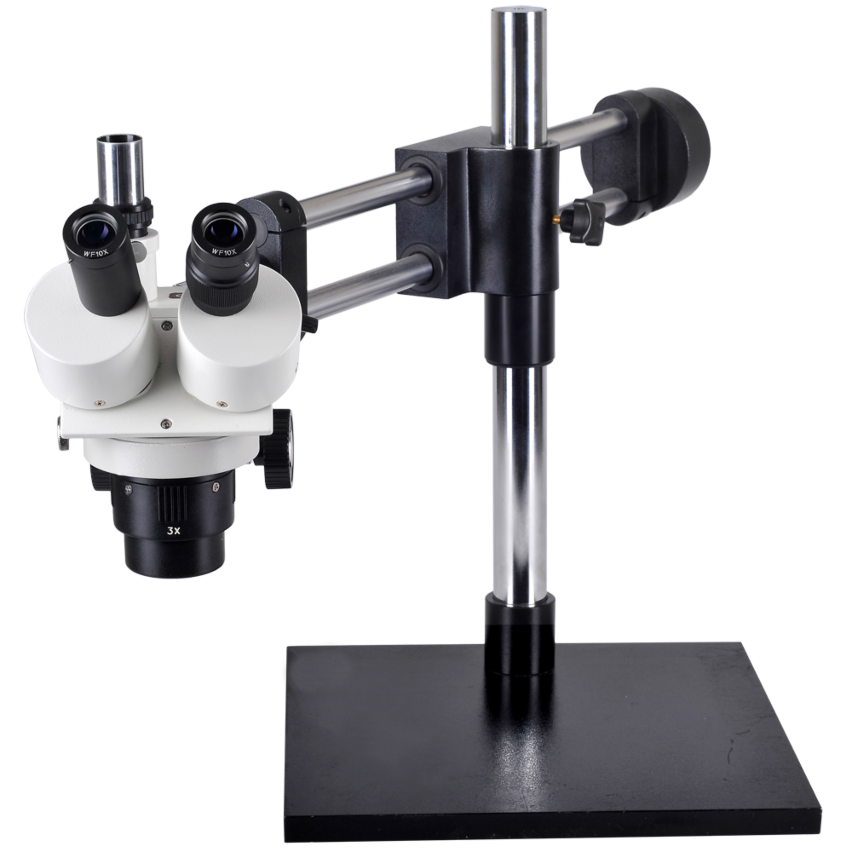

The Omano OM1030-V15 is another economical addition to our dual-power Omano boom microscope lineup. Designed for industrial inspection applications, it is available in either binocular or trinocular configuration and offers 10x/30x magnification. The V15 is our premium dual-arm boom stand that has been a proven workhorse for over ten years. Ring illumination is included. Lifetime Limited Warranty.

Optics

The Omano OM1030 is our most economical stereo microscope body and has proved popular over ten years. It includes 1X/3X dual power objectives and WF10X eyepieces for total magnification of 10X/30X. Each eyepiece includes a diopter for individual eye focusing and the interpupillary adjustment range is 55-75mm. Rubber eyecups are included.

The head is available in both binocular and trinocular formats and a 23mm trinocular adapter for eyepiece cameras is included with the trinocular version. The effective working distance is 3.75" without an auxiliary barlow lens. Optional barlow lenses are available in 0.3x, 0.5x, 0.75x, 1.0x and 2.0x powers. Lifetime Limited Warranty.

Focus & illumination

Rack and pinion focus includes dual right and left hand controls for convenience. An 80 LED ring light for shadow free illumination is included in the price and can be upgraded to stronger LED light when adding the microscope to your shopping cart.

Stand

Solid steel, 21.5" tall, a horizontal span of 28" and 48 lbs - yet surprisingly graceful in its movements, the V15 is the premium Omano dual arm boom stand. Customers love it! A continuous-gliding ball-bearing slide enables fingertip positioning control while a raft of thoughtful features help earn its well-deserved reputation. A hanging bar offers versatile viewing positions, a safety collar locks the boom in place on the pole, and a rubber backstop protects the cross bar.

In addition, a neat spring-loaded hanging bar bracket lever can be re-positioned without losing tension on the microscope head. They all add up to a product that feels right and works very well. Also available with a U-clamp for attachment to a benchtop. The clamp fits benches up to 2.5" thick.

Note: The NH1080 and CX3 require the OCS-SK2-CA037X C-mount adapter to connect to this Omano microscope.

Accessories

Eyecups, dust cover, manual

Omano Stereo Boom Stand Comparison

• 	OM1030 Binocular Head	OM1030 Trinocular Head (Recommended for camera use)
  SKU	OM1030-B	OM1030-T
  Backorder ETA		May 27, 2016
  Magnification Chart	OM4713 Magnification Chart	OM4713 Magnification Chart
  Head
  Head Type	Binocular	Trinocular
  Optical Design	Greenough Converged	Greenough Converged
  Magnification Type	Dual Power	Dual Power
  Ocular Angle	45°	45°
  Ocular Tube Diameter	30.5 mm	30.5 mm
  Barlow Mount Diameter	50 mm	50 mm
  Diopter Adjustment	Single	Single
  Interpupillary Adjustment	Arc (Seidentopf)	Arc (Seidentopf)
  Interpupillary Adjustment Range	55-75mm	50-70 mm
  Trinocular Type		Prism Switching
  Trinocular Standard		23mm DIN
  Head Rotation	360 Degrees	360 Degrees
  Minimum Objective (X)	1	1
  Maximum Objective (X)	3	3
  Zoom Control Type		Detent Click-Stops
  Parfocal	Yes
  Configuration
  Includes Eyepieces?	Yes	Yes
  Included Eyepieces (X)	10X	10X
  Min Standard Mag	10X	10X
  Max Standard Mag	30X	30X
  Eyecups Style	Soft Rubber	Soft Rubber
  Body
  Body Material	All-Metal	All-Metal
  Coating Type	Durable Powdercoat	Durable Powdercoat
  Compatibility
  Imaging Compatibility (with adapters)		23mm
  Head Ring Mount Diameter	84 mm	84 mm
  Max Working Distance (standard)	95 mm	95 mm
  WD with 0.5x Barlow
  WD with 0.75x Barlow

• 	V15 Boom Stand	V15U U-Clamp Boom Stand
  SKU	V15	V15U
  Stand
  Stand Class	Boom	Boom
  Stand Type	Dual Arm Boom	Dual Arm Boom
  Stand Features	Ball-Bearing Glide, Counter-weighted, Heavy Duty, Large Base Plate	Ball-Bearing Glide, Counter-weighted, Tabletop U-Clamp
  Base Width	254 mm	254 mm
  Base Depth	254 mm	254 mm
  Post Height	464 mm	464 mm
  Post Diameter	38 mm	38 mm
  View Center to Post Distance	514 mm	514 mm
  Physical Construction	Solid Metal	Solid Metal
  Coating Type (Stand)	Durable Powdercoat	Durable Powdercoat
  If HB Required
  Requires Separate Hanging Bar?	Yes	Yes
  Hanging Bar Style	Articulable	Articulable

• 	OMFB23 Focus Block, 84mm Ring
  SKU	OMFB23
  If FB Integrated
  Focus Controls	Coarse
  Focus Mechanism	Rack & Pinion
  If FB Mounts Direct
  Focus Block Mount Diameter	25 mm
  Compatibility
  Head Ring Mount Diameter	84 mm

• 	80 LED Ring Light, Variable Intensity	64 LED Ring Light, Variable Intensity by Section	144 LED Ring Light, Variable Intensity by Section	3W LED Dual Gooseneck Spot Light
  SKU	OMLED-80A	OMLED-64A	OMLED-144A	OMLED-SPOT
  Warranty	1 year			1 year
  Product Weight	1lb			3.1 lbs
  Product Length		16 cm
  Product Width		10 cm
  Product Height		8 cm
  Power Supply		90V-265V
  Product Display
  New		Yes
  Illumination Type	LED	LED	LED	LED
  Light Specs
  Ring Light Type	LED	LED	LED	LED
  Ring Light Specification	80 LED	90-265V Auto switching	90-265V Auto switching
  Ring Light Power	8W
  Ring Light Control	Variable	Variable	Variable

• 	OMHB25 Hanging Bar
  SKU	OMHB25
  If HB Required
  Hanging Bar Style	Articulable
  If FB Mounts Direct
  Focus Block Mount Diameter	25 mm

• 	0.3X Barlow Lens For Omano OM2300	0.5X Barlow Lens For Omano OM2300	0.75X Barlow Lens For Omano OM2300	1.0X Protective Barlow For Omano OM2300	2.0X Barlow Lens For Omano OM2300
  SKU	OMBL-2300-03X	OMBL-2300-05X	OMBL-2300-075X	OMBL-2300-10X	OMBL-2300-20X
  Warranty	Omano Limited Lifetime Warranty	Omano Limited Lifetime Warranty	Omano Limited Lifetime Warranty	Omano Limited Lifetime Warranty	Omano Limited Lifetime Warranty
  Notes	Does not fit OM2300S	Does not fit OM2300S	Does not fit OM2300S	Does not fit OM2300S	Does not fit OM2300S
  Compatibility
  Compatible With	OM2300, OM2300T, OM3300	OM2300, OM2300T, OM3300	OM2300, OM2300T, OM3300	OM2300, OM2300T, OM3300	OM2300, OM2300T, OM3300
  Optical Accessory
  Barlow Lens Power	0.3X	0.5X	0.75X	1.0X	2.0X

• 	Summit SK2-1.3X 1.3MP PC / MAC Compatible Digital Microscope Camera	Summit SK2-3.1X 3.1MP PC / MAC Compatible Digital Microscope Camera	Summit SK2-5.2X 5.0MP PC / MAC Compatible Digital Microscope Camera	Summit SK2-10X 10.0MP PC / MAC Compatible Digital Microscope Camera	Summit SK2-14X 14.0MP PC / MAC Compatible Digital Microscope Camera	OCS-HDMI-1080PU 2.0 MP PC / MAC 60 FPS Digital Microscope Camera	AIR 5.0MP WiFi (PC / MAC) or USB (PC-Only) Digital Microscope Camera	OCS-HDMI-1 1080P 3.0 MP PC-Only 30 FPS Digital Microscope Camera
  SKU	OCS-SK2-1.3X	OCS-SK2-3.1X	OCS-SK2-5.2X	OCS-SK2-10X	OCS-SK2-14X	OCS-HDMI-1080PU	OCS-AIR	OCS-HDMI-1
  Warranty	1 Year	1 Year	1 Year	1 Year	1 Year	1 Year		1 Year
  Product Weight	2.0000	2.0000	2.0000	2.0000	2.0000	2.0000	1.8lbs	2.0000
  Product Length		10"
  Product Width		8.5"
  Product Height		5"
  Backorder ETA		Sep 29, 2017
  Sensor
  Sensor Type	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
  Sensor Size	1/3 Inch	1/2 Inch	1/3 Inch	1/3 Inch	1/3 Inch	1/2.5 Inch	1/2.5 Inch	1/3 Inch
  Sensor Details	Aptina MT9M111 CMOS	Aptina MT9T001 CMOS	Aptina MT9P001 CMOS	APTINA MT9J003 CMOS	APTINA MT9F002 CMOS	SONY IMX236		Aptina AR0330 CMOS Sensor
  Color/Monochrome	Color	Color	Color	Color	Color	Color	Color	Color
  Filter		RGB Bayer Pattern
  Pixel Pitch	3.6 µm x 3.6 µm	3.2 µm x 3.2 µm	2.2 µm x 2.2 µm	1.7 µm x 1.7 µm	1.4 µm x 1.4 µm	2.8um x 2.8um		2.2um x 2.2um
  Sensor Color Depth	8bpp / 24bit RGB	8bpp / 24bit RGB	8bpp / 24bit RGB	8bpp / 24bit RGB	8bpp / 24bit RGB
  Scan Mode	Progressive	Progressive	Progressive	Progressive	Progressive	Progressive		Progressive
  Signal to Noise Ratio	44 db	43 db	40.5 db	34 db	35.5 db			39 dB
  Sensitivity	1.0V/Lux-sec (550nm)	1.0V/Lux-sec (550nm)	1.0V/Lux-sec (550nm)	1.0V/Lux-sec (550nm)	1.0V/Lux-sec (550nm)			1.4v/lux-sec(550nm)
  Dynamic Range	71 db	61db	66.5db	65.2db	63.5db			69.5 dB
  A/D Conversion	10-bit Parallel, 8-bit RGB to PC	12-bit Parallel, 8-bit RGB to PC	12-bit Parallel, 8-bit RGB to PC	12-bit Parallel, 8-bit R.G.B to PC	12-bit Parallel, 8-bit R.G.B to PC			12-bit Parallel, 8-bit R.G.B
  Cooling System		Natural	Natural	Natural
  Shutter	Electronic, Rolling Shutter	Electronic, Rolling Shutter	Electronic, Rolling Shutter	Electronic, Rolling Shutter	Electronic, Rolling Shutter	Electronic, Rolling Shutter	Mechanical	Electronic, Rolling Shutter
  Camera
  Camera Mount	C-Mount, Ocular Mount	C-Mount, Ocular Mount	C-Mount, Ocular Mount	C-Mount, Ocular Mount	C-Mount, Ocular Mount	C-Mount	C-Mount, F-Mount, Ocular Mount	C-Mount
  Resolution	1.3 Megapixel, 1280x1024 pixels	3 Megapixel, 2048x1536 pixels	5 Megapixel, 2592 X 1944 pixels	10 Megapixel, 3584 X 2748 pixels	14 Megapixel, 4096 x 3288 pixels	2.0 megapixels		2.0 megapixels
  Camera Output Resolutions	1280 X 1024; 640 X 512; 320 X 256	2048 x 1536; 1024 x 768; 680 x 510	2592 X 1944; 1280 X 960; 640 X 480	3584 X 2748; 1792 x 1374; 896 X 684	4096 x 3288; 2048 x 1644; 1024 x 822		640 x 480, 800 x 600, 1280 x 960, 2592 x 1944	1920X1080i60，1920X1080P30,1280x720P60,640x480P60
  FPS @ Max Res	[email protected]; [email protected]; [email protected]	[email protected]; [email protected]; [email protected]	5fps @ 2592 X 1944	1.9fps @3584 x 2748	1.7fps @4096 x 3288	60 @ 1920 x 1080	15/5 fps USB/WiFi	30 Fps
  FPS @ Min Res	50fps @ 320 x 256	43fps @ 680 x 510	60fps @ 640 X 480	27fps @896 x 684	27fps @1024 x 822		40/30 fps USB/WiFi	60 FPS
  Camera Interface	USB 2.0	USB 2.0	USB 2.0	USB 2.0	USB 2.0	USB 2.0, HDMI	WiFi, USB 2.0	SD Card, USB 2.0, HDMI
  White Balance	Automatic, Manual	Automatic, Manual	Automatic, Manual	Automatic, Manual	Automatic, Manual	Automatic, Manual	Automatic	Automatic, Manual
  Black Balance		Automatic
  Software Included	OptixCam K2View	OptixCam K2View	OptixCam K2View	OptixCam K2View	OptixCam K2View		Measuring Software
  Driver API Compatibility	DirectX, TWAIN	DirectX, TWAIN	DirectX, TWAIN	DirectX, TWAIN	DirectX, TWAIN	DirectX		DirectX
  Power Source	USB Powered	USB Powered	USB Powered	USB Powered	USB Powered	External Power Supply		External Power Supply
  File Formats	BMP, JPEG, Own Proprietary, PNG, TGA, TIFF	BMP, JPEG, Own Proprietary, PNG, TGA, TIFF	BMP, JPEG, Own Proprietary, PNG, TGA, TIFF	BMP, JPEG, Own Proprietary, PNG, TGA, TIFF	BMP, JPEG, Own Proprietary, PNG, TGA, TIFF	BMP	JPEG, MOV	JPEG, MOV
  Exposure Control	Automatic, Manual	Automatic, Manual	Automatic, Manual	Automatic, Manual	Automatic, Manual	Automatic	Automatic, Manual	Automatic, Manual
  Exposure Time	2000ms-0.14Ms	2000ms-0.128s	2000ms-0.21s	2000ms-0.21s	0.4~2000ms, ROI Auto & Manual	0.1ms - 999s		0.21~33ms, Auto & Manual
  Operating Temperatures	10°C ~ 50°C	10°C ~ 50°C	10°C ~ 50°C	10°C ~ 50°C	10°C ~ 50°C	20-60 Deg. C		0℃~ 40℃
  Operating Humidity	30% ~ 80% RH	30% ~ 80% RH	30% ~ 80% RH	30% ~ 80% RH	30% ~ 80% RH	30-80% RH		30~80%RH
  Storage Temperature	-20°C ~ 60°C	-20°C ~ 60°C	-20°C ~ 60°C	-20°C ~ 60°C	-20°C ~ 60°C			-20℃~ 60℃
  Other Details
  Included Accessories	0.5X 23mm DIN Adapter, Software CD	0.5X 23mm DIN Adapter, Software CD	0.5X 23mm DIN Adapter, Software CD	0.5X 23mm DIN Adapter, Software CD	0.5X 23mm DIN Adapter, Software CD		Case, Software CD/App, Power Adapter, USB Cable
  Supported Operating Systems	Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.7+	Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.7+	Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.7+	Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.7+	Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.7+	Windows 10, Windows 8, Windows 7, Windows Vista, Mac OSX 10.4+	Windows 8, Windows 7, Windows Vista, Windows XP SP3, Apple iOS, Android 3+	N/A, Windows 10, Windows 8, Windows 7
  System Requirements	2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port	2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port	2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port	2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port	2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port	2GB RAM Recommended, 2Ghz+ CPU Recommended, USB 2.0 High Speed Port	2GB RAM Recommended, 2Ghz+ CPU Recommended, USB 2.0 High Speed Port	2GB RAM Recommended, 2Ghz+ CPU Recommended
  Certifications	CE, UL	CE, UL	CE, UL	CE, UL	CE, UL	CE		CE
  Cable Length	1.8m (8ft)	1.8m (8ft)	1.8m (8ft)	1.8m (8ft)	1.8m (8ft)	2.5m (8ft)		2.5m (8ft)
  Camera Warranty	1 Year	1 Year	1 Year	1 Year	1 Year	1 Year	1 Year
  Software Support	6 Months	6 Months	6 Months	6 Months	6 Months	6 Months		6 Months
  Compatibility
  Imaging Compatibility (with adapters)	23mm , C-Mount	23mm , C-Mount	23mm , C-Mount	23mm , C-Mount	23mm , C-Mount	C-Mount	C-Mount	C-Mount

• 	Fixed 23mm Camera Adapter 0.37X for SK2 Series Cameras	Adjustable 23mm Camera Adapter 0.37X for SK2 Series Cameras
  SKU	OCS-SK2-CA037X-23MMF	OCS-SK2-CA037X-23MMA
  Warranty	Omano Limited Lifetime Warranty	Omano Limited Lifetime Warranty
  Backorder ETA		Nov 30, 2016
