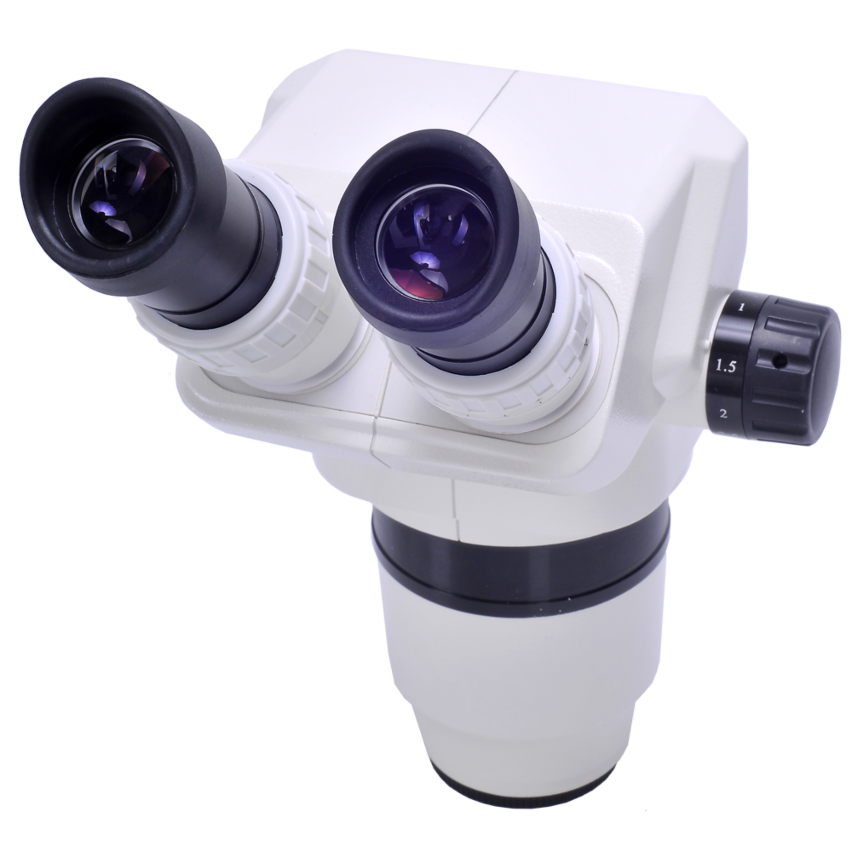

Omano OM99 6.5X-45X Premium Zoom Stereo Microscope Head

List Price: $1,058.00

Starting at: $549.00

SKU: OM99

Availability: In stock

  • Superb, top of the range optics
  • 6.5x-45x zoom stereo microscope head
  • Binocular or trinocular format
  • Optional click stop detents on trinocular
  • Includes SWF10x window pane eyepieces
  • Included focus ring
  • 6 prism system for optical quality
  • Lifetime Limited Warranty

Price as configured: $0.00

Select package options

Click on to learn more about the option * signifies required items

  • $85.00
  • $85.00
  • $85.00
  • $85.00

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

  • Omano OM99 Premium Stereo Microscope Head
  • Omano Omano OM99T Premium Stereo Trinocular Microscope Head
Description

The Omano OM99 is the top of the range of Omano zoom stereo microscope that compares favorably with its Olympus cousin. Featuring 6.5x-45x parfocal magnification, it is built round six prisms and, in our opinion, is the best quality stereo microscope out of China.

The two Super Wide Field SWF10X eyepieces enable window pane viewing for less eye strain and include rubber eyecups. Dual diopters are integrated into the eye tubes for individual eye adjustment. and interpupillary adjustment range is 55mm-75mm.

The head also includes a 76mm focus ring which requires a 30mm hanging bar or pole. Working distance is 31/4" and more than doubles to over 6" with the addition of a 0.5x auxiliary barlow lens. Optional barlow lenses include 0.3x, 0.4x, 0.5x, 0.75x, 1.0x and 2.0x. Available in binocular or trinocular format with a 23mm smooth eyepiece adapter included wit the trinocular version. When the photo-prism lever is engaged in the OM99-Trincular, 100% of the light from the left optical path is directed to the camera port. The image can still be viewed through the right eyepiece.

Available in binocular, trinocular and trinocular with click stop detent configurations

Specifications

Specifications of Component Options

Select a component below to view related specifications.

  • OM99B Zoom Binocular Stereo Head with Focus Block

    OM99T Zoom Trinocular Stereo Head with Focus Block (Recommended for Cameras)

    OM99BD Zoom Detent Binocular Stereo Head with Focus Block

    OM99TD Zoom Detent Trinocular Stereo Head with Focus Block (Recommended for Cameras)
    SKU OM99-BOM99-TOM99-BDOM99-TD
    Backorder ETA  Sep 30, 2015
    Magnification Chart Omano OM99 Magnification ChartOmano OM99 Magnification ChartOmano OM99 Magnification ChartOmano OM99 Magnification Chart
    Top Rated Yes
    Staff Pick  Yes
    Head
    Head Type BinocularTrinocularBinocularTrinocular
    Optical Design Greenough ConvergedGreenough ConvergedGreenough ConvergedGreenough Converged
    Magnification Type ZoomZoomZoomZoom
    Ocular Angle 45°45°45°45°
    Ocular Tube Diameter 30 mm30 mm30 mm30 mm
    Barlow Mount Diameter 47 mm47 mm47 mm47 mm
    Diopter Adjustment DualDualDualDual
    Interpupillary Adjustment Linear SlidingLinear SlidingLinear SlidingLinear Sliding
    Interpupillary Adjustment Range 55-75 mm55-75 mm55-75 mm55-75 mm
    Trinocular Type  Prism Switching Prism Switching
    Trinocular Standard  23mm DIN 23mm DIN
    Trinocular Tube Focusable? YesYesYesYes
    Head Rotation 360 Degrees360 Degrees360 Degrees360 Degrees
    Minimum Objective (X) 0.650.650.650.65
    Maximum Objective (X) 4.54.54.54.5
    Zoom Ratio 6.9:16.9:16.9:16.9:1
    Zoom Control Type Smooth ContinuousSmooth ContinuousDetent Click-StopsDetent Click-Stops
    Zoom Indicator Graduations YesYesYesYes
    Parfocal YesYesYesYes
    Configuration
    Includes Eyepieces? YesYesYesYes
    Included Eyepieces (X) 10X10X10X10X
    Eyepiece Style SWF Super Widefield (FN 20mm)SWF Super Widefield (FN 20mm)SWF Super Widefield (FN 20mm)SWF Super Widefield (FN 20mm)
    Min Standard Mag 6.5X6.5X6.5X6.5X
    Max Standard Mag 45X45X45X45X
    Eyecups Style Soft RubberSoft RubberSoft RubberSoft Rubber
    Body
    Body Material CompositeCompositeCompositeComposite
    Compatibility
    Imaging Compatibility (with adapters)  23mm , C-Mount 23mm , C-Mount
    Available Imaging Mounts  0.5X C-Mount 0.5X C-Mount
    Head Ring Mount Diameter 76 mm76 mm76 mm76 mm
    Max Working Distance (standard) 103 mm103 mm103 mm103 mm
    WD with 0.5x Barlow 200 mm200 mm200 mm200 mm
    WD with 0.75x Barlow 117117117117
    WD with 2.0x Barlow 40404040

  • 0.5X Barlow Lens For Omano OM99/XTL, WD=163mm

    0.75X Barlow Lens For Omano OM99/XTL, WD=117mm

    1.0X Protective Barlow For Omano OM99/XTL

    2.0X Barlow Lens For Omano OM99/XTL, WD=40mm
    SKU OMBL-99-05XOMBL-99-075XOMBL-99-10XOMBL-99-20X
    Warranty Omano Limited Lifetime WarrantyOmano Limited Lifetime WarrantyOmano Limited Lifetime WarrantyOmano Limited Lifetime Warranty
    Compatibility
    Compatible With OM99, OM99T, OMXTL, OMXTLTOM99, OM99T, OMXTL, OMXTLTOM99, OM99T, OMXTL, OMXTLTOM99, OM99T, OMXTL, OMXTLT
    Optical Accessory
    Barlow Lens Power 0.5X0.75X1.0X2.0X
Magnification Chart

Eyepiece

Standard Configuration

Omano OM99

Auxiliary Barlow Lens

0.4X

0.5X

0.75X

2.0X

Working distance 100mm

Working distance 298mm

Working distance 163mm

Working distance 117mm

Working distance 40mm

Magnification

Field of view
mm

Magnification

Field of view
mm

Magnification

Field of view
mm

Magnification

Field of view
mm

Magnification FIeld of view
mm

10X

6.5x-45x

33.8 - 4.9

2.6-18.0x

67.7-9.8

3.3x-22.5x

67.7-9.8

4.9x-33.8x

45.1-6.5

13x-90x 16.9-2.5

15X

9.8x-67.5x

24.6-3.5

3.9-27.0x

49.2-7.0

4.9x-33.8x

49.2-7.0

7.3x-50.6x

32.8-4.7

19.5x-135x  12.3-1.8

20X

13x-90x

20.0-2.9

5.2-36.0x

40.5-5.8

6.5x-45x

40.5-5.8

9.75x-67.5x

26.6-3.8

26x-180x 10.0-1.4

 25x

 16.3x-112.5x 18.5-2.6  6.5-45.0x 37.0-5.2  8.1x-56.3x

37.0-5.2 12.2x-84.4x 24.6-3.5

32.5x-225x  9.2-1.3
