Meiji Techno EMZ8TR-V10 7X-45X Boom Stereo Microscope

List Price: $2,575.00

Starting at: $2,053.00

SKU: EMZ8TR-V10

Availability: Backorder

  • 7X-45X zoom magnification
  • Trinocular - optional detents
  • Choice of eyepieces
  • V10 single arm boom stand
  • Included ring light illuminators
  • Optional barlow lenses
  • Limited Lifetime Warranty
Select package options

Click on to learn more about the option * signifies required items

OMFB23 Focus Block, 84mm Ring   $60.00
OMHB25 Hanging Bar   $25.00
MA600 Stereo Eyeshields (Pair)   $10.00
  • $139.00
  • $140.00
  • $129.00
  • $129.00
  • $139.00
  • $139.00
  • $195.00
  • $88.00
  • $139.00
  • $209.00
  • $239.00
  • $499.00
  • $499.00
V10 Boom Stand   $229.00

Included in Bundle

Focus Block: OMFB23 Focus Block, 84mm Ring

Hanging Bar: OMHB25 Hanging Bar

Eyeguards: MA600 Stereo Eyeshields (Pair)

Stand: V10 Boom Stand

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

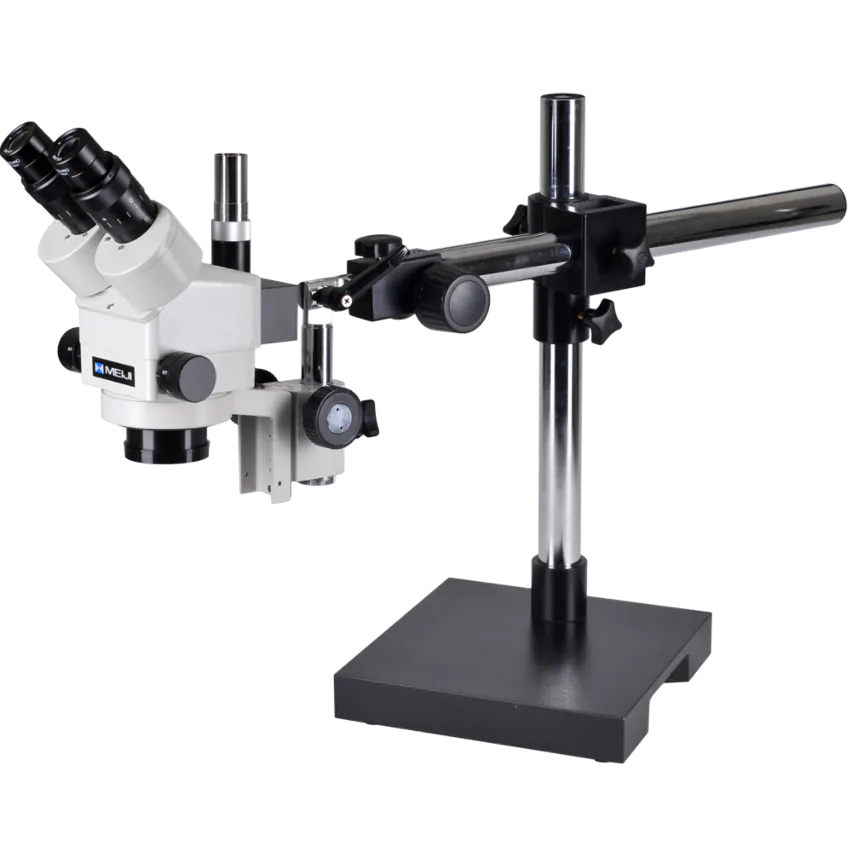

  • Meiji EMZ8TR-V10 Stereo Trinocular Boom Microscope
  • Meiji EMZ8TR Stereo Trinocular Head
  • Omano V10 Single-Arm Stereo Boom Stand
  • Omano V10 Single-Arm Stereo Boom Stand retracted
  • Omano V10 Single-Arm Stereo Boom Stand extended
Description

Summary

The Meiji EMZ8TR-V10 is a combination of Meiji's best-selling EMZ-8TR zoom stereo trinocular microscope head and the Omano V10 boom stand. It is the most popular Meiji industrial inspection microscope system. Available in binocular or trinocular with choice of eyepieces. Limited Lifetime Warranty.

Microscope Head

TThe EMZ-8TR is Meiji's most popular trinocular zoom stereo microscope head. It is to trinocular what the EMZ-5 is to binocular. A good quality workhorse for industry ad education that can be relied on to last a lifetime with zero defects.

The parfocal zoom range is 7x-45x (10x eyepieces) with dual-sided zoom controls. The field of view is 32mm-5.1mm with 10x eyepieces and the standard working distance is marginally longer then the EMZ5 at 104mm. The head is inclined 45° and includes interpupillary adjustment of 54mm-75mm. There are dual +/-5 diopters for convenient individual eye focusing. The head rotates through 360° for flexible viewing positions.

Available in trinocular format and also with click stop detents for precise levels of magnification. The trinocular port directs light to the right eyetube and the trinocular tube simultaneously. Please note that a trinocular adapter is required to fit your camera.

Stand

The V10 is one of our workhorse single-arm boom stands and features a useful 4", adjustable extension bar at the tip of the boom arm. When using this extension with eyes down, the user can easily adjust the horizontal extension of the boom. In other words, there is no need to release the entire bar in order to make small adjustments. The V10 boom stand is also heavy-duty, weighing 48lbs. The pole is 20" tall with 14.5" of usable height. The horizontal arm extends 26" including the microscope head.

As with most Omano boom stands, a hanging bar is included that enables angled viewing positions. The hanging bar bracket is spring-loaded so that the lever can be moved out of the way without having to release the pre-set position of the microscope head.

Optional Illumination

For convenience we offer a variety of ring lights and auxiliary barlow lenses with this microscope. Please call for alternative illumination solutions.

Omano Stereo Boom Stand Comparison

Specifications

  • EMZ-8TR Trinocular Stereo Head

    EMZ-8TRD Trinocular Stereo Head with Detents

    EMZ-8TRU Trinocular Stereo Head with Illuminator Port

    EMZ-8TRH Trinocular Stereo Head with High Eyepoint (Requires MA522)
    SKU EMZ8TREMZ8TRDEMZ8TRUEMZ8TRH
    Head
    Head Type TrinocularTrinocularTrinocularTrinocular
    Optical Design Greenough ConvergedGreenough ConvergedGreenough ConvergedGreenough Converged
    Magnification Type ZoomZoomZoomZoom
    Ocular Angle 45°45°45°45°
    Ocular Tube Diameter 30.5 mm30.5 mm30.5 mm30.5 mm
    Barlow Mount Diameter 50 mm50 mm50 mm50 mm
    Diopter Adjustment DualDualDualDual
    Interpupillary Adjustment Arc (Seidentopf)Arc (Seidentopf)Arc (Seidentopf)Arc (Seidentopf)
    Interpupillary Adjustment Range 54mm - 75mm54mm - 75mm54mm - 75mm54mm - 75mm
    Trinocular Type Beam Split ContinuousBeam Split ContinuousBeam Split ContinuousBeam Split Continuous
    Trinocular Standard 23mm DIN23mm DIN23mm DIN23mm DIN
    Head Rotation 360 Degrees360 Degrees360 Degrees360 Degrees
    Minimum Objective (X) 0.70.70.70.7
    Maximum Objective (X) 4.54.54.54.5
    Zoom Control Type Smooth ContinuousDetent Click-StopsSmooth ContinuousSmooth Continuous
    Zoom Indicator Graduations YesYesYesYes
    Parfocal YesYesYesYes
    Body
    Body Material All-MetalAll-MetalAll-MetalAll-Metal
    Compatibility
    Imaging Compatibility (with adapters) 23mm , C-Mount23mm , C-Mount23mm , C-Mount23mm , C-Mount
    Available Imaging Mounts 0.265X C-Mount, 0.3X C-Mount, 0.45X C-Mount, 0.5X C-Mount, 0.63X C-Mount, 0.6X C-Mount, 0.7X C-Mount, 1.0X C-Mount, 2.5X C-Mount, Open C-Mount (no lens)0.265X C-Mount, 0.3X C-Mount, 0.45X C-Mount, 0.5X C-Mount, 0.63X C-Mount, 0.6X C-Mount, 0.7X C-Mount, 1.0X C-Mount, 2.5X C-Mount, Open C-Mount (no lens)0.265X C-Mount, 0.3X C-Mount, 0.45X C-Mount, 0.5X C-Mount, 0.63X C-Mount, 0.6X C-Mount, 0.7X C-Mount, 1.0X C-Mount, 2.5X C-Mount, Open C-Mount (no lens)0.265X C-Mount, 0.3X C-Mount, 0.45X C-Mount, 0.5X C-Mount, 0.63X C-Mount, 0.6X C-Mount, 0.7X C-Mount, 1.0X C-Mount, 2.5X C-Mount, Open C-Mount (no lens)
    Head Ring Mount Diameter 84 mm84 mm84 mm84 mm
    Max Working Distance (standard) 104mm104mm104mm104mm

  • OMFB23 Focus Block, 84mm Ring
    SKU OMFB23
    Focus Block
    Focus Controls Coarse
    Focus Mechanism Rack & Pinion
    Compatibility
    Focus Block Mount Diameter 25 mm
    Head Ring Mount Diameter 84 mm

  • OMHB25 Hanging Bar
    SKU OMHB25
    Hanging Bar
    Hanging Bar Style Articulable
    Compatibility
    Focus Block Mount Diameter 25 mm

  • MA501 - 5X Super Widefield Paired Eyepieces

    MA718 - 7.5X Super Widefield Paired Eyepieces

    MA502 - 10X Super Widefield Paired Eyepieces

    MA520 - 12.5x Super Widefield Paired Eyepieces

    MA503 - 15X Super Widefield Paired Eyepieces

    MA504 - 20X Super Widefield Paired Eyepieces

    MA521 - 30X Super Widefield Paired Eyepieces

    MA519 - 10x Focusing Eyepiece (single)

    MA522 - SWF High EP 10x Paired Eyepieces (Req'd for EMZ-5H / 8TRH)
    SKU MA501MA718MA502MA520MA503MA504MA521MA519MA522
    Warranty Meiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime Warranty
    Notes 30.5mm OD, Fits MEIJI EM SERIES ONLY30.5mm OD, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY30.5mm OD, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY
    Compatible With EM*EM*EM*EM*EM*EM*EM*EM*EM*
    Eyepiece Magnification 5x7.5x10x12.5x15x20x30x10x10x

  • MA600 Stereo Eyeshields (Pair)
    SKU MA600

  • 80 LED Ring Light, Variable Intensity

    64 LED Ring Light, Variable Intensity by Section

    144 LED Ring Light, Variable Intensity by Section
    SKU OMLED-80AOMLED-64AOMLED-144A
    Warranty 1 year
    Product Weight 1lb
    Light Specs
    Illumination Type LEDLEDLED
    Ring Light Type LEDLEDLED
    Ring Light Specification 80 LED90-265V Auto switching90-265V Auto switching
    Ring Light Power 8W
    Ring Light Control VariableVariableVariable

  • MA791 Barlow Lens 0.28X WD 300mm

    MA792 0.35x Barlow Lens, WD=250mm

    MA793 0.44X Barlow Lens WD 184mm

    MA794 0.5x Barlow Lens WD 174mm

    MA795 1.5x Barlow Lens WD 57mm

    MA802 2x Barlow Lens WD 36.6mm
    SKU MA791MA792MA793MA794MA795MA802
    Warranty Meiji Limited Lifetime WarrantyMeiji Limited Lifetime Warranty Meiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime Warranty
    Notes Thread M50, Pitch 0.75mmThread M50, Pitch 0.75mm Thread M50, Pitch 0.75mmThread M50, Pitch 0.75mmThread M50, Pitch 0.75mm
    Compatible With EMZ-8*EMZ-8* EMZ-8*EMZ-8*EMZ-8*
    Optical Accessory
    Barlow Lens Power 0.3X0.4X 0.5X1.5X2.0X

  • C-Mount Adapter 0.6X for Meiji EMZ-8TR Series
    SKU MA151/8TR

  • Summit SK2-1.3X 1.3MP PC / MAC Compatible Digital Microscope Camera

    Summit SK2-3.1X 3.1MP PC / MAC Compatible Digital Microscope Camera

    Summit SK2-5.2X 5.0MP PC / MAC Compatible Digital Microscope Camera

    Summit SK2-10X 10.0MP PC / MAC Compatible Digital Microscope Camera

    Summit SK2-14X 14.0MP PC / MAC Compatible Digital Microscope Camera
    SKU OCS-SK2-1.3XOCS-SK2-3.1XOCS-SK2-5.2XOCS-SK2-10XOCS-SK2-14X
    Warranty 1 Year1 Year1 Year1 Year1 Year
    Product Weight 2.00002.00002.00002.00002.0000
    Backorder ETA  Sep 29, 2017
    Sensor
    Sensor Type CMOSCMOSCMOSCMOSCMOS
    Sensor Size 1/3 Inch1/2 Inch1/3 Inch1/3 Inch1/3 Inch
    Sensor Details Aptina MT9M111 CMOSAptina MT9T001 CMOSAptina MT9P001 CMOSAPTINA MT9J003 CMOSAPTINA MT9F002 CMOS
    Color/Monochrome ColorColorColorColorColor
    Pixel Pitch 3.6 µm x 3.6 µm3.2 µm x 3.2 µm2.2 µm x 2.2 µm1.7 µm x 1.7 µm1.4 µm x 1.4 µm
    Sensor Color Depth 8bpp / 24bit RGB8bpp / 24bit RGB8bpp / 24bit RGB8bpp / 24bit RGB8bpp / 24bit RGB
    Scan Mode ProgressiveProgressiveProgressiveProgressiveProgressive
    Signal to Noise Ratio 44 db43 db40.5 db34 db35.5 db
    Sensitivity 1.0V/Lux-sec (550nm)1.0V/Lux-sec (550nm)1.0V/Lux-sec (550nm)1.0V/Lux-sec (550nm)1.0V/Lux-sec (550nm)
    Dynamic Range 71 db61db66.5db65.2db63.5db
    A/D Conversion 10-bit Parallel, 8-bit RGB to PC12-bit Parallel, 8-bit RGB to PC12-bit Parallel, 8-bit RGB to PC12-bit Parallel, 8-bit R.G.B to PC12-bit Parallel, 8-bit R.G.B to PC
    Cooling System  NaturalNaturalNatural
    Shutter Electronic, Rolling ShutterElectronic, Rolling ShutterElectronic, Rolling ShutterElectronic, Rolling ShutterElectronic, Rolling Shutter
    Camera
    Camera Mount C-Mount, Ocular MountC-Mount, Ocular MountC-Mount, Ocular MountC-Mount, Ocular MountC-Mount, Ocular Mount
    Resolution 1.3 Megapixel, 1280x1024 pixels3 Megapixel, 2048x1536 pixels5 Megapixel, 2592 X 1944 pixels10 Megapixel, 3584 X 2748 pixels14 Megapixel, 4096 x 3288 pixels
    Camera Output Resolutions 1280 X 1024; 640 X 512; 320 X 2562048 x 1536; 1024 x 768; 680 x 5102592 X 1944; 1280 X 960; 640 X 4803584 X 2748; 1792 x 1374; 896 X 6844096 x 3288; 2048 x 1644; 1024 x 822
    FPS @ Max Res [email protected]; [email protected]; [email protected][email protected]; [email protected]; [email protected]5fps @ 2592 X 19441.9fps @3584 x 27481.7fps @4096 x 3288
    FPS @ Min Res 50fps @ 320 x 25643fps @ 680 x 51060fps @ 640 X 48027fps @896 x 68427fps @1024 x 822
    Camera Interface USB 2.0USB 2.0USB 2.0USB 2.0USB 2.0
    White Balance Automatic, ManualAutomatic, ManualAutomatic, ManualAutomatic, ManualAutomatic, Manual
    Software Included OptixCam K2ViewOptixCam K2ViewOptixCam K2ViewOptixCam K2ViewOptixCam K2View
    Driver API Compatibility DirectX, TWAINDirectX, TWAINDirectX, TWAINDirectX, TWAINDirectX, TWAIN
    Power Source USB PoweredUSB PoweredUSB PoweredUSB PoweredUSB Powered
    File Formats BMP, JPEG, Own Proprietary, PNG, TGA, TIFFBMP, JPEG, Own Proprietary, PNG, TGA, TIFFBMP, JPEG, Own Proprietary, PNG, TGA, TIFFBMP, JPEG, Own Proprietary, PNG, TGA, TIFFBMP, JPEG, Own Proprietary, PNG, TGA, TIFF
    Exposure Control Automatic, ManualAutomatic, ManualAutomatic, ManualAutomatic, ManualAutomatic, Manual
    Exposure Time 2000ms-0.14Ms2000ms-0.128s2000ms-0.21s2000ms-0.21s0.4~2000ms, ROI Auto & Manual
    Operating Temperatures 10°C ~ 50°C10°C ~ 50°C10°C ~ 50°C10°C ~ 50°C10°C ~ 50°C
    Operating Humidity 30% ~ 80% RH30% ~ 80% RH30% ~ 80% RH30% ~ 80% RH30% ~ 80% RH
    Storage Temperature -20°C ~ 60°C-20°C ~ 60°C-20°C ~ 60°C-20°C ~ 60°C-20°C ~ 60°C
    Other Details
    Included Accessories 0.5X 23mm DIN Adapter, Software CD0.5X 23mm DIN Adapter, Software CD0.5X 23mm DIN Adapter, Software CD0.5X 23mm DIN Adapter, Software CD0.5X 23mm DIN Adapter, Software CD
    Supported Operating Systems Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.7+Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.7+Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.7+Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.7+Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.7+
    System Requirements 2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port
    Certifications CE, ULCE, ULCE, ULCE, ULCE, UL
    Cable Length 1.8m (8ft)1.8m (8ft)1.8m (8ft)1.8m (8ft)1.8m (8ft)
    Camera Warranty 1 Year1 Year1 Year1 Year1 Year
    Software Support 6 Months6 Months6 Months6 Months6 Months
    Compatibility
    Imaging Compatibility (with adapters) 23mm , C-Mount23mm , C-Mount23mm , C-Mount23mm , C-Mount23mm , C-Mount

  • 1690 Pelican Composite Microscope Case - Transport
    SKU PC1690
    Compatibility
    Compatible With OM88, OM88T

  • V10 Boom Stand
    SKU V10
    Stand
    Stand Class Boom
    Stand Type Single Arm Boom
    Base Width 254 mm
    Base Depth 254 mm
    Post Height 464 mm
    Post Diameter 38 mm
    View Center to Post Distance 527 mm
    Physical Construction Metal Tube
    Coating Type (Stand) Durable Powdercoat
    Hanging Bar
    Hanging Bar Style Articulable
Magnification Chart

Eyepiece

Standard Configuration

Meiji EMZ 8

Auxiliary Barlow Lens

0.28X

0.35X

0.5X

1.5X

Working distance 104mm

Working distance 300mm

Working distance 250mm

Working distance 174mm

Working distance 57mm

Magnification

Field of view
mm

Magnification

Field of view
mm

Magnification

Field of view
mm

Magnification

Field of view
mm

Magnification FIeld of view
mm

 10X

7X-45X

32.8 ~ 5.1

1.9X-12.6X

112.3 ~ 17.4

2.5X-15.75X

93.7 ~ 14.5 3.5X-22.5X 65.6 ~ 10.2 10.5X-67.5X 21.9 ~ 3.4

 15X

10.5X-67.5X

22 ~ 3.4

2.9X-18.9X

78.1 ~ 12.2

3.7X-23.6X

62.8 ~ 9.7 5.25X-33.8X 44 ~ 6.8 15.8X-101.2X 14.6 ~ 2.2

 20X

14X-90X

16.4 ~ 2.5

3.9X-25.2X

55.6 ~ 8.5

4.9X-31.5X

46.8 ~ 7.4 7X-45X 32.8 ~ 5.1 21X-135X 10.9 ~ 1.7

 30X

 21X-135X 11 ~ 1.7 5.9X-37.8X 34.0 ~ 5.7 7.3X-47.2X 31.4 ~ 4.8 10.5X-67.5X 22 ~ 3.4 31.5X-202.5X 7.3 ~ 1.1
