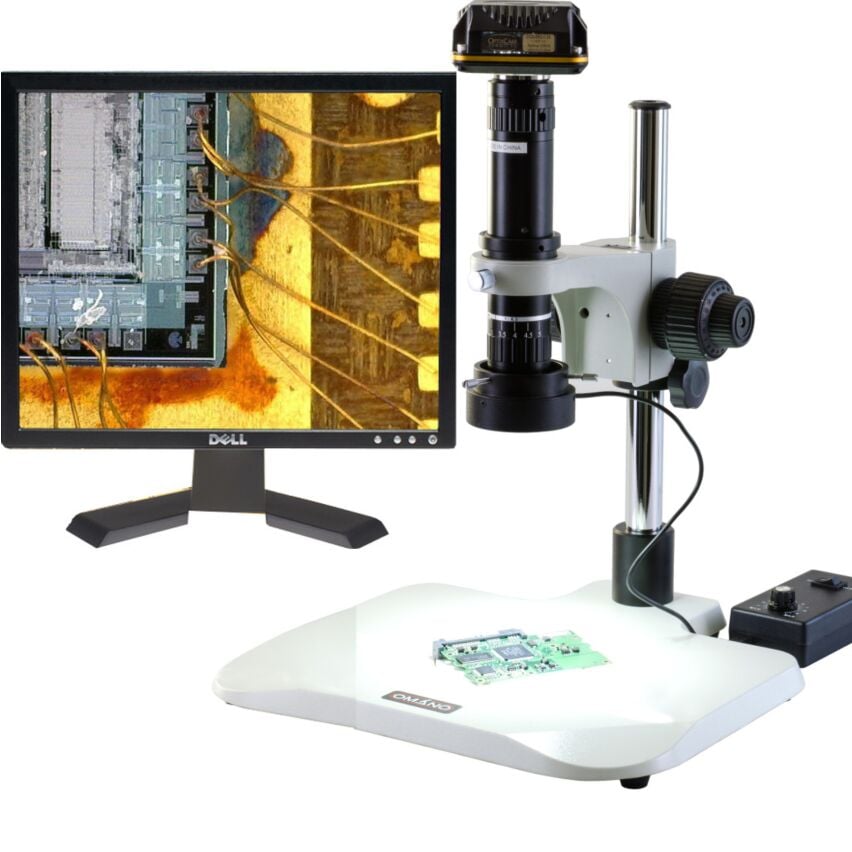

Omano SK2-VIDZ-V3 6X-50X Zoom Video Inspection System

List Price: $1,594.00

Starting at: $873.00

SKU: SK2-VIDZ-V3

Availability: In stock

  • Stills & Live Image video
  • PC/MAC Compatible
  • 0.5x reducing lens for 23mm smooth port
  • Integrated C-mount to fit most microscopes
  • Lab quality 6x-50x zoom video inspection lens
  • Standard coarse focus or optional coarse/fine focus
  • 86mm standard working distance
  • 156mm working distance with 0.5X Barlow Lens
  • Special order: Polarizing Kits and apochromatic lenses
  • Monitor Not Included
Select package options

Click on to learn more about the option * signifies required items

VIDZ 650 Monocular 6x-50x Zoom Microscope Body   $399.00
VIDZ 650 0.5X Barlow Lens, WD = 160mm   $69.00
  • $59.00
V3 Pole Stand   $130.00
  • $129.00
  • $88.00
  • $129.00
  • $175.00
  • $99.00
  • $109.00
  • $95.00

Included in Bundle

Microscope: VIDZ 650 Monocular 6x-50x Zoom Microscope Body

Included 0.5X Barlow Lens: VIDZ 650 0.5X Barlow Lens, WD = 160mm

Stand: V3 Pole Stand

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

  • SK2-VIDZ-V3 6X-50X Zoom Video Inspection System (Default)
  • SK2-VIDZ-V3 6X-50X Zoom Video lens
  • SK2-VIDZ-V3 6X-50X Zoom Video camera
  •  SK2-VIDZ-V3 6X-50X Zoom Video camera back
  • SK2-VIDZ-V3 6X-50X Zoom Video sample
Description

Summary

This industrial microscope inspection system combines the vivid, high-speed response of the OptixCam SK2 series USB2.0 and USB3.0 digital microscope cameras with the brand new Omano VIDZ-650 6X-50X zoom microscope and V3 pole stand. The new SK2 cameras offer PC/MAC compatibility, sharp images or video @ 30Fps in a cost-effective package, making them an ideal imaging solution for fast-paced industrial environments and technical training classrooms.

Summit K2 Series Features

The brand new OptixCam Summit K2 Series cameras represent the latest innovation in digital microscopy, built to meet the documentation demands of routine life science, industrial and educational applications at very competitive price-points. Built around the proven Aptina MT9T001 CMOS color sensor, they share a broad dynamic range, progressive scan and 12-bit parallel resolution for accurate color reproduction and optimal image quality. All SK2 series cameras are CE and FCC certified.

Features

The new OptixCam Summit K2 Series digital microscope camera is specifically designed as a cost-effective and versatile solution for life science researchers, healthcare professionals, industrial inspectors and many other professional disciplines. Choose from USB2.0 or High-Speed USB3.0 models ranging from 1.3MP to 5.0MP resolution. Windows PC and MAC users benefit from easy-to-use feature-rich software, accurate color, clarity and image detail, while low noise USB 2.0 data transfer maximizes workflow and productivity.

Mounting & Controls

All Summit K2 microscope cameras come with a standard C-mount and share a rugged aluminum alloy body fitted with different size Aptina CMOS sensors depending on the model. Advanced documentation and measuring software is included along with a C-mount adapter with 23mm smooth bore and 0.5X reducing lens to more closely match the captured image with the eyepiece view. Optional focusing lenses, calibration slide and 30mm and 30.5mm collars are available.

Microscope Zoom Lens

The VIDZ-650 marks a significant step up in quality with truly excellent definition, resolution and flexibility. It is well-suited to industrial inspection applications where higher resolution and clarity are required, but without the expense of a Navitar lens. The lens is entirely configurable with optional objective and Barlow lenses, illumination, cameras, adapters and stands. Each configuration is built round the high quality 6x-50x zoom magnification with 1x objective lens and 1x focusable C/CS Mount. Simply choose your options and then add to cart or call us to discuss further customizations such as apochromatic objective lenses or metallurgical configurations.

Stand

The Omano V3 pole stand's ergonomic design includes beveled leading edges for operator comfort. It features a tall, 12" vertical pole for extended working distances and a 12" x 12" base with rubber feet to protect your worktop. A safety collar and black/white contrast plate is also included.

Camera Accessories

Accessories include K2View Software CD, C-mount adapter, 23.2mm smooth bore fixed reducing lens (0.5X), USB2.0 cable. Camera dimensions: 58mm x 58mm x 32mm

Illumination

We offer our standard array of LED ring lights, a compact 4.5W LED ring light (shown), or two coaxial options: 3W LED spotlight or 150W fiber optic guide and illuminator.

To order the 3W coaxial LED Spotlight, select the following...

  • - Coaxial light adapter for VIDZ 650
  • - 3W Coaxial LED Spotlight for VIDZ 650

To order the 150W Fiber Optic System, select the following...

  • - Coaxial light adapter for VIDZ 650
  • - Single Fiber Optic Light Guide for VIDZ 650
  • - OMFOB NEW 150W Fiber Optic Light Source

Specifications

Specifications of Component Options

Select a component below to view related specifications.

  • Summit SK2-1.3X 1.3MP PC / MAC Compatible Digital Microscope Camera

    Summit SK2-3.1X 3.1MP PC / MAC Compatible Digital Microscope Camera

    Summit SK2-5.2X 5.0MP PC / MAC Compatible Digital Microscope Camera

    Summit SK2-14X 14.0MP PC / MAC Compatible Digital Microscope Camera

    Summit D3K2-3.1 3.1MP USB 3.0 High Speed Digital Microscope Camera

    Summit D3K2-5 5.0MP USB 3.0 High Speed Digital Microscope Camera
    SKU OCS-SK2-1.3XOCS-SK2-3.1XOCS-SK2-5.2XOCS-SK2-14XOCS-D3K2-3.1OCS-D3K2-5
    Warranty 1 Year1 Year1 Year1 Year1 Year1 Year
    Product Weight 2.00002.00002.00002.00002.00002.0000
    Backorder ETA  Aug 31, 2017
    Sensor
    Sensor Type CMOSCMOSCMOSCMOSCMOSCMOS
    Sensor Size 1/3 Inch1/2 Inch1/3 Inch1/3 Inch1/3 Inch1/2.5 Inch
    Sensor Details Aptina MT9M111 CMOSAptina MT9T001 CMOSAptina MT9P001 CMOSAPTINA MT9F002 CMOSAptina AR0330(C) CMOSAptina MT9P006(C) CMOS
    Color/Monochrome ColorColorColorColorColorColor
    Pixel Pitch 3.6 µm x 3.6 µm3.2 µm x 3.2 µm2.2 µm x 2.2 µm1.4 µm x 1.4 µm2.2 µm x 2.2 µm2.2 µm x 2.2 µm
    Sensor Color Depth 8bpp / 24bit RGB8bpp / 24bit RGB8bpp / 24bit RGB8bpp / 24bit RGB8bpp / 24bit RGB8bpp / 24bit RGB
    Scan Mode ProgressiveProgressiveProgressiveProgressiveProgressiveProgressive
    Signal to Noise Ratio 44 db43 db40.5 db35.5 db39dB40.5 db
    Sensitivity 1.0V/Lux-sec (550nm)1.0V/Lux-sec (550nm)1.0V/Lux-sec (550nm)1.0V/Lux-sec (550nm)1.9v/Lux-sec 1.0V/Lux-sec (550nm)
    Dynamic Range 71 db61db66.5db63.5db100dB66.5db
    A/D Conversion 10-bit Parallel, 8-bit RGB to PC12-bit Parallel, 8-bit RGB to PC12-bit Parallel, 8-bit RGB to PC12-bit Parallel, 8-bit R.G.B to PC12-bit Parallel, 8-bit RGB to PC12-bit Parallel, 8-bit RGB to PC
    Cooling System  NaturalNatural Natural
    Shutter Electronic, Rolling ShutterElectronic, Rolling ShutterElectronic, Rolling ShutterElectronic, Rolling ShutterElectronic, Rolling ShutterElectronic, Rolling Shutter
    Camera
    Camera Mount C-Mount, Ocular MountC-Mount, Ocular MountC-Mount, Ocular MountC-Mount, Ocular MountC-Mount, Ocular MountC-Mount, Ocular Mount
    Resolution 1.3 Megapixel, 1280x1024 pixels3 Megapixel, 2048x1536 pixels5 Megapixel, 2592 X 1944 pixels14 Megapixel, 4096 x 3288 pixels3 Megapixel, 2048x1536 pixels5 Megapixel, 2592 X 1922 pixels
    Camera Output Resolutions 1280 X 1024; 640 X 512; 320 X 2562048 x 1536; 1024 x 768; 680 x 5102592 X 1944; 1280 X 960; 640 X 4804096 x 3288; 2048 x 1644; 1024 x 8222048 x 1536; 1024 x 768; 680 x 5102592 X 1922; 1280 X 960; 640 X 480
    FPS @ Max Res [email protected]; [email protected]; [email protected][email protected]; [email protected]; [email protected]5fps @ 2592 X 19441.7fps @4096 x 328827.3 @ 2048x153414.2 fps @2560x1922
    FPS @ Min Res 50fps @ 320 x 25643fps @ 680 x 51060fps @ 640 X 48027fps @1024 x 82253.3 @ 1024x770101.2 fps @ 640x480
    Camera Interface USB 2.0USB 2.0USB 2.0USB 2.0USB 3.0USB 3.0
    White Balance Automatic, ManualAutomatic, ManualAutomatic, ManualAutomatic, ManualAutomatic, ManualAutomatic, Manual
    Software Included OptixCam K2ViewOptixCam K2ViewOptixCam K2ViewOptixCam K2ViewOptixCam K2ViewOptixCam K2View
    Driver API Compatibility DirectX, TWAINDirectX, TWAINDirectX, TWAINDirectX, TWAINDirectX, TWAINDirectX, TWAIN
    Power Source USB PoweredUSB PoweredUSB PoweredUSB PoweredUSB PoweredUSB Powered
    File Formats BMP, JPEG, Own Proprietary, PNG, TGA, TIFFBMP, JPEG, Own Proprietary, PNG, TGA, TIFFBMP, JPEG, Own Proprietary, PNG, TGA, TIFFBMP, JPEG, Own Proprietary, PNG, TGA, TIFFBMP, JPEG, Own Proprietary, PNG, TGA, TIFFBMP, JPEG, Own Proprietary, PNG, TGA, TIFF
    Exposure Control Automatic, ManualAutomatic, ManualAutomatic, ManualAutomatic, ManualAutomatic, ManualAutomatic, Manual
    Exposure Time 2000ms-0.14Ms2000ms-0.128s2000ms-0.21s0.4~2000ms, ROI Auto & Manual2000ms-0.128s2000ms-0.21s
    Operating Temperatures 10°C ~ 50°C10°C ~ 50°C10°C ~ 50°C10°C ~ 50°C10°C ~ 50°C10°C ~ 50°C
    Operating Humidity 30% ~ 80% RH30% ~ 80% RH30% ~ 80% RH30% ~ 80% RH30% ~ 80% RH30% ~ 80% RH
    Storage Temperature -20°C ~ 60°C-20°C ~ 60°C-20°C ~ 60°C-20°C ~ 60°C-20°C ~ 60°C-20°C ~ 60°C
    Other Details
    Included Accessories 0.5X 23mm DIN Adapter, Software CD0.5X 23mm DIN Adapter, Software CD0.5X 23mm DIN Adapter, Software CD0.5X 23mm DIN Adapter, Software CD0.5X 23mm DIN Adapter, Software CD0.5X 23mm DIN Adapter, Software CD
    Supported Operating Systems Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.7+Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.7+Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.7+Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.7+Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.7+, Linux (kernel 2.6.26+)Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.7+, Linux (kernel 2.6.26+)
    System Requirements 2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port
    Certifications CE, ULCE, ULCE, ULCE, ULCE, ULCE, UL
    Cable Length 1.8m (8ft)1.8m (8ft)1.8m (8ft)1.8m (8ft)1.8m (8ft)1.8m (8ft)
    Camera Warranty 1 Year1 Year1 Year1 Year1 Year1 Year
    Software Support 6 Months6 Months6 Months6 Months6 Months6 Months
    Compatibility
    Imaging Compatibility (with adapters) 23mm , C-Mount23mm , C-Mount23mm , C-Mount23mm , C-Mount23mm , C-Mount23mm , C-Mount

  • VIDZ 650 Monocular 6x-50x Zoom Microscope Body
    SKU OM-VIDZ-650
    Magnification Chart VIDZ 650 Magnification Chart
    Staff Pick Yes
    Head
    Head Type Monocular
    Magnification Type Zoom
    Minimum Objective (X) 6x
    Maximum Objective (X) 50x
    Zoom Ratio 1:8.3
    Zoom Control Type Smooth Continuous
    Zoom Indicator Graduations Yes
    Parfocal Yes
    Included Barlow (X) 0.5X
    Min Standard Mag 6x
    Max Standard Mag 50x
    Available Barlow Lenses 0.3X, 0.5X, 1.0X, 1.5X, 2.0X
    Body
    Body Material All-Metal
    Compatibility
    Imaging Compatibility (with adapters) C-Mount
    Available Imaging Mounts 0.3X C-Mount, 0.4X C-Mount, 0.5X C-Mount, 0.7X C-Mount, 1.0X C-Mount
    Max Working Distance (standard) 86mm
    WD with 0.5x Barlow 160mm
    WD with 1.5x Barlow 50mm
    WD with 2.0x Barlow 39mm

  • VIDZ 650 0.5X Barlow Lens, WD = 160mm
    SKU OM-VIDZ-650-BL05
    Compatible With VIDZ 650
    Optical Accessory
    Barlow Lens Power 0.5X

  • VIDZ 650 0.3X Barlow Lens, WD = 270mm
    SKU OM-VIDZ-650-BL03
    Backorder ETA Dec 30, 2015
    Compatible With VIDZ 650
    Optical Accessory
    Barlow Lens Power 0.5X

  • V3 Pole Stand
    SKU V3t
    Stand
    Stand Class Pedestal
    Stand Type Pole
    Stand Features Beveled Base
    Stage Plate Black/White Contrast Plate
    Base Width 318 mm
    Base Depth 305 mm
    Post Height 345 mm
    Post Diameter 25 mm
    If FB Mounts Direct
    Focus Block Mount Diameter 25 mm

  • VIDZ 650 Standard Focus Block

    VIDZ 650 Coarse/Fine Focus Block
    SKU OM-VIDZ-650-FB11OM-VIDZ-650-FB10
    Backorder ETA  Sep 7, 2017
    Compatible With VIDZ 650 zoom bodyVIDZ 650 zoom body

  • 4.5W LED Ring Light for VIDZ 650

    64 LED Ring Light, Variable Intensity by Section

    144 LED Ring Light, Variable Intensity by Section

    Coaxial Light Adapter For VIDZ 650

    3W Coaxial LED Spotlight For VIDZ 650
    SKU OM-VIDZ-650-LED96OMLED-64AOMLED-144AOM-VIDZ-650-CKOM-VIDZ-650-LED3SPOT
    Compatible With VIDZ 650  VIDZ 650VIDZ 650
    Light Specs
    Illumination Type LEDLEDLEDFiberopticLED
    Ring Light Type  LEDLED
    Ring Light Specification  90-265V Auto switching90-265V Auto switching
    Ring Light Control  VariableVariable

  • VIDZ-650 0.5x C-Mount Adapter

    VIDZ-650 0.3x C-Mount Adapter
    SKU OM-VIDZ-650-CM05OM-VIDZ-650-CM03
    Product Display
    New YesYes
    Compatible With VIDZ 650 Zoom LensVIDZ 650 Zoom Lens
    Light Specs
    Illumination Type NoneNone
Magnification Chart

C-Mount

Adapter

Standard Configuration

VIDZ-650

Auxiliary Barlow Lens

0.3X

0.5X

1.5X

2.0X

Working distance 86mm

Working distance 270mm

Working distance 156mm

Working distance 50mm

Working distance 39mm

Magnification

Field of view
mm

Magnification

Field of view
mm

Magnification

Field of view
mm

Magnification

Field of view
mm

Magnification FIeld of view
mm

1.0X

6X - 50X

7 ~ 0.8

1.8X - 15X

23 ~ 2.8

3X - 25X

14 ~ 1.7

9X - 75X

5 ~ .6

12X - 100X  4 ~ .4

0.3X

1.8X - 15X

24 ~ 3

0.5X - 4.5X

84 ~ 9.3

0.9X - 7.5X

47 ~ 5.6

2.7X - 22.5X

15 ~ 1.8

 3.6X - 30X  11 ~ 1.8

0.4X

2.4X - 20X

17 ~ 1.9 0.7X - 6X 60 ~ 7 1.2X - 10X 35 ~ 4.2 3.6X - 30X 11 ~ 1.4 4.8X - 40X 8.8 ~ 1.1

0.5X

3X - 25X

14 ~ 1.7

0.9X - 7.5X

47 ~ 5.6

1.5X - 12.5X

 28 ~ 3  4.5X - 37.5X

9 ~1.1

6X - 50X 7 - .8

0.75X

 4.5X - 37.5X 9 ~ 1.1  1.4X - 13.3X 29 ~ 3.6 2.2X - 18.7X  19 ~ 2.2  6.7X - 56.2X 6.1 ~ .7  9X - 75X 5 ~ .5
