Omano OM99-V10 6.5X-45X Zoom Stereo Boom Microscope

$ 882.00

List Price: $1,594.00

Starting at: $882.00

SKU: OM99-V10

Availability: In stock

  • Premium 6.5x-45x stereo microscope head
  • Super WF10x eyepieces
  • Single arm V10 boom stand with extension bar
  • Included ring light
  • Sharp optics
  • Lifetime Limited Warranty

Price as configured: $0.00

Select package options

Click on to learn more about the option * signifies required items

V10 Boom Stand   $229.00
OMHB30 Hanging Bar   $25.00
  • $120.00
  • $120.00
  • $120.00
  • $85.00
  • $85.00
  • $85.00
  • $85.00
  • $55.00
  • $55.00
  • $55.00
  • $139.00
  • $209.00
  • $239.00
  • $499.00
  • $659.00
  • $299.00
  • $109.00
  • $499.00

Included in Bundle

Stand: V10 Boom Stand

Hanging Bar: OMHB30 Hanging Bar

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

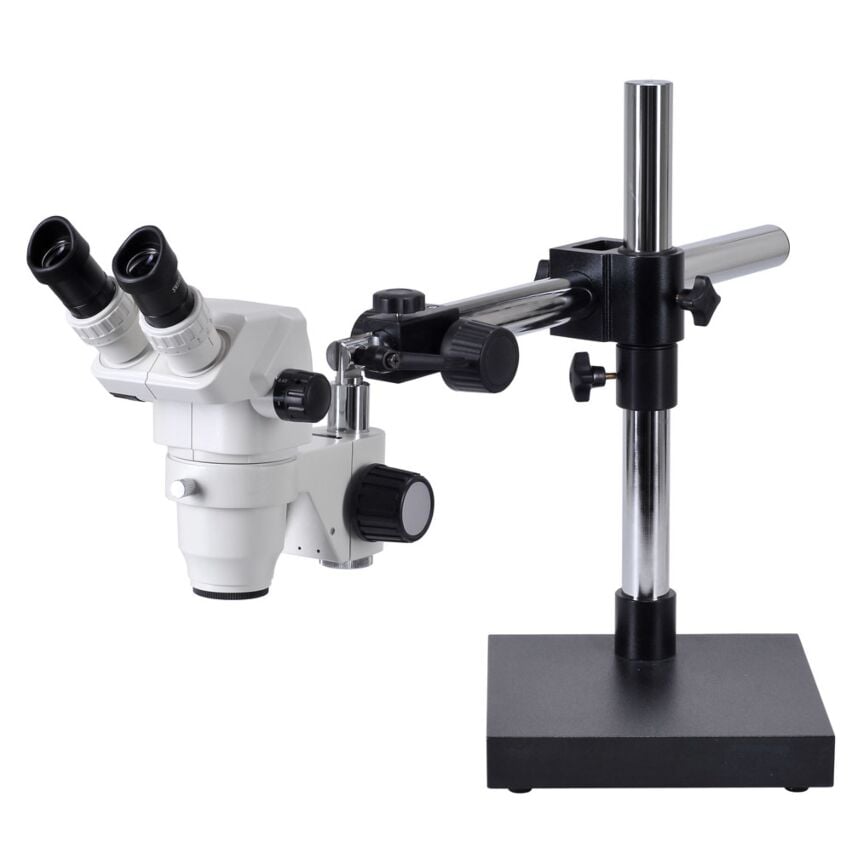

  • Omano OM99-V10 Zoom Stereo Boom Microscope
  • Omano OM99-V10 Zoom Stereo Boom Microscope side 1
  • Omano OM99-V10 Zoom Stereo Boom Microscope side 2
  • Omano OM99-V10 Zoom Stereo Boom Microscope side 3
  • Optional Camera System
Description

Summary

The OM99-V10 pairs our best Omano OM99 microscope head with the economical V10 single-arm, boom stand for the ultimate in optics and stability. The zoom magnification range is 6.5x-45x with Super WF10x eyepieces and eyecups. A light ring is also included. Lifetime Limited Warranty.

Optics

The Omano OM99 is the top of the range of Omano zoom stereo microscope that compares favorably with its Olympus cousin. Featuring 6.5x-45x parfocal magnification, it is built round six prisms and, in our opinion, is the best quality stereo microscope out of China. The two Super Wide Field SWF10X eyepieces make for a terrific viewing experience with rubber eyecups included.

Dual diopters are integrated into the eye tubes for individual eye adjustment. and interpupillary adjustment range is 55mm-75mm. Working distance is 31/4" and more than doubles to over 6" with the addition of a0.5x auxiliary barlow lens. Optional barlow lenses include 0.3x, 0.4x, 0.5x, 0.75x, 1.0x and 2.0x. Available in binocular or trinocular format which includes a 23mm smooth camera port. Both versions are optionally available with click-stop detents for precise zoom observations. NOTE: When the photo-prism lever is engaged in the OM99-Trincular, 100% of the light from the left optical path is directed to the camera port. The image can still be viewed through the right eyepiece.

Focus & illumination

Rack and pinion focus includes dual right and left hand controls for convenience. An 80 LED ring light for shadow free illumination is included in the price and can be upgraded to stronger LED or other light when adding the microscope to your shopping cart.

Stand.The V10 is an upgrade over the JW11 stand. It features a useful 4", adjustable extension bar at the tip of the boom arm. When using this extension with eyes down, the user can easily adjust the horizontal extension of the boom. In other words, there is no need to release the entire bar in order to make small adjustments. The V10 boom stand is also, heavy-duty weighing 48lbs. The pole is 20" tall with 14.5" usable height. The horizontal arm extends 26" including the microscope head.

Other: A 76mm focus block is also included and a ring light for shadow-free illumination.

Omano Stereo Boom Stand Comparison

Specifications

  • V10 Boom Stand
    General
    Brand Omano
    SKU V10
    Stand
    Stand Class Boom
    Stand Type Single Arm Boom
    Base Width 254 mm
    Base Depth 254 mm
    Post Height 464 mm
    Post Diameter 38 mm
    View Center to Post Distance 527 mm
    Physical Construction Metal Tube
    Coating Type (Stand) Durable Powdercoat
    Hanging Bar Style Articulable

  • OMHB30 Hanging Bar
    General
    Brand Omano
    SKU OMHB30
    Feed - Title Omano OMHB30 Hanging Bar
    Feed - Description Omano OMHB30 Hanging Bar
    Feed - Custom Label 1 <100
    If HB Required
    Hanging Bar Style Articulable
    If FB Mounts Direct
    Focus Block Mount Diameter 30 mm

  • 80 LED Ring Light, Variable Intensity

    64 LED Ring Light, Variable Intensity by Section

    144 LED Ring Light, Variable Intensity by Section

    OMLED-DP8W LED Dual Gooseneck Light

    OMLED-DP6W LED Dual Gooseneck Pole Mount Light
    General
    Brand Omano  OmanoOmano
    SKU OMLED-80AOMLED-64AOMLED-144AOMLED-DP8WOMLED-DP6W
    Warranty 1 year  1 year1 year
    Product Weight 1lb  3.1 lbs4.0 lbs
    Product Length  16 cm31.0 cm
    Product Width  10 cm29.0 cm
    Product Height  8 cm17.5 cm
    Power Supply  90V-265V
    Backorder ETA  Jun 29, 2018
    Feed - Title Omano 80 LED Ring Light, Variable Intensity64 LED Ring Light, Variable Intensity by Section144 LED Ring Light, Variable Intensity by SectionOmano OMLED-DP8W LED Dual Gooseneck LightOmano OMLED-DP6W LED Dual Gooseneck Pole Mount Light
    Feed - Description The new KoPa AIR camera offers both WiFi and USB live image output with up to 5.0 megapixel USB resolution, and live (40 FPS) streaming WiFi at 1280 x 960 resolution. The camera has a full suite of auto and manual controls in the USB software as well as the free, downloadable KoPa Vision App. The camera works well in USB mode, and really excels in its WiFi capability.Controls & OperationOn-camera control consists of a switch on the back (Off / USB / WiFi) which places the unit into USB or WiFi mode. After downloading the App, simply connect your mobile device to the Kopa network in the WiFi settings on your device.USB output operates via a user-friendly, Windows-only software suite that includes measuring software among a host of other features. The refresh rate ranges from 15fps at 2592 x 1944 (maximum resolution) to 40fps at 1280 x 960.The camera features a standard C-mount interface to fit any microscope with a C-mount adapter. In addition, the camera has a tripod mount on the base, allowing for use as a stand-alone imaging device (with a C-mount standard macro or zoom lens fitted). As a major upgrade over the C500W, the KoPa AIR camera also features a 5000mAh lithium Ion battery, capable of operating 8 hours on a full charge.Kopa Cam SoftwareThe software offers a comprehensive range of features including measuring software, drawing tools and annotation. Adjustable parameters include white balance, exposure, saturation, brightness, contrast, sharpness and backlight compensation among others. The App has simple touch screen buttons with both still and video capability as in USB mode. Image format include: jpg, png, bmp and pdf. NOTE: This software is not MAC compatible.MicroscopeThe Omano OM99 is the top of the range of Omano zoom stereo microscope that compares favorably with its Olympus cousin. Featuring 6.5x-45x parfocal magnification, it is built round six prisms and, in our opinion, is the best quality stereo microscope out of China. The two Super Wide Field SWF10X eyepieces enable window pane viewing for less eye strain and include rubber eyecups. Dual diopters are integrated into the eye tubes for individual eye adjustment. and interpupillary adjustment range is 55mm-75mm. NOTE: When the photo-prism lever is engaged in the OM99-Trincular, 100% of the light from the left optical path is directed to the camera port. The image can still be viewed through the right eyepiece. The package also includes a 0.5x C-mount adapter and a 76mm focus ring offering a working distance of 3 3/4" which increases to over 6" with the addition of a 0.5x auxiliary Barlow lens. Optional Barlow lenses include 0.3x, 0.4x, 0.5x, 0.75x, 1.0x and 2.0x.StandThe Omano V3 pole stand's ergonomic design includes beveled leading edges for operator comfort. It features a tall, 12" vertical pole for extended working distances and a 12" x 12" base with rubber feet to protect your working surface. A safety collar and black/white contrast plate is also included. We also offer a focus block with two different movements, a standard coarse focusing movement, and a coarse / fine focusing movement. IlluminationWe offer our standard array of LED ring lights (OMLED-80A shown) or a high quality 4.5W LED ring light or a coaxial 3W LED spotlight. The included ring light has 80 LEDs with an auto-switching 90-264V power supply, 13000 Lux and 6400k color temperature. PLEASE NOTE that when ordering the coaxial light option, you will also need the coaxial adapter.Camera AccessoriesWiFi camera, 0.5X C-mount adapter, 30.0mm & 30.5mm collars, USB cable, software CD, padded storage case. Camera dimensions: 60mm diameter, 70mm height, 0.41 Lbs. Case dimensions: 9" wide, 8" deep, 6" tall. weight - 2.0 Lbs.Microscope AccessoriesAccessories include the Omano OM99-T Trinocular Microscope, 80 LED Ring illuminator, focus block, 0.5X C-mount adapter, V3 stand. details: 20 x 13 x 10", 12 Lb.The new KoPa AIR camera offers both WiFi and USB live image output with up to 5.0 megapixel USB resolution, and live (40 FPS) streaming WiFi at 1280 x 960 resolution. The camera has a full suite of auto and manual controls in the USB software as well as the free, downloadable KoPa Vision App. The camera works well in USB mode, and really excels in its WiFi capability.Controls & OperationOn-camera control consists of a switch on the back (Off / USB / WiFi) which places the unit into USB or WiFi mode. After downloading the App, simply connect your mobile device to the Kopa network in the WiFi settings on your device.USB output operates via a user-friendly, Windows-only software suite that includes measuring software among a host of other features. The refresh rate ranges from 15fps at 2592 x 1944 (maximum resolution) to 40fps at 1280 x 960.The camera features a standard C-mount interface to fit any microscope with a C-mount adapter. In addition, the camera has a tripod mount on the base, allowing for use as a stand-alone imaging device (with a C-mount standard macro or zoom lens fitted). As a major upgrade over the C500W, the KoPa AIR camera also features a 5000mAh lithium Ion battery, capable of operating 8 hours on a full charge.Kopa Cam SoftwareThe software offers a comprehensive range of features including measuring software, drawing tools and annotation. Adjustable parameters include white balance, exposure, saturation, brightness, contrast, sharpness and backlight compensation among others. The App has simple touch screen buttons with both still and video capability as in USB mode. Image format include: jpg, png, bmp and pdf. NOTE: This software is not MAC compatible.MicroscopeThe Omano OM99 is the top of the range of Omano zoom stereo microscope that compares favorably with its Olympus cousin. Featuring 6.5x-45x parfocal magnification, it is built round six prisms and, in our opinion, is the best quality stereo microscope out of China. The two Super Wide Field SWF10X eyepieces enable window pane viewing for less eye strain and include rubber eyecups. Dual diopters are integrated into the eye tubes for individual eye adjustment. and interpupillary adjustment range is 55mm-75mm. NOTE: When the photo-prism lever is engaged in the OM99-Trincular, 100% of the light from the left optical path is directed to the camera port. The image can still be viewed through the right eyepiece. The package also includes a 0.5x C-mount adapter and a 76mm focus ring offering a working distance of 3 3/4" which increases to over 6" with the addition of a 0.5x auxiliary Barlow lens. Optional Barlow lenses include 0.3x, 0.4x, 0.5x, 0.75x, 1.0x and 2.0x.StandThe Omano V3 pole stand's ergonomic design includes beveled leading edges for operator comfort. It features a tall, 12" vertical pole for extended working distances and a 12" x 12" base with rubber feet to protect your working surface. A safety collar and black/white contrast plate is also included. We also offer a focus block with two different movements, a standard coarse focusing movement, and a coarse / fine focusing movement. IlluminationWe offer our standard array of LED ring lights (OMLED-80A shown) or a high quality 4.5W LED ring light or a coaxial 3W LED spotlight. The included ring light has 80 LEDs with an auto-switching 90-264V power supply, 13000 Lux and 6400k color temperature. PLEASE NOTE that when ordering the coaxial light option, you will also need the coaxial adapter.Camera AccessoriesWiFi camera, 0.5X C-mount adapter, 30.0mm & 30.5mm collars, USB cable, software CD, padded storage case. Camera dimensions: 60mm diameter, 70mm height, 0.41 Lbs. Case dimensions: 9" wide, 8" deep, 6" tall. weight - 2.0 Lbs.Microscope AccessoriesAccessories include the Omano OM99-T Trinocular Microscope, 80 LED Ring illuminator, focus block, 0.5X C-mount adapter, V3 stand. details: 20 x 13 x 10", 12 Lb.The new KoPa AIR camera offers both WiFi and USB live image output with up to 5.0 megapixel USB resolution, and live (40 FPS) streaming WiFi at 1280 x 960 resolution. The camera has a full suite of auto and manual controls in the USB software as well as the free, downloadable KoPa Vision App. The camera works well in USB mode, and really excels in its WiFi capability.Controls & OperationOn-camera control consists of a switch on the back (Off / USB / WiFi) which places the unit into USB or WiFi mode. After downloading the App, simply connect your mobile device to the Kopa network in the WiFi settings on your device.USB output operates via a user-friendly, Windows-only software suite that includes measuring software among a host of other features. The refresh rate ranges from 15fps at 2592 x 1944 (maximum resolution) to 40fps at 1280 x 960.The camera features a standard C-mount interface to fit any microscope with a C-mount adapter. In addition, the camera has a tripod mount on the base, allowing for use as a stand-alone imaging device (with a C-mount standard macro or zoom lens fitted). As a major upgrade over the C500W, the KoPa AIR camera also features a 5000mAh lithium Ion battery, capable of operating 8 hours on a full charge.Kopa Cam SoftwareThe software offers a comprehensive range of features including measuring software, drawing tools and annotation. Adjustable parameters include white balance, exposure, saturation, brightness, contrast, sharpness and backlight compensation among others. The App has simple touch screen buttons with both still and video capability as in USB mode. Image format include: jpg, png, bmp and pdf. NOTE: This software is not MAC compatible.MicroscopeThe Omano OM99 is the top of the range of Omano zoom stereo microscope that compares favorably with its Olympus cousin. Featuring 6.5x-45x parfocal magnification, it is built round six prisms and, in our opinion, is the best quality stereo microscope out of China. The two Super Wide Field SWF10X eyepieces enable window pane viewing for less eye strain and include rubber eyecups. Dual diopters are integrated into the eye tubes for individual eye adjustment. and interpupillary adjustment range is 55mm-75mm. NOTE: When the photo-prism lever is engaged in the OM99-Trincular, 100% of the light from the left optical path is directed to the camera port. The image can still be viewed through the right eyepiece. The package also includes a 0.5x C-mount adapter and a 76mm focus ring offering a working distance of 3 3/4" which increases to over 6" with the addition of a 0.5x auxiliary Barlow lens. Optional Barlow lenses include 0.3x, 0.4x, 0.5x, 0.75x, 1.0x and 2.0x.StandThe Omano V3 pole stand's ergonomic design includes beveled leading edges for operator comfort. It features a tall, 12" vertical pole for extended working distances and a 12" x 12" base with rubber feet to protect your working surface. A safety collar and black/white contrast plate is also included. We also offer a focus block with two different movements, a standard coarse focusing movement, and a coarse / fine focusing movement. IlluminationWe offer our standard array of LED ring lights (OMLED-80A shown) or a high quality 4.5W LED ring light or a coaxial 3W LED spotlight. The included ring light has 80 LEDs with an auto-switching 90-264V power supply, 13000 Lux and 6400k color temperature. PLEASE NOTE that when ordering the coaxial light option, you will also need the coaxial adapter.Camera AccessoriesWiFi camera, 0.5X C-mount adapter, 30.0mm & 30.5mm collars, USB cable, software CD, padded storage case. Camera dimensions: 60mm diameter, 70mm height, 0.41 Lbs. Case dimensions: 9" wide, 8" deep, 6" tall. weight - 2.0 Lbs.Microscope AccessoriesAccessories include the Omano OM99-T Trinocular Microscope, 80 LED Ring illuminator, focus block, 0.5X C-mount adapter, V3 stand. details: 20 x 13 x 10", 12 Lb.The OM-B10-L series long-working-distance (9 inch - 230mm) single-power stereo microscopes are ideally suited for rework of PCB components or detailed iphone repair. Available in 10X or 20X configuration, this stereo microscope body combines with a solid base and energy-saving 3W LED illumination for a rugged, cost-effective microscope for circuit board repairing, soldering and electronics rework applications. Microscope HeadThe microscope head is available with 1X or 2X paired interchangeable parfocal objectives set in a dovetail slide mount for secure, convenient viewing options. A 0.5X objective is optionally available and extends the working distance out to 250mm. The 10X widefield eyepieces feature dioptric adjustment on the left ocular, and offer an interpupillary adjustment range of 55-75 mm to comfortably fit a wide variety of users.IlluminationThe integrated 3W LED gooseneck illuminator is 17 iniches long and includes a precision-ground lens for bright, shadow-free spot illumination. The energy-saving LED system is rated for 20,000 hours, lowering operating costs and making bulb replacement unnecessary. The power supply is rated at 110V.StandThe single-arm stand features an 11.5 inch horizontal arm & focus block supported by a 13.75 inch vertical post and solid metal base. The combination allows a solid, wobble-free positioning anywhere within a maximum horizontal working radius of 15 inches. In addition, the arm features an adjustable, locking pivot point allowing the microscope to view straight downward, up horizontally 90 degrees, or anywhere in between. Base Dimensions: 5 inches wide x 2.25 inches tall x 7.25 inches deep. Weight: 17 lbs. Accessories include a plastic dust cover, eyecups, fuse, wrench, grounded power cord and fitted Styrofoam packing.The new Optixcam OCS-SK2-HDMI-7 high-definition CMOS color microscopy camera is a professionally-designed, stand-alone imaging solution offering sharp, 1280 x 720 resolution images or video @ 30Fps in a cost-effective package. The camera offers direct streaming to an HDMI monitor without the complexity of computer software, making it an ideal imaging solution for fast-paced industrial environments and technical training classrooms.FeaturesHDMI (High-Definition Multimedia Interface) technology brings a number of key benefits to digital microscopy, including richer color definition, better signal integrity, greater bandwidth capacity, encryption protocols and high-definition video. The OCS-SK2-HDMI-7 offers this technology in an affordable and versatile package for the PCB auditor, industrial inspection line or clinical teaching laboratory. Mounting & ControlsThe SK2-HDMI-7 is specifically designed to enhance the Omano line of stereo inspection systems, with a robust metal housing, C/CS Mount and a useful tripod screw attachment point. Improved functionality includes on-camera controls with intuitive, menu-driven buttons for cursor control, image save (to optional SD card), video freeze and Auto White Balance on/off. The cursor button will toggle between 5 different patterns including parallel vertical, horizontal, grid and cross-hair pointer. The camera features a standard C-mount which will accept any standard c-mount adapter. The optional 0.37X reducing adapters shown above will mate with any 23mm smooth bore microscope eyeport or trinocular tube. Processing & OutputThe camera has fast white balance correction for excellent color reproduction and an output resolution of 1280 x 720 in format. With 30 FPS live response rate, the OCS-SK2-HDMI-7 quickly reacts to changing lighting conditions in any life science, clinical or material application, sending a sharp video output to an HDMI monitor. An SD card memory slot offers additional storage capacity (SD card not included)..MicroscopeThe Omano OM10K zoom microscope provides 7x-45x zoom range with coarse/fine focus and click stops that enable the operator to dial in the exact same level of magnification for different specimens for easy comparison. Each microscope includes a 0.5x Barlow lens which enables maximum working distance of 6.75". An 80 LED ring light is included. Optional illumination upgrades include dual pipe LED or 64 and 144 LED ring illumination systems.StandThe Omano V3 pole stand's ergonomic design includes beveled leading edges for operator comfort. It features a tall, 12" vertical pole for extended working distances and a 12" x 12" base with rubber feet to protect your worktop. A safety collar and black/white contrast plate is also included.Camera AccessoriesAccessories include power supply, remote control, HDMI cable. Microscope AccessoriesIncluded 80 LED fluorescent ring light. Please note: Monitor not included.
    Feed - Custom Label 1 <100<100100-500<100100-500
    Illumination Type LEDLEDLEDLEDLED
    Light Specs
    Ring Light Type LEDLEDLED LED
    Ring Light Specification 80 LED90-265V Auto switching90-265V Auto switching 3W x 2
    Ring Light Power 8W   6W
    Ring Light Control VariableVariableVariable Variable

  • 15X Eyepiece For OM99 (Single)

    20X Eyepiece For OM99, OM139 (Single)

    25X Eyepiece For OM99 (Single)
    General
    Brand OmanoOmanoOmano
    SKU OMEP-99-15XOMEP-99-20XOMEP-99-25X
    Warranty Omano Limited Lifetime WarrantyOmano Limited Lifetime WarrantyOmano Limited Lifetime Warranty
    Notes Priced per EyepiecePriced per PairPriced per Pair
    Feed - Title Omano 15X Eyepiece For OM99 (Single)Omano 20X Eyepiece For OM99, OM139 (Single)Omano 25X Eyepiece For OM99 (Single)
    Feed - Description This high quality combination includes OptixCam's high resolution CX-3 1080p LVDS microscope camera/display with Omano's top of the line OM99-T trinocular stereo zoom microscope head and premium V15 dual-arm boom stand. With excellent optics throughout the microscope system, it is an industrial inspection system that can also be used as a standard optical microscope using the included super wide field, SWF10x eyepieces.CameraAn upgrade to the old CX-3 microscope camera, the new CX-3-116 sports a larger 11.6" monitor with improved connections and use interface. It is better quality than the old HDMI 1080 in every respect with double the functional resolution, an expansive, 11.6"-inch display and an improved on screen menu system, all at the same price. The TFT-LCD display offers vivid resolution and exceptional off-angle viewing capability and with a standard C-mount, the new camera attaches to any standard trinocular microscope fitted with a C-mount adapter. FeaturesThe CX3 display finally brings a useful sized monitor to the world of industrial inspection, laboratories and schools. At 11.6", the display is a pleasure to use with good on screen controls and a remote control. A standard SD card slot allows you to conveniently transfer image files via SD card for later analysis and file-sharing on your PC. A particularly useful feature is a cross-hair generator that enables up to eight on-screen, cross-hairs in five different color options. Other features include auto white balance, RGB adjustment, auto and manual white balance and auto exposure.The camera has a standard C-Mount fitment, and a C-mount adapter (not included) will be necessary to mount the camera to a microscope.LVDS technology offers a number of key benefits to digital microscopy, including richer color definition, better signal integrity, greater bandwidth capacity, encryption protocols and high-definition video. The CX-3 showcases this technology in an affordable and versatile package for the biology classroom, industrial inspection line or clinical teaching laboratory.Camera AccessoriesAC Power adapter, Remote Control Keypad, Remote Image Capture Controller.Dimensions: Display - 11.0" x 7.0" x 0.5"; Camera - 2.0" x 2.0"; Wt. 3.0lbs.MicroscopeThe Omano OM99 is the top of the range of Omano zoom stereo microscope that compares favorably with its Olympus cousin. Featuring 6.5x-45x parfocal magnification, it is built round six prisms and, in our opinion, is the best quality stereo microscope out of China. The two Super Wide Field SWF10X eyepieces enable window pane viewing for less eye strain and include rubber eyecups. Dual diopters are integrated into the eye tubes for individual eye adjustment. and interpupillary adjustment range is 55mm-75mm. NOTE: When the photo-prism lever is engaged in the OM99-Trincular, 100% of the light from the left optical path is directed to the camera port. The image can still be viewed through the right eyepiece. The package also includes a 0.5x C-mount adapter and a 76mm focus ring offering a working distance of 3 3/4" which increases to over 6" with the addition of a 0.5x auxiliary Barlow lens. Optional Barlow lenses include 0.3x, 0.4x, 0.5x, 0.75x, 1.0x and 2.0x.Focus & Illumination Focus controls are both left and right hand side for convenience. An 80 LED ring light for shadow free illumination is included in the price and can be upgraded to stronger LED or other lights when adding to cart.This high quality combination includes OptixCam's high resolution CX-3 1080p LVDS microscope camera/display with Omano's top of the line OM99-T trinocular stereo zoom microscope head and premium V15 dual-arm boom stand. With excellent optics throughout the microscope system, it is an industrial inspection system that can also be used as a standard optical microscope using the included super wide field, SWF10x eyepieces.CameraAn upgrade to the old CX-3 microscope camera, the new CX-3-116 sports a larger 11.6" monitor with improved connections and use interface. It is better quality than the old HDMI 1080 in every respect with double the functional resolution, an expansive, 11.6"-inch display and an improved on screen menu system, all at the same price. The TFT-LCD display offers vivid resolution and exceptional off-angle viewing capability and with a standard C-mount, the new camera attaches to any standard trinocular microscope fitted with a C-mount adapter. FeaturesThe CX3 display finally brings a useful sized monitor to the world of industrial inspection, laboratories and schools. At 11.6", the display is a pleasure to use with good on screen controls and a remote control. A standard SD card slot allows you to conveniently transfer image files via SD card for later analysis and file-sharing on your PC. A particularly useful feature is a cross-hair generator that enables up to eight on-screen, cross-hairs in five different color options. Other features include auto white balance, RGB adjustment, auto and manual white balance and auto exposure.The camera has a standard C-Mount fitment, and a C-mount adapter (not included) will be necessary to mount the camera to a microscope.LVDS technology offers a number of key benefits to digital microscopy, including richer color definition, better signal integrity, greater bandwidth capacity, encryption protocols and high-definition video. The CX-3 showcases this technology in an affordable and versatile package for the biology classroom, industrial inspection line or clinical teaching laboratory.Camera AccessoriesAC Power adapter, Remote Control Keypad, Remote Image Capture Controller.Dimensions: Display - 11.0" x 7.0" x 0.5"; Camera - 2.0" x 2.0"; Wt. 3.0lbs.MicroscopeThe Omano OM99 is the top of the range of Omano zoom stereo microscope that compares favorably with its Olympus cousin. Featuring 6.5x-45x parfocal magnification, it is built round six prisms and, in our opinion, is the best quality stereo microscope out of China. The two Super Wide Field SWF10X eyepieces enable window pane viewing for less eye strain and include rubber eyecups. Dual diopters are integrated into the eye tubes for individual eye adjustment. and interpupillary adjustment range is 55mm-75mm. NOTE: When the photo-prism lever is engaged in the OM99-Trincular, 100% of the light from the left optical path is directed to the camera port. The image can still be viewed through the right eyepiece. The package also includes a 0.5x C-mount adapter and a 76mm focus ring offering a working distance of 3 3/4" which increases to over 6" with the addition of a 0.5x auxiliary Barlow lens. Optional Barlow lenses include 0.3x, 0.4x, 0.5x, 0.75x, 1.0x and 2.0x.Focus & Illumination Focus controls are both left and right hand side for convenience. An 80 LED ring light for shadow free illumination is included in the price and can be upgraded to stronger LED or other lights when adding to cart.This high quality combination includes OptixCam's high resolution CX-3 1080p LVDS microscope camera/display with Omano's top of the line OM99-T trinocular stereo zoom microscope head and premium V15 dual-arm boom stand. With excellent optics throughout the microscope system, it is an industrial inspection system that can also be used as a standard optical microscope using the included super wide field, SWF10x eyepieces.CameraAn upgrade to the old CX-3 microscope camera, the new CX-3-116 sports a larger 11.6" monitor with improved connections and use interface. It is better quality than the old HDMI 1080 in every respect with double the functional resolution, an expansive, 11.6"-inch display and an improved on screen menu system, all at the same price. The TFT-LCD display offers vivid resolution and exceptional off-angle viewing capability and with a standard C-mount, the new camera attaches to any standard trinocular microscope fitted with a C-mount adapter. FeaturesThe CX3 display finally brings a useful sized monitor to the world of industrial inspection, laboratories and schools. At 11.6", the display is a pleasure to use with good on screen controls and a remote control. A standard SD card slot allows you to conveniently transfer image files via SD card for later analysis and file-sharing on your PC. A particularly useful feature is a cross-hair generator that enables up to eight on-screen, cross-hairs in five different color options. Other features include auto white balance, RGB adjustment, auto and manual white balance and auto exposure.The camera has a standard C-Mount fitment, and a C-mount adapter (not included) will be necessary to mount the camera to a microscope.LVDS technology offers a number of key benefits to digital microscopy, including richer color definition, better signal integrity, greater bandwidth capacity, encryption protocols and high-definition video. The CX-3 showcases this technology in an affordable and versatile package for the biology classroom, industrial inspection line or clinical teaching laboratory.Camera AccessoriesAC Power adapter, Remote Control Keypad, Remote Image Capture Controller.Dimensions: Display - 11.0" x 7.0" x 0.5"; Camera - 2.0" x 2.0"; Wt. 3.0lbs.MicroscopeThe Omano OM99 is the top of the range of Omano zoom stereo microscope that compares favorably with its Olympus cousin. Featuring 6.5x-45x parfocal magnification, it is built round six prisms and, in our opinion, is the best quality stereo microscope out of China. The two Super Wide Field SWF10X eyepieces enable window pane viewing for less eye strain and include rubber eyecups. Dual diopters are integrated into the eye tubes for individual eye adjustment. and interpupillary adjustment range is 55mm-75mm. NOTE: When the photo-prism lever is engaged in the OM99-Trincular, 100% of the light from the left optical path is directed to the camera port. The image can still be viewed through the right eyepiece. The package also includes a 0.5x C-mount adapter and a 76mm focus ring offering a working distance of 3 3/4" which increases to over 6" with the addition of a 0.5x auxiliary Barlow lens. Optional Barlow lenses include 0.3x, 0.4x, 0.5x, 0.75x, 1.0x and 2.0x.Focus & Illumination Focus controls are both left and right hand side for convenience. An 80 LED ring light for shadow free illumination is included in the price and can be upgraded to stronger LED or other lights when adding to cart.
    Feed - Custom Label 1 <100<100<100
    Compatibility
    Compatible With OM99, OM99TOM99, OM99T, OM139, OM139TOM99, OM99T
    Eyepiece Magnification 15x20x25x

  • 0.5X Barlow Lens For Omano OM99/XTL, WD=163mm

    0.75X Barlow Lens For Omano OM99/XTL, WD=117mm

    1.0X Protective Barlow For Omano OM99/XTL

    2.0X Barlow Lens For Omano OM99/XTL, WD=40mm
    General
    Brand OmanoOmanoOmanoOmano
    SKU OMBL-99-05XOMBL-99-075XOMBL-99-10XOMBL-99-20X
    Warranty Omano Limited Lifetime WarrantyOmano Limited Lifetime WarrantyOmano Limited Lifetime WarrantyOmano Limited Lifetime Warranty
    Compatibility
    Compatible With OM99, OM99T, OMXTL, OMXTLTOM99, OM99T, OMXTL, OMXTLTOM99, OM99T, OMXTL, OMXTLTOM99, OM99T, OMXTL, OMXTLT
    Optical Accessory
    Barlow Lens Power 0.5X0.75X1.0X2.0X

  • Reticle, 25mm Linear

    Reticle, 25mm Cross Linear

    Reticle, 25mm Grid
    General
    Brand OmanoOmanoOmano
    SKU OMR-25LOMR-25CLOMR-25G
    Notes For OM99, OMXTL, OM2300SFor OM99, OMXTL, OM2300SFor OM99, OMXTL, OM2300S
    Feed - Title Omano Reticle, 25mm LinearOmano Reticle, 25mm Cross LinearOmano Reticle, 25mm Grid
    Feed - Description An upgrade to the old CX-3 microscope camera, the new CX-3-116 sports a larger 11.6" monitor with improved connections and use interface. It is better quality than the old HDMI 1080 in every respect with double the functional resolution, an expansive, 11.6"-inch display and an improved on screen menu system, all at the same price. The TFT-LCD display offers vivid resolution and exceptional off-angle viewing capability and with a standard C-mount, the new camera attaches to any standard trinocular microscope fitted with a C-mount adapter. FeaturesThe CX3 display finally brings a useful sized monitor to the world of industrial inspection, laboratories and schools. At 11.6", the display is a pleasure to use with good on screen controls and a remote control. A standard SD card slot allows you to conveniently transfer image files via SD card for later analysis and file-sharing on your PC. A particularly useful feature is a cross-hair generator that enables up to eight on-screen, cross-hairs in five different color options. Other features include auto white balance, RGB adjustment, auto and manual white balance and auto exposure.LVDS technology offers a number of key benefits to digital microscopy, including richer color definition, better signal integrity, greater bandwidth capacity, encryption protocols and high-definition video. The CX-3 showcases this technology in an affordable and versatile package for the biology classroom, industrial inspection line or clinical teaching laboratory.Microscope The OM2300ST zoom stereo trinocular microscope head has become our de facto, 'Go To' head for our industrial inspection customers. It has a solid design with crisp, clean optics beyond our expectations at this price level. The 7X-45X zoom range (6.4:1) is parfocal with dual diopters integrated into the oculars. Interpupillay adjustment range is 55mm-75mm. Standard working distance is 4.5" which increases to 6.5" with the addition of 0.5x auxiliary Barlow lens. Three alternative Barlows are available: 0.75x, 1.5x and 2.0x. WF10X eyepieces and eyeguards are included. NOTE: When the beam-splitter lever is engaged in the OM2300S-Trincular, 80% of the light from the left optical path is directed to the camera port. The image can still be viewed through both eyepieces while the camera is in use.Focus & IlluminationFocus controls are both left and right hand side for convenience. An 80 LED ring light is included and may be upgraded to other lights when adding to cart.StandThe V7 articulating boom base weighs 57lbs yet folds into a 13 x 13" space when not in use. Well-balanced, stable with smooth, controlled movement, the arm's first link can be removed to achieve even greater stability. The pole stands 21" high and the spring-powered articulating arm has an effective horizontal extension of 35". A 76mm focus block is included. As with most Omano boom stands, a hanging bar is included that enables angled viewing positions. The hanging bar bracket is spring-loaded so that the lever can be moved out of the way without having to release the pre-set position of the microscope head. Also available with a U-clamp for attachment to a bench top. The clamp fits benches up to 2.5" thick.Microscope AccessoriesRing light, focus block, dust cover, manual, eyeguardsCamera AccessoriesAC Power adapter, Remote Control Keypad, Remote Image Capture Controller.Dimensions: Display - 11.0" x 7.0" x 0.5"; Camera - 2.0" x 2.0"; Combined Wt. - 3.0lbs.An upgrade to the old CX-3 microscope camera, the new CX-3-116 sports a larger 11.6" monitor with improved connections and use interface. It is better quality than the old HDMI 1080 in every respect with double the functional resolution, an expansive, 11.6"-inch display and an improved on screen menu system, all at the same price. The TFT-LCD display offers vivid resolution and exceptional off-angle viewing capability and with a standard C-mount, the new camera attaches to any standard trinocular microscope fitted with a C-mount adapter. FeaturesThe CX3 display finally brings a useful sized monitor to the world of industrial inspection, laboratories and schools. At 11.6", the display is a pleasure to use with good on screen controls and a remote control. A standard SD card slot allows you to conveniently transfer image files via SD card for later analysis and file-sharing on your PC. A particularly useful feature is a cross-hair generator that enables up to eight on-screen, cross-hairs in five different color options. Other features include auto white balance, RGB adjustment, auto and manual white balance and auto exposure.LVDS technology offers a number of key benefits to digital microscopy, including richer color definition, better signal integrity, greater bandwidth capacity, encryption protocols and high-definition video. The CX-3 showcases this technology in an affordable and versatile package for the biology classroom, industrial inspection line or clinical teaching laboratory.Microscope The OM2300ST zoom stereo trinocular microscope head has become our de facto, 'Go To' head for our industrial inspection customers. It has a solid design with crisp, clean optics beyond our expectations at this price level. The 7X-45X zoom range (6.4:1) is parfocal with dual diopters integrated into the oculars. Interpupillay adjustment range is 55mm-75mm. Standard working distance is 4.5" which increases to 6.5" with the addition of 0.5x auxiliary Barlow lens. Three alternative Barlows are available: 0.75x, 1.5x and 2.0x. WF10X eyepieces and eyeguards are included. NOTE: When the beam-splitter lever is engaged in the OM2300S-Trincular, 80% of the light from the left optical path is directed to the camera port. The image can still be viewed through both eyepieces while the camera is in use.Focus & IlluminationFocus controls are both left and right hand side for convenience. An 80 LED ring light is included and may be upgraded to other lights when adding to cart.StandThe V7 articulating boom base weighs 57lbs yet folds into a 13 x 13" space when not in use. Well-balanced, stable with smooth, controlled movement, the arm's first link can be removed to achieve even greater stability. The pole stands 21" high and the spring-powered articulating arm has an effective horizontal extension of 35". A 76mm focus block is included. As with most Omano boom stands, a hanging bar is included that enables angled viewing positions. The hanging bar bracket is spring-loaded so that the lever can be moved out of the way without having to release the pre-set position of the microscope head. Also available with a U-clamp for attachment to a bench top. The clamp fits benches up to 2.5" thick.Microscope AccessoriesRing light, focus block, dust cover, manual, eyeguardsCamera AccessoriesAC Power adapter, Remote Control Keypad, Remote Image Capture Controller.Dimensions: Display - 11.0" x 7.0" x 0.5"; Camera - 2.0" x 2.0"; Combined Wt. - 3.0lbs.An upgrade to the old CX-3 microscope camera, the new CX-3-116 sports a larger 11.6" monitor with improved connections and use interface. It is better quality than the old HDMI 1080 in every respect with double the functional resolution, an expansive, 11.6"-inch display and an improved on screen menu system, all at the same price. The TFT-LCD display offers vivid resolution and exceptional off-angle viewing capability and with a standard C-mount, the new camera attaches to any standard trinocular microscope fitted with a C-mount adapter. FeaturesThe CX3 display finally brings a useful sized monitor to the world of industrial inspection, laboratories and schools. At 11.6", the display is a pleasure to use with good on screen controls and a remote control. A standard SD card slot allows you to conveniently transfer image files via SD card for later analysis and file-sharing on your PC. A particularly useful feature is a cross-hair generator that enables up to eight on-screen, cross-hairs in five different color options. Other features include auto white balance, RGB adjustment, auto and manual white balance and auto exposure.LVDS technology offers a number of key benefits to digital microscopy, including richer color definition, better signal integrity, greater bandwidth capacity, encryption protocols and high-definition video. The CX-3 showcases this technology in an affordable and versatile package for the biology classroom, industrial inspection line or clinical teaching laboratory.Microscope The OM2300ST zoom stereo trinocular microscope head has become our de facto, 'Go To' head for our industrial inspection customers. It has a solid design with crisp, clean optics beyond our expectations at this price level. The 7X-45X zoom range (6.4:1) is parfocal with dual diopters integrated into the oculars. Interpupillay adjustment range is 55mm-75mm. Standard working distance is 4.5" which increases to 6.5" with the addition of 0.5x auxiliary Barlow lens. Three alternative Barlows are available: 0.75x, 1.5x and 2.0x. WF10X eyepieces and eyeguards are included. NOTE: When the beam-splitter lever is engaged in the OM2300S-Trincular, 80% of the light from the left optical path is directed to the camera port. The image can still be viewed through both eyepieces while the camera is in use.Focus & IlluminationFocus controls are both left and right hand side for convenience. An 80 LED ring light is included and may be upgraded to other lights when adding to cart.StandThe V7 articulating boom base weighs 57lbs yet folds into a 13 x 13" space when not in use. Well-balanced, stable with smooth, controlled movement, the arm's first link can be removed to achieve even greater stability. The pole stands 21" high and the spring-powered articulating arm has an effective horizontal extension of 35". A 76mm focus block is included. As with most Omano boom stands, a hanging bar is included that enables angled viewing positions. The hanging bar bracket is spring-loaded so that the lever can be moved out of the way without having to release the pre-set position of the microscope head. Also available with a U-clamp for attachment to a bench top. The clamp fits benches up to 2.5" thick.Microscope AccessoriesRing light, focus block, dust cover, manual, eyeguardsCamera AccessoriesAC Power adapter, Remote Control Keypad, Remote Image Capture Controller.Dimensions: Display - 11.0" x 7.0" x 0.5"; Camera - 2.0" x 2.0"; Combined Wt. - 3.0lbs.
    Feed - Custom Label 1 <100<100<100

  • Summit SK2-3.1X 3.1MP PC / MAC Compatible Digital Microscope Camera

    Summit SK2-5.2X 5.0MP PC / MAC Compatible Digital Microscope Camera

    Summit SK2-10X 10.0MP PC / MAC Compatible Digital Microscope Camera

    Summit SK2-14X 14.0MP PC / MAC Compatible Digital Microscope Camera

    OCS-HDMI-1080PU 2.0 MP PC / MAC 60 FPS Digital Microscope Camera

    OCS-HDMI-1 1080P 3.0 MP PC-Only 30 FPS Digital Microscope Camera
    General
    Brand OptixCamOptixCamOptixCamOptixCamOptixCamKoPa
    SKU OCS-SK2-3.1XOCS-SK2-5.2XOCS-SK2-10XOCS-SK2-14XOCS-HDMI-1080PUOCS-HDMI-1
    Warranty 1 Year1 Year1 Year1 Year1 Year1 Year
    Product Weight 2.00002.00002.00002.00002.00002.0000
    Sensor
    Sensor Type CMOSCMOSCMOSCMOSCMOSCMOS
    Sensor Size 1/2 Inch1/3 Inch1/3 Inch1/3 Inch1/2.5 Inch1/3 Inch
    Sensor Details Aptina MT9T001 CMOSAptina MT9P001 CMOSAPTINA MT9J003 CMOSAPTINA MT9F002 CMOSSONY IMX236Aptina AR0330 CMOS Sensor
    Color/Monochrome ColorColorColorColorColorColor
    Pixel Pitch 3.2 µm x 3.2 µm2.2 µm x 2.2 µm1.7 µm x 1.7 µm1.4 µm x 1.4 µm2.8um x 2.8um2.2um x 2.2um
    Sensor Color Depth 8bpp / 24bit RGB8bpp / 24bit RGB8bpp / 24bit RGB8bpp / 24bit RGB
    Scan Mode ProgressiveProgressiveProgressiveProgressiveProgressiveProgressive
    Signal to Noise Ratio 43 db40.5 db34 db35.5 db 39 dB
    Sensitivity 1.0V/Lux-sec (550nm)1.0V/Lux-sec (550nm)1.0V/Lux-sec (550nm)1.0V/Lux-sec (550nm) 1.4v/lux-sec(550nm)
    Dynamic Range 61db66.5db65.2db63.5db 69.5 dB
    A/D Conversion 12-bit Parallel, 8-bit RGB to PC12-bit Parallel, 8-bit RGB to PC12-bit Parallel, 8-bit R.G.B to PC12-bit Parallel, 8-bit R.G.B to PC 12-bit Parallel, 8-bit R.G.B
    Cooling System  NaturalNaturalNatural
    Shutter Electronic, Rolling ShutterElectronic, Rolling ShutterElectronic, Rolling ShutterElectronic, Rolling ShutterElectronic, Rolling ShutterElectronic, Rolling Shutter
    Camera
    Camera Mount C-Mount, Ocular MountC-Mount, Ocular MountC-Mount, Ocular MountC-Mount, Ocular MountC-MountC-Mount
    Resolution 3 Megapixel, 2048x1536 pixels5 Megapixel, 2592 X 1944 pixels10 Megapixel, 3584 X 2748 pixels14 Megapixel, 4096 x 3288 pixels2.0 megapixels2.0 megapixels
    Camera Output Resolutions 2048 x 1536; 1024 x 768; 680 x 5102592 X 1944; 1280 X 960; 640 X 4803584 X 2748; 1792 x 1374; 896 X 6844096 x 3288; 2048 x 1644; 1024 x 822 1920X1080i60,1920X1080P30,1280x720P60,640x480P60
    FPS @ Max Res 11.5@2048x1536; 32@1024x768; 45@680x5105fps @ 2592 X 19441.9fps @3584 x 27481.7fps @4096 x 328860 @ 1920 x 108030 Fps
    FPS @ Min Res 43fps @ 680 x 51060fps @ 640 X 48027fps @896 x 68427fps @1024 x 822 60 FPS
    Camera Interface USB 2.0USB 2.0USB 2.0USB 2.0USB 2.0, HDMISD Card, USB 2.0, HDMI
    White Balance Automatic, ManualAutomatic, ManualAutomatic, ManualAutomatic, ManualAutomatic, ManualAutomatic, Manual
    Software Included OptixCam K2ViewOptixCam K2ViewOptixCam K2ViewOptixCam K2View
    Driver API Compatibility DirectX, TWAINDirectX, TWAINDirectX, TWAINDirectX, TWAINDirectXDirectX
    Power Source USB PoweredUSB PoweredUSB PoweredUSB PoweredExternal Power SupplyExternal Power Supply
    File Formats BMP, JPEG, Own Proprietary, PNG, TGA, TIFFBMP, JPEG, Own Proprietary, PNG, TGA, TIFFBMP, JPEG, Own Proprietary, PNG, TGA, TIFFBMP, JPEG, Own Proprietary, PNG, TGA, TIFFBMPJPEG, MOV
    Exposure Control Automatic, ManualAutomatic, ManualAutomatic, ManualAutomatic, ManualAutomaticAutomatic, Manual
    Exposure Time 2000ms-0.128s2000ms-0.21s2000ms-0.21s0.4~2000ms, ROI Auto & Manual0.1ms - 999s0.21~33ms, Auto & Manual
    Operating Temperatures 10°C ~ 50°C10°C ~ 50°C10°C ~ 50°C10°C ~ 50°C20-60 Deg. C0℃~ 40℃
    Operating Humidity 30% ~ 80% RH30% ~ 80% RH30% ~ 80% RH30% ~ 80% RH30-80% RH30~80%RH
    Storage Temperature -20°C ~ 60°C-20°C ~ 60°C-20°C ~ 60°C-20°C ~ 60°C -20℃~ 60℃
    Other Details
    Included Accessories 0.5X 23mm DIN Adapter, Software CD0.5X 23mm DIN Adapter, Software CD0.5X 23mm DIN Adapter, Software CD0.5X 23mm DIN Adapter, Software CD
    Supported Operating Systems Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.7+Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.7+Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.7+Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.7+Windows 10, Windows 8, Windows 7, Windows Vista, Mac OSX 10.4+N/A, Windows 10, Windows 8, Windows 7
    System Requirements 2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended
    Certifications CE, ULCE, ULCE, ULCE, ULCECE
    Cable Length 1.8m (8ft)1.8m (8ft)1.8m (8ft)1.8m (8ft)2.5m (8ft)2.5m (8ft)
    Camera Warranty 1 Year1 Year1 Year1 Year1 Year
    Software Support 6 Months6 Months6 Months6 Months6 Months6 Months
    Compatibility
    Imaging Compatibility (with adapters) 23mm , C-Mount23mm , C-Mount23mm , C-Mount23mm , C-MountC-MountC-Mount

  • C-Mount Adapter 0.5X for Omano OM99-T
    General
    Brand Omano
    SKU OMCM-99-05X
    Warranty Omano Limited Lifetime Warranty
    Notes Does not fit Binocular
    Feed - Title Omano C-Mount Adapter 0.5X for OM99-T
    Feed - Description The new KoPa AIR camera offers both WiFi and USB live image output with up to 5.0 megapixel USB resolution, and live (40 FPS) streaming WiFi at 1280 x 960 resolution. The camera has a full suite of auto and manual controls in the USB software as well as the free, downloadable KoPa Vision App. The camera works well in USB mode, and really excels in its WiFi capability.Controls & OperationOn-camera control consists of a switch on the back (Off / USB / WiFi) which places the unit into USB or WiFi mode. After downloading the App, simply connect your mobile device to the Kopa network in the WiFi settings on your device.USB output operates via a user-friendly, Windows-only software suite that includes measuring software among a host of other features. The refresh rate ranges from 15fps at 2592 x 1944 (maximum resolution) to 40fps at 1280 x 960.The camera features a standard C-mount interface to fit any microscope with a C-mount adapter. In addition, the camera has a tripod mount on the base, allowing for use as a stand-alone imaging device (with a C-mount standard macro or zoom lens fitted). As a major upgrade over the C500W, the KoPa AIR camera also features a 5000mAh lithium Ion battery, capable of operating 8 hours on a full charge.Kopa Cam SoftwareThe software offers a comprehensive range of features including measuring software, drawing tools and annotation. Adjustable parameters include white balance, exposure, saturation, brightness, contrast, sharpness and backlight compensation among others. The App has simple touch screen buttons with both still and video capability as in USB mode. Image format include: jpg, png, bmp and pdf. NOTE: This software is not MAC compatible.MicroscopeThe Omano OM99 is the top of the range of Omano zoom stereo microscope that compares favorably with its Olympus cousin. Featuring 6.5x-45x parfocal magnification, it is built round six prisms and, in our opinion, is the best quality stereo microscope out of China. The two Super Wide Field SWF10X eyepieces enable window pane viewing for less eye strain and include rubber eyecups. Dual diopters are integrated into the eye tubes for individual eye adjustment. and interpupillary adjustment range is 55mm-75mm. NOTE: When the photo-prism lever is engaged in the OM99-Trincular, 100% of the light from the left optical path is directed to the camera port. The image can still be viewed through the right eyepiece. The package also includes a 0.5x C-mount adapter and a 76mm focus ring offering a working distance of 3 3/4" which increases to over 6" with the addition of a 0.5x auxiliary Barlow lens. Optional Barlow lenses include 0.3x, 0.4x, 0.5x, 0.75x, 1.0x and 2.0x.StandThe Omano V3 pole stand's ergonomic design includes beveled leading edges for operator comfort. It features a tall, 12" vertical pole for extended working distances and a 12" x 12" base with rubber feet to protect your working surface. A safety collar and black/white contrast plate is also included. We also offer a focus block with two different movements, a standard coarse focusing movement, and a coarse / fine focusing movement. IlluminationWe offer our standard array of LED ring lights (OMLED-80A shown) or a high quality 4.5W LED ring light or a coaxial 3W LED spotlight. The included ring light has 80 LEDs with an auto-switching 90-264V power supply, 13000 Lux and 6400k color temperature. PLEASE NOTE that when ordering the coaxial light option, you will also need the coaxial adapter.Camera AccessoriesWiFi camera, 0.5X C-mount adapter, 30.0mm & 30.5mm collars, USB cable, software CD, padded storage case. Camera dimensions: 60mm diameter, 70mm height, 0.41 Lbs. Case dimensions: 9" wide, 8" deep, 6" tall. weight - 2.0 Lbs.Microscope AccessoriesAccessories include the Omano OM99-T Trinocular Microscope, 80 LED Ring illuminator, focus block, 0.5X C-mount adapter, V3 stand. details: 20 x 13 x 10", 12 Lb.
    Feed - Custom Label 1 100-500
    Compatible With OM99T

  • 1690 Pelican Composite Microscope Case - Transport
    SKU PC1690
    Feed - Title 1690 Pelican Composite Microscope Case - Transport
    Feed - Description The Meiji EMZ8TR-S4200 is a combination of Meiji's best-selling EMZ-8TR zoom stereo trinocular microscope head and the Meiji S4200 boom stand. It is the most popular Meiji industrial inspection microscope system. Available in binocular or trinocular with choice of eyepieces. Limited Lifetime Warranty.Microscope Head TThe EMZ-8TR is Meiji's most popular trinocular zoom stereo microscope head. It is to trinocular what the EMZ-5 is to binocular. A good quality workhorse for industry ad education that can be relied on to last a lifetime with zero defects. The parfocal zoom range is 7x-45x (10x eyepieces) with dual-sided zoom controls. The field of view is 32mm-5.1mm with 10x eyepieces and the standard working distance is marginally longer then the EMZ5 at 104mm. The head is inclined 45
    Feed - Custom Label 1 100-500
    Compatibility
    Compatible With OM88, OM88T
Magnification Chart

Eyepiece

Standard Configuration

Omano OM99

Auxiliary Barlow Lens

0.4X

0.5X

0.75X

2.0X

Working distance 100mm

Working distance 298mm

Working distance 163mm

Working distance 117mm

Working distance 40mm

Magnification

Field of view
mm

Magnification

Field of view
mm

Magnification

Field of view
mm

Magnification

Field of view
mm

Magnification FIeld of view
mm

10X

6.5x-45x

33.8 - 4.9

2.6-18.0x

67.7-9.8

3.3x-22.5x

67.7-9.8

4.9x-33.8x

45.1-6.5

13x-90x 16.9-2.5

15X

9.8x-67.5x

24.6-3.5

3.9-27.0x

49.2-7.0

4.9x-33.8x

49.2-7.0

7.3x-50.6x

32.8-4.7

19.5x-135x  12.3-1.8

20X

13x-90x

20.0-2.9

5.2-36.0x

40.5-5.8

6.5x-45x

40.5-5.8

9.75x-67.5x

26.6-3.8

26x-180x 10.0-1.4

 25x

 16.3x-112.5x 18.5-2.6  6.5-45.0x 37.0-5.2  8.1x-56.3x

37.0-5.2 12.2x-84.4x 24.6-3.5

32.5x-225x  9.2-1.3
