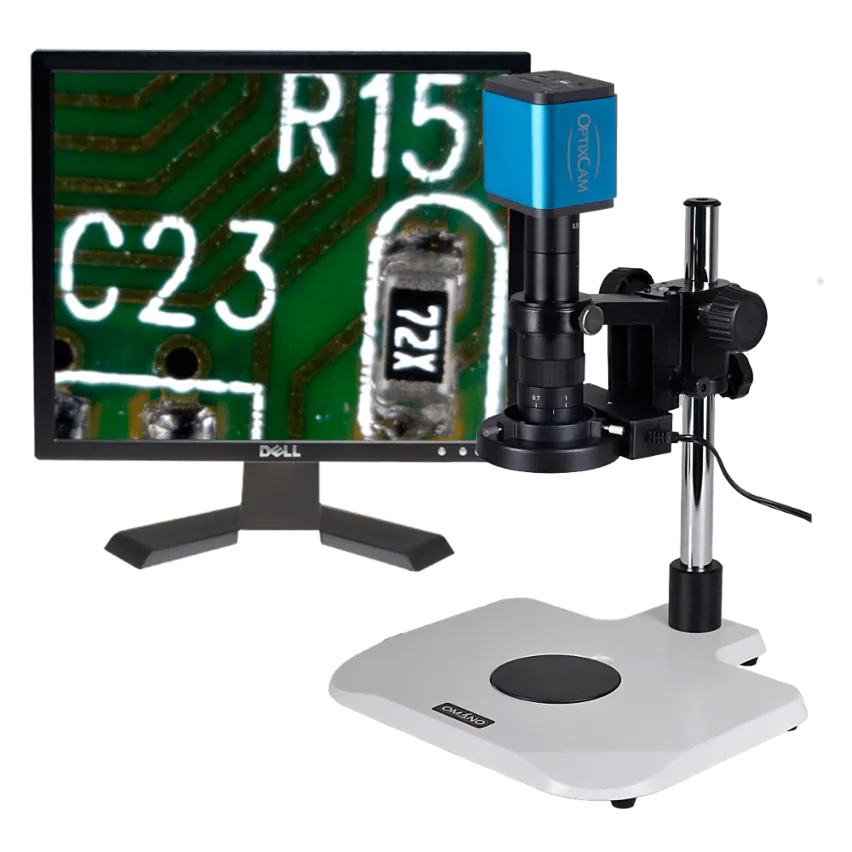

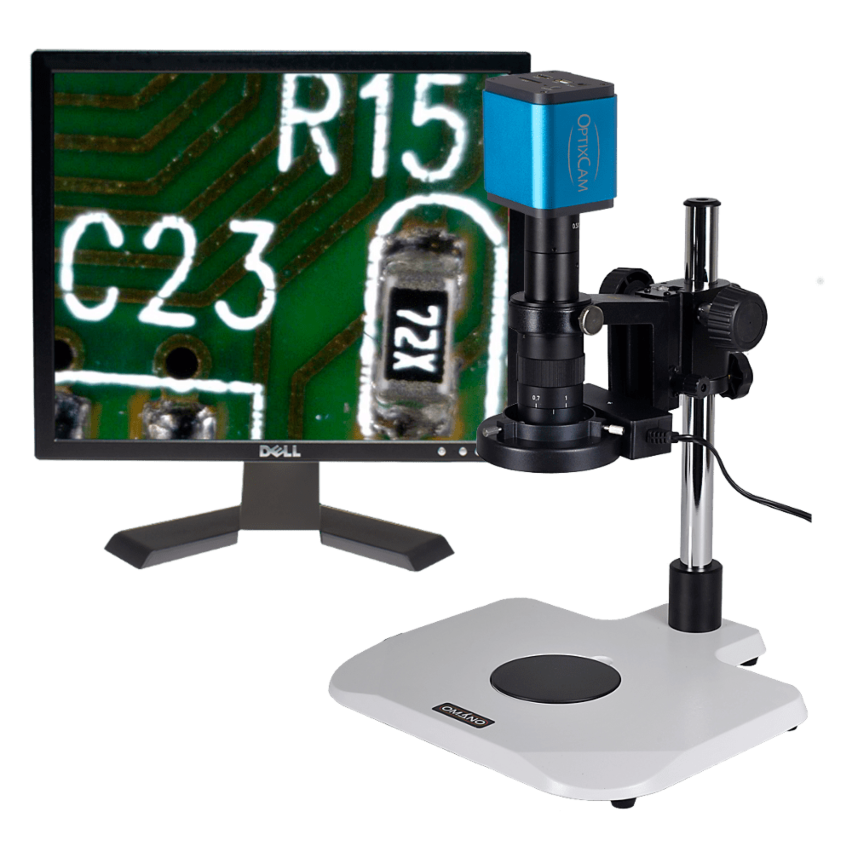

Omano HDMI-1080PU-V3 Video Inspection System

$ 1087.00

List Price: $1,535.00

Starting at: $1,087.00

SKU: HDMI-1080PU-V3

Availability: In stock

  • High definition 1080P HDMI and USB2.0 output (PC or MAC)
  • Streaming HDMI output direct to monitor or TV at 60 fps
  • HDMI and USB2.0 capture resolution of 2.0MP
  • 7x-45x zoom microscope with clickstops
  • Ergonomic base with stainless steel pole
  • Accessories: 80 LED ring light, 0.5x Barlow lens
  • Monitor not included

Price as configured: $0.00

Select package options

Click on to learn more about the option * signifies required items

OCS-HDMI-1080PU 2.0 MP PC / MAC 60 FPS Digital Microscope Camera   $659.00
OM10K Zoom Microscope Lens   $219.00
V3 Pole Stand   $130.00
  • $75.00
  • $75.00
  • $75.00

Included in Bundle

HDMI Camera: OCS-HDMI-1080PU 2.0 MP PC / MAC 60 FPS Digital Microscope Camera

Microscope Head: OM10K Zoom Microscope Lens

Stand: V3 Pole Stand

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

  • OCS-HDMI-1080PU-V3 Video Inspection System
  • OCS-HDMI-1080PU-VIS Video Inspection System 1
  • OCS-HDMI-1080PU-VIS Video Inspection System 2
  • OCS-HDMI-1080PU-VIS Video Inspection System 3
Description

Summary

This industrial microscope inspection system combines the vivid, high-speed response of the new 1080PU series HDMI & USB2.0 digital microscope camera with our brand new Omano VIDZ-650 6X-50X zoom inspection lens and your choice of seven different Omano boom stands.

The new Optixcam OCS-HDMI-1080PU brings simultaneous HDMI and USB2.0 output to professionals who require high-definition CMOS color microscopy documentation. Like its HDMI-output cousin (NH1080P), the 1080PU is an industrial-designed, stand-alone imaging solution offering 2.0MP still capture to an SD card or USB2.0 output, and 1080p video preview resolution with superb color reproduction and real-time frame rates of 60 fps via HDMI, or 30 fps via USB2.0 or SD card output.

Camera Features

HDMI (High-Definition Multimedia Interface) technology brings a number of key benefits to digital microscopy, including richer color definition, better signal integrity, greater bandwidth capacity, encryption protocols and high-definition video. The OCS-HDMI-1080PU offers this technology in an affordable and versatile package for the biology classroom, industrial inspection line or clinical teaching laboratory. The camera offers direct streaming to an HDMI monitor without the complexity of computer software, making it an ideal imaging solution for fast-paced industrial environments and assembly line inspection stations.

Mounting & Controls

The OCS-HDMI-1080PU is specifically designed to enhance the Omano line of stereo inspection systems, with a robust metal housing, C/CS Mount and two useful tripod screw attachment points. Improved functionality includes on-screen controls with intuitive, menu-driven buttons for RGB adjustment, White Balance, red and green cross-hair cursor symbology and Auto Exposure. Note: The SK2-CA037X camera adapter will be needed when mounting the NH1080 camera to any microscope with a smooth bore 23mm optical tube.

Processing & Output

The camera has fast white balance correction for excellent color reproduction and a 2.0MP maximum output resolution of 1920 x 1080 in BMP format. With 60 FPS live HDMI response rate, the OCS-HDMI-1080PU quickly reacts to changing lighting conditions in any life science, clinical or material application, sending a sharp video output to an HDMI monitor.

For researchers needing in-depth image analysis, the camera also offers traditional USB2.0 output to a pc or mac operating environment for a host of processing options including 2-dimensional measurement, image stitching, extended depth of focus, segmentation, stacking and color composition. A tethered cable enables remote capture of still images to an SD card, sold separately.

Microscope Features

The Omano OM10K zoom microscope provides 7x-45x zoom range with coarse/fine focus and click stops that enable the operator to dial in the exact same level of magnification for different specimens for easy comparison. Each microscope also includes a 0.5x Barlow lens which enables maximum working distance of 6.75".

Microscope Stand

The Omano V3 pole stand's ergonomic design includes beveled leading edges for operator comfort. It features a tall, 12" vertical pole for extended working distances and a 12" x 12" base with rubber feet to protect your worktop. A safety collar and black/white contrast plate is also included.

Camera Accessories

Accessories include USB mouse, HDMI cable, USB2.0 cable, AC power supply, Software CD with manual and SDK. Camera dimensions: 3 x 2.75 X 3.6". Shipping dimensions: 10 X 6 X 3", 2 LBs.

Microscope Accessories

Accessories include OM10K zoom lens, 80LED Ring illuminator, focus block, V3 stand. Shipping details: 20 x 13 x 10", 12 Lb.
Specifications

Specifications of Component Options

Select a component below to view related specifications.

  • OCS-HDMI-1080PU 2.0 MP PC / MAC 60 FPS Digital Microscope Camera
    General
    Brand OptixCam
    SKU OCS-HDMI-1080PU
    Warranty 1 Year
    Product Weight 2.0000
    Sensor
    Sensor Type CMOS
    Sensor Size 1/2.5 Inch
    Sensor Details SONY IMX236
    Color/Monochrome Color
    Pixel Pitch 2.8um x 2.8um
    Scan Mode Progressive
    Shutter Electronic, Rolling Shutter
    Camera
    Camera Mount C-Mount
    Resolution 2.0 megapixels
    FPS @ Max Res 60 @ 1920 x 1080
    Camera Interface USB 2.0, HDMI
    White Balance Automatic, Manual
    Driver API Compatibility DirectX
    Power Source External Power Supply
    File Formats BMP
    Exposure Control Automatic
    Exposure Time 0.1ms - 999s
    Operating Temperatures 20-60 Deg. C
    Operating Humidity 30-80% RH
    Supported Operating Systems Windows 10, Windows 8, Windows 7, Windows Vista, Mac OSX 10.4+
    System Requirements 2GB RAM Recommended, 2Ghz+ CPU Recommended, USB 2.0 High Speed Port
    Certifications CE
    Cable Length 2.5m (8ft)
    Camera Warranty 1 Year
    Software Support 6 Months
    Compatibility
    Imaging Compatibility (with adapters) C-Mount

  • OM10K Zoom Microscope Lens
    General
    Brand Omano
    SKU OM10K
    Feed - Title Omano OM10K Zoom Microscope Lens
    Feed - Description The new Optixcam OCS-SK2-HDMI-7 high-definition CMOS color microscopy camera is a professionally-designed, stand-alone imaging solution offering sharp, 1280 x 720 resolution images or video @ 30Fps in a cost-effective package. The camera offers direct streaming to an HDMI monitor without the complexity of computer software, making it an ideal imaging solution for fast-paced industrial environments and technical training classrooms.FeaturesHDMI (High-Definition Multimedia Interface) technology brings a number of key benefits to digital microscopy, including richer color definition, better signal integrity, greater bandwidth capacity, encryption protocols and high-definition video. The OCS-SK2-HDMI-7 offers this technology in an affordable and versatile package for the PCB auditor, industrial inspection line or clinical teaching laboratory. Mounting & ControlsThe SK2-HDMI-7 is specifically designed to enhance the Omano line of stereo inspection systems, with a robust metal housing, C/CS Mount and a useful tripod screw attachment point. Improved functionality includes on-camera controls with intuitive, menu-driven buttons for cursor control, image save (to optional SD card), video freeze and Auto White Balance on/off. The cursor button will toggle between 5 different patterns including parallel vertical, horizontal, grid and cross-hair pointer. The camera features a standard C-mount which will accept any standard c-mount adapter. The optional 0.37X reducing adapters shown above will mate with any 23mm smooth bore microscope eyeport or trinocular tube. Processing & OutputThe camera has fast white balance correction for excellent color reproduction and an output resolution of 1280 x 720 in format. With 30 FPS live response rate, the OCS-SK2-HDMI-7 quickly reacts to changing lighting conditions in any life science, clinical or material application, sending a sharp video output to an HDMI monitor. An SD card memory slot offers additional storage capacity (SD card not included)..MicroscopeThe Omano OM10K zoom microscope provides 7x-45x zoom range with coarse/fine focus and click stops that enable the operator to dial in the exact same level of magnification for different specimens for easy comparison. Each microscope includes a 0.5x Barlow lens which enables maximum working distance of 6.75". An 80 LED ring light is included. Optional illumination upgrades include dual pipe LED or 64 and 144 LED ring illumination systems.StandThe Omano V3 pole stand's ergonomic design includes beveled leading edges for operator comfort. It features a tall, 12" vertical pole for extended working distances and a 12" x 12" base with rubber feet to protect your worktop. A safety collar and black/white contrast plate is also included.Camera AccessoriesAccessories include power supply, remote control, HDMI cable. Microscope AccessoriesIncluded 80 LED fluorescent ring light. Please note: Monitor not included.
    Feed - Custom Label 1 100-500
    Head
    Head Type Digital Only
    Magnification Type Zoom
    Ocular Angle Vertical
    Trinocular Standard C-mount
    Trinocular Tube Focusable? Yes
    Head Rotation 360 Degrees
    Minimum Objective (X) 0.7
    Maximum Objective (X) 4.5
    Zoom Ratio 6.4:1
    Zoom Control Type Detent Click-Stops
    Zoom Indicator Graduations Yes
    Parfocal Yes
    Includes Barlow? Yes
    Included Barlow (X) 0.5X
    Eyecups Style Soft Rubber
    Body
    Body Material All-Metal
    Compatibility
    Imaging Compatibility (with adapters) C-Mount
    Head Ring Mount Diameter 50 mm
    Max Working Distance (standard) 55mm
    WD with 0.5x Barlow 90mm
    WD with 2.0x Barlow 30 mm

  • V3 Pole Stand
    General
    Brand Omano
    SKU V3t
    Stand
    Stand Class Pedestal
    Stand Type Pole
    Stand Features Beveled Base
    Stage Plate Black/White Contrast Plate
    Base Width 318 mm
    Base Depth 305 mm
    Post Height 345 mm
    Post Diameter 25 mm
    If FB Mounts Direct
    Focus Block Mount Diameter 25 mm

  • 64 LED Ring Light, Variable Intensity by Section

    80 LED Ring Light, Variable Intensity

    144 LED Ring Light, Variable Intensity by Section

    3W LED Dual Gooseneck Spot Light

    120 LED Diffused Dome Ring Light - ESD SAFE
    General
    Brand  Omano Omano
    SKU OMLED-64AOMLED-80AOMLED-144AOMLED-SPOTOMLED-6WDRL
    Warranty  1 year 1 year
    Product Weight  1lb 3.1 lbs
    Product Length  16 cm
    Product Width  10 cm
    Product Height  8 cm
    Power Supply  90V-265V
    Backorder ETA Jun 29, 2018Jun 6, 2018  Jan 10, 2017
    Feed - Title 64 LED Ring Light, Variable Intensity by SectionOmano 80 LED Ring Light, Variable Intensity144 LED Ring Light, Variable Intensity by SectionOmano 3W LED Dual Gooseneck Spot Light120 LED Diffused Dome Ring Light - ESD SAFE
    Feed - Description The new KoPa AIR camera offers both WiFi and USB live image output with up to 5.0 megapixel USB resolution, and live (40 FPS) streaming WiFi at 1280 x 960 resolution. The camera has a full suite of auto and manual controls in the USB software as well as the free, downloadable KoPa Vision App. The camera works well in USB mode, and really excels in its WiFi capability.Controls & OperationOn-camera control consists of a switch on the back (Off / USB / WiFi) which places the unit into USB or WiFi mode. After downloading the App, simply connect your mobile device to the Kopa network in the WiFi settings on your device.USB output operates via a user-friendly, Windows-only software suite that includes measuring software among a host of other features. The refresh rate ranges from 15fps at 2592 x 1944 (maximum resolution) to 40fps at 1280 x 960.The camera features a standard C-mount interface to fit any microscope with a C-mount adapter. In addition, the camera has a tripod mount on the base, allowing for use as a stand-alone imaging device (with a C-mount standard macro or zoom lens fitted). As a major upgrade over the C500W, the KoPa AIR camera also features a 5000mAh lithium Ion battery, capable of operating 8 hours on a full charge.Kopa Cam SoftwareThe software offers a comprehensive range of features including measuring software, drawing tools and annotation. Adjustable parameters include white balance, exposure, saturation, brightness, contrast, sharpness and backlight compensation among others. The App has simple touch screen buttons with both still and video capability as in USB mode. Image format include: jpg, png, bmp and pdf. NOTE: This software is not MAC compatible.MicroscopeThe Omano OM99 is the top of the range of Omano zoom stereo microscope that compares favorably with its Olympus cousin. Featuring 6.5x-45x parfocal magnification, it is built round six prisms and, in our opinion, is the best quality stereo microscope out of China. The two Super Wide Field SWF10X eyepieces enable window pane viewing for less eye strain and include rubber eyecups. Dual diopters are integrated into the eye tubes for individual eye adjustment. and interpupillary adjustment range is 55mm-75mm. NOTE: When the photo-prism lever is engaged in the OM99-Trincular, 100% of the light from the left optical path is directed to the camera port. The image can still be viewed through the right eyepiece. The package also includes a 0.5x C-mount adapter and a 76mm focus ring offering a working distance of 3 3/4" which increases to over 6" with the addition of a 0.5x auxiliary Barlow lens. Optional Barlow lenses include 0.3x, 0.4x, 0.5x, 0.75x, 1.0x and 2.0x.StandThe Omano V3 pole stand's ergonomic design includes beveled leading edges for operator comfort. It features a tall, 12" vertical pole for extended working distances and a 12" x 12" base with rubber feet to protect your working surface. A safety collar and black/white contrast plate is also included. We also offer a focus block with two different movements, a standard coarse focusing movement, and a coarse / fine focusing movement. IlluminationWe offer our standard array of LED ring lights (OMLED-80A shown) or a high quality 4.5W LED ring light or a coaxial 3W LED spotlight. The included ring light has 80 LEDs with an auto-switching 90-264V power supply, 13000 Lux and 6400k color temperature. PLEASE NOTE that when ordering the coaxial light option, you will also need the coaxial adapter.Camera AccessoriesWiFi camera, 0.5X C-mount adapter, 30.0mm & 30.5mm collars, USB cable, software CD, padded storage case. Camera dimensions: 60mm diameter, 70mm height, 0.41 Lbs. Case dimensions: 9" wide, 8" deep, 6" tall. weight - 2.0 Lbs.Microscope AccessoriesAccessories include the Omano OM99-T Trinocular Microscope, 80 LED Ring illuminator, focus block, 0.5X C-mount adapter, V3 stand. details: 20 x 13 x 10", 12 Lb.The new KoPa AIR camera offers both WiFi and USB live image output with up to 5.0 megapixel USB resolution, and live (40 FPS) streaming WiFi at 1280 x 960 resolution. The camera has a full suite of auto and manual controls in the USB software as well as the free, downloadable KoPa Vision App. The camera works well in USB mode, and really excels in its WiFi capability.Controls & OperationOn-camera control consists of a switch on the back (Off / USB / WiFi) which places the unit into USB or WiFi mode. After downloading the App, simply connect your mobile device to the Kopa network in the WiFi settings on your device.USB output operates via a user-friendly, Windows-only software suite that includes measuring software among a host of other features. The refresh rate ranges from 15fps at 2592 x 1944 (maximum resolution) to 40fps at 1280 x 960.The camera features a standard C-mount interface to fit any microscope with a C-mount adapter. In addition, the camera has a tripod mount on the base, allowing for use as a stand-alone imaging device (with a C-mount standard macro or zoom lens fitted). As a major upgrade over the C500W, the KoPa AIR camera also features a 5000mAh lithium Ion battery, capable of operating 8 hours on a full charge.Kopa Cam SoftwareThe software offers a comprehensive range of features including measuring software, drawing tools and annotation. Adjustable parameters include white balance, exposure, saturation, brightness, contrast, sharpness and backlight compensation among others. The App has simple touch screen buttons with both still and video capability as in USB mode. Image format include: jpg, png, bmp and pdf. NOTE: This software is not MAC compatible.MicroscopeThe Omano OM99 is the top of the range of Omano zoom stereo microscope that compares favorably with its Olympus cousin. Featuring 6.5x-45x parfocal magnification, it is built round six prisms and, in our opinion, is the best quality stereo microscope out of China. The two Super Wide Field SWF10X eyepieces enable window pane viewing for less eye strain and include rubber eyecups. Dual diopters are integrated into the eye tubes for individual eye adjustment. and interpupillary adjustment range is 55mm-75mm. NOTE: When the photo-prism lever is engaged in the OM99-Trincular, 100% of the light from the left optical path is directed to the camera port. The image can still be viewed through the right eyepiece. The package also includes a 0.5x C-mount adapter and a 76mm focus ring offering a working distance of 3 3/4" which increases to over 6" with the addition of a 0.5x auxiliary Barlow lens. Optional Barlow lenses include 0.3x, 0.4x, 0.5x, 0.75x, 1.0x and 2.0x.StandThe Omano V3 pole stand's ergonomic design includes beveled leading edges for operator comfort. It features a tall, 12" vertical pole for extended working distances and a 12" x 12" base with rubber feet to protect your working surface. A safety collar and black/white contrast plate is also included. We also offer a focus block with two different movements, a standard coarse focusing movement, and a coarse / fine focusing movement. IlluminationWe offer our standard array of LED ring lights (OMLED-80A shown) or a high quality 4.5W LED ring light or a coaxial 3W LED spotlight. The included ring light has 80 LEDs with an auto-switching 90-264V power supply, 13000 Lux and 6400k color temperature. PLEASE NOTE that when ordering the coaxial light option, you will also need the coaxial adapter.Camera AccessoriesWiFi camera, 0.5X C-mount adapter, 30.0mm & 30.5mm collars, USB cable, software CD, padded storage case. Camera dimensions: 60mm diameter, 70mm height, 0.41 Lbs. Case dimensions: 9" wide, 8" deep, 6" tall. weight - 2.0 Lbs.Microscope AccessoriesAccessories include the Omano OM99-T Trinocular Microscope, 80 LED Ring illuminator, focus block, 0.5X C-mount adapter, V3 stand. details: 20 x 13 x 10", 12 Lb.The new KoPa AIR camera offers both WiFi and USB live image output with up to 5.0 megapixel USB resolution, and live (40 FPS) streaming WiFi at 1280 x 960 resolution. The camera has a full suite of auto and manual controls in the USB software as well as the free, downloadable KoPa Vision App. The camera works well in USB mode, and really excels in its WiFi capability.Controls & OperationOn-camera control consists of a switch on the back (Off / USB / WiFi) which places the unit into USB or WiFi mode. After downloading the App, simply connect your mobile device to the Kopa network in the WiFi settings on your device.USB output operates via a user-friendly, Windows-only software suite that includes measuring software among a host of other features. The refresh rate ranges from 15fps at 2592 x 1944 (maximum resolution) to 40fps at 1280 x 960.The camera features a standard C-mount interface to fit any microscope with a C-mount adapter. In addition, the camera has a tripod mount on the base, allowing for use as a stand-alone imaging device (with a C-mount standard macro or zoom lens fitted). As a major upgrade over the C500W, the KoPa AIR camera also features a 5000mAh lithium Ion battery, capable of operating 8 hours on a full charge.Kopa Cam SoftwareThe software offers a comprehensive range of features including measuring software, drawing tools and annotation. Adjustable parameters include white balance, exposure, saturation, brightness, contrast, sharpness and backlight compensation among others. The App has simple touch screen buttons with both still and video capability as in USB mode. Image format include: jpg, png, bmp and pdf. NOTE: This software is not MAC compatible.MicroscopeThe Omano OM99 is the top of the range of Omano zoom stereo microscope that compares favorably with its Olympus cousin. Featuring 6.5x-45x parfocal magnification, it is built round six prisms and, in our opinion, is the best quality stereo microscope out of China. The two Super Wide Field SWF10X eyepieces enable window pane viewing for less eye strain and include rubber eyecups. Dual diopters are integrated into the eye tubes for individual eye adjustment. and interpupillary adjustment range is 55mm-75mm. NOTE: When the photo-prism lever is engaged in the OM99-Trincular, 100% of the light from the left optical path is directed to the camera port. The image can still be viewed through the right eyepiece. The package also includes a 0.5x C-mount adapter and a 76mm focus ring offering a working distance of 3 3/4" which increases to over 6" with the addition of a 0.5x auxiliary Barlow lens. Optional Barlow lenses include 0.3x, 0.4x, 0.5x, 0.75x, 1.0x and 2.0x.StandThe Omano V3 pole stand's ergonomic design includes beveled leading edges for operator comfort. It features a tall, 12" vertical pole for extended working distances and a 12" x 12" base with rubber feet to protect your working surface. A safety collar and black/white contrast plate is also included. We also offer a focus block with two different movements, a standard coarse focusing movement, and a coarse / fine focusing movement. IlluminationWe offer our standard array of LED ring lights (OMLED-80A shown) or a high quality 4.5W LED ring light or a coaxial 3W LED spotlight. The included ring light has 80 LEDs with an auto-switching 90-264V power supply, 13000 Lux and 6400k color temperature. PLEASE NOTE that when ordering the coaxial light option, you will also need the coaxial adapter.Camera AccessoriesWiFi camera, 0.5X C-mount adapter, 30.0mm & 30.5mm collars, USB cable, software CD, padded storage case. Camera dimensions: 60mm diameter, 70mm height, 0.41 Lbs. Case dimensions: 9" wide, 8" deep, 6" tall. weight - 2.0 Lbs.Microscope AccessoriesAccessories include the Omano OM99-T Trinocular Microscope, 80 LED Ring illuminator, focus block, 0.5X C-mount adapter, V3 stand. details: 20 x 13 x 10", 12 Lb.The new KoPa AIR camera offers both WiFi and USB live image output with up to 5.0 megapixel USB resolution, and live (40 FPS) streaming WiFi at 1280 x 960 resolution. The camera has a full suite of auto and manual controls in the USB software as well as the free, downloadable KoPa Vision App. The camera works well in USB mode, and really excels in its WiFi capability.Controls & OperationOn-camera control consists of a switch on the back (Off / USB / WiFi) which places the unit into USB or WiFi mode. After downloading the App, simply connect your mobile device to the Kopa network in the WiFi settings on your device.USB output operates via a user-friendly, Windows-only software suite that includes measuring software among a host of other features. The refresh rate ranges from 15fps at 2592 x 1944 (maximum resolution) to 40fps at 1280 x 960.The camera features a standard C-mount interface to fit any microscope with a C-mount adapter. In addition, the camera has a tripod mount on the base, allowing for use as a stand-alone imaging device (with a C-mount standard macro or zoom lens fitted). As a major upgrade over the C500W, the KoPa AIR camera also features a 5000mAh lithium Ion battery, capable of operating 8 hours on a full charge.Kopa Cam SoftwareThe software offers a comprehensive range of features including measuring software, drawing tools and annotation. Adjustable parameters include white balance, exposure, saturation, brightness, contrast, sharpness and backlight compensation among others. The App has simple touch screen buttons with both still and video capability as in USB mode. Image format include: jpg, png, bmp and pdf. NOTE: This software is not MAC compatible.MicroscopeThe Omano OM99 is the top of the range of Omano zoom stereo microscope that compares favorably with its Olympus cousin. Featuring 6.5x-45x parfocal magnification, it is built round six prisms and, in our opinion, is the best quality stereo microscope out of China. The two Super Wide Field SWF10X eyepieces enable window pane viewing for less eye strain and include rubber eyecups. Dual diopters are integrated into the eye tubes for individual eye adjustment. and interpupillary adjustment range is 55mm-75mm. NOTE: When the photo-prism lever is engaged in the OM99-Trincular, 100% of the light from the left optical path is directed to the camera port. The image can still be viewed through the right eyepiece. The package also includes a 0.5x C-mount adapter and a 76mm focus ring offering a working distance of 3 3/4" which increases to over 6" with the addition of a 0.5x auxiliary Barlow lens. Optional Barlow lenses include 0.3x, 0.4x, 0.5x, 0.75x, 1.0x and 2.0x.StandThe Omano V3 pole stand's ergonomic design includes beveled leading edges for operator comfort. It features a tall, 12" vertical pole for extended working distances and a 12" x 12" base with rubber feet to protect your working surface. A safety collar and black/white contrast plate is also included. We also offer a focus block with two different movements, a standard coarse focusing movement, and a coarse / fine focusing movement. IlluminationWe offer our standard array of LED ring lights (OMLED-80A shown) or a high quality 4.5W LED ring light or a coaxial 3W LED spotlight. The included ring light has 80 LEDs with an auto-switching 90-264V power supply, 13000 Lux and 6400k color temperature. PLEASE NOTE that when ordering the coaxial light option, you will also need the coaxial adapter.Camera AccessoriesWiFi camera, 0.5X C-mount adapter, 30.0mm & 30.5mm collars, USB cable, software CD, padded storage case. Camera dimensions: 60mm diameter, 70mm height, 0.41 Lbs. Case dimensions: 9" wide, 8" deep, 6" tall. weight - 2.0 Lbs.Microscope AccessoriesAccessories include the Omano OM99-T Trinocular Microscope, 80 LED Ring illuminator, focus block, 0.5X C-mount adapter, V3 stand. details: 20 x 13 x 10", 12 Lb.The new Optixcam OCS-SK2-HDMI-7 high-definition CMOS color microscopy camera is a professionally-designed, stand-alone imaging solution offering sharp, 1280 x 720 resolution images or video @ 30Fps in a cost-effective package. The camera offers direct streaming to an HDMI monitor without the complexity of computer software, making it an ideal imaging solution for fast-paced industrial environments and technical training classrooms.FeaturesHDMI (High-Definition Multimedia Interface) technology brings a number of key benefits to digital microscopy, including richer color definition, better signal integrity, greater bandwidth capacity, encryption protocols and high-definition video. The OCS-SK2-HDMI-7 offers this technology in an affordable and versatile package for the PCB auditor, industrial inspection line or clinical teaching laboratory. Mounting & ControlsThe SK2-HDMI-7 is specifically designed to enhance the Omano line of stereo inspection systems, with a robust metal housing, C/CS Mount and a useful tripod screw attachment point. Improved functionality includes on-camera controls with intuitive, menu-driven buttons for cursor control, image save (to optional SD card), video freeze and Auto White Balance on/off. The cursor button will toggle between 5 different patterns including parallel vertical, horizontal, grid and cross-hair pointer. The camera features a standard C-mount which will accept any standard c-mount adapter. The optional 0.37X reducing adapters shown above will mate with any 23mm smooth bore microscope eyeport or trinocular tube. Processing & OutputThe camera has fast white balance correction for excellent color reproduction and an output resolution of 1280 x 720 in format. With 30 FPS live response rate, the OCS-SK2-HDMI-7 quickly reacts to changing lighting conditions in any life science, clinical or material application, sending a sharp video output to an HDMI monitor. An SD card memory slot offers additional storage capacity (SD card not included)..MicroscopeThe Omano OM10K zoom microscope provides 7x-45x zoom range with coarse/fine focus and click stops that enable the operator to dial in the exact same level of magnification for different specimens for easy comparison. Each microscope includes a 0.5x Barlow lens which enables maximum working distance of 6.75". An 80 LED ring light is included. Optional illumination upgrades include dual pipe LED or 64 and 144 LED ring illumination systems.StandThe Omano V3 pole stand's ergonomic design includes beveled leading edges for operator comfort. It features a tall, 12" vertical pole for extended working distances and a 12" x 12" base with rubber feet to protect your worktop. A safety collar and black/white contrast plate is also included.Camera AccessoriesAccessories include power supply, remote control, HDMI cable. Microscope AccessoriesIncluded 80 LED fluorescent ring light. Please note: Monitor not included.
    Feed - Custom Label 1 <100<100100-500100-500100-500
    Product Display
    New  Yes
    Illumination Type LEDLEDLEDLEDLED
    Light Specs
    Ring Light Type LEDLEDLEDLEDLED
    Ring Light Specification 90-265V Auto switching80 LED90-265V Auto switching 90-265V Auto switching
    Ring Light Power  8W
    Ring Light Control VariableVariableVariable Variable

  • 0.3X Barlow Lens For Omano OM10

    1.0X Barlow Lens For Omano OM10

    2.0X Barlow Lens For Omano OM10
    General
    Brand OmanoOmanoOmano
    SKU OMBL-10-03X-25OMBL-10-10X-25OMBL-10-20X-25
    Warranty Omano Limited Lifetime WarrantyOmano Limited Lifetime WarrantyOmano Limited Lifetime Warranty
    Notes New Type, compact Barlow designNew Type, compact Barlow designNew Type, compact Barlow design
    Backorder ETA Apr 30, 2015 Dec 29, 2015
    Feed - Title Omano 0.3X Barlow Lens For OM10
    Feed - Description Summary This industrial microscope inspection system combines the vivid, high-speed response of the new 1080PU series HDMI & USB2.0 digital microscope camera with our brand new Omano VIDZ-650 6X-50X zoom inspection lens and your choice of seven different Omano boom stands. The new Optixcam OCS-HDMI-1080PU brings simultaneous HDMI and USB2.0 output to professionals who require high-definition CMOS color microscopy documentation. Like its HDMI-output cousin (NH1080P), the 1080PU is an industrial-designed, stand-alone imaging solution offering 2.0MP still capture to an SD card or USB2.0 output, and 1080p video preview resolution with superb color reproduction and real-time frame rates of 60 fps via HDMI, or 30 fps via USB2.0 or SD card output. Camera Features HDMI (High-Definition Multimedia Interface) technology brings a number of key benefits to digital microscopy, including richer color definition, better signal integrity, greater bandwidth capacity, encryption protocols and high-definition video. The OCS-HDMI-1080PU offers this technology in an affordable and versatile package for the biology classroom, industrial inspection line or clinical teaching laboratory. The camera offers direct streaming to an HDMI monitor without the complexity of computer software, making it an ideal imaging solution for fast-paced industrial environments and assembly line inspection stations. Mounting & Controls The OCS-HDMI-1080PU is specifically designed to enhance the Omano line of stereo inspection systems, with a robust metal housing, C/CS Mount and two useful tripod screw attachment points. Improved functionality includes on-screen controls with intuitive, menu-driven buttons for RGB adjustment, White Balance, red and green cross-hair cursor symbology and Auto Exposure. Note: The SK2-CA037X camera adapter will be needed when mounting the NH1080 camera to any microscope with a smooth bore 23mm optical tube. Processing & Output The camera has fast white balance correction for excellent color reproduction and a 2.0MP maximum output resolution of 1920 x 1080 in BMP format. With 60 FPS live HDMI response rate, the OCS-HDMI-1080PU quickly reacts to changing lighting conditions in any life science, clinical or material application, sending a sharp video output to an HDMI monitor. For researchers needing in-depth image analysis, the camera also offers traditional USB2.0 output to a pc or mac operating environment for a host of processing options including 2-dimensional measurement, image stitching, extended depth of focus, segmentation, stacking and color composition. A tethered cable enables remote capture of still images to an SD card, sold separately. Microscope Features The Omano OM10K zoom microscope provides 7x-45x zoom range with coarse/fine focus and click stops that enable the operator to dial in the exact same level of magnification for different specimens for easy comparison. Each microscope also includes a 0.5x Barlow lens which enables maximum working distance of 6.75". Microscope Stand The Omano V3 pole stand's ergonomic design includes beveled leading edges for operator comfort. It features a tall, 12" vertical pole for extended working distances and a 12" x 12" base with rubber feet to protect your worktop. A safety collar and black/white contrast plate is also included. Camera Accessories Accessories include USB mouse, HDMI cable, USB2.0 cable, AC power supply, Software CD with manual and SDK. Camera dimensions: 3 x 2.75 X 3.6". dimensions: 10 X 6 X 3", 2 LBs. Microscope Accessories Accessories include OM10K zoom lens, 80LED Ring illuminator, focus block, V3 stand. details: 20 x 13 x 10", 12 Lb.
    Feed - Custom Label 1 <100
    Compatible With OM10OM10OM10
    Optical Accessory
    Barlow Lens Power 0.3X1.0X
